ICON 0-3″ Front Coilovers for 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015 Toyota Tacoma

Part: 58630

Featuring a 2.5” nitrogen-charged race style shock that delivers a great ride both on and off the road.

The system allows an additional 0-3” lift to provide clearance for larger tires.

out of the box the 58630 has 1.25″ of exposed threads and max recommended is 2.13″ of exposed threads. Ride height should be about 2-2.5″ out of the box

Overview:

These adjustable coilover shocks have proven their strength and longevity for years on end and they keep going. These shocks offer the best ride quality and handling. They increase suspension travel and dramatically increase the capabilities of your Tacoma’s front suspension. These coilovers come complete with all the hardware necessary to complete the installation as well as a sway bar relocation bracket kit to adjust the location of the sway bar to clear the larger shock. Recommended tire size 285/75R16, wheel 16X8 with 5″ back spacing.

Technical Specs:

  • Adjustable ride height from 0-3″
  • Race shock piston with flutter stack compression valving
  • Kit Includes Sway bar relocation brackets
  • Cad-plated threaded body / Extreme Weather Plating Option Available
  • Billet aluminum upper mount
  • 5/8″ PTFE-lined spherical bearing
  • Completely re-buildable
  • 2.5″ shock diameter to prevent overheating
  • Chrome-silicon spring
  • 250 PSI nitrogen-charged internal reservoir
  • Made in the USA
  • Nitro-steel shaft will not chip or rust like chrome shafts
Installation instructions from our customer:

Will Fit:

Toyota Tacoma 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015

3129

on

Complete Old Man Emu / ARB suspension for Toyota Tacoma 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015

Part: ARBT05

Need them assembled?

Includes:

  • Front Shocks:
    • Front OME 93000 Nitro+ New (2024 version) shocks
  • Front coils:
    • 4002 Coils – together with new shocks they can help achieve desired height to handle the extra weight in the front. Average lift is 2″

Rear Lift – Choose Standard or Heavy

  • EL111R (old: EL095R) – Standard Dakar Leaf Pack – Approximately 2.5″ of lift
  • EL112R (old:EL096R) – Heavy Dakar Leaf Pack – 300 Kgs/661 Lbs. Constant Load –  Approximately 2.5″ of lift
  • 1.5″ Add a Leaf
  • Also Includes:
    • Rear OME Nitrocharger Sport 60091 shocks
    • Choose Front diff drop kit for 4×4 models from drop down
    • FK29 – Rear carrier bearing drop fit kit
  • Optional Stone Guards to help protect the rear shocks from stone chip damage and to help maintain the finish.

Front Shocks clips:

  • Stock Weight 2″ Lift (Clip 2/1)
  • Alloy Bull Bar Only 2″ Lift (Clip 3/2)
  • Steel Bull Bar Only 2″ Lift (Clip 4/3)
  • Bull Bar & Winch 2″ Lift (Clip 5/4)
  • Bull Bar, Winch & Accessories 2″ Lift (Clip 5)

*This kit will not work on a 2wd 5-Lug Tacoma.

Download OME complete suspension installation instructions

82472

on

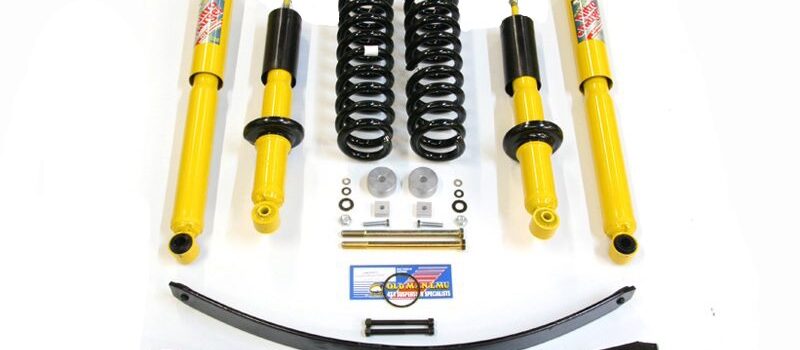

ARB/OME 2-3″ Lift Kit for 2007-2009 FJ Cruiser and 2003, 2004, 2005, 2006, 2007, 2008, 2009 4Runner

Part: OME-FJ4R

The relationship between vehicle weight and suspension is where Old Man Emu gets its name – the emu is a large Australian flightless bird, when it runs, its powerful legs absorb most of the impact, allowing it to move over all types of terrain while its body remains virtually motionless. This is what Old Man Emu strives to achieve with its range of fully integrated 4×4 shocks and suspension systems. Old Man Emu suspension systems include carefully matched spring and shock combinations engineered to improve vehicle ride, handling and control under various loads.

This kit has been specifically designed for your 4Runner or FJ and has been proven in the harsh conditions of the Australian Outback.

Front coils: 4001 (newer design for all purposes)

Select weight settings from options:

  • Stock Weight 2″ Lift (Clip 2/1)
  • Alloy Bull Bar Only 2″ Lift (Clip 3/2)
  • Steel Bull Bar Only 2″ Lift (Clip 4/3)
  • Bull Bar & Winch 2″ Lift (Clip 5/4)
  • Bull Bar, Winch & Accessories 2″ Lift (Clip 5)

Rear coils: Choose one option in dropdown:

  • OME 2895E: Medium 1.5 inch lift coils. Select 60004 rear shocks
  • OME 2895: Medium 2 inch lift coils. Select 60004 rear shocks
  • OME 2896: Constant Load Heavy 2 inch lift coils. Select 60004 rear shocks

Includes 93000 Nitro+ Front Shocks with newer design. Shocks come with 2 rings each that can be positioned upside down deoending on your vehicle’s weight configuration. Instructions manual will show you how to properly install them

NOTE: Med and Heavy coils are rated to handle additional weight from aftermarket bumpers, winches, and accessories and should NOT be used without stated weight already in or installed at all times. All lift figures are based on averages.

OME Suspension Lift Kit for ’07, ’08, ’09 FJ and ’03, ’04, ’05, ’06, ’07, ’08, ’09 4Runner

OME Lift Kit installation instructions for FJ/4Runner 03-09
