Zone Offroad 6″ IFS Knuckle and Bracket Kit Lift Kit 2001-2010 Chevy/GMC 2WD

Description
Zone Offroad 6″ IFS Knuckle and Bracket Kit Lift Kit 2001-2010 Chevy/GMC 2WD

Zone Offroad 6″ IFS Knuckle & Bracket Kit Lift Kit 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010 Chevy/GMC 2WD

Part: C5

The Zone Offroad Products 6″ suspension lift kit for 2001-06 Chevrolet/GMC Silverado/Sierra 1500HD/2500 & 2001-10 2500HD 2wd pickup trucks is built for everyday driving but sturdy enough for offroad abuse.

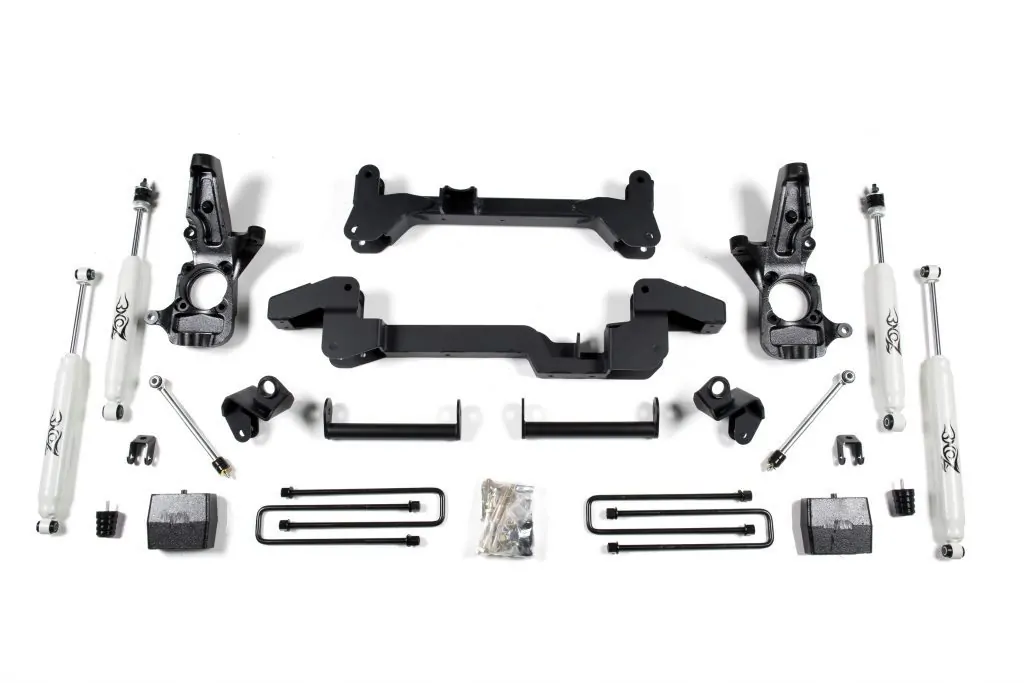

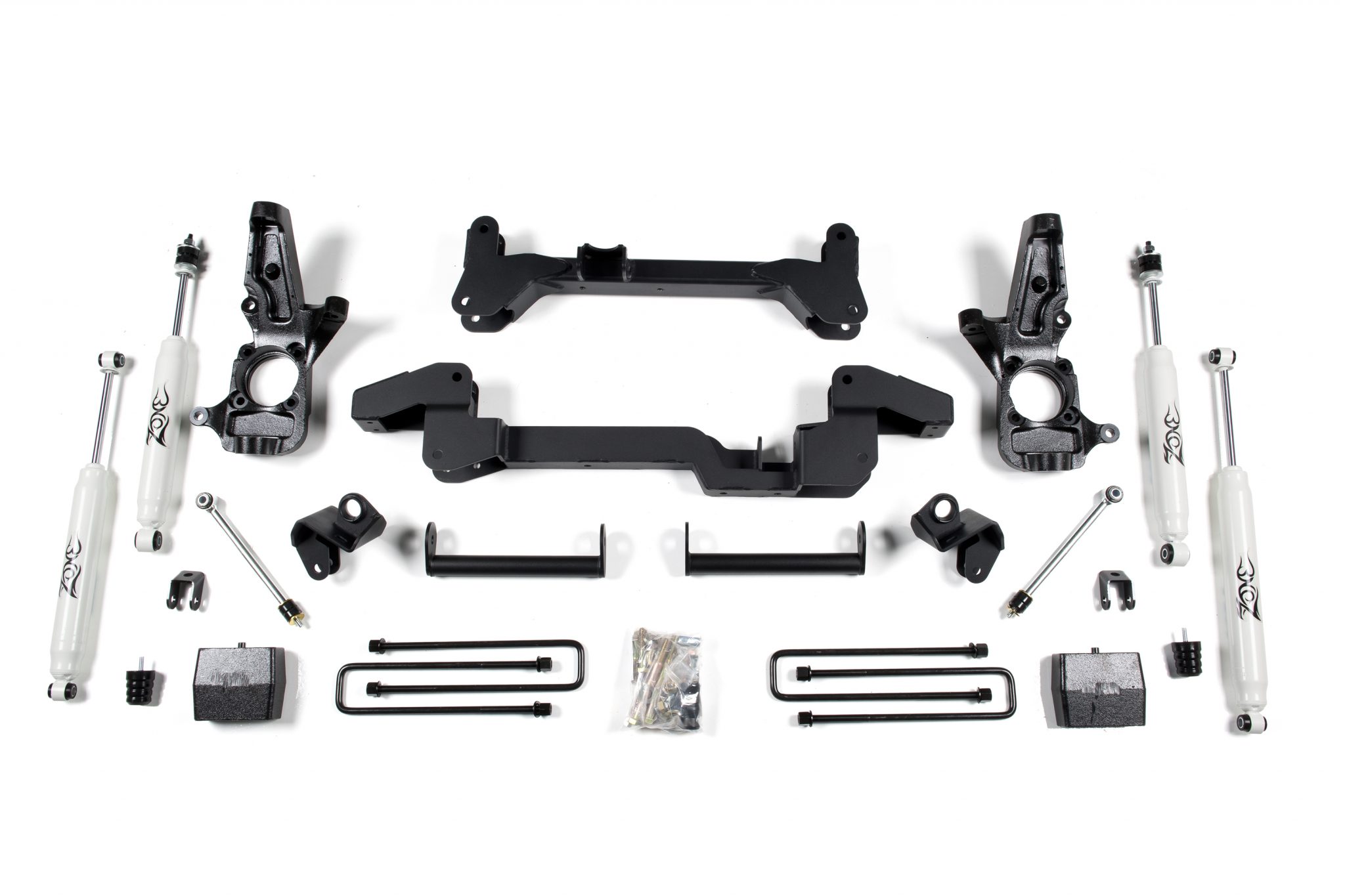

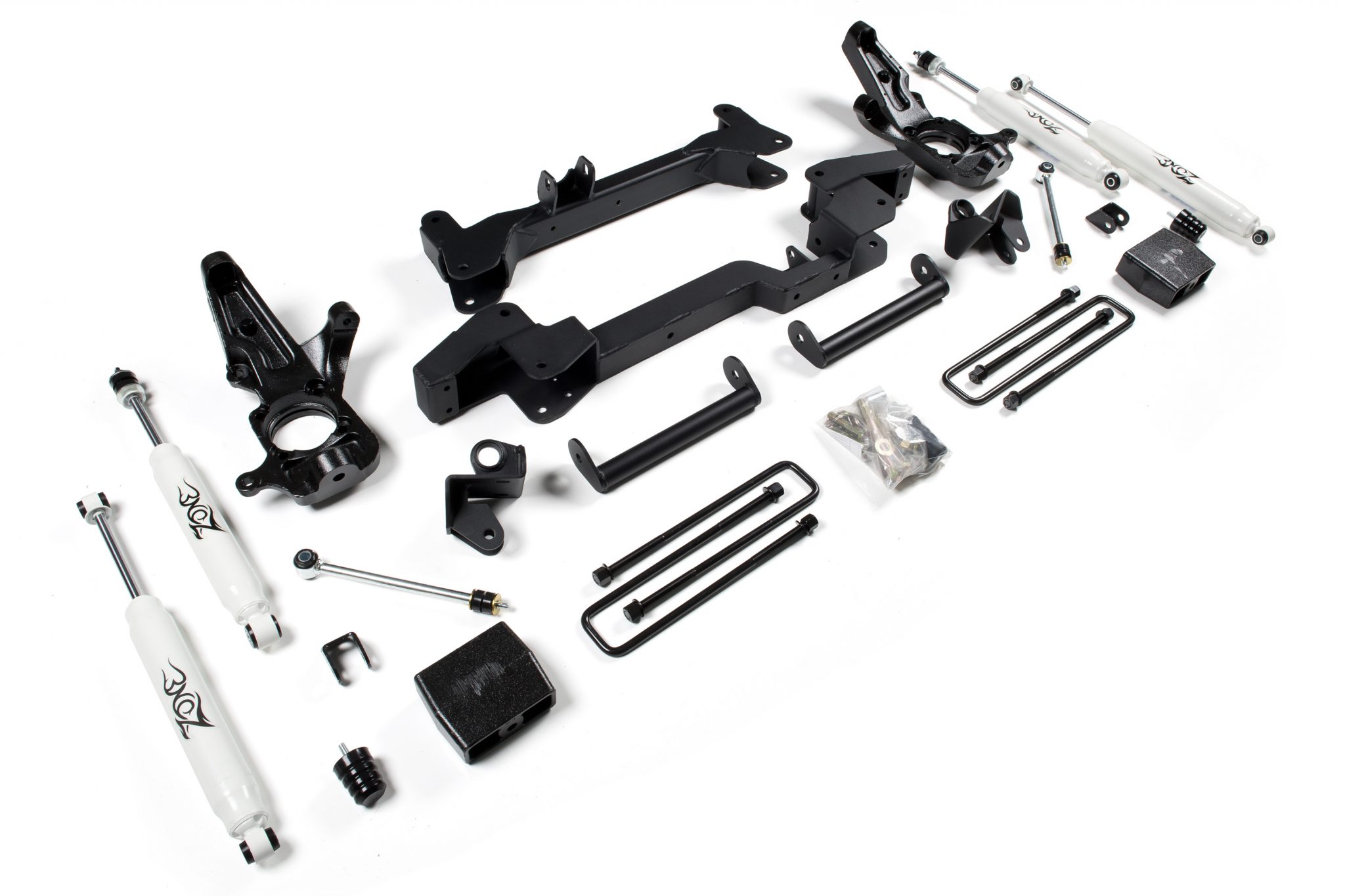

The one piece main crossmembers in combination with the CNC machined ductile steering knuckles match the factory geometry for excellent ride and handling. The crossmembers are locked together with strut braces to acheive ideal subframe strength for the heavy duty use of your truck. Complete with torsion bar brackets, sway bar links, rear blocks, u-bolts and twin tube hydraulic shocks for a smooth ride. If quality, performance and value are what you demand, then look no further.

Featured Technology & Benefits

• One piece 1/4″ steel crossmembers
• Designed based on the factory geometry to acheive factory like ride quality and handling
• CNC machined ductile iron steering knuckles
• Not some cheap import – Over 95% made in America with quality North American Steel
• Rear block kit for easy installation

Important Notes!

• Torsion bar unloading/loading tool required.
• To reduce trimming on new body style HD’s 20″ wheels with 5 3/4″ backspacing recommended.
• Gas models required minor exhaust modification to clear front driveshaft.
• Although unusual, some models with a carrier bearing may experience driveline vibration. If this occurs, order appropriate carrier bearing drop listed in the accessories.
• Not designed for dually models

This product fits the following applications:

• 2001 Chevy 1500HD Pickup 2WD
• 2002 Chevy 1500HD Pickup 2WD
• 2003 Chevy 1500HD Pickup 2WD
• 2004 Chevy 1500HD Pickup 2WD
• 2005 Chevy 1500HD Pickup 2WD
• 2006 Chevy 1500HD Pickup 2WD
• 2001 Chevy 2500 Pickup 2WD
• 2002 Chevy 2500 Pickup 2WD
• 2003 Chevy 2500 Pickup 2WD
• 2004 Chevy 2500 Pickup 2WD
• 2005 Chevy 2500 Pickup 2WD
• 2006 Chevy 2500 Pickup 2WD
• 2007 Chevy 2500 Pickup 2WD
• 2008 Chevy 2500 Pickup 2WD
• 2009 Chevy 2500 Pickup 2WD
• 2010 Chevy 2500 Pickup 2WD
• 2001 Chevy 2500HD Pickup 2WD
• 2002 Chevy 2500HD Pickup 2WD
• 2003 Chevy 2500HD Pickup 2WD
• 2004 Chevy 2500HD Pickup 2WD
• 2005 Chevy 2500HD Pickup 2WD
• 2006 Chevy 2500HD Pickup 2WD
• 2007 Chevy 2500HD Pickup 2WD
• 2008 Chevy 2500HD Pickup 2WD
• 2009 Chevy 2500HD Pickup 2WD
• 2010 Chevy 2500HD Pickup 2WD
• 2001 GMC 2500 Pickup 2WD
• 2002 GMC 2500 Pickup 2WD
• 2003 GMC 2500 Pickup 2WD
• 2004 GMC 2500 Pickup 2WD
• 2005 GMC 2500 Pickup 2WD
• 2006 GMC 2500 Pickup 2WD
• 2007 GMC 2500 Pickup 2WD
• 2008 GMC 2500 Pickup 2WD
• 2009 GMC 2500 Pickup 2WD
• 2010 GMC 2500 Pickup 2WD
• 2001 GMC 2500HD Pickup 2WD
• 2002 GMC 2500HD Pickup 2WD
• 2003 GMC 2500HD Pickup 2WD
• 2004 GMC 2500HD Pickup 2WD
• 2005 GMC 2500HD Pickup 2WD
• 2006 GMC 2500HD Pickup 2WD
• 2007 GMC 2500HD Pickup 2WD
• 2008 GMC 2500HD Pickup 2WD
• 2009 GMC 2500HD Pickup 2WD
• 2010 GMC 2500HD Pickup 2WD

Quick Specs

• Front Lift Height: 6″
• Front Lift Method: IFS Knuckle & Bracket Kit
• Rear Lift Height: 5″
• Rear Lift Method: Block Kit
• Install Time Hrs: 6-8
• Difficulty Level 1-5: 3
• Wheel Size: 16 x 8
• Back Spacing: 4.5
• Max Tire Size: 35 X 12.50
• Wheel Size: 17 or 18 x 9
• Back Spacing: 5-5.5
• Max Tire Size: 35×12.50
• Wheel Size: 20 x 9
• Back Spacing: 5.75
• Max Tire Size: 35×12.50
