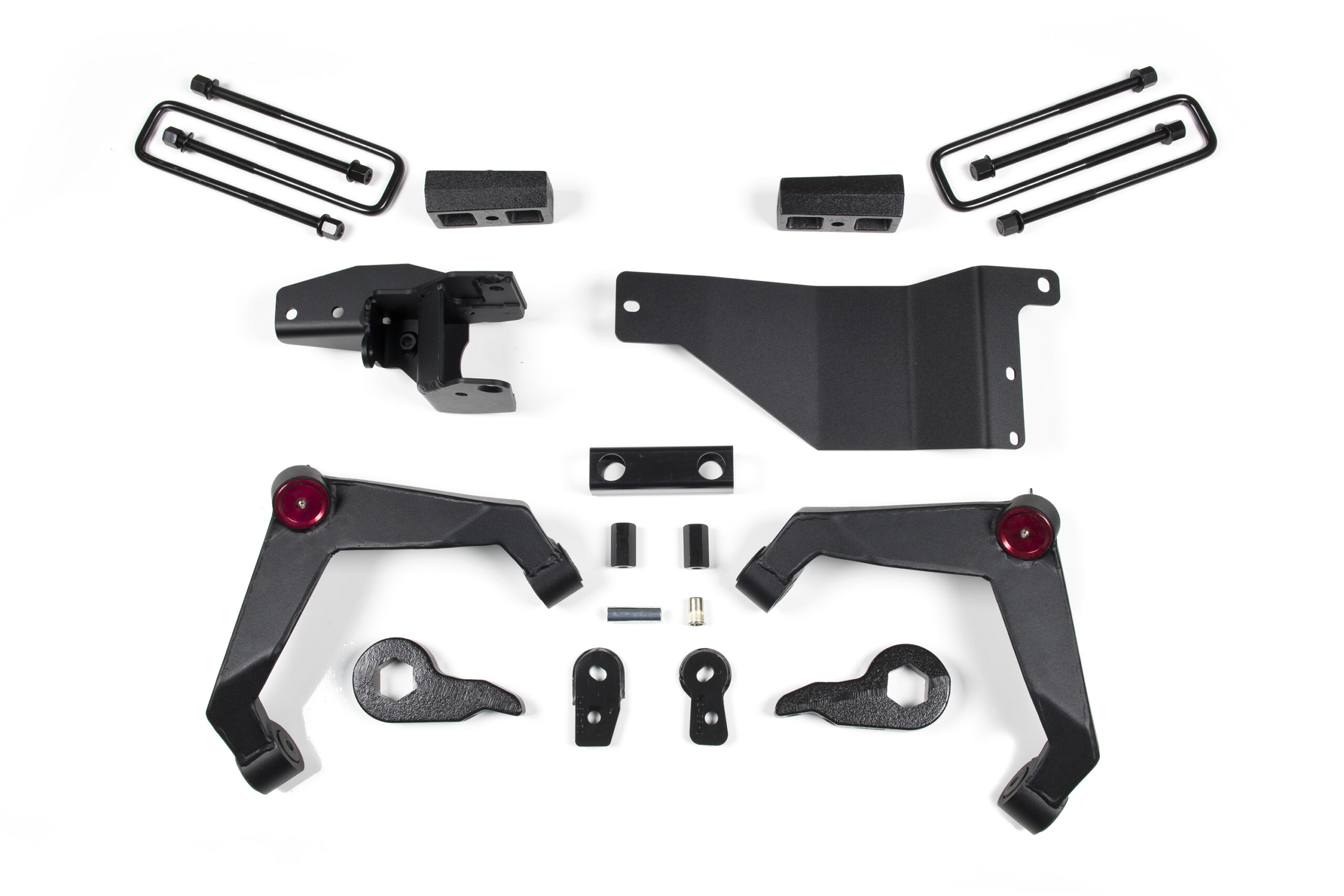

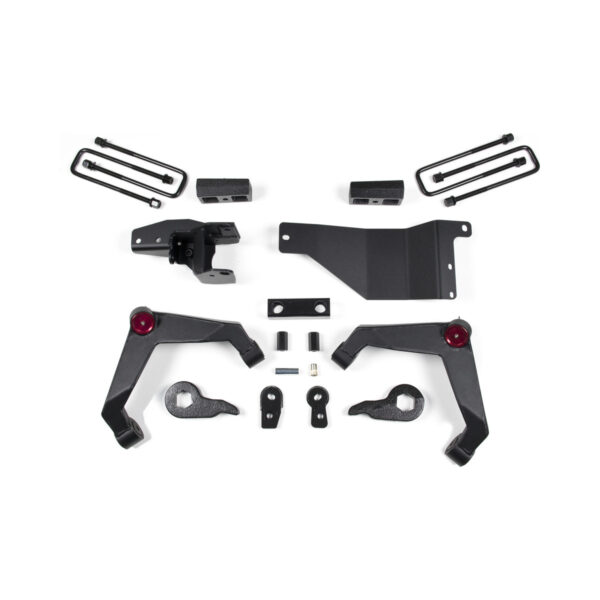

Zone Offroad 3″ Upper Control Arms Lift Kit 2001-2010 Chevy/GMC 2500/3500HD 4WD
Sale!
Description
Zone Offroad 3″ Upper Control Arms Lift Kit 2001-2010 Chevy/GMC 2500/3500HD 4WD
Zone Offroad 3″ Upper Control Arms Lift Kit 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010 Chevy/GMC 2500/3500HD 4WD
Part:Â C31/C32
Need a kit with Bilstein 5100 Shocks?
- Sale!
Zone Offroad 3″ UCA Lift Kit with Bilstein 5100 Shocks for 2001-2010 Chevy/GMC 2500/3500HD 4WD
(0 reviews)Base Price: Original price was: $1,273.24.$1,145.92Current price is: $1,145.92.
Zone Offroad 2001-2010 Chevy 2500/3500HD 3″ Adventure Series Lift System.
This new addition to the Adventure Series lineup of lift systems is built around the Zone Offroad heavy-duty replacement upper control arms already available for the 01-10 HD trucks. The arms are made from 3/16″ steel that is precision laser cut, formed and fully welded. Preinstalled MOOG brand ball joints and rubber bushings provide an easy installation and long service life. The ball joint is repositioned to compensate for the added lift and maintain a neutral position at ride height. To complement the improved upper ball joint angles, the kit address the other area often ignored at this lift height – the CV shafts.
The new Adventure Series kit for the 01-10 HDs includes a full differential drop system that relocates the differential down 2″ for near stock angles at the 3″ lift height. This is accomplished with a drop spacer on the passenger’s side, (2) drop brackets for the front driver’s mount and a integrated “half crossmember” for the driver’s rear mount. A new different skid plate is included to protect the differential in its new position. The rear is lifted via a 2″ block and u-bolts.
Choice of various front and rear shocks from drop down menu.
Featured Technology & Benefits
- Fully welded, heavy duty upper control arms that dwarf the factory arms.
- Preinstalled replaceable MOOG brand ball joints and rubber bushings.
- Reposititioned ball joints to maintain a nuetral angle with added lift.
- Full differential drop system included to maintain proper CV shaft angles.
- Differential skid plate included.
- Rear height is adjusted with 2″ blocks.
Important Notes!
- Frame bracket mount modification required
- Torsion bar unloading/loading tool required
- Will not fit dually models
- To determine which kit # is required, verify which RPO codes are shown in the glovebox to determine the factory installed torsion keys. Any of the following RPO codes require the C1202/C1212/C31 kits: FT2 – FT3 – FT4 – FT5 – FT6 – FT7. Any of the following RPO codes require the C1203/C1213/C32 kits: FK2 – FK3 – FF6 – FF7 – FF8 – FF9.
Any of the following RPO codes require the C32 kit: FK2 – FK3 – FF6 – FF7 – FF8 – FF9
Click thumbnail to view larger RPO Code Sample image. - Not recommended for 2500 non-HD models (Suburban/Silverado/Sierra)
This product fits the following applications:
- 2001 Chevy 2500HD Pickup 4WD
- 2002 Chevy 2500HD Pickup 4WD
- 2003 Chevy 2500HD Pickup 4WD
- 2004 Chevy 2500HD Pickup 4WD
- 2005 Chevy 2500HD Pickup 4WD
- 2006 Chevy 2500HD Pickup 4WD
- 2007 Chevy 2500HD Pickup 4WD
- 2008 Chevy 2500HD Pickup 4WD
- 2009 Chevy 2500HD Pickup 4WD
- 2010 Chevy 2500HD Pickup 4WD
- 2001 Chevy 3500HD Pickup 4WD
- 2002 Chevy 3500HD Pickup 4WD
- 2003 Chevy 3500HD Pickup 4WD
- 2004 Chevy 3500HD Pickup 4WD
- 2005 Chevy 3500HD Pickup 4WD
- 2006 Chevy 3500HD Pickup 4WD
- 2007 Chevy 3500HD Pickup 4WD
- 2008 Chevy 3500HD Pickup 4WD
- 2009 Chevy 3500HD Pickup 4WD
- 2010 Chevy 3500HD Pickup 4WD
- 2001 GMC 2500HD Pickup 4WD
- 2002 GMC 2500HD Pickup 4WD
- 2003 GMC 2500HD Pickup 4WD
- 2004 GMC 2500HD Pickup 4WD
- 2005 GMC 2500HD Pickup 4WD
- 2006 GMC 2500HD Pickup 4WD
- 2007 GMC 2500HD Pickup 4WD
- 2008 GMC 2500HD Pickup 4WD
- 2009 GMC 2500HD Pickup 4WD
- 2010 GMC 2500HD Pickup 4WD
- 2001 GMC 3500HD Pickup 4WD
- 2002 GMC 3500HD Pickup 4WD
- 2003 GMC 3500HD Pickup 4WD
- 2004 GMC 3500HD Pickup 4WD
- 2005 GMC 3500HD Pickup 4WD
- 2006 GMC 3500HD Pickup 4WD
- 2007 GMC 3500HD Pickup 4WD
- 2008 GMC 3500HD Pickup 4WD
- 2009 GMC 3500HD Pickup 4WD
- 2010 GMC 3500HD Pickup 4WD
Quick Specs
- Front Lift Height: 3
- Front Lift Method: Upper Control Arms
- Rear Lift Height: 2
- Rear Lift Method: Block
- Install Time Hrs: 3-4
- Difficulty Level 1-5: 3
- Wheel Size: 17″
- Back Spacing: 5″
- Max Tire Size: 33 x 12.50
Questions and answers of the customers
-
This says HD only but the RPO code is correct. So does this fit a 2002 Avalanche 2500?
- A Yes will fit. 2500 chassis is considered HDIt says that this will not work on a Dually truck. Can I ask what is different and why it will not work?
- QIt says that this will not work on a Dually truck. Can I ask what is different and why it will no...... Read more answer nowA The front part will be good.as for the rear - duallys usually have different leaf springs and wider u-bolts need to be custom sourced somewhere (we don't have them)I have a 2007 Silverado 1500HD classic quad cad . Which 3in kit will fit my truck and which RPO code do I use?
- QI have a 2007 Silverado 1500HD classic quad cad . Which 3in kit will fit my truck and which RPO c...... Read moreThere are no answers for this question yet. Answer nowCan I use the stock Rims
- A yes you canWheel Size: 17″ Back Spacing: 5″ Max Tire Size: 33 x 12.50https://4x4media.info/instructions/zon/C2301.pdfWill this lift kit maintain ride quality in a 2005 2500 HD? I want to put bigger wheels and tires on but I do not want to ride like a ford or dodge 3/4t. Also what does it mean by lift method upper control arms?
- QWill this lift kit maintain ride quality in a 2005 2500 HD? I want to put bigger wheels and tires...... Read more answer nowA It means that wheel uptravel increases to accomodate bigger wheels.Ride quality is pretty subjective, but we can say it'll be much better then using spacers.I have a 2009 chevy silverado 2500 hd with factory 17 inch rims will they work with this kit. The 5 inch backspacing is what I am concerned about.
- QI have a 2009 chevy silverado 2500 hd with factory 17 inch rims will they work with this kit. The...... Read moreThere are no answers for this question yet. Answer nowWhen I looked in the glove box the rpo code is JH6. I don't see any of the code2 listed. I have ano 06 silverado 3500 4x4. Will this lift fit
- QWhen I looked in the glove box the rpo code is JH6. I don't see any of the code2 listed. I have a...... Read moreThere are no answers for this question yet. Answer nowOn the frame bracket Mount modification does that include having to be welded in a different spot where does the kit come with the modified bracket
- QOn the frame bracket Mount modification does that include having to be welded in a different spot...... Read more answer nowA It recommends a weld but it suplys a bolt for it you do have to drop diif all the way and cut 2 inches off your frame to fit new mount.
ATTENTION STATE OF CALIFORNIA CONSUMERS. WARNING: Cancer and reproductive harm – www.p65warnings.ca.gov
Related products
- Sale!

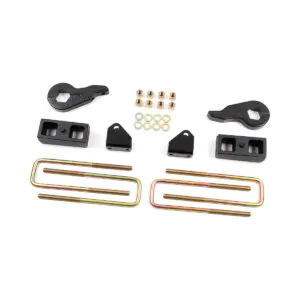

Zone Offroad 2″ Torsion Bar Keys Leveling Kit 2001-2010 Chevy / GMC 2500 3500
