Cognito 7-9 Inch Non-Torsion Bar Drop Front Suspension Lift Kit For 11-12 Silverado/Sierra 2500HD/3500HD 2WD Non-Stabilitrak

Description
Cognito 7-9 Inch Non-Torsion Bar Drop Front Suspension Lift Kit For 11-12 Silverado/Sierra 2500HD/3500HD 2WD Non-Stabilitrak

Cognito 7-9 Inch Non-Torsion Bar Drop Front Suspension Lift Kit For 11-12 Silverado/Sierra 2500HD/3500HD 2WD Non-Stabilitrak

Part: 110-K0536

Cognito 7-9 Inch Front Suspension Lift Kit for 11-12 Chevrolet and GMC 2500HD/3500HD 2WD trucks (non-StabiliTrak). When set to the 7 Inch height the vehicle will retain the stock (original) tie rod angles. When adjusted to the 9 Inch height there will be a slight angle increase at the tie rods.

This kit is a non-torsion bar drop design which keeps the torsion bars in their original location rather than hanging down under the chassis. Front track width is increased by 1.2 Inch per side in order to retain proper caster settings and functional electronic stabilizing control (if StabiliTrak equipped).

We’ve incorporated a front skid plate that ties the included Cognito front and rear cross members together for added rigidity. This kit also includes our patented Cognito Pitman and Idler Arm Support Kit-a must-have upgrade that corrects a design flaw in Chevy and GMC truck steering systems.

Sway bar end links and all required mounting hardware are included, and all steel bracketry is finished in semi-gloss black powder coating. Extended stainless steel braided brake lines are required and included. This kit is not a complete lift package, so it does not include shocks or rear suspension lift components.

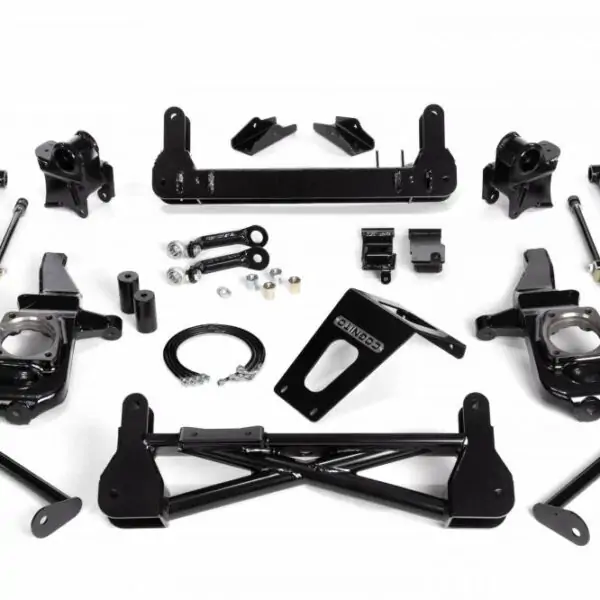

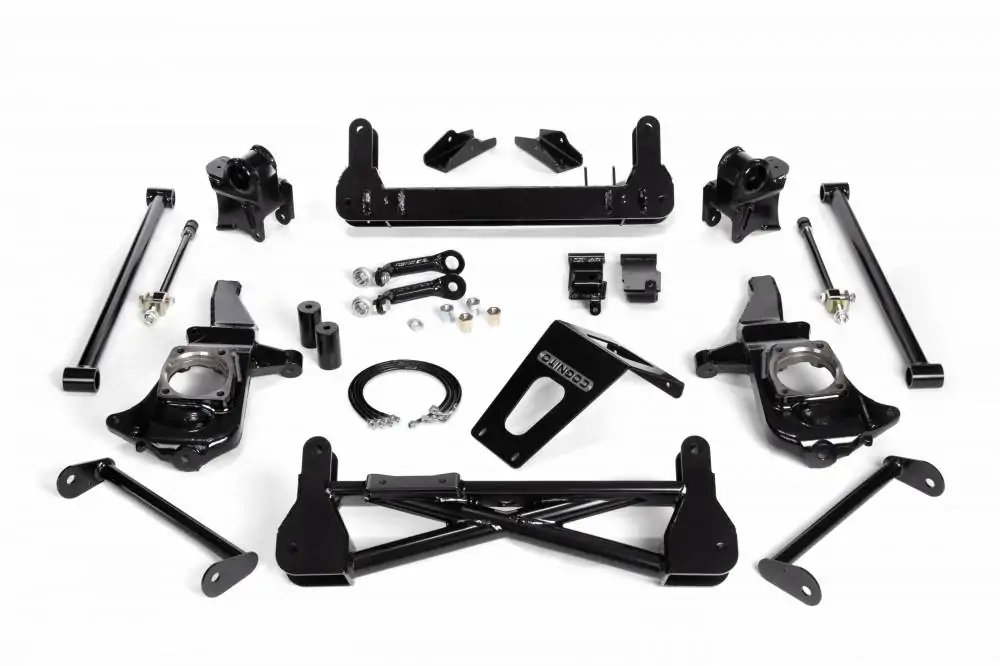

Includes:

• Skid Plate
• Front and rear cross members
• Cognito Pitman and Idler Arm Support Kit
• Sway bar end links
• All required mounting hardware

Details:

• 7-9 Inch Non-Torsion Bar Drop Front Suspension Lift Kit for 11-12 GM 2500HD/3500HD 2WD Trucks (non-StabiliTrak)
• Color: Semi-Gloss Black
• Finish: Powdercoat
• Drive: 2WD
• Location: Front
• Lift Height: 7-9 Inch
• Warranty: Limited Lifetime Warranty
• Fits: 11-12 GM 2500HD/3500HD 2WD Trucks (non-StabiliTrak)

Notes:

• This kit is not a complete lift package, so it does not include shocks or rear suspension lift components.
