ReadyLift 2.25″ Front Leveling Kit System with Heavy-Duty Fab Control Arms for 2011-2019 Chevy/GM 2500/3500 HD 2WD/4WD

Name: ReadyLift 2.25" Front Leveling Kit System with Heavy-Duty Fab Control Arms for 2011-2019 Chevy/GM 2500/3500 HD 2WD/4WD
Brand: ReadyLift
SKU: 66-3012
Availability: InStock

SKU: 66-3012

ReadyLift 2.25 Front Leveling Kit System with Heavy-Duty Fab Control Arms for 2011-2019 Chevy-GM 2500-3500 HD 2WD-4WD 66-3012

ReadyLift 2.25 Front Leveling Kit System with Heavy-Duty Fab Control Arms for 2011-2019 Chevy-GM 2500-3500 HD 2WD-4WD

Description
ReadyLift 2.25″ Front Leveling Kit System with Heavy-Duty Fab Control Arms for 2011-2019 Chevy/GM 2500/3500 HD 2WD/4WD

ReadyLift 2.25″ Front Leveling Kit System with Heavy-Duty Fab Control Arms for 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019 Chevy/GM 2500/3500 HD 2WD/4WD

Part: 66-3012

ReadyLIFT offers our popular 2011-2019 GM 2500/3500 HD forged torsion key leveling kit with our all-new heavy-duty fabricated steel upper control arms. Our time-tested torsion key leveling kit is the strongest, safest leveling key system on the market for GM 2011-2019 2500/3500HD platform. Combine our leveling kit with these new ultra-strong fabricated boxed upper control arms with 1-ton ball joints and you have an excellent leveling option at a great price!

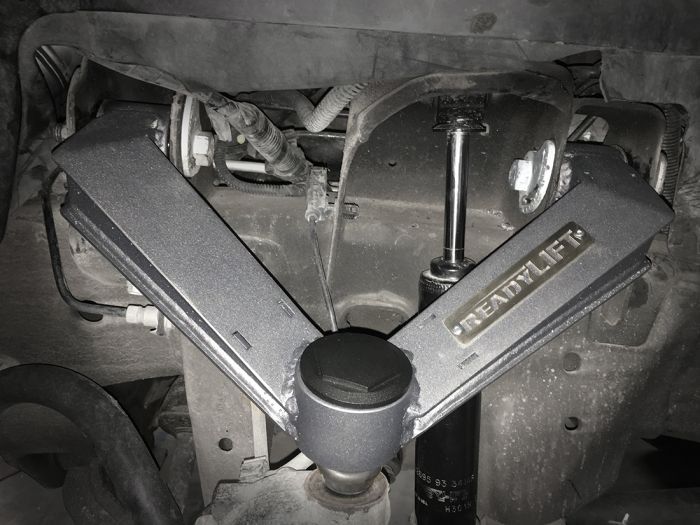

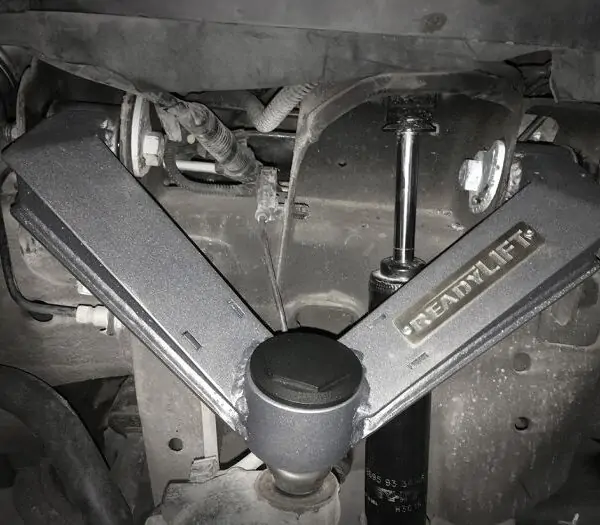

The ReadyLIFT 44-3100 Extreme-Duty Upper Control Arms for 2011-2019 GM 2500/3500 HD trucks uses our time-tested fabricated steel design technology. Laser cut and CNC bent .125 4130 chromoly plate steel precision construction creates an incredibly strong package engineered to be used on trucks with 0″-8″ of lift. The critical pivot points are maintenance-free and extremely durable for long-lasting use. Our 1-ton spring loaded HD series ball joints maintain the factory driving experience and can take a beating from the excessive weight of heavy aftermarket wheels and tires. To protect the joint from nasty road debris such as salt and sand, our arms include CNC machined billet aluminum caps which helps extend the life of the ball joints.

Frame side pivots feature our proprietary new TCT bushings which are self-lubricating and engineered to last. These new bushing include “side biter” washers to aid in maintaining alignment settings. The free-floating bushing design eliminates friction which is the most common culprit of traditional bushing failure.

Each ReadyLIFT Extreme-Duty Upper Control Arm features a rugged Anthracite Gray powder coat finish along with stainless steel ReadyLIFT brand arm badge. These new arms are sure to start a new revolution in upper control arm expectations. Now is your chance to be the first to offer them to your customers who really do need a better UCA!

Features & Benefits:

Correct ball joint pivot angle for lifted or leveled applications.

Tab and slot boxed 4130 chromoly plate steel design increases overall strength and durability.

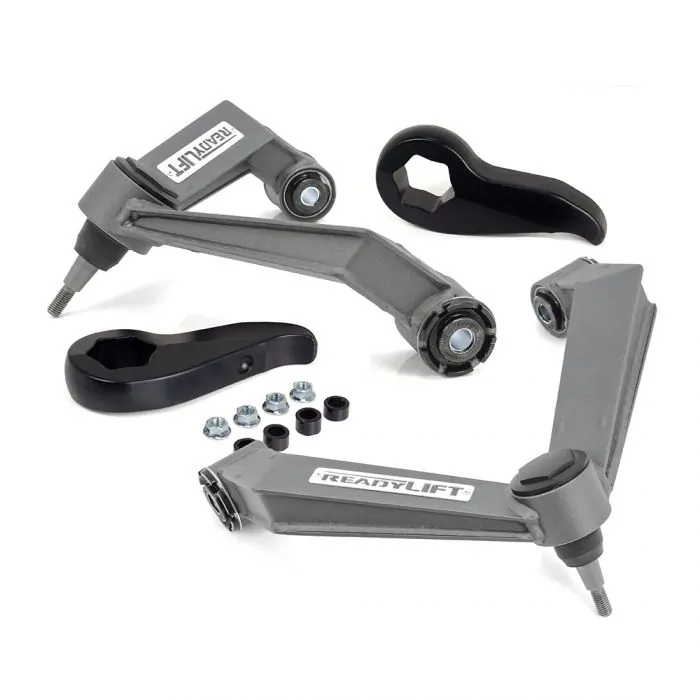

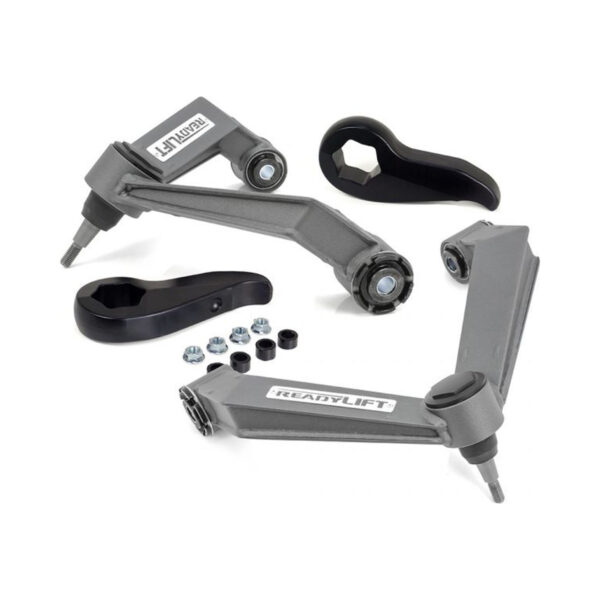

Kit Components:

Forged torsion key leveling kit with shock spacers
Heavy-duty fabricated steel upper control arms

Installation:

SAEJ2492 Warning: By installing this product, you acknowledge that the suspension of this vehicle has been modified. As a result, this vehicle may handle differently than that of factory-equipped vehicles. As with any vehicle, extreme care must be used to prevent loss of control or roll-over during sharp turns or abrupt maneuvers. Always wear seat belts, and drive safely, recognizing that reduced speeds and specialized driving techniques may be required. Failure to drive this vehicle safely may result in serious injury or death. Do not drive this vehicle unless you are familiar with its unique handling characteristics and are confident of your ability to maintain control under all driving conditions. Some modifications (and combinations of modifications) are not recommended and may not be permitted in your state. Consult your owner’s manual, the instructions accompanying this product, and state laws before undertaking these modifications. You are responsible for the legality and safety of the vehicle you modify using these components.

DO IT YOURSELF!

Please read Instructions thoroughly and completely before beginning installation. Installation by a certified mechanic is recommended. ReadyLIFT Suspension Inc. is NOT responsible for any damage or failure resulting from improper installation.

Download Pdf Instructions
