Bilstein 5100 Front 2-2.5″ and Rear 0-1″ shocks for 2002-2006 Chevrolet Avalanche 1500

Description
Bilstein 5100 Front 2-2.5″ and Rear 0-1″ shocks for 2002-2006 Chevrolet Avalanche 1500

Bilstein 5100 Front 2-2.5″ and Rear 0-1″ shocks for 2002, 2003, 2004, 2005, 2006 Chevrolet Avalanche 1500

Excludes Electronic Suspension; Front Lifted Height: 2-2.5″; Torsion Key Lift
Excludes Electronic Suspension; If vehicle is equipped with ZW7 Premium Smooth Ride Nivomat Suspension you must purchase Bilstein spring part number 199020 in addition to the damper; Rear Lifted Height: 0-1″; Rear Lifted Height: 5″ if using rear stock shock relocation bracket
Part number: 24-186643_24-187237

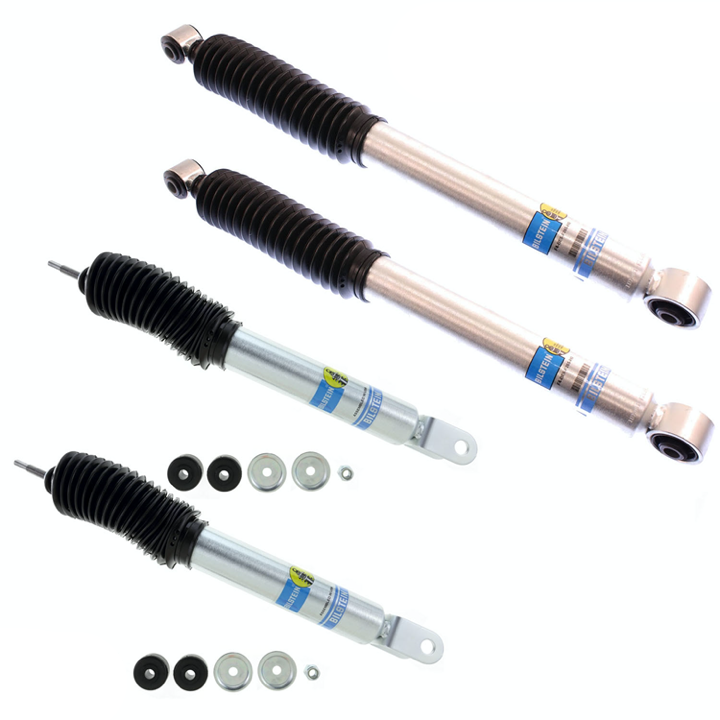

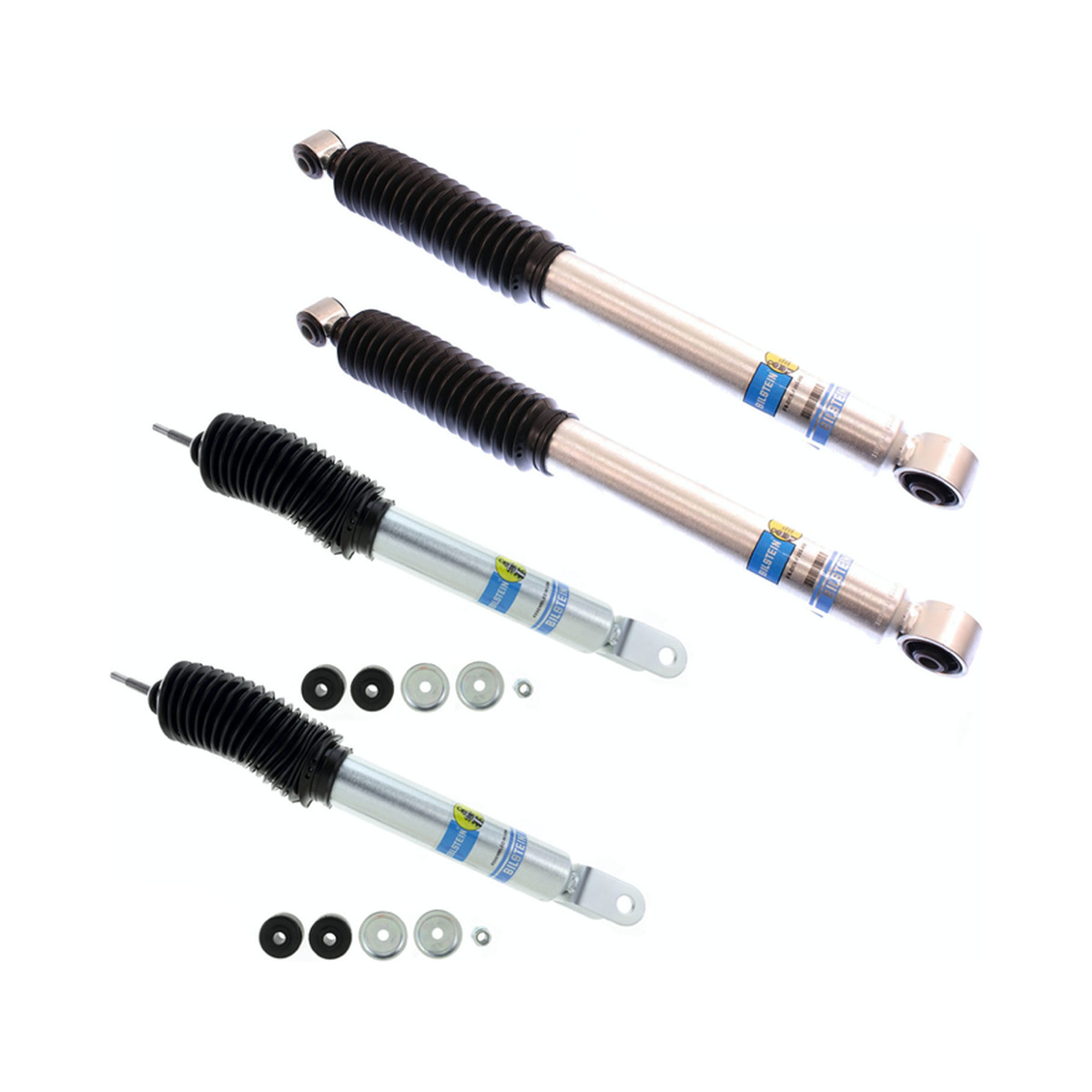

Includes: 2 front shocks and 2 rear shocks.

Front

Part number: 24-186643
Series: 5100
Extended length: 16.3 Inch
Compressed length: 12.54 Inch
Front Upper mounting: Stem
Front Lower mounting: Clevis
Type: Nitrogen Gas Charged
Internal design: Monotube
Adjustable: No
With reservoir: No
Valving type: Self-Adjusting Deflective Disc Valving

Includes dust shield: No
Includes hardware: Yes
Includes boot: Yes

Body color: Silver
Body material: Steel
Body diameter: 46mm
Front Rod diameter: 1.81 Inch
Rod finish: Polished
Rod material: Steel

Rear

Part number: 24-187237
Series: 5100
Extended length: 24.33 Inch
Compressed length: 15.55 Inch
Rear Upper mounting: Eyelet
Rear Lower mounting: Eyelet
Type: Nitrogen Gas Charged
Internal design: Monotube
Adjustable: No
With reservoir: No
Valving type: Self-Adjusting Deflective Disc Valving

Includes dust shield: No
Includes hardware: No
Includes boot: Yes

Body color: Silver
Body material: Steel
Body diameter: 46mm
Rear Rod diameter: 1.81 Inch
Rod finish: Polished
Rod material: Steel
