Bilstein 5100 Front 0-1.75″ and Rear 0-1″ shocks for 2007-2013 Chevrolet Avalanche

Description
Bilstein 5100 Front 0-1.75″ and Rear 0-1″ shocks for 2007-2013 Chevrolet Avalanche

Bilstein 5100 Front 0-1.75″ and Rear 0-1″ shocks for 2007, 2008, 2009, 2010, 2011, 2012, 2013 Chevrolet Avalanche
Base

Excludes Z55 Autoride Suspension Package; Adjustable Front Lifted Height: 0-1.75″
Excludes Z55 Autoride Suspension Package; Rear Lifted Height: 0-1″
Part number: 24-186940_24-187237

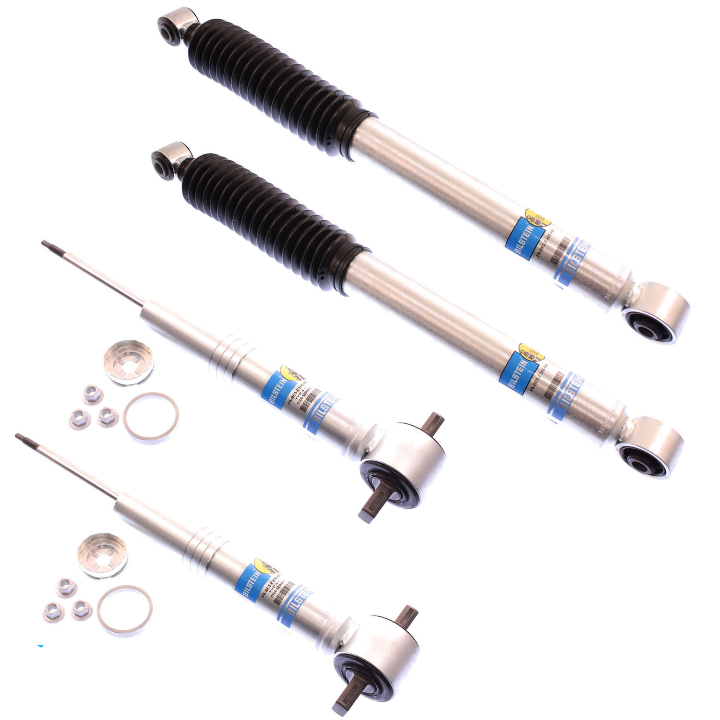

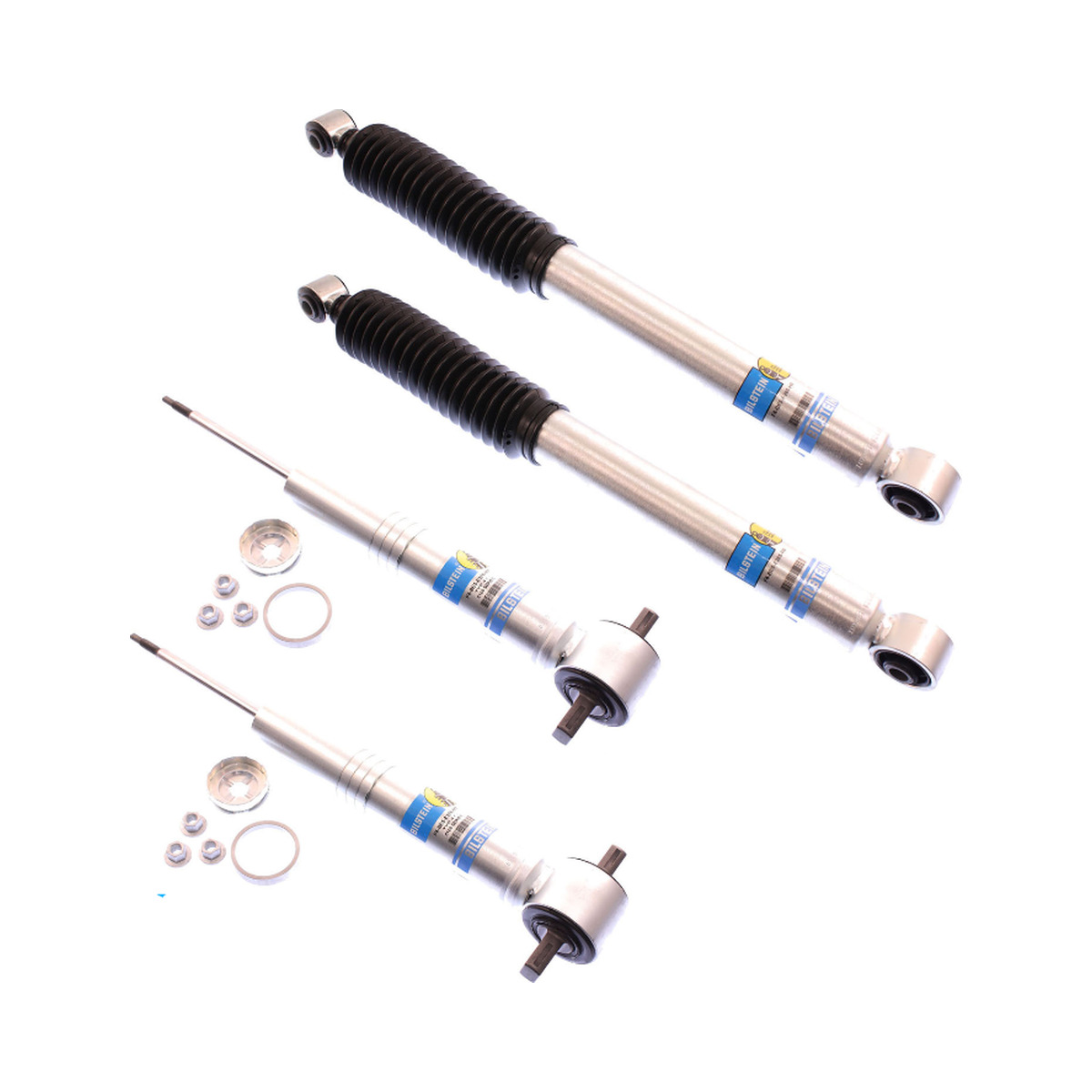

Includes: 2 front shocks and 2 rear shocks.

Front

Part number: 24-186940
Series: 5100
Extended length: 18.48 Inch
Compressed length: 12.95 Inch
Front Upper mounting: Stem
Front Lower mounting: Bar Pin
Type: Nitrogen Gas Charged
Internal design: Monotube
Adjustable: Yes
With reservoir: No
Valving type: Self-Adjusting Deflective Disc Valving

Includes dust shield: No
Includes hardware: Yes
Includes boot: No

Body color: Silver
Body material: Steel
Body diameter: 46mm
Front Rod diameter: 1.81 Inch
Rod finish: Polished
Rod material: Steel

Rear

Part number: 24-187237
Series: 5100
Extended length: 24.33 Inch
Compressed length: 15.55 Inch
Rear Upper mounting: Eyelet
Rear Lower mounting: Eyelet
Type: Nitrogen Gas Charged
Internal design: Monotube
Adjustable: No
With reservoir: No
Valving type: Self-Adjusting Deflective Disc Valving

Includes dust shield:No
Includes hardware: No
Includes boot: Yes

Body color: Silver
Body material: Steel
Body diameter: 46mm
Rear Rod diameter: 1.81 Inch
Rod finish: Polished
Rod material: Steel

Bilstein doesn’t include spring seats with these shocks saying that you need to re-use your existing ones, but if you need some here they are:
