ReadyLift 2.25″ Front and 1.5″ Rear SST Leveling Kit for 2004-2012 GMC Canyon 4WD

Name: ReadyLift 2.25" Front and 1.5" Rear SST Leveling Kit for 2004-2012 GMC Canyon 4WD
Brand: ReadyLift
SKU: 69-3070_n1
Availability: InStock

SKU: 69-3070_n1

Description
ReadyLift 2.25″ Front and 1.5″ Rear SST Leveling Kit for 2004-2012 GMC Canyon 4WD

ReadyLift 2.25″ Front and 1.5″ Rear SST Leveling Kit for 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012 GMC Canyon 4WD

Part: 69-3070_n1

QUICK NOTE:

Max Lift: 2.25″F/1.5″R – Colorado, Canyon, Hummer H3
For 4WD Torsion Key vehicles only
2WD Coil Spring Trucks use 69-3075
Includes front torsion leveling keys and rear lift shackles.

ReadyLIFT is proud to offer a SST Lift Kit system for the Chevy Colorado 2WD/4WD (Torsion bar) pickups and Hummer H3. Using ReadyLIFT’s popular engineering methods, our research and development team released a true bolt-on, no modifications required, front and rear lift kit system for 2004-2012 Chevy Colorado pickups. The front of this popular truck receives a 2.25″ lift in front using the ReadyLIFT adjustable torsion keys. To lift the rear, new rear leaf spring shackles are included which provide a 1.5″ lift. This equates to a nice all-around lift suitable for up to 32″ tall tires while providing a bit of a rake to towing or hauling. In addition to the highest quality torsion keys and shackles on the market, this kit also contains front and rear shock extensions so you will not have to change your stock shocks.

TIRE INFORMATION:

Colorado/Canyon – 33″ Maximum tire diameter

33×10.50 for no rub on a 8″ wide wheel with +12 offset

18″ – 255/70R18

20″ – 265/60R20

Hummer H3 – 35″ Max Diameter

35×12.50 for no rub on a 8″ wide wheel with +25 offset

Tire Size Note: ReadyLIFT wheel and tire fitment recommendations are typically based on Wheel Pros wheels and Nitto tires. Due to product differences among tire manufacturers, tire specifications and dimensions including, but limited to, overall diameter, rolling diameter, tread width, aspect ratio, lug pattern, sidewall construction and inflation pressure, will vary meaningfully by tire and wheel manufacturer. Every tire and wheel combination should be test fit prior to installation. Consult your local installer to learn more about the right tire fitment for your application.

Ride Quality Note: When lifting a vehicle and installing aftermarket wheels and tires, a tire manufacturer’s construction and material quality can alter vehicle ride quality. When increasing a vehicle wheel and tire size, most larger aftermarket truck and SUV tires are 10-ply (or more) E tires compared to typical OEM 6-ply C tires. This more rigid sidewall construction increases the perception of suspension stiffness often described as ride harshness. The ride, handling, traction, noise, fuel economy, and wear differences between All-Season, All-Terrain, Mud-Terrain, or Trail-Terrain type tires can be significant. Please take into account tire and wheel choice will generally have a meaningful impact on the ride & handling experience.

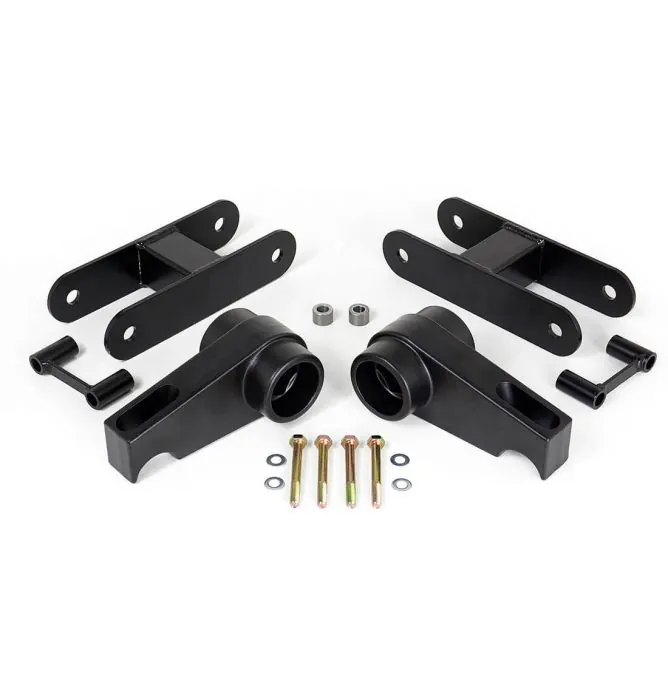

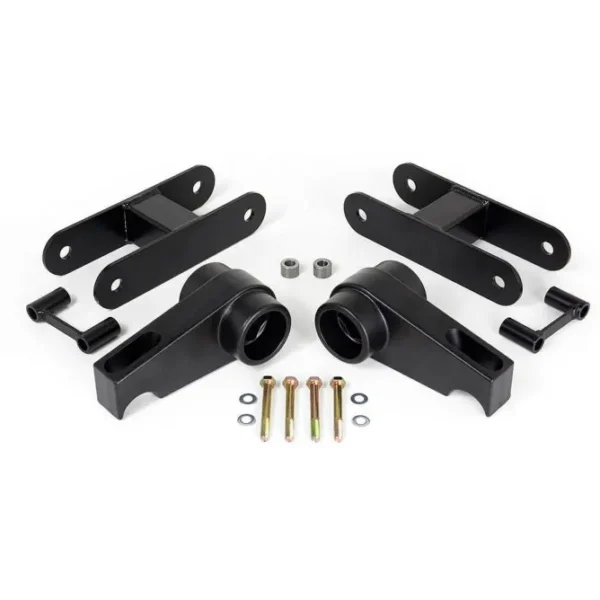

KIT COMPONENTS:

One pair of ReadyLIFT torsion leveling keys and one pair of rear lift shackles.

INSTALLATION:

SAEJ2492 Warning: By installing this product, you acknowledge that the suspension of this vehicle has been modified. As a result, this vehicle may handle differently than that of factory-equipped vehicles. As with any vehicle, extreme care must be used to prevent loss of control or roll-over during sharp turns or abrupt maneuvers. Always wear seat belts, and drive safely, recognizing that reduced speeds and specialized driving techniques may be required. Failure to drive this vehicle safely may result in serious injury or death. Do not drive this vehicle unless you are familiar with its unique handling characteristics and are confident of your ability to maintain control under all driving conditions. Some modifications (and combinations of modifications) are not recommended and may not be permitted in your state. Consult your owner’s manual, the instructions accompanying this product, and state laws before undertaking these modifications. You are responsible for the legality and safety of the vehicle you modify using these components.
DO IT YOURSELF!
Please read Instructions thoroughly and completely before beginning installation. Installation by a certified mechanic is recommended. ReadyLIFT Suspension Inc. is NOT responsible for any damage or failure resulting from improper installation.
Download Pdf Instructions
Estimated Installation Time: 5 Hours +/- 1 hour (excluding alignment and wheel/tire assembly)
