Bilstein 6112 0-2.75″ Front and B8 5160 RR 0-1.5″ Rear Lift Shocks for 2015-2022 GMC Canyon 2WD/4WD

Description

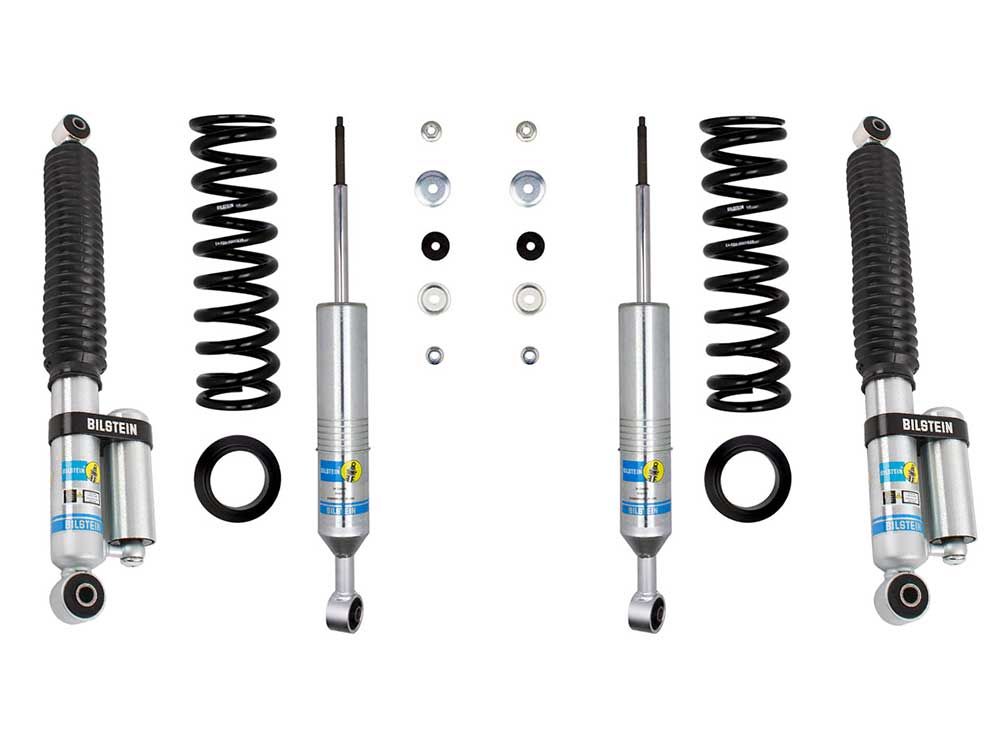

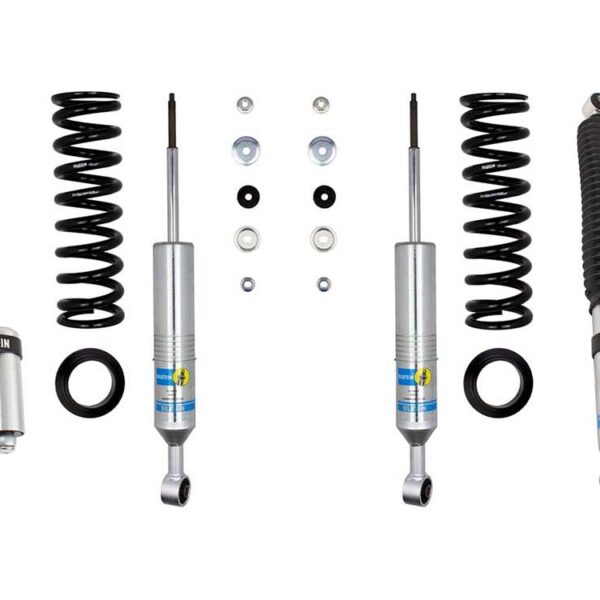

Bilstein 6112 0-2.75″ Front and B8 5160 RR 0-1.5″ Rear Lift Shocks for 2015-2022 GMC Canyon 2WD/4WD

Bilstein 6112 0-2.75″ Front and B8 5160 RR 0-1.5″ Rear Lift Shocks for 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022 GMC Canyon 2WD/4WD

Part: 47-253179_2x25-256284_n1

FRONT SHOCKS:

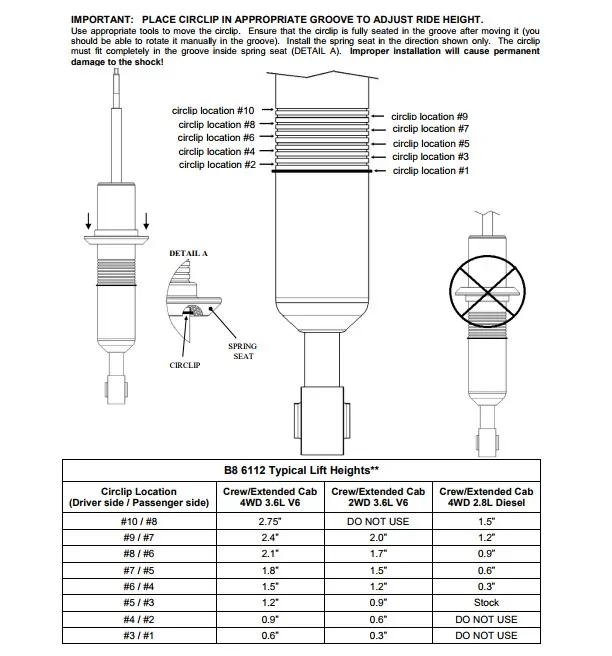

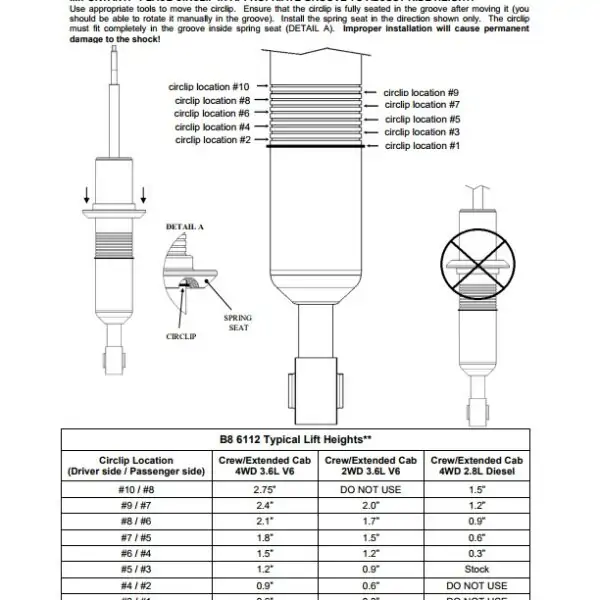

Bilstein B8 6112 leveling kits are designed to provide more ground clearance, allow for larger tires, and increase wheel travel. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-2.75 inches of front lift (depending on application). These kits consist of (2) 60mm shock absorbers combined with (2) custom matched cold wound coil springs and (2) billet aluminum spring seats. The large 60mm digressive piston allows for increased damping control for optimal on-road and off-road capabilities. Experience the legendary Bilstein off-road experience with the best direct fit spring and shock kit for your light truck or SUV.

• Finish: Dampers: Zinc Plated/Springs: Black
• Reservoir: No
• Aftermarket Upper Arms Required: No
• Body Design: Snap Ring Grooved Body (Coilover)
• Body Diameter: 60mm

Notes:

• Fits Crew Cab Pickup, Extended Cab Pickup

** Ride heights indicated are typical. Actual ride height is influenced by which factory suspension the vehicle is equipped with and its condition; optional equipment and accessories on your vehicle, and other vehicle modifications such as replacement coil springs, wheel and tire combinations, etc.

Modifying/lifting the suspension to your vehicle may raise its center of gravity and may make it more susceptible to loss of control and/or rollover, which may result in death or serious injury. We strongly recommend that you offset the loss of rollover resistance as much as possible by increasing tire track width, and that you equip the vehicle with a functional roll bar and cage system. Wear seat belts and shoulder harnesses at all times, and avoid situations where a side rollover may occur.

REAR SHOCKS: 25-316926

Bilstein B8 5160 remote reservoir shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. The remote reservoir will offer increased cooling capacity and wheel travel to optimize overall performance compared to a traditional shock absorber. These shock absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. Each shock absorber is fitted with a unique 360 degree swivel banjo hose fitting, providing a clean, low profile installation. B8 5160 remote reservoir shock absorbers will increase overall durability of your vehicle allowing you to conquer the harshest of off-road environments.

• Extended Length (IN): 23.58 Inch
• Compressed Length (IN): 14.8 Inch
• Upper Mounting: Eyelet
• Lower Mounting: Eyelet
• Finish: Zinc Plated
• Reservoir: Yes
• Body Design: Smooth Body (Non-Coilover)
• Body Diameter: 46mm
