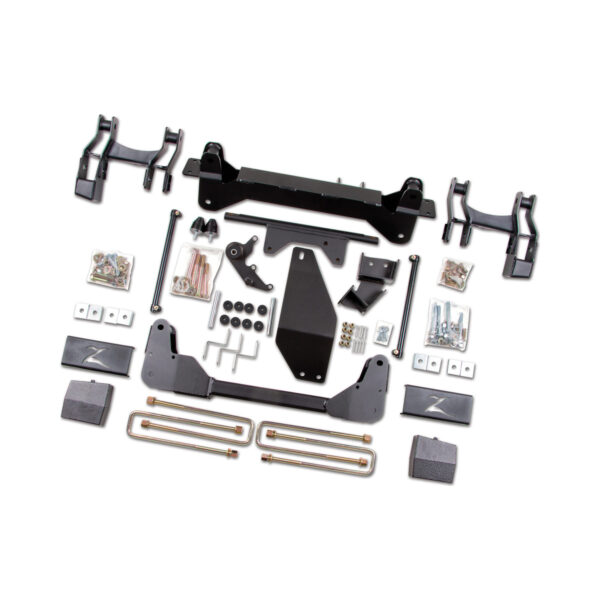

Zone Offroad 6″ IFS Bracket System Lift Kit 1988-1998 Chevy/GMC K1500 Pickup

Description
Zone Offroad 6″ IFS Bracket System Lift Kit 1988-1998 Chevy/GMC K1500 Pickup

Zone Offroad 6″ IFS Bracket System Lift Kit 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998 Chevy/GMC K1500 Pickup

Part: C14

Introducing the latest addition to the Zone Offroad line of Chevy and GMC products, our 88-98 K1500 and 92-98 Tahoe, Yukon, Surburban 6″ Suspension System that ncorporates a completely new and improved design compared to the other bracket style kits on the market. Zone Offroad took a different approach with this kit by utilizing 1-piece upper control arm drop brackets to correct the balljoint geometry and maintain the use of your factory steering knuckles. A few of the advantages to this setup are no track width change and factory wheels can be re-used with 35×12.50 tires. Like our other systems, the kit comes with stout main crossmembers and differential drop brackets to re-align the CV shafts and driveshaft while maintaining a clean look. Make your truck stand out from the rest with our new 6″ lift engineered with not only affordability, but the quality many have come to expect from Zone Offroad Products.

Featured Technology & Benefits

• Upper control arm relocation bracket system.
• Uses factory knuckles to allow fitment of factory wheels.
• No track width change.
• Diffential skid plate included to protect the front differential and lock the crossmembers together
• 1/4″ thick steel used to make indestructable crossmembers
• 3-point differential mounting system correctly positions the differential so the factory driveshaft can be used

Important Notes!

• Torsion bar un-loading tool required
• Not designed for 4 door model Tahoe and Yukon
• Requires exhaust modification to clear the front driveshaft
• Requires frame bracket modification and differential mount modification
• Models equipped with auto-trac may require a new front driveshaft. The auto-trac (New Process 246) transfer case can be identified by the badge on the rear of the transfer case that reads “NP246”. In addition, the dash mounted display will show the Auto 4WD symbol. (NP243 is not auto-trac)

This product fits the following applications:

• 1988 Chevy 1500 Pickup 4WD
• 1989 Chevy 1500 Pickup 4WD
• 1990 Chevy 1500 Pickup 4WD
• 1991 Chevy 1500 Pickup 4WD
• 1992 Chevy 1500 Pickup 4WD
• 1993 Chevy 1500 Pickup 4WD
• 1994 Chevy 1500 Pickup 4WD
• 1995 Chevy 1500 Pickup 4WD
• 1996 Chevy 1500 Pickup 4WD
• 1997 Chevy 1500 Pickup 4WD
• 1998 Chevy 1500 Pickup 4WD
• 1988 Chevy 2500 Pickup Light Duty 6 Lug 4WD
• 1989 Chevy 2500 Pickup Light Duty 6 Lug 4WD
• 1990 Chevy 2500 Pickup Light Duty 6 Lug 4WD
• 1991 Chevy 2500 Pickup Light Duty 6 Lug 4WD
• 1992 Chevy 2500 Pickup Light Duty 6 Lug 4WD
• 1993 Chevy 2500 Pickup Light Duty 6 Lug 4WD
• 1994 Chevy 2500 Pickup Light Duty 6 Lug 4WD
• 1995 Chevy 2500 Pickup Light Duty 6 Lug 4WD
• 1996 Chevy 2500 Pickup Light Duty 6 Lug 4WD
• 1997 Chevy 2500 Pickup Light Duty 6 Lug 4WD
• 1998 Chevy 2500 Pickup Light Duty 6 Lug 4WD
• 1992 Chevy Suburban 1500 4WD
• 1993 Chevy Suburban 1500 4WD
• 1994 Chevy Suburban 1500 4WD
• 1995 Chevy Suburban 1500 4WD
• 1996 Chevy Suburban 1500 4WD
• 1997 Chevy Suburban 1500 4WD
• 1998 Chevy Suburban 1500 4WD
• 1992 Chevy Tahoe 2 Door 4WD
• 1993 Chevy Tahoe 2 Door 4WD
• 1994 Chevy Tahoe 2 Door 4WD
• 1995 Chevy Tahoe 2 Door 4WD
• 1996 Chevy Tahoe 2 Door 4WD
• 1997 Chevy Tahoe 2 Door 4WD
• 1998 Chevy Tahoe 2 Door 4WD
• 1988 GMC 1500 Pickup 4WD
• 1989 GMC 1500 Pickup 4WD
• 1990 GMC 1500 Pickup 4WD
• 1991 GMC 1500 Pickup 4WD
• 1992 GMC 1500 Pickup 4WD
• 1993 GMC 1500 Pickup 4WD
• 1994 GMC 1500 Pickup 4WD
• 1995 GMC 1500 Pickup 4WD
• 1996 GMC 1500 Pickup 4WD
• 1997 GMC 1500 Pickup 4WD
• 1998 GMC 1500 Pickup 4WD
• 1988 GMC 2500 Pickup Light Duty 6 Lug 4WD
• 1989 GMC 2500 Pickup Light Duty 6 Lug 4WD
• 1990 GMC 2500 Pickup Light Duty 6 Lug 4WD
• 1991 GMC 2500 Pickup Light Duty 6 Lug 4WD
• 1992 GMC 2500 Pickup Light Duty 6 Lug 4WD
• 1993 GMC 2500 Pickup Light Duty 6 Lug 4WD
• 1994 GMC 2500 Pickup Light Duty 6 Lug 4WD
• 1995 GMC 2500 Pickup Light Duty 6 Lug 4WD
• 1996 GMC 2500 Pickup Light Duty 6 Lug 4WD
• 1997 GMC 2500 Pickup Light Duty 6 Lug 4WD
• 1998 GMC 2500 Pickup Light Duty 6 Lug 4WD
• 1992 GMC Yukon 2 Door 4WD
• 1993 GMC Yukon 2 Door 4WD
• 1994 GMC Yukon 2 Door 4WD
• 1995 GMC Yukon 2 Door 4WD
• 1996 GMC Yukon 2 Door 4WD
• 1997 GMC Yukon 2 Door 4WD
• 1998 GMC Yukon 2 Door 4WD

Quick Specs

• Front Lift Height: 6″
• Front Lift Method: IFS Bracket System
• Rear Lift Height: 5″
• Rear Lift Method: Block Kit
• Install Time Hrs: 8
• Difficulty Level 1-5: 4
• Wheel Size: Factory or >
• Back Spacing: Factory or <
• Max Tire Size: 35 x 12.50

ZoneOffroad_C14_installation_instruction
