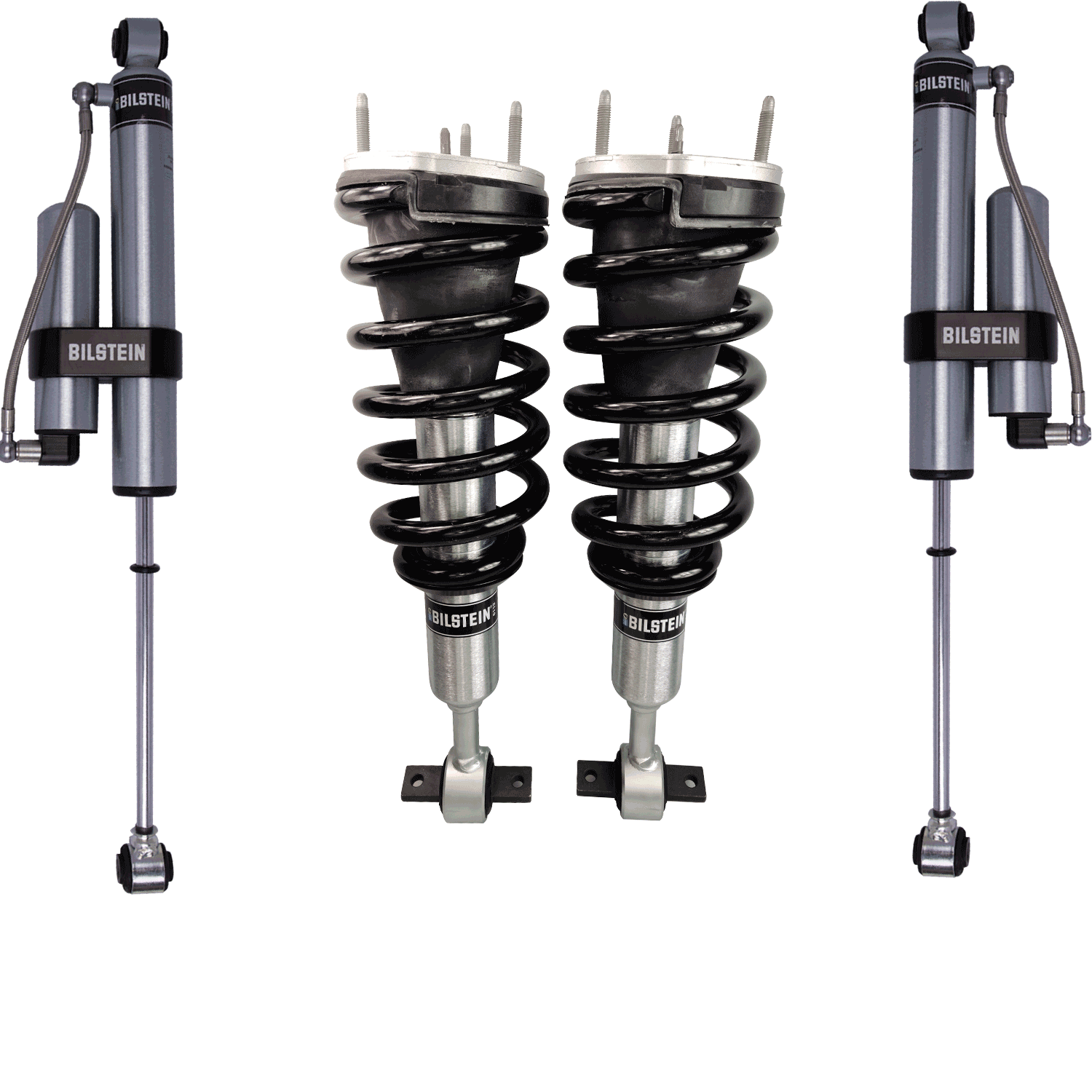

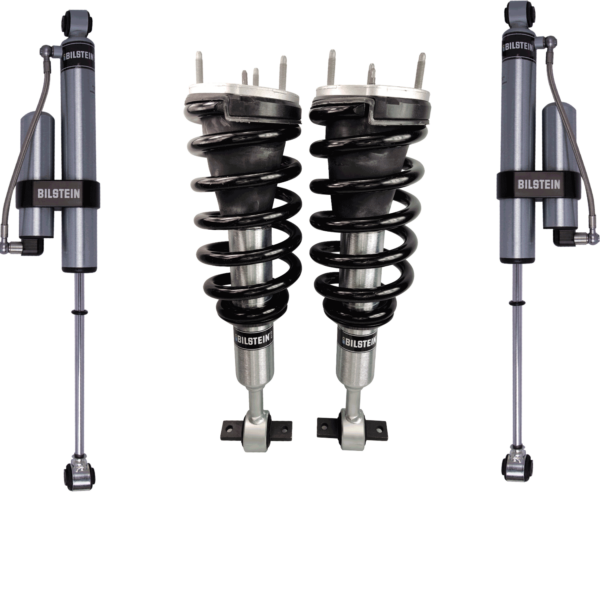

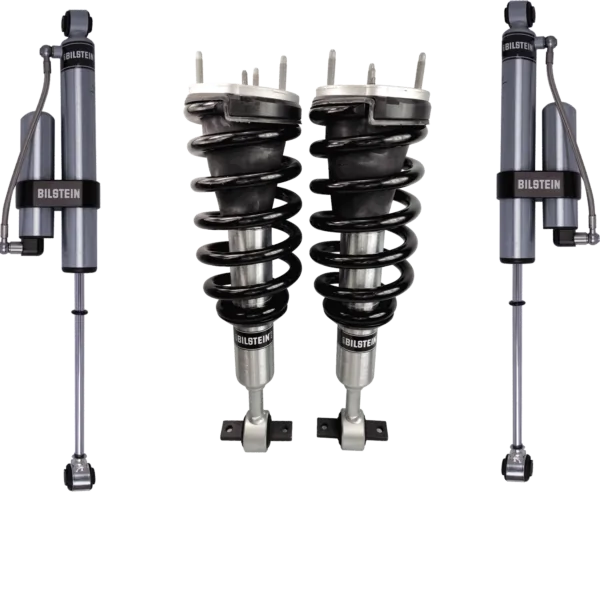

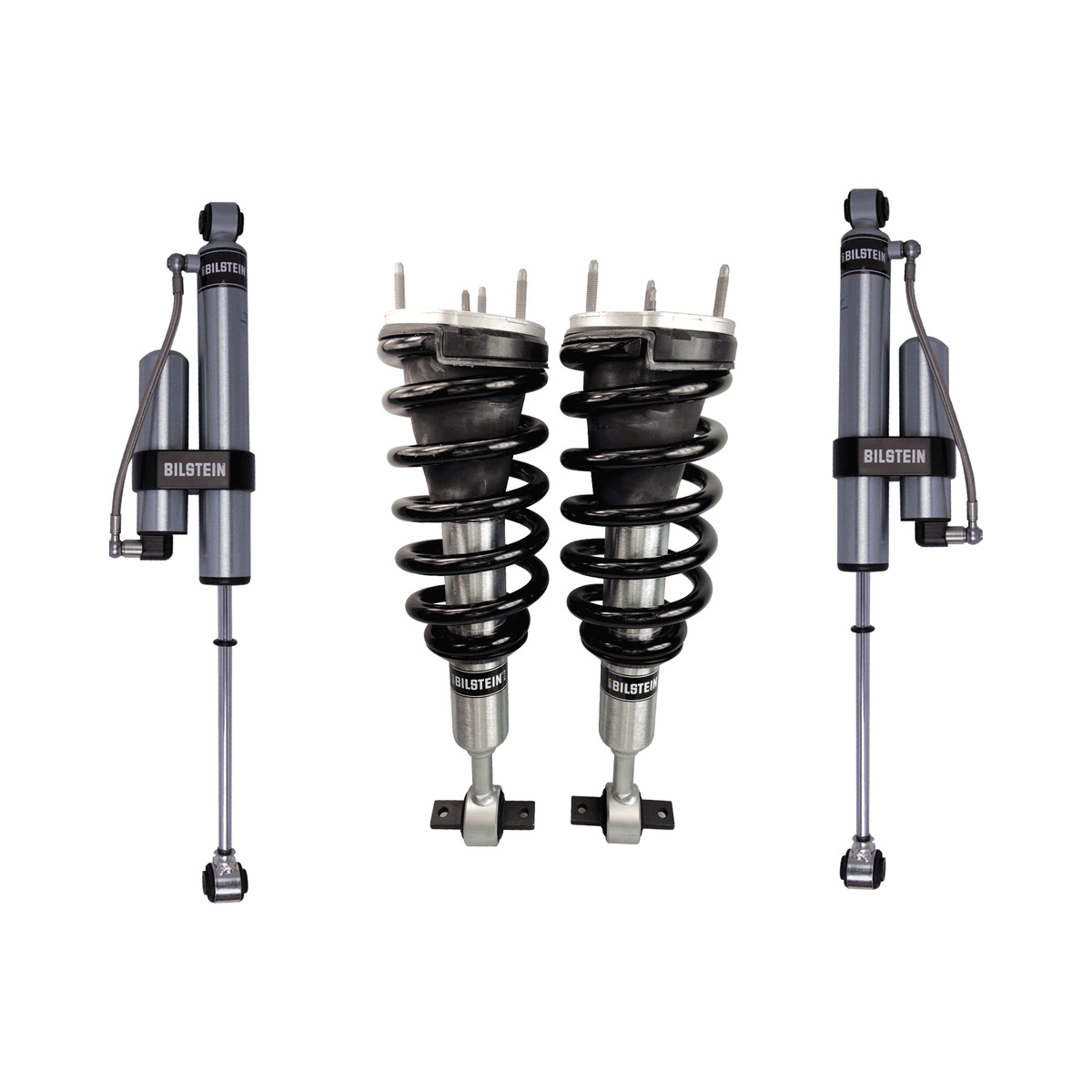

Bilstein 6112 Front 0.3-2.5″ Assembled Coilovers with Rear 5160 Reservoir Shocks for 2019-2024 Chevy/GMC Sierra Silverado 1500 2WD/4WD

Description
Bilstein 6112 Front 0.3-2.5″ Assembled Coilovers with Rear 5160 Reservoir Shocks for 2019-2024 Chevy/GMC Sierra Silverado 1500 2WD/4WD

Bilstein 6112 Front 0.3–2.5″ Assembled Coilovers with Rear Reservoir Shocks for 2019, 2020, 2021, 2022, 2023, 2024 Chevy/GMC Sierra Silverado 1500 2WD/4WD

Part Number: 6112GM19K-ASB

Important Note: This kit is not compatible with Trail Boss models. For the Trail Boss kit, please click here:

Fitment Notes: Compatible with Z71 models.

Product Overview

Upgrade your 2019–2024 Chevy/GMC Sierra Silverado 1500 2WD/4WD with the Bilstein 6112 Front Assembled Coilovers and Rear Reservoir Shocks kit. Designed to enhance your vehicle’s off-road capabilities, this comprehensive suspension package provides increased ground clearance, accommodates larger tires, and improves wheel travel for superior performance both on and off the road.

Front Coilover Features

Bilstein B8 6112 Leveling Kit (Part Number 47-293557)

• Adjustable Lift Height: Multiple snap-ring grooves allow for different spring seat positions, offering 0 to 2.75 inches of front lift (depending on application).
• Premium Construction: Includes two 60mm shock absorbers, custom-matched cold wound coil springs, and billet aluminum spring seats.
• Enhanced Damping Control: The large 60mm digressive piston delivers optimal damping for superior handling and off-road capability.
• Direct Fit Installation: Engineered for a seamless fit on your light truck or SUV, ensuring a hassle-free installation process.

Rear Shock Features

Bilstein B8 5160 Remote Reservoir Shocks (New Version! – Part Number 25-316957)

• Advanced Cooling and Performance: Remote reservoir design offers increased cooling capacity and additional wheel travel compared to traditional shock absorbers.
• Consistent Performance: Monotube design with velocity-sensitive digressive valving provides fade-free performance tailored to your specific application.
• Premium Components: Features a unique 360-degree swivel banjo hose fitting and an attractive billet reservoir mount for a clean, low-profile installation.
• Built for Durability: Designed to withstand harsh off-road environments, enhancing your vehicle’s overall durability and performance.

Specifications for Rear Shocks

• Collapsed Length: 15.51 inches (394.0 mm)
• Extended Length: 26.01 inches (660.7 mm)
• Finish: Zinc Plated
• Reservoir: Yes
• Body Design: Smooth Body (Non-Coilover)
• Body Diameter: 46mm

Installation Instructions

• Download: Bilstein 6112 Front 0.3–2.5″ Lift Kit Installation Instructions

Vehicle Compatibility

• Make/Model: Chevrolet Silverado 1500 and GMC Sierra 1500
• Years: 2019, 2020, 2021, 2022, 2023, 2024
• Drive Type: 2WD and 4WD
• Exclusions: Not compatible with Trail Boss models
• Inclusions: Compatible with Z71 models

Why Choose Bilstein Suspension Upgrades

Experience the legendary performance and quality of Bilstein suspension components. This kit offers a comprehensive solution to elevate your vehicle’s handling, comfort, and off-road prowess. Whether you’re navigating city streets or conquering rugged trails, trust Bilstein to deliver unmatched performance and reliability.
