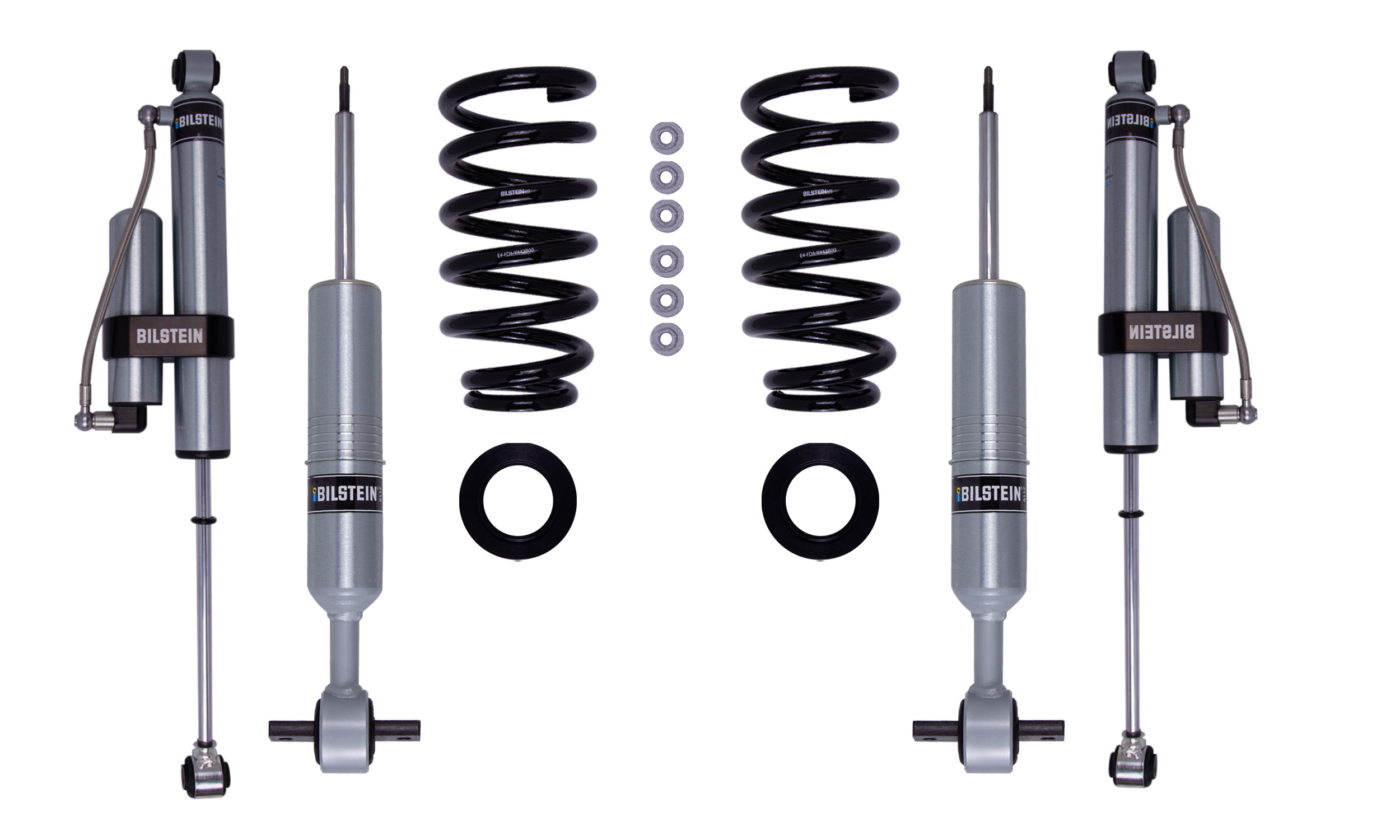

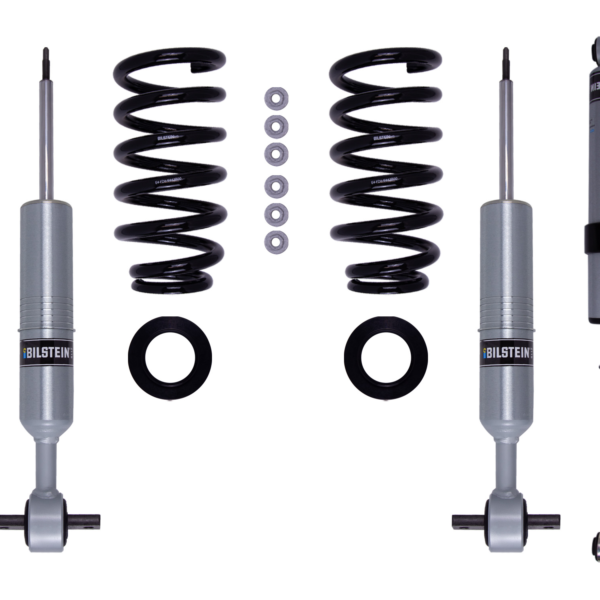

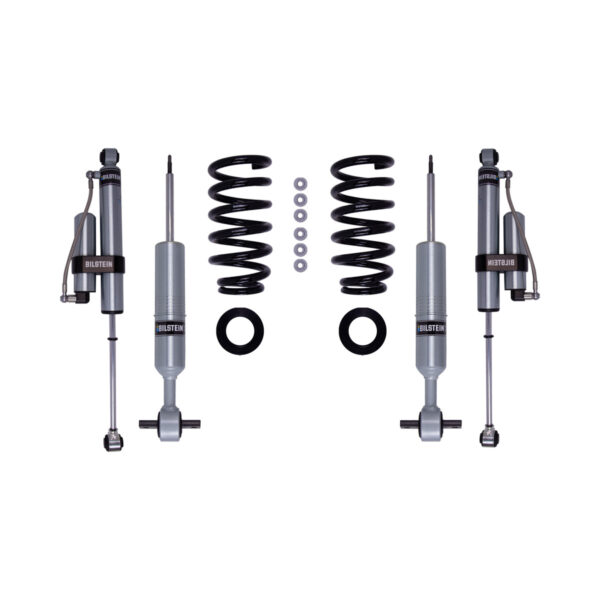

Bilstein B8 6112 1.0-3.5″ Front and B8 5160 0-1″ Rear Lift Kit for 2019-2022 GMC Sierra 1500 2WD/4WD
Sale!
Description
Bilstein B8 6112 1.0-3.5″ Front and B8 5160 0-1″ Rear Lift Kit for 2019-2022 GMC Sierra 1500 2WD/4WD
Bilstein B8 6112 1.0-3.5″ Front and B8 5160 0-1″ Rear Lift Kit for 2019, 2020, 2021, 2022 GMC Sierra 1500 2WD/4WD
Part: 47-293557_2x25-316957_n1
Front Coilovers: (47-293557)
Notes:
- Front Lift Height: 1.0-3.5″
- Without Trail Boss Off Road Package
- Also fit for GMC Sierra 1500 Limited, 2022
Bilstein B8 6112 leveling kits are designed to provide more ground clearance, allow for larger tires, and increase wheel travel. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-2.75 inches of front lift (depending on application). These kits consist of (2) 60mm shock absorbers combined with (2) custom matched cold wound coil springs and (2) billet aluminum spring seats. The large 60mm digressive piston allows for increased damping control for optimal on-road and off-road capabilities. Experience the legendary Bilstein off-road experience with the best direct fit spring and shock kit for your light truck or SUV.
Features:
Finish Dampers: Zinc Plated/Springs: Black
Reservoir No
Body Design Snap Ring Grooved Body (Coilover)
Body Diameter 60mm
Spring Seat Included Yes
Rear Shocks: (2×25-316957)
Notes: For Rear Lifted Height: 0-1″
Bilstein B8 5160 remote reservoir shock absorbers are designed as a direct fit solution for lifted trucks and SUVs. The remote reservoir will offer increased cooling capacity and wheel travel to optimize overall performance compared to a traditional shock absorber. These shock absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. Each shock absorber is fitted with a unique 360 degree swivel banjo hose fitting and an attractive billet reservoir mount where applicable providing a clean, low profile installation. B8 5160 remote reservoir shock absorbers will increase overall durability of your vehicle allowing you to conquer the harshest of off-road environments.
SPECIFICATIONS:
Collapsed Length (IN)15.51
Extended Length (IN)26.01
Collapsed Length (MM)394.0
Extended Length (MM)660.7
FinishZinc Plated
ReservoirYes
Billet Reservoir Clamp IncludedYes
Body DesignSmooth Body (Non-Coilover)
Body Diameter46mm
Spring Seat IncludedNo
Adjustable DampingNon-Adjustable
