SuperLift 6″ Lift Kit 2019-2023 Chevrolet Silverado GMC Sierra 1500 4WD FOX Shocks excl Trailboss/AT4

Description
SuperLift 6″ Lift Kit 2019-2023 Chevrolet Silverado GMC Sierra 1500 4WD FOX Shocks excl Trailboss/AT4

SuperLift 6″ Lift Kit 2019, 2020, 2021, 2022, 2023 Chevrolet Silverado GMC Sierra 1500 4WD FOX Shocks excl Trailboss/AT4

Part: K182F

What is this?

• This is a complete 6 inch Lift kit for the 2019-2021 Chevrolet Silverado and GMC Sierra 4WD
• Covered by our Limited Lifetime Warranty
• Does not fit GM 1500 Models – Trail Boss Edition, GMC AT4
• Does not work with GM 1500 Models that include adaptive Ride Control

What does it include?

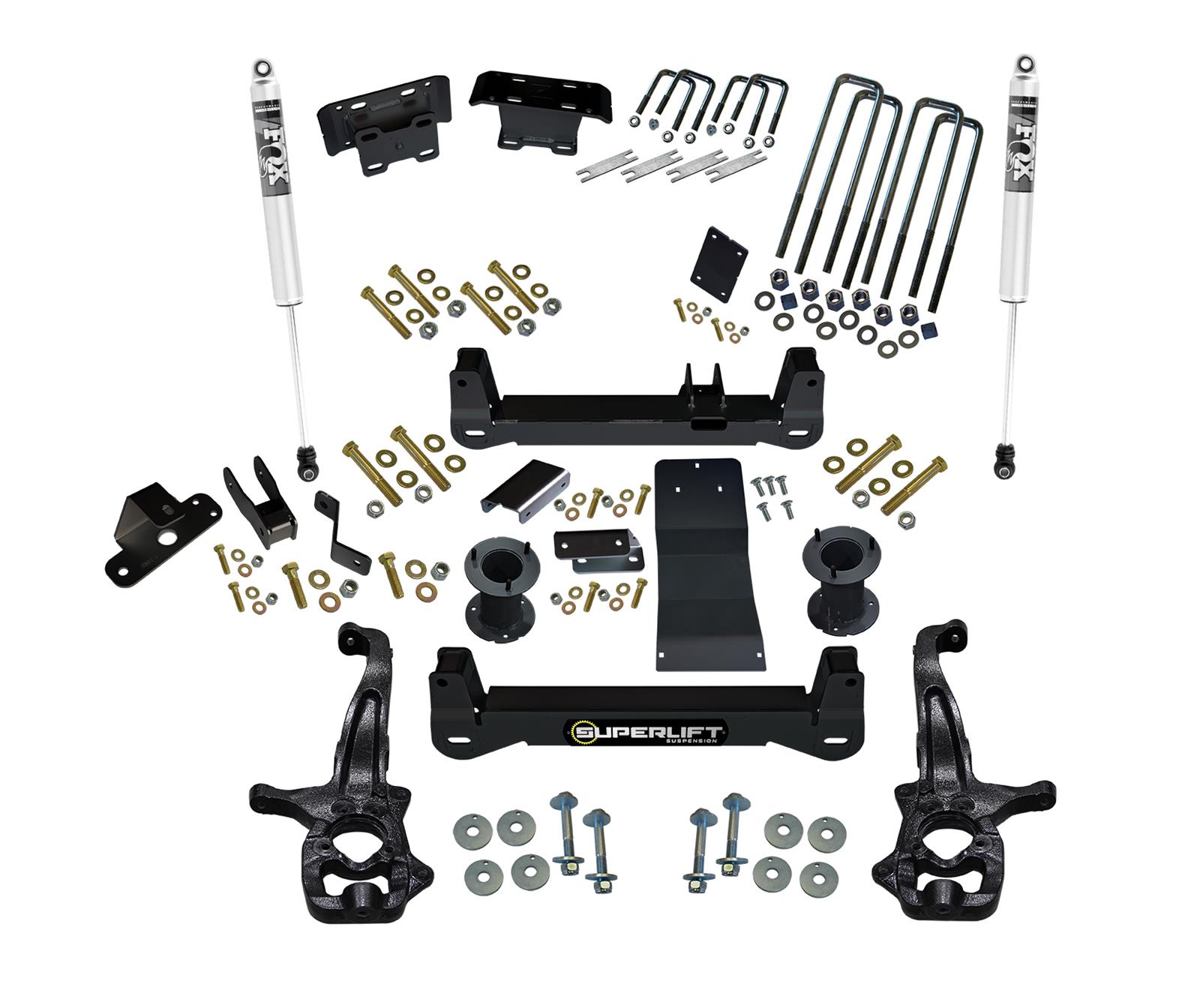

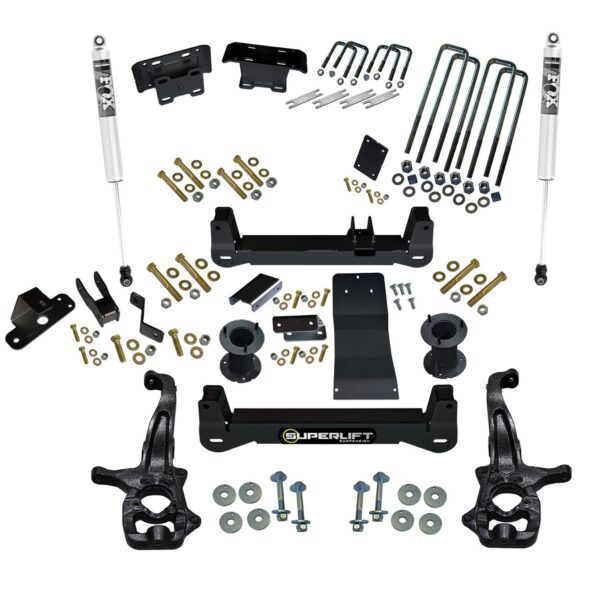

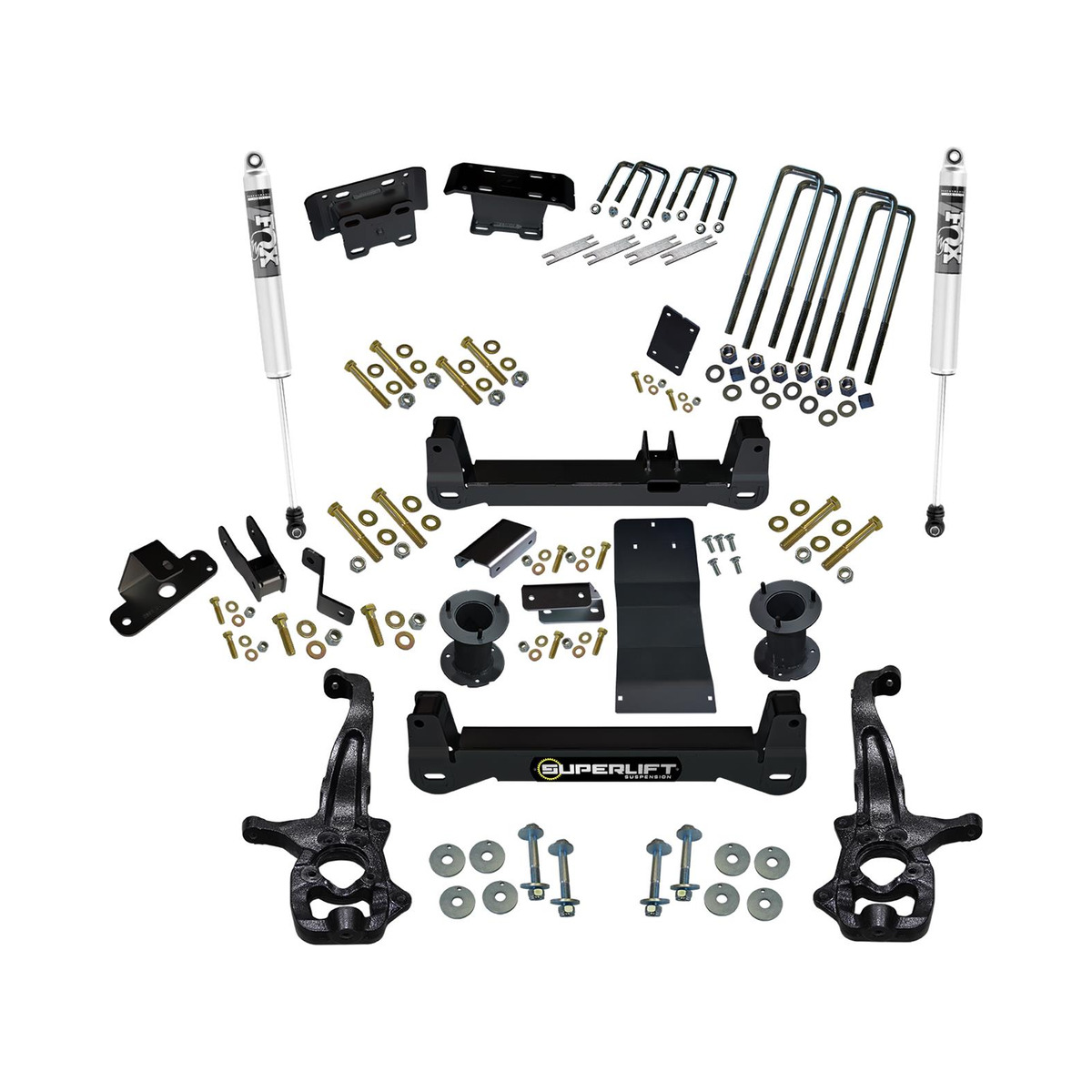

• Front CNC machined steering knuckles, front strut spacers, ¼” plate steel control arm cross-members, differential drops, differential skid plate, fabricated rear blocks, U-bolts, and rear shocks (Superlift or Bilstein or Fox).
• Detailed instruction manual walking you step-by-step through the lift kit installation procedures suitable for do-it-yourselfers (DIY) or professional installation.
• The best customer service and technical help in the industry.

KEY DETAILS:

This all-new GM 1500 features a dramatic change that started from the ground up with the most dynamic styling and angles of any GM 1500 pickup truck has ever seen. Take this all-new GM 1500 to a completely new height with Superlift’s easiest installed suspension kit today. The 6-inch lift kit for the all-new GM 1500 is simple yet compliments the most dynamic styling change GM has ever put into their 1500 models.

This 6-inch suspension lift kit has a strong, modern die-formed design made with the strongest materials to give you a suspension kit that can withstand the most challenging terrain. Superlift Suspension intentionally over-builds our suspension kits to be the best. Our uniquely engineered design adds strength and durability, along with bonus features and add-ons that others competitors do no offer. This kit is available with Superlift Shocks or Bilstein 5100 series Shocks or Fox® 2.0 Shocks.

This kit includes front knuckles, front strut spacers, ¼” plate steel control arm cross-members, differential drops, differential skid plate, fabricated rear blocks, U-bolts, and rear shocks. All required parts are included to make sure your Chevrolet Silverado or GMC Sierra handles and performs in all conditions.

Features:

• Designed using Original Equipment (OE) CAD data
• Differential does not have to be cut
• Retains stock track width
• Clearance up to a 35” tire
• Cross-members constructed out of ¼” plate steel
• Rear Shocks options: Superlift or Bilstein or Fox
• Corrects Front to Rear factory rake for a more level stance
• Anti-Wrap Fabricated Rear blocks and U-bolts for rear lift
• Grade 8 Hardware
• Backed by our Limited Lifetime Warranty

Benefits:

• Retains OEM alignment specifications
• No excessive ball joint or steering components
• CV axle angles are in the stock parameters
• Maintains OEM like ride quality and handling characteristics

Notes:

• Does not Fit with Factory Wheels
• 20 inch or larger aftermarket wheels are required w/ 4.5” of back spacing
• Requires cutting and drilling
• Does not fit Trail Boss Edition or GMC AT4
• Does not work with GM 1500 Models that include adaptive Ride Control
• Some minor trimming may be required in order to clear tires larger than 35”
• Do Not combine with any other suspension lift

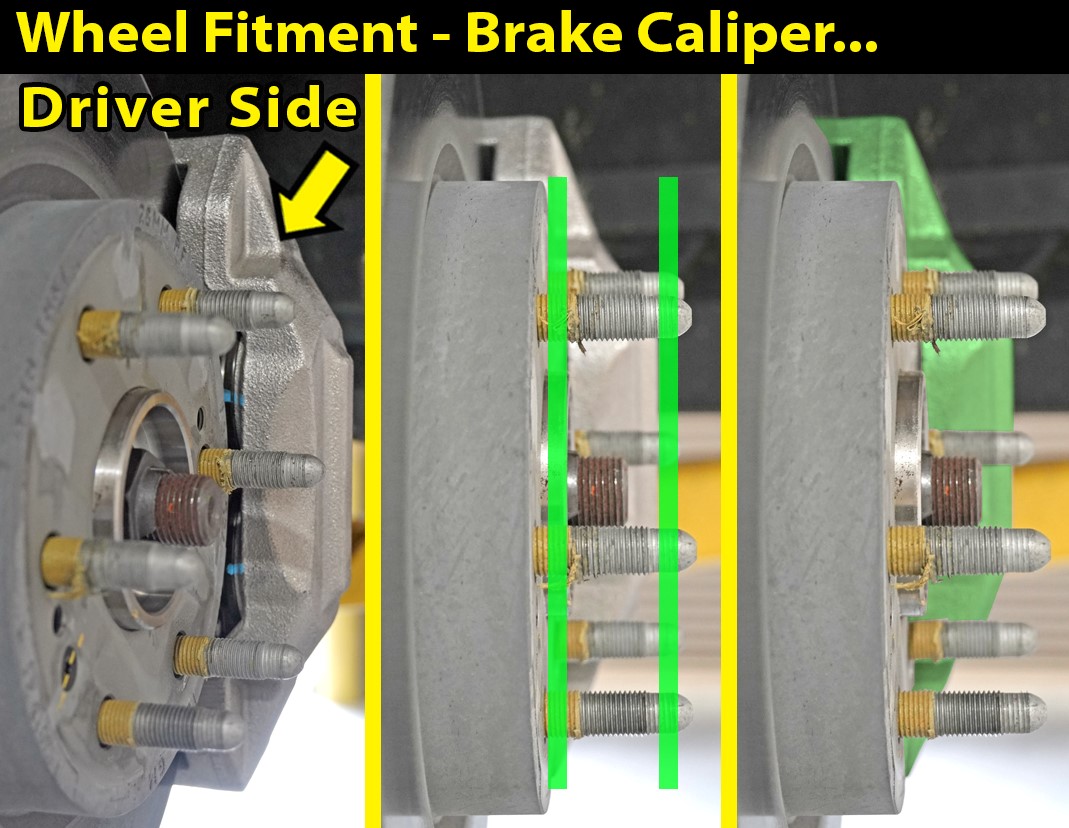

• Due to GM’s larger Front Brake set up on the 2019-2020 models, check with the aftermarket wheel manufacturer for wheel compatibility. It is highly recommended that all tire and wheel combinations should be test fitted prior to installation

TIRE & WHEEL INFO:

• Recommended Tire and Wheel Combinations
• Some minor Trimming maybe required
• Due to GM larger Front Brake set up on the 2019 model, check with Aftermarket wheel manufacturer for wheel compatibility on 2019 vehicles
• Due to difference in manufacturing and dimensions in the Silverado and Sierra, it is highly recommended that all tire and wheel combinations should be test fitted prior to installation.

INSTALLATION & NOTES:

• Installation time: 7-8 Hours
• Difficulty level: 2 of 5

Fits:

• 2019-2021 Chevrolet Silverado 1500 High Country
• 2019-2021 Chevrolet Silverado 1500 LT
• 2019-2021 Chevrolet Silverado 1500 LTZ
• 2019-2021 Chevrolet Silverado 1500 RST
• 2019-2021 Chevrolet Silverado 1500 SSV
• 2019-2021 Chevrolet Silverado 1500 WT
• 2019-2021 GMC Sierra 1500 Base
• 2019-2021 GMC Sierra 1500 Denali
• 2019-2021 GMC Sierra 1500 Elevation
• 2019-2021 GMC Sierra 1500 SLE
• 2019-2021 GMC Sierra 1500 SLT

Important fitment notes from manufacturer: Excluding: Trailboss/AT4
