Zone Offroad 3.5″ Adventure Series Lift Kit for 2019-2024 Chevrolet Silverado 1500 4WD
Sale!
Description
Zone Offroad 3.5″ Adventure Series Lift Kit for 2019-2024 Chevrolet Silverado 1500 4WD
Zone Offroad 3.5″ Adventure Series Lift Kit for 2019, 2020, 2021, 2022, 2023, 2024 Chevrolet Silverado 1500 4WD
Part: ZONC47

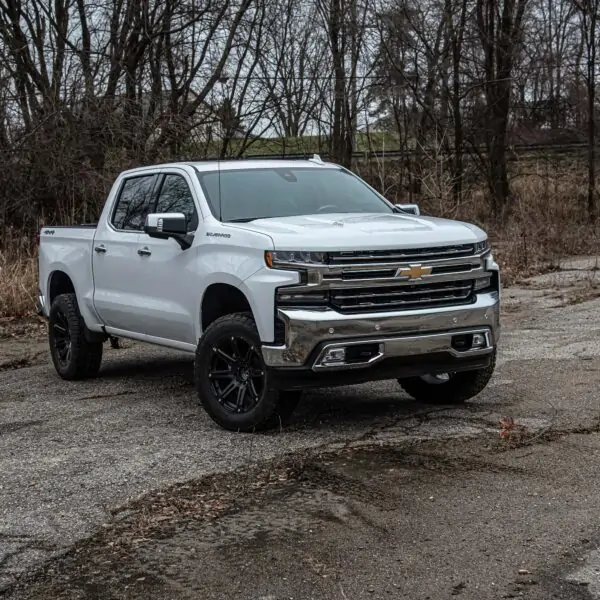

More than a leveling kit, this 3.5″ Adventure Series kit takes advantage of Adventure Series upper control arms to offer improved performance and off-road capability with clearance for up to 35″ tires. These high strength UCAs allow for increased suspension travel, improved strength and durability, and easy maintenance. Lift is provided by a 2-piece, combination top-mount and preload strut spacers design to provide a full 3.5″ of lift without overextending the suspension at full droop (as is the case with kits using just a top mounted spacer). Optional wheel spacer and weld-in steering stops are supplied allowing clearance for up to 35″ tires. In the rear of this kit, a cast 2″ lift block lifts and levels.
QUICK SPECS:
- Front Lift Height: 3.5″
- Material: Steel
- Front Lift Method: Strut Spacers
- Rear Lift Method: Cast Blocks
- Lift Type: Lift Kit
- Wheel Size: 20 x 9
- Back Spacing: 5.5″
- Max Tire Size: 35×12.50 (Chevy)
- Max Tire Size 2: 33×12.50 (GMC)
- Finish: Powdercoat
- Accommodates Factory Wheels: No
FEATURES:

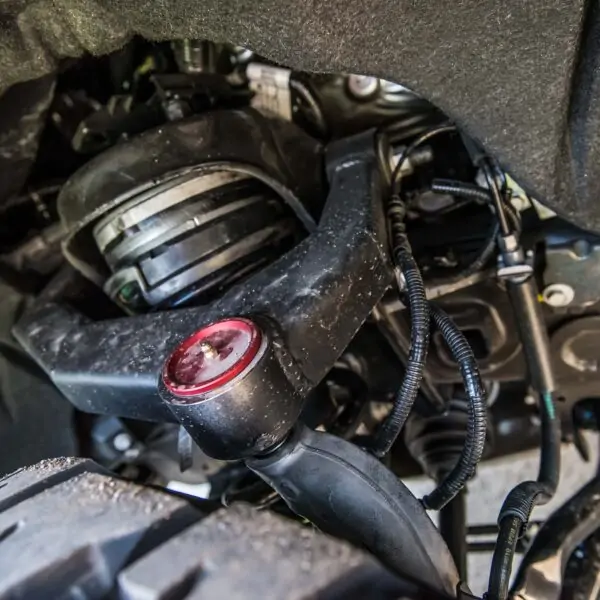

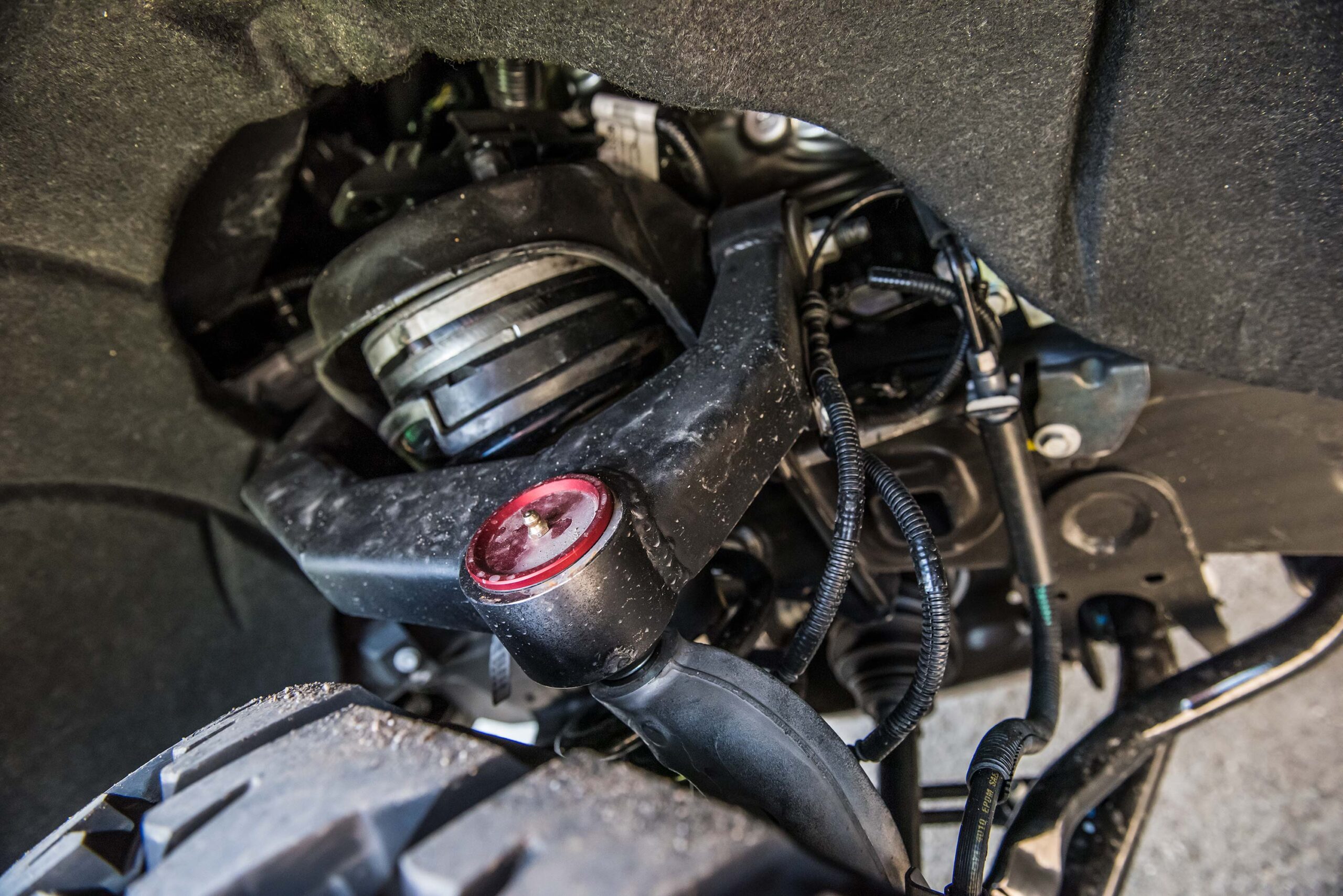

- High strength UCAs are boxed and fully welded specially designed with an indexed ball joint cup to correct ball joint operating angle for more suspension travel.

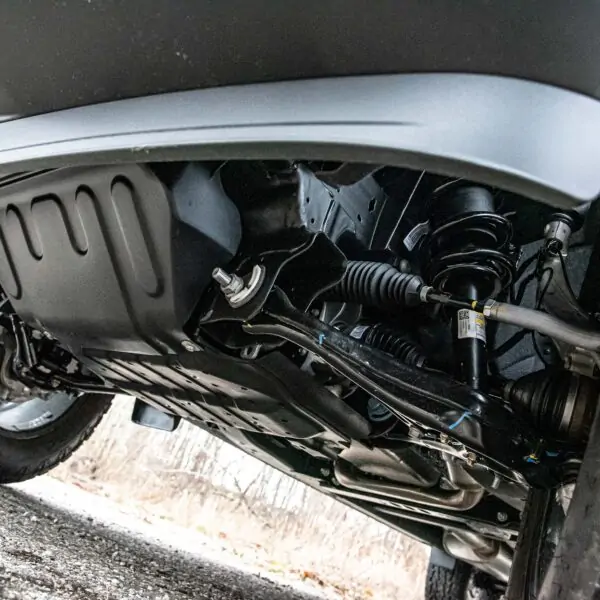

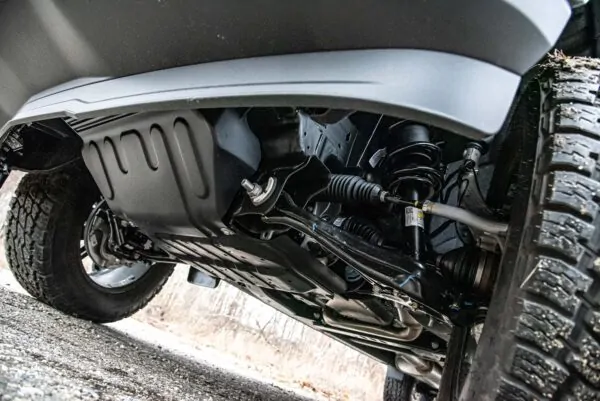

- Utilizes a combination top-mount and preload strut spacers to correctly lift vehicle.
- Retain factory ride quality without over extending suspension/drivelines at full suspension droop.
- Maintains ride and handling characteristics with clearance for larger tires.

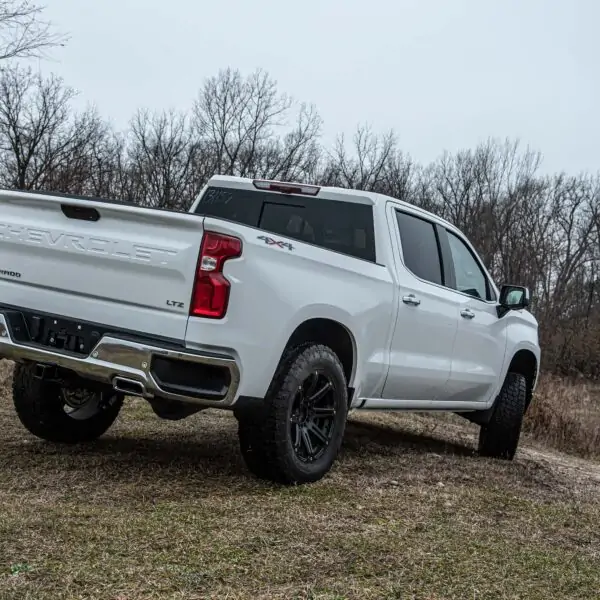

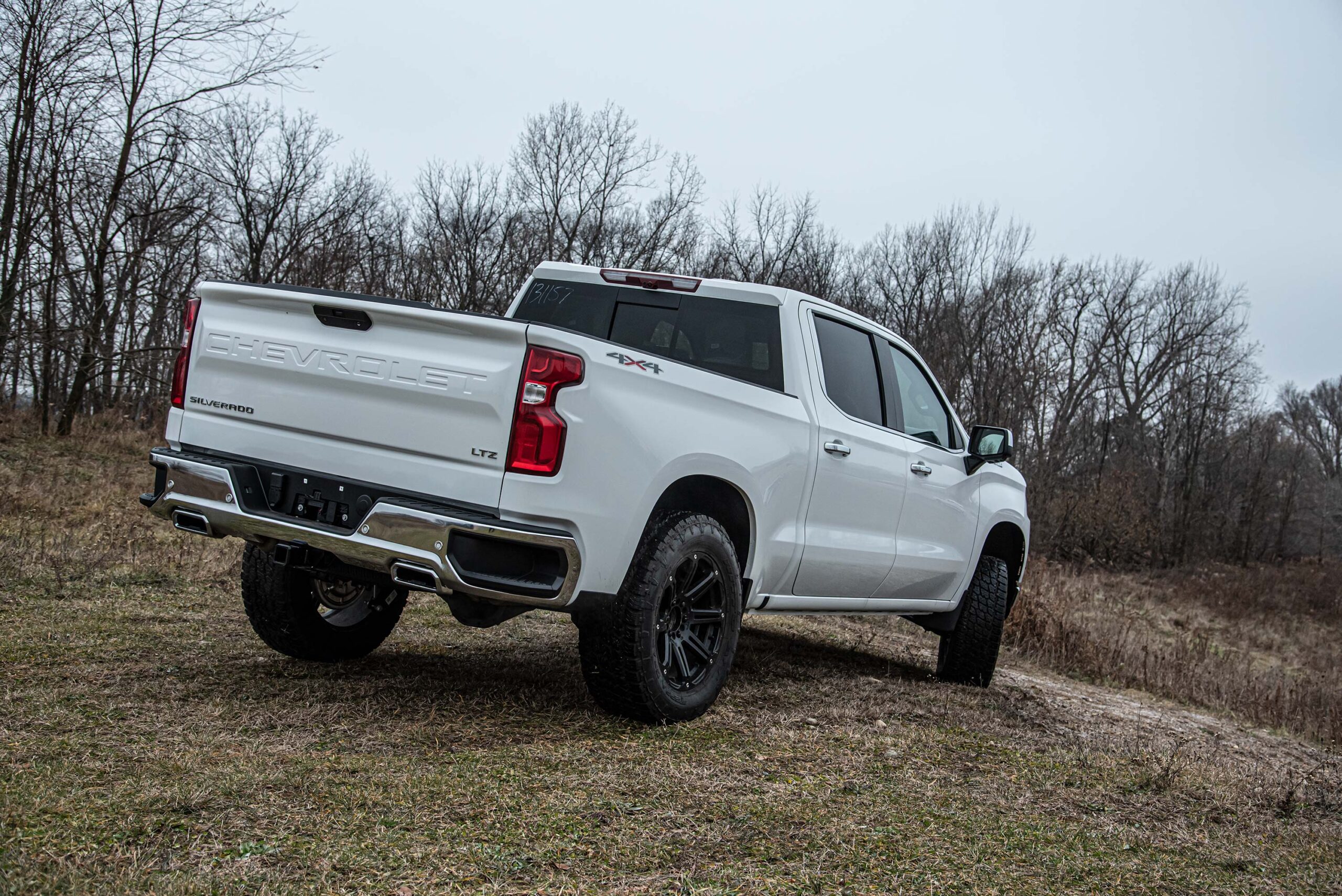

- 2″ rear lift blocks and heavy duty u-bolts to level the stance.
- Nitro series gas or FOX 2.0 adventure series gas shocks to improve performance.
- Optional Steering Stops included for larger wheel/tire combinations.

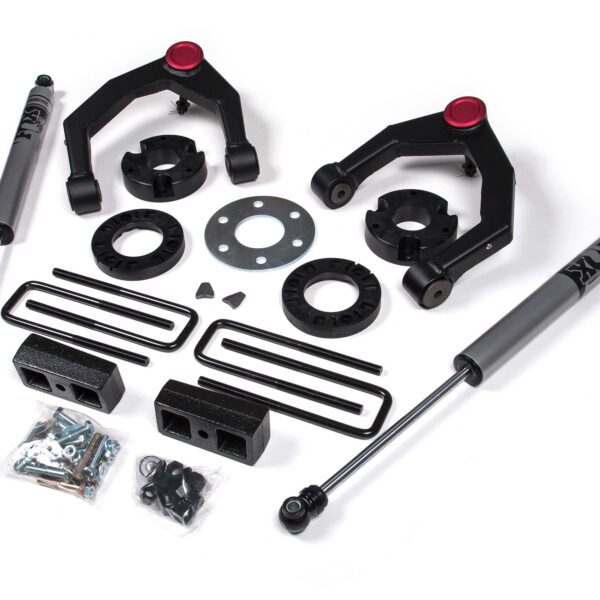

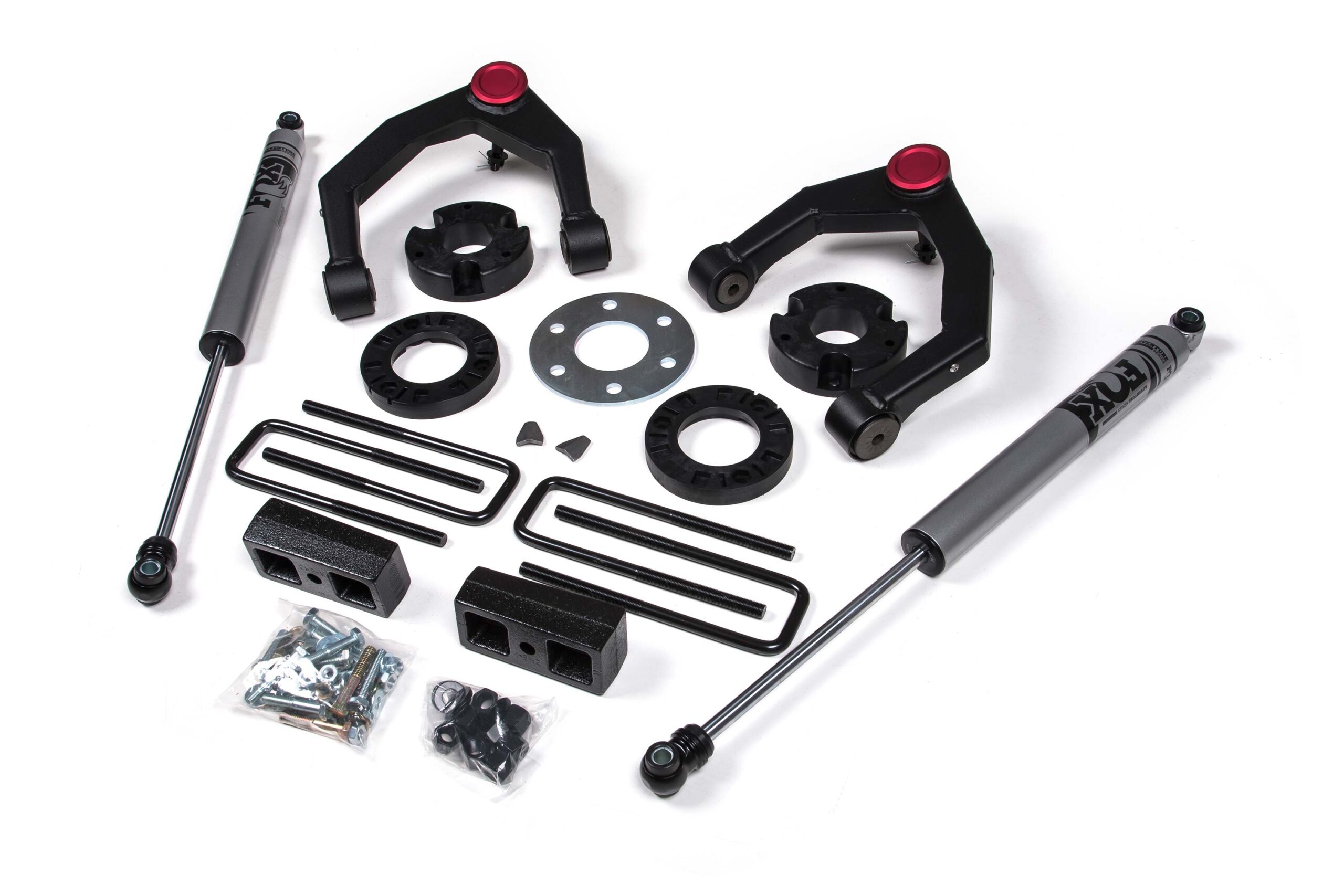

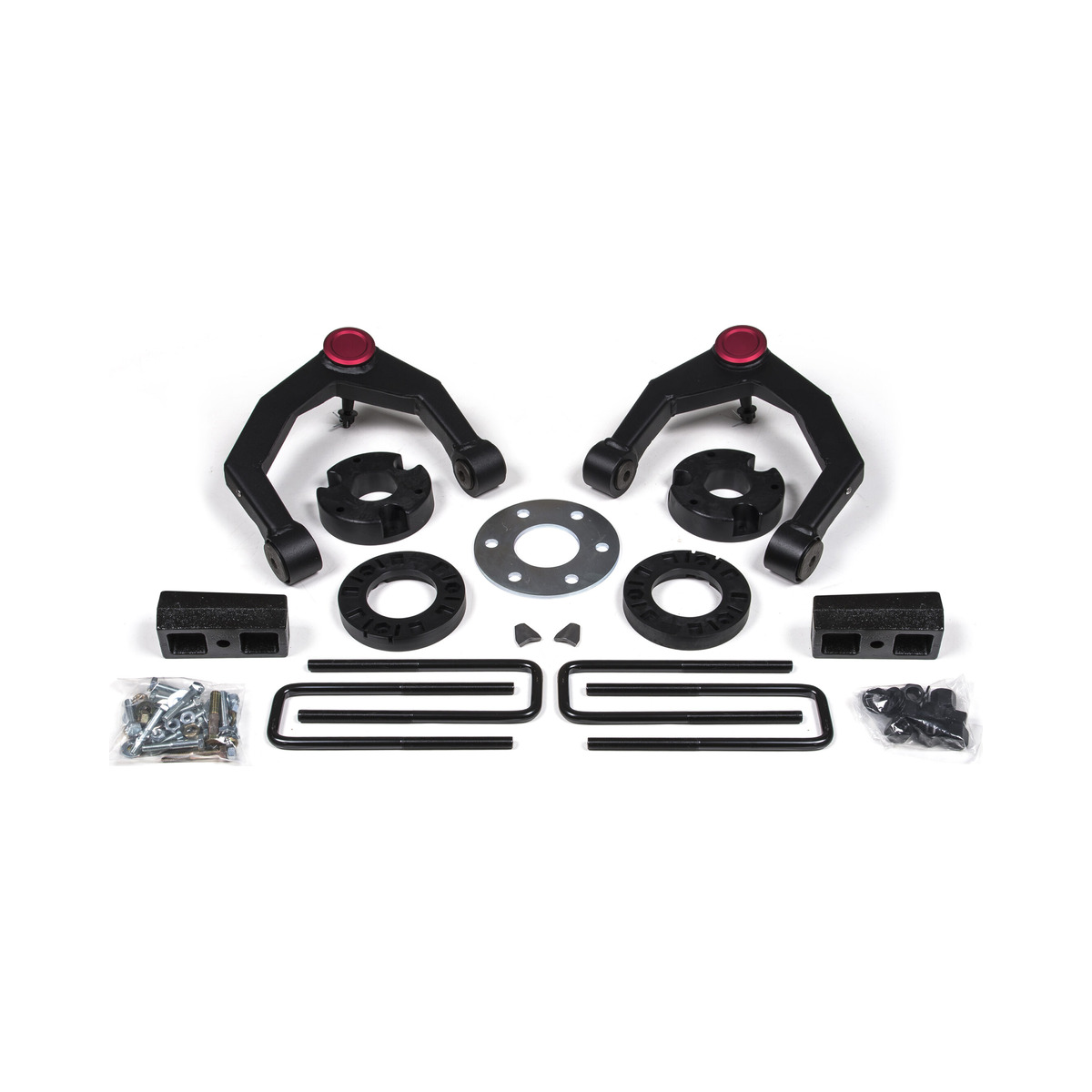

IN THE BOX:
- Rear Lift Block & U-Bolt Kit
- Strut Spacers
- Upper Control Arms
IMPORTANT NOTES:
- All aftermarket wheels should be test fit prior to mounting the tire to ensure proper clearance to the brake caliper.
- Do not exceed wheel backspacing of 5.5″ as it will cause clearance issues with UCA.
- Minor cutting of the factory droop limiter required to allow for the increased travel of replacement Upper Control Arms.
- Some wheel profiles will not clear the brake caliper. These can be test fitted before the vehicle is lifted in a stock condition.
- Wil NOT fit Denali models with Adaptive Ride Control (ARC).
- Will NOT fit Trail Boss/ AT4 models.
SPECIFICATIONS:
- Install Time Hours: 3-4 hrs
- Difficulty Level: 3 out of 5
REQUIRED TOOLS:
- Cut-off Tool
- Strut Compressor
RECOMMENDED WHEEL/TIRE FITMENT:
- 35×12.50 Tires on 20×9 (5.5″ BS) *Chevy Trucks
FITMENT:
- 2019 Chevrolet Silverado 1500 4WD
- 2020 Chevrolet Silverado 1500 4WD
- 2021 Chevrolet Silverado 1500 4WD
Be the first to review “Zone Offroad 3.5″ Adventure Series Lift Kit for 2019-2024 Chevrolet Silverado 1500 4WD”
Questions and answers of the customers
-
What ever brand i choose for the back are same for the fromt? And do shocks come with dust cover or boot cover?
- QWhat ever brand i choose for the back are same for the fromt? And do shocks come with dust cover ...... Read more answer nowA This kit only includes rear shocks, front shocks are not included in this kit. for your old front shocks you need to use Strut Spacers (which is included in this kit) Rubber shock boots no needed for shocks. The manufacturer says that they are not needed
