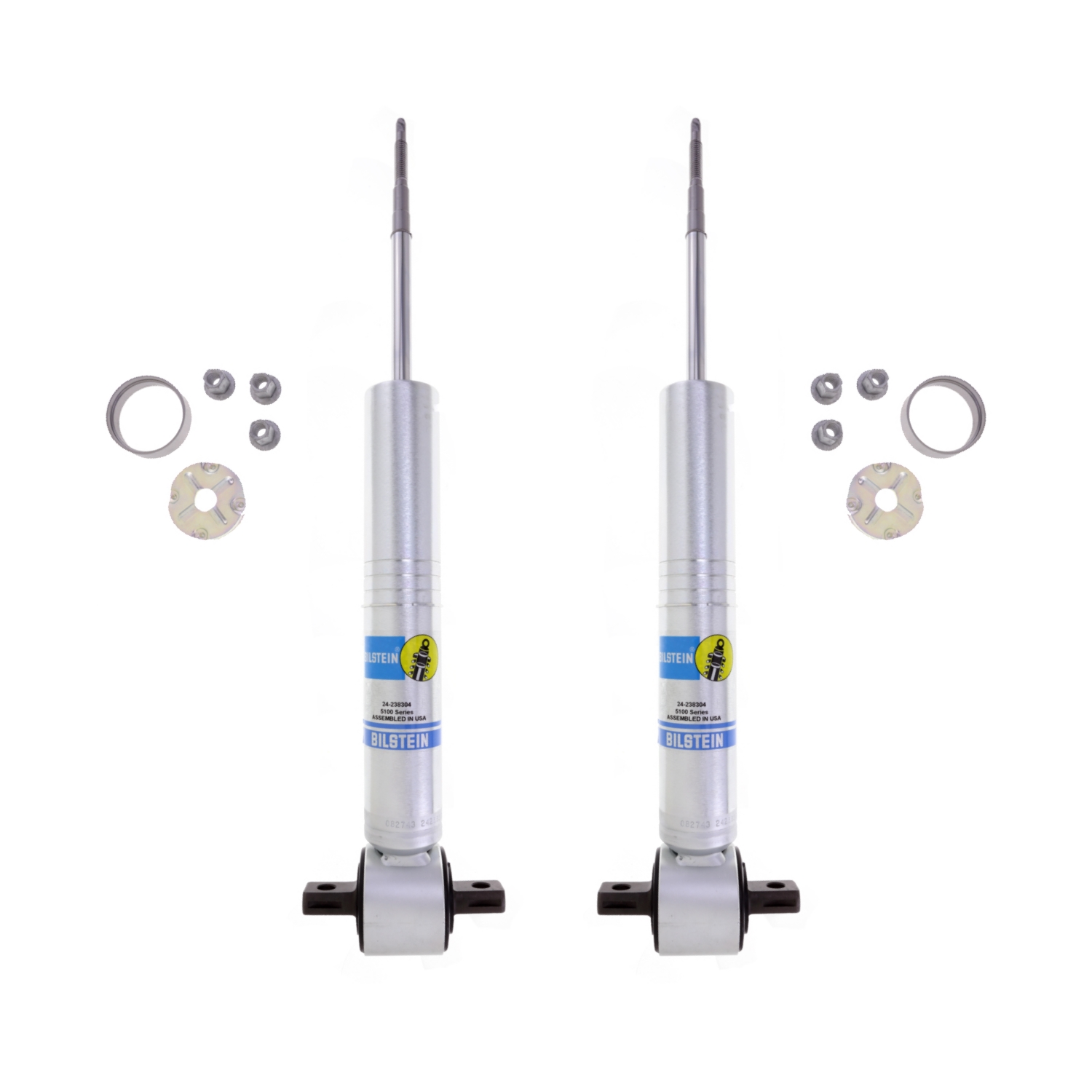

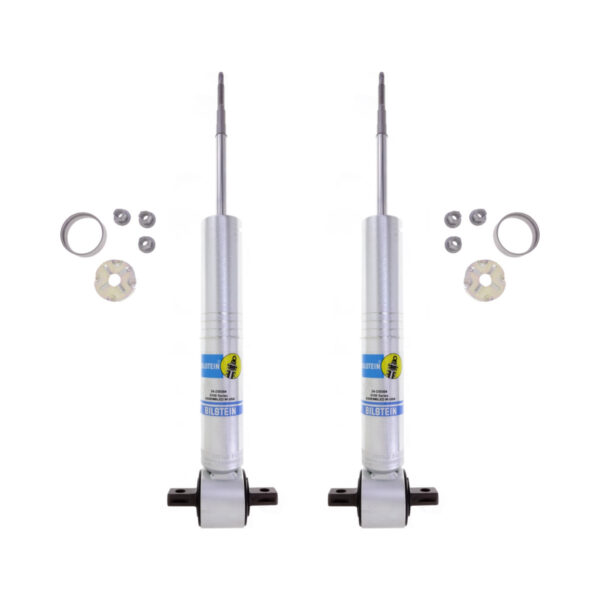

Bilstein B8 5100 0-2.5″ Front Lift shocks For 2019-2023 GMC Sierra 1500 2WD/4WD

SKU: 2x24-293297_n1
4.8 out of 5 based on 5 customer ratings
(5 customer reviews)
Bilstein B8 5100 0-2.5" Front Lift shocks For 2019-2020 GMC Sierra 1500 2WD/4WD
Bilstein B8 5100 0-2.5" Front Lift shocks For 2019-2020 GMC Sierra 1500 2WD/4WD

Description
Bilstein B8 5100 0-2.5″ Front Lift shocks For 2019-2023 GMC Sierra 1500 2WD/4WD

Bilstein B8 5100 0-2.5″ Front Lift shocks For 2019, 2020, 2021, 2022, 2023 GMC Sierra 1500 2WD/4WD

Part: 2×24-337052 (old: 24-293297)

WILL NOT WORK ON 2019 GMC SIERRA 1500 LIMITED. YOU WOULD NEED:

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-2.75 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.

Collapsed Length (IN): 16.28
Extended Length (IN): 21.65
Collapsed Length (MM): 413.6
Extended Length (MM): 550.0
Finish: Zinc Plated
Reservoir: No
Body Design: Snap Ring Grooved Body (Coilover)
Body Diameter: 46mm
Part: 24-337052

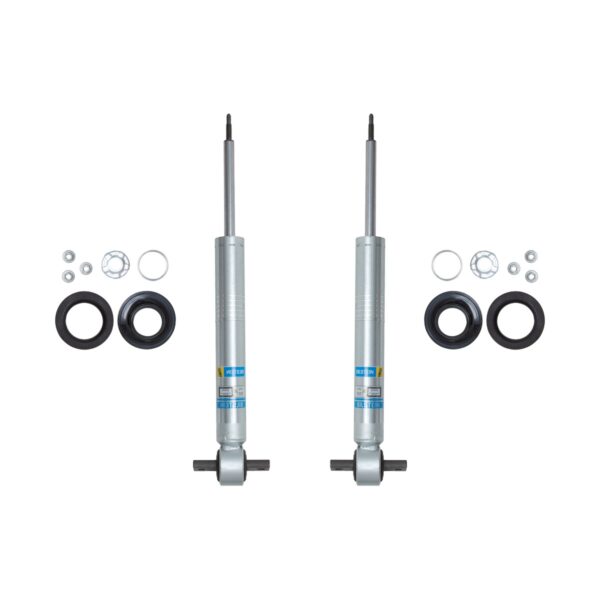

Picture does not show  springs seat, but it is now supplier with the shock by default

Customer reviews

Rated 4.8 out of 5 stars
5 reviews
5 stars 4 80 %
4 stars 1 20 %
3 stars 0 0 %
2 stars 0 0 %
1 star 0 0 %

5 reviews for Bilstein B8 5100 0-2.5″ Front Lift shocks For 2019-2023 GMC Sierra 1500 2WD/4WD

Add a review

Use one of the allowed file type: jpg,png,jpeg.

    Questions and answers of the customers

      Will this work on a 2025 GMC SIERRA 1500 2WD?
    1. 0 votes
      Q Will this work on a 2025 GMC SIERRA 1500 2WD? answer now
      A yes will work
      2. Does this front end lift kit cause any other parts on my truck to wear out prematurely?
    2. 0 votes
      Q Does this front end lift kit cause any other parts on my truck to wear out prematurely?
      There are no answers for this question yet. Answer now
      3. At the max level is the UCA and ball joint maxed out. I'm trying to determine everything im going to need and whats best.
    3. 0 votes
      Q At the max level is the UCA and ball joint maxed out. I'm trying to determine everything im going...... Read more answer now
      A Diff drop kit is recommended for 4WD trucks for 1.5'' of front  lift and more to increase the CV axles life.
      4. Will this work on a 2020 Silverado 1500 with the Duramax engine? What would be the maximum lift?
    4. 0 votes
      Q Will this work on a 2020 Silverado 1500 with the Duramax engine? What would be the maximum lift? answer now
      A Yes, will work up to 2.5''
      5. Will this work with the ready lift sst 4 inc lift? I just want to replace the stock Shock with something better.
    5. 0 votes
      Q Will this work with the ready lift sst 4 inc lift? I just want to replace the stock Shock with so...... Read more answer now
      A will work only if your kit uses OEM shocks (stock length)
      6. Will this work with an AT4 with the Readylift SST kit installed? If not do you offer a shock setup both front and rear that will. Many of us AT4/Trail Boss guys are waiting for this.
    6. 0 votes
      Q Will this work with an AT4 with the Readylift SST kit installed? If not do you offer a shock setu...... Read more answer now
      A it can be mounted on AT4 but will give no additional lift
      7. Can these be put in place of a leveling kit?
    7. 0 votes
      Q Can these be put in place of a leveling kit? answer now
      A In order to figure out how much lift you need to level please take existing measurements from center of the wheel hub to the bottom of the fender. Difference between front and rear is how much lift you need to level. https://www.suspensionlifts.com/level.png This shock can be adjusted between 0-2.5 ″. If the maximum value of 2.5 ″ is enough for you to level your truck, then you can buy
      8. Ok just wanted to confirm that these are NOT a LEVELING shock for the GMC AT4
    8. 0 votes
      Q Ok just wanted to confirm that these are NOT a LEVELING shock for the GMC AT4
      There are no answers for this question yet. Answer now
      9. So "almost" same as stock height, is that at 0 or 2.75 setting on the shock?
    9. 0 votes
      Q So "almost" same as stock height, is that at 0 or 2.75 setting on the shock? answer now
      A 2.75'' are approximate
      10. will it adjust ride height up to two inches (Even though already lifted two inches from factory) to level the truck?
    10. 0 votes
      Q will it adjust ride height up to two inches (Even though already lifted two inches from factory) ...... Read more answer now
      A For AT4 it will give almost the same stock height
      11. Does this work with the 2019 AT4?
    11. 0 votes
      Q Does this work with the 2019 AT4? answer now
      A yes, it can be mounted

    ATTENTION STATE OF CALIFORNIA CONSUMERS. WARNING: Cancer and reproductive harm – www.p65warnings.ca.gov
