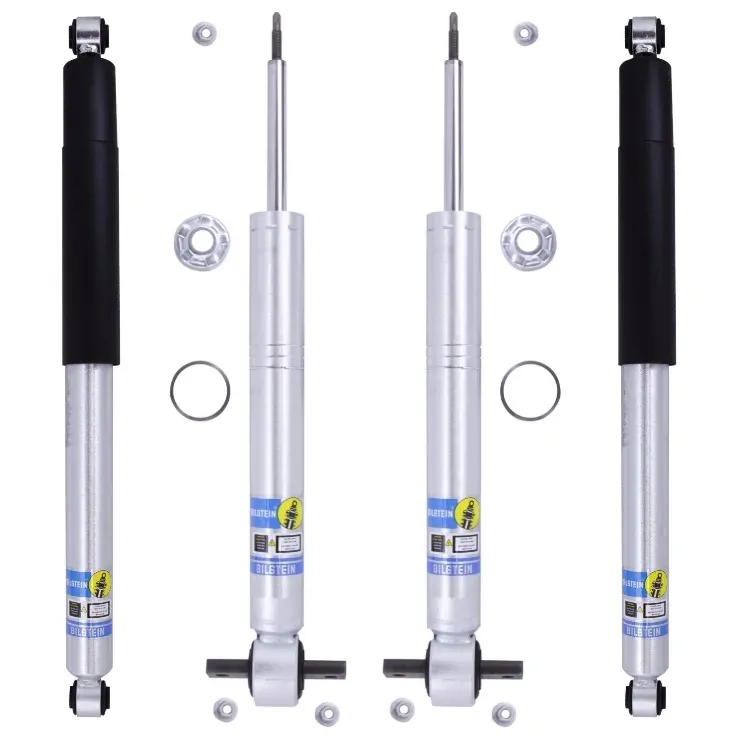

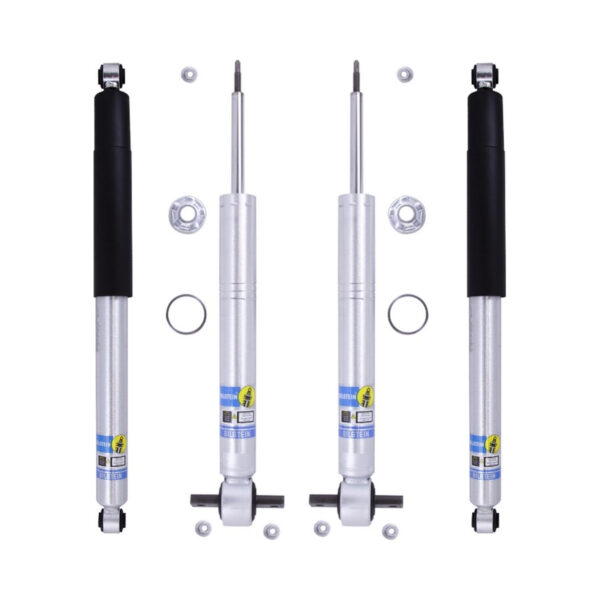

Bilstein B8 5100 RHA 0-1.1″ Front, 0-1″ Rear Lift Shocks For 2019-2023 Chevrolet Silverado 1500 (Trail Boss only)
Sale!
Description
Bilstein B8 5100 RHA 0-1.1″ Front, 0-1″ Rear Lift Shocks For 2019-2023 Chevrolet Silverado 1500 (Trail Boss only)
Bilstein B8 5100 RHA 0-1.1″ Front, 0-1″ Rear Lift Shocks For 2019, 2020, 2021, 2022, 2023 Chevrolet Silverado 1500 (Trail Boss submodel only)
Part: 2×24-309509_2x24-309516
Need the Front assembled with Rear Shocks?
Front Shocks: 2 of 24-337069 (old: 24-309509)
Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-1.1 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.
- Collapsed Length (IN): 17.58
- Extended Length (IN): 21.97
- Collapsed Length (MM): 446.6
- Extended Length (MM): 558.0
- Finish: Zinc Plated
- Reservoir: No
- Aftermarket Upper Arms Required: No
- Body Design: Snap Ring Grooved Body (Coilover)
- Body Diameter: 46mm

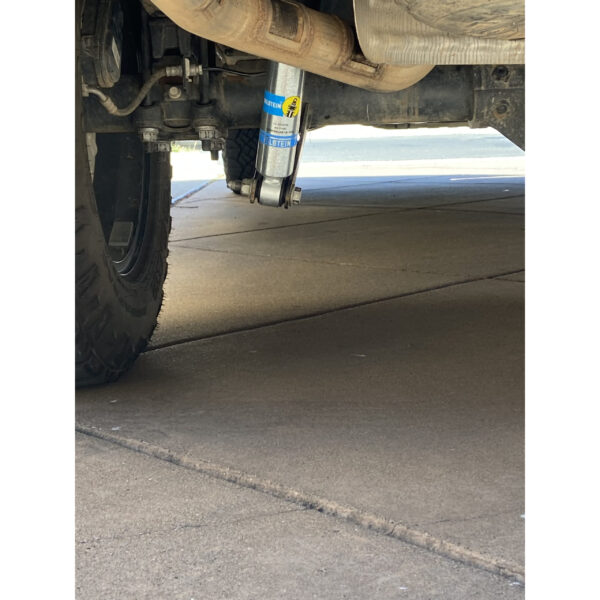

Rear Shocks: 2 of 24-309516
Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.
- Collapsed Length (IN): 17.40
- Extended Length (IN): 27.61
- Collapsed Length (MM): 442.0
- Extended Length (MM): 701.2
- Finish: Zinc Plated
- Reservoir: No
- Body Design: Smooth Body (Non-Coilover)
- Body Diameter: 46mm
Notes: Trail Boss/AT4 only
Questions and answers of the customers
-

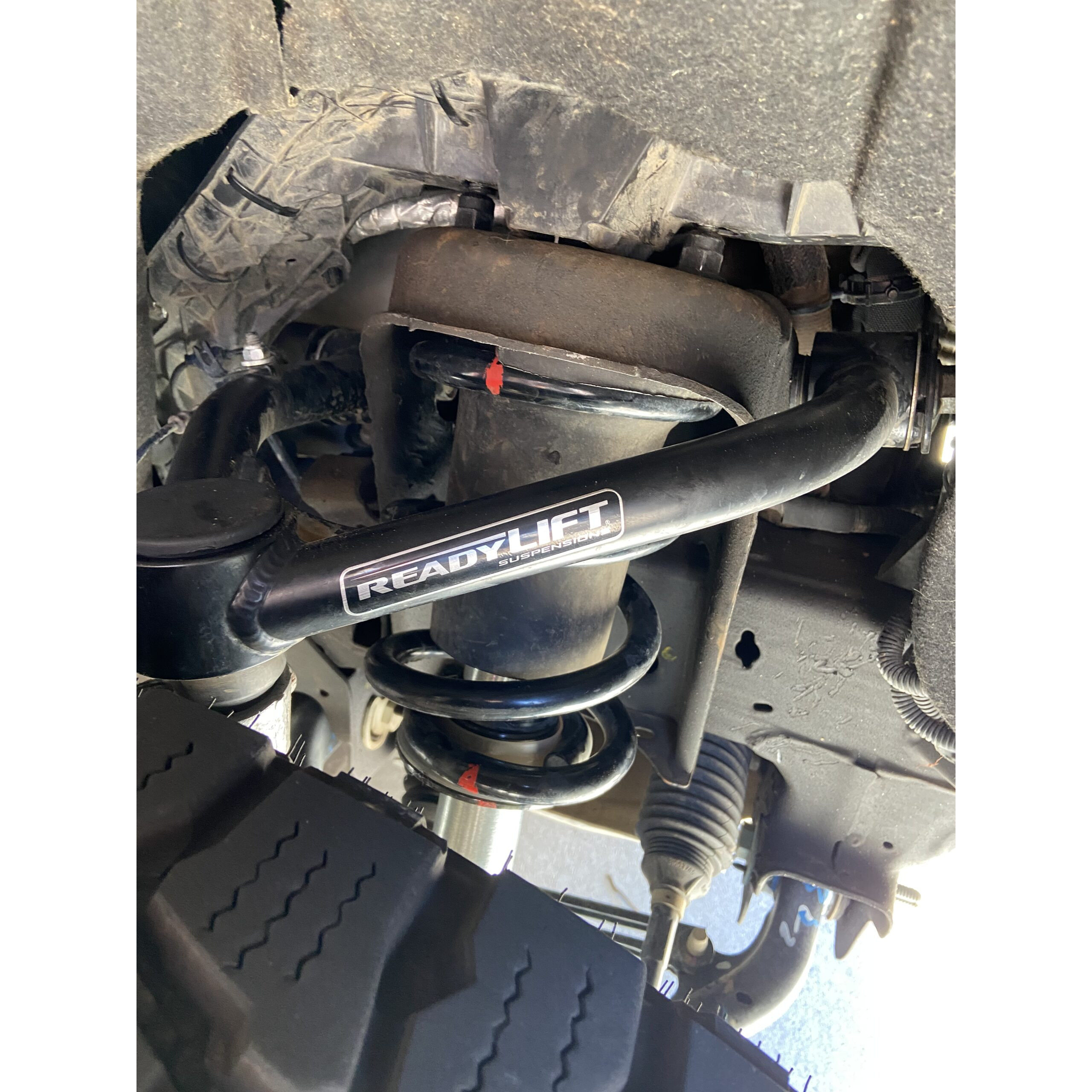

I have the Readylift 2.0 on my 2021 Trailboss, will these work with the Readylift?
- A yes but please be informed that TrailBoss already sits higher than factory suspension, and if you already added 2'' ReadyLift to Trailboss we'd recommend using 5100s on the lowest height settingHas anyone had any issues with the trail boss cv axels after adding this?
- QHas anyone had any issues with the trail boss cv axels after adding this?There are no answers for this question yet. Answer nowWill this keep the same ride height in the front or raise it a little?
- A They are adjustables, you can set them to the lowest level for stock heightI’m interested in this for my Chevy Trailboss what are the height adjustment options? Like is 1st notch how much lift? 2nd notch? It says total 2.75” height? Is that max or add the 2 inch factory Trailboss lift plus 2.75?I’m looking to lift truck a total of 2.5” just I’m just wanting 1/2 more than stock can this 5100 do that?
- QI’m interested in this for my Chevy Trailboss what are the height adjustment options? Like is 1st...... Read more answer nowA Hello These front shocks can lift your truck by a maximum of 0-1.1 ″ using stock springs. Installation Instructions https://productdesk.cart.bilsteinus.com//media/products/bilstein/E4-WM5-Y659A00.pdf Rear shocks can work in 0-1 ″, but they won't lift your truck by themselvesCan I use these on a Silverado(non-trail boss) set at the lowest setting to achieve 2” of lift to level the front without pre loading the spring?
- QCan I use these on a Silverado(non-trail boss) set at the lowest setting to achieve 2” of lift to...... Read more answer nowA haven't tested it by ourselves can't tell for suremay have UCA issues on higher notchesWill these work on a 2021 Trail Boss?
- A yes it will work for 2021 TrailBoss/ AT4Will these fit my stock 19 Silverado LTZ 4WD?
- A will fit if you have TrailBoss submodel. The mountings are the same, but They are longer than shocks for all other submodelsRecently running a Leveling kit on the stock 2 inch rancho kit.
Would I be able to include the leveling kit on top of these bilsteins?
- QRecently running a Leveling kit on the stock 2 inch rancho kit. Would I be able to include the le...... Read more answer nowA Unfortunately no
ATTENTION STATE OF CALIFORNIA CONSUMERS. WARNING: Cancer and reproductive harm – www.p65warnings.ca.gov
Related products
- Sale!
Bilstein B8 5100 RHA 0-1.1″ Front, 0-1″ Rear Lift Shocks For 2019-2023 GMC Sierra 1500 (AT4 only)
(8 reviews)Original price was: $534.00.$470.89Current price is: $470.89. - Sale!
Bilstein B8 5100 RHA 0-1.1″ Front Lift Shocks For 2019-2023 GMC Sierra 1500 (AT4 Only)
(3 reviews)Original price was: $314.00.$281.78Current price is: $281.78.

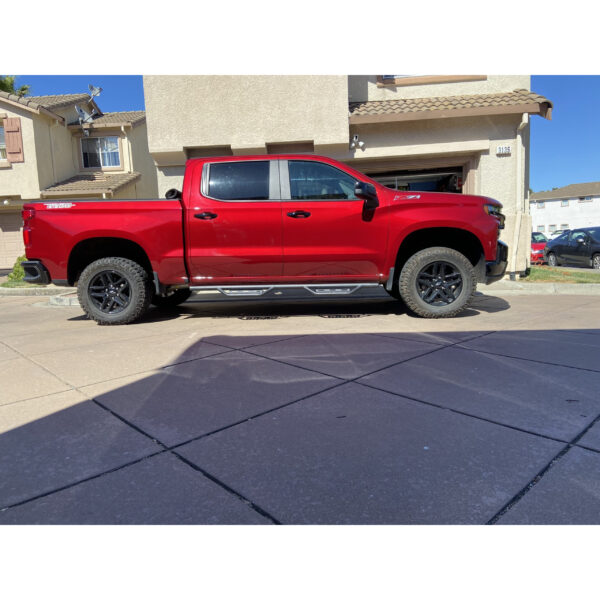

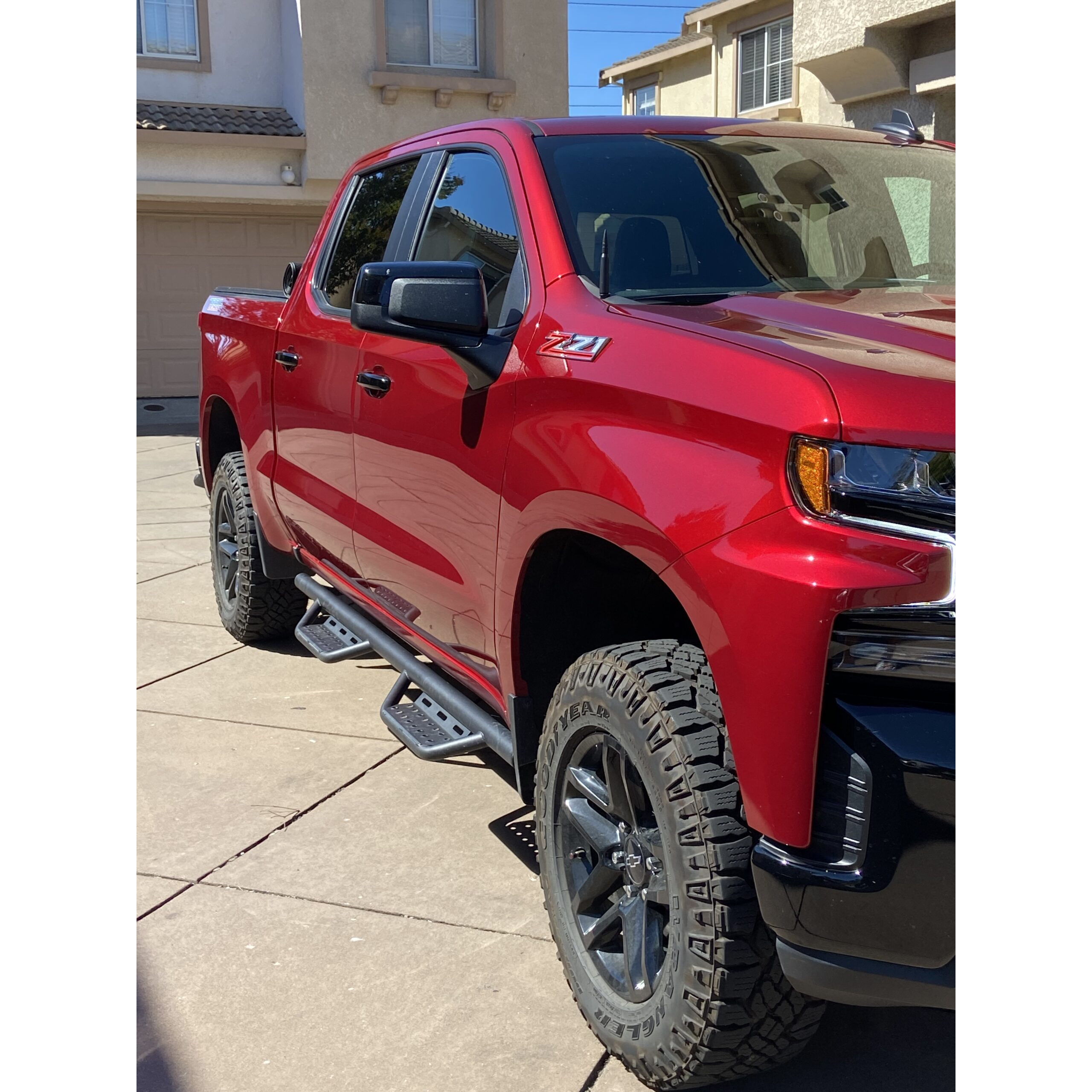

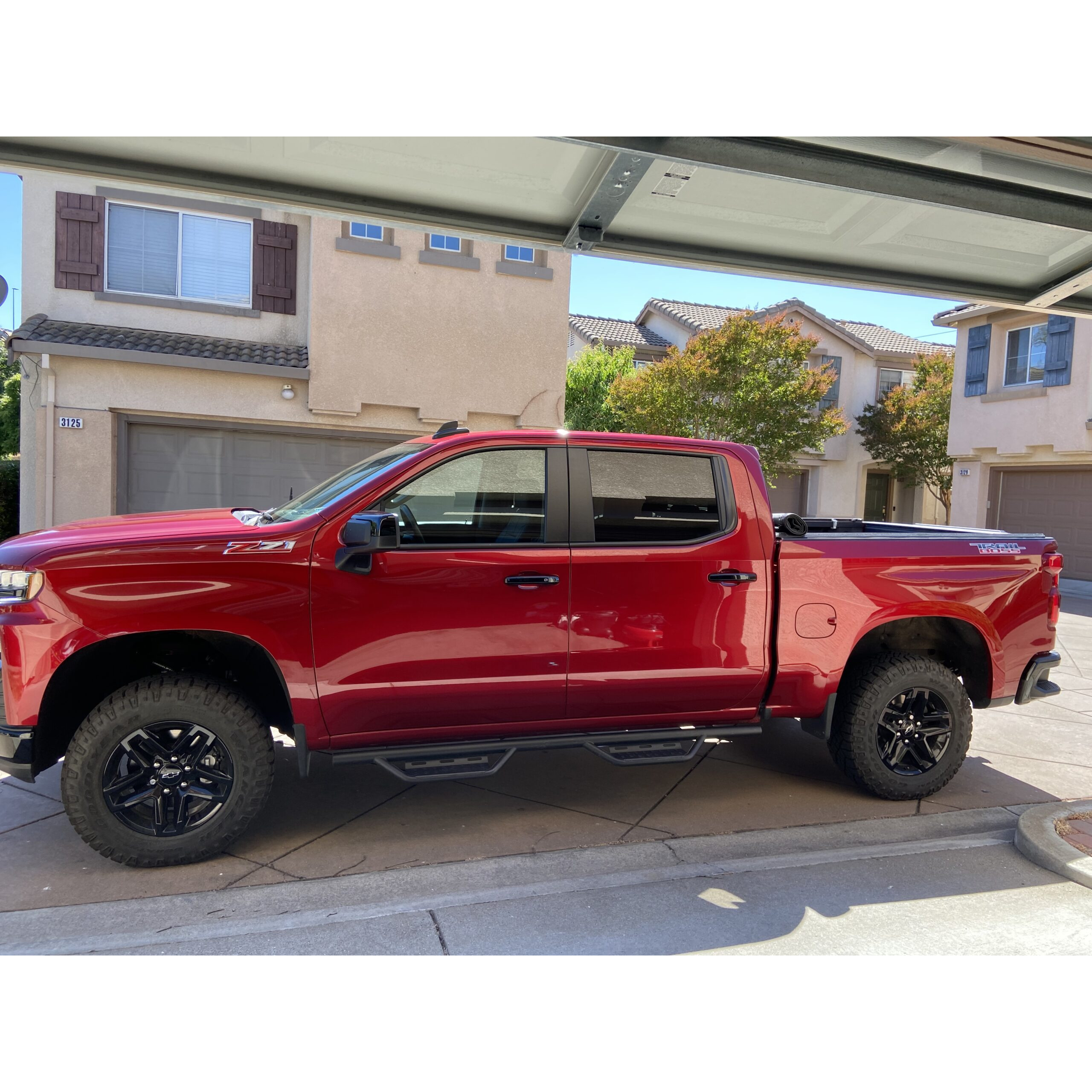

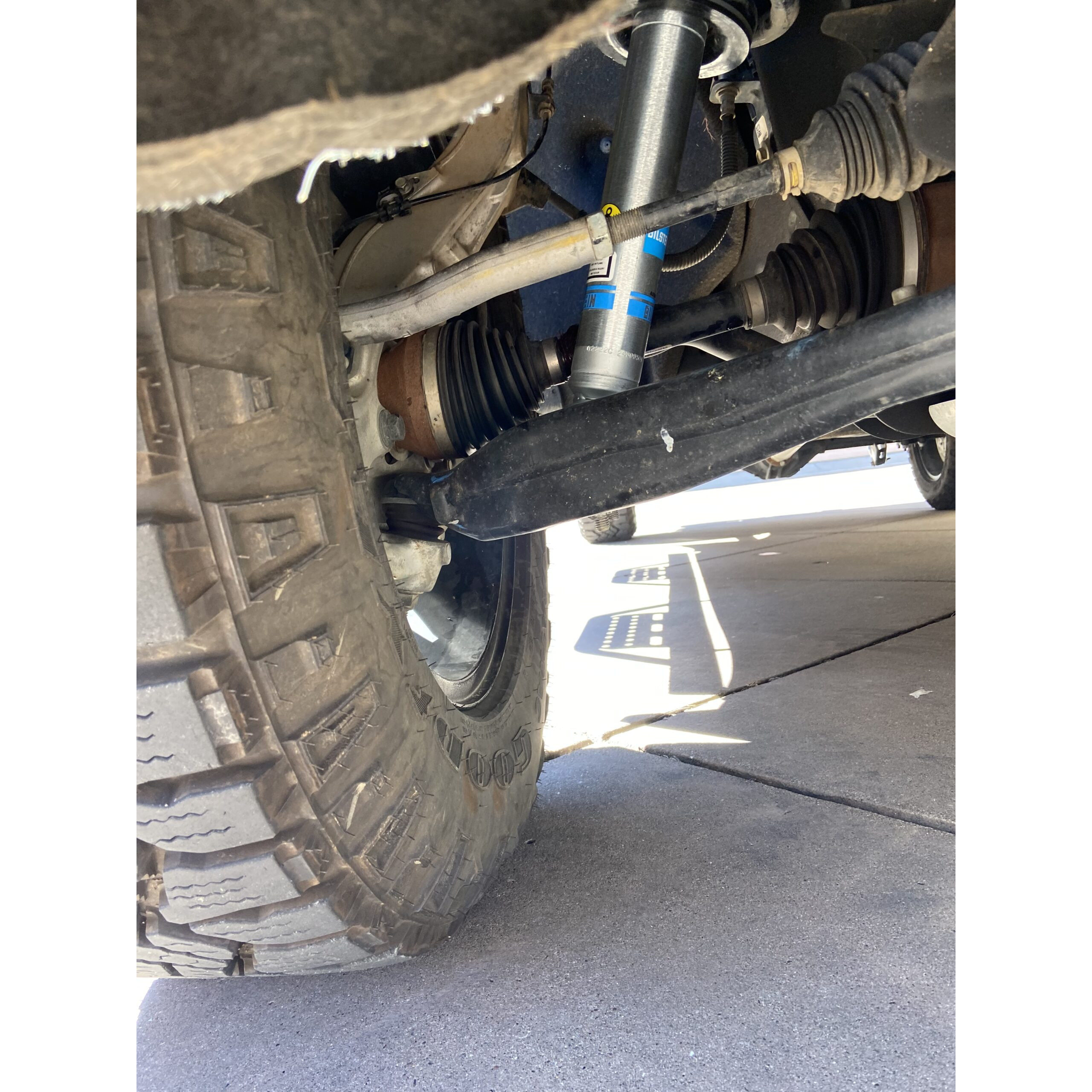

2 reviews for Bilstein B8 5100 RHA 0-1.1″ Front, 0-1″ Rear Lift Shocks For 2019-2023 Chevrolet Silverado 1500 (Trail Boss only)
