Bilstein B8 5100 RHA 0-1.1″ Front Lift Shocks For 2019-2023 GMC Sierra 1500 (AT4 Only)

SKU: 2x24-309509_n1
3.6666666666667 out of 5 based on 3 customer ratings
(3 customer reviews)
Sale!

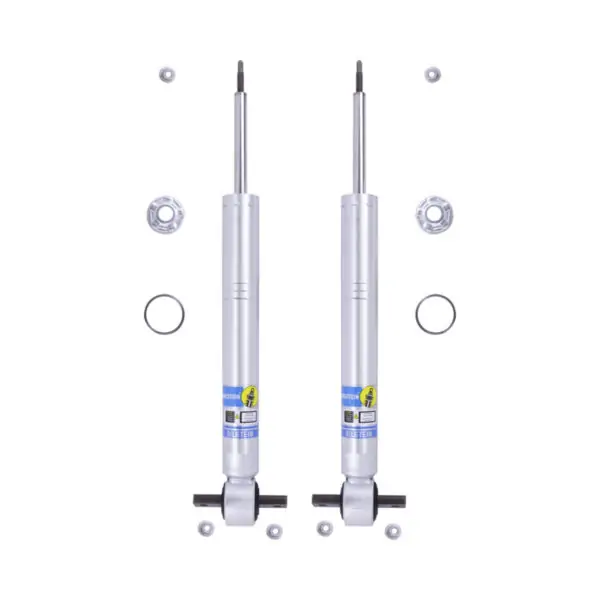

Bilstein B8 5100 RHA 0-1.1 inch Front Lift Shocks For 2019-2020 GMC Sierra 1500 (AT4 Only)
Bilstein B8 5100 RHA 0-1.1 inch Front Lift Shocks For 2019-2020 GMC Sierra 1500 (AT4 Only)

Description
Bilstein B8 5100 RHA 0-1.1″ Front Lift Shocks For 2019-2023 GMC Sierra 1500 (AT4 Only)

Bilstein B8 5100 RHA 0-1.1″ Front Lift Shocks For 2019, 2020, 2021, 2022, 2023 GMC Sierra 1500 RWD/4WD (AT4)

Part: 2×24-309509

Need a full kit?

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-1.1 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.

Shock part: 24-337069 (old: 24-309509)

Collapsed Length: 17.58″
Extended Length: 21.97″
Collapsed Length (MM): 446.6
Extended Length (MM): 558.0
Finish: Zinc Plated
Reservoir: No
Aftermarket Upper Arms Required: No
Body Design: Snap Ring Grooved Body (Coilover)
Body Diameter: 46mm

Notes:

Only for AT4 and TrailBoss submodels

Customer reviews

Rated 3.6666666666667 out of 5 stars
3 reviews
5 stars 2 66 %
4 stars 0 0 %
3 stars 0 0 %
2 stars 0 0 %
1 star 1 33 %

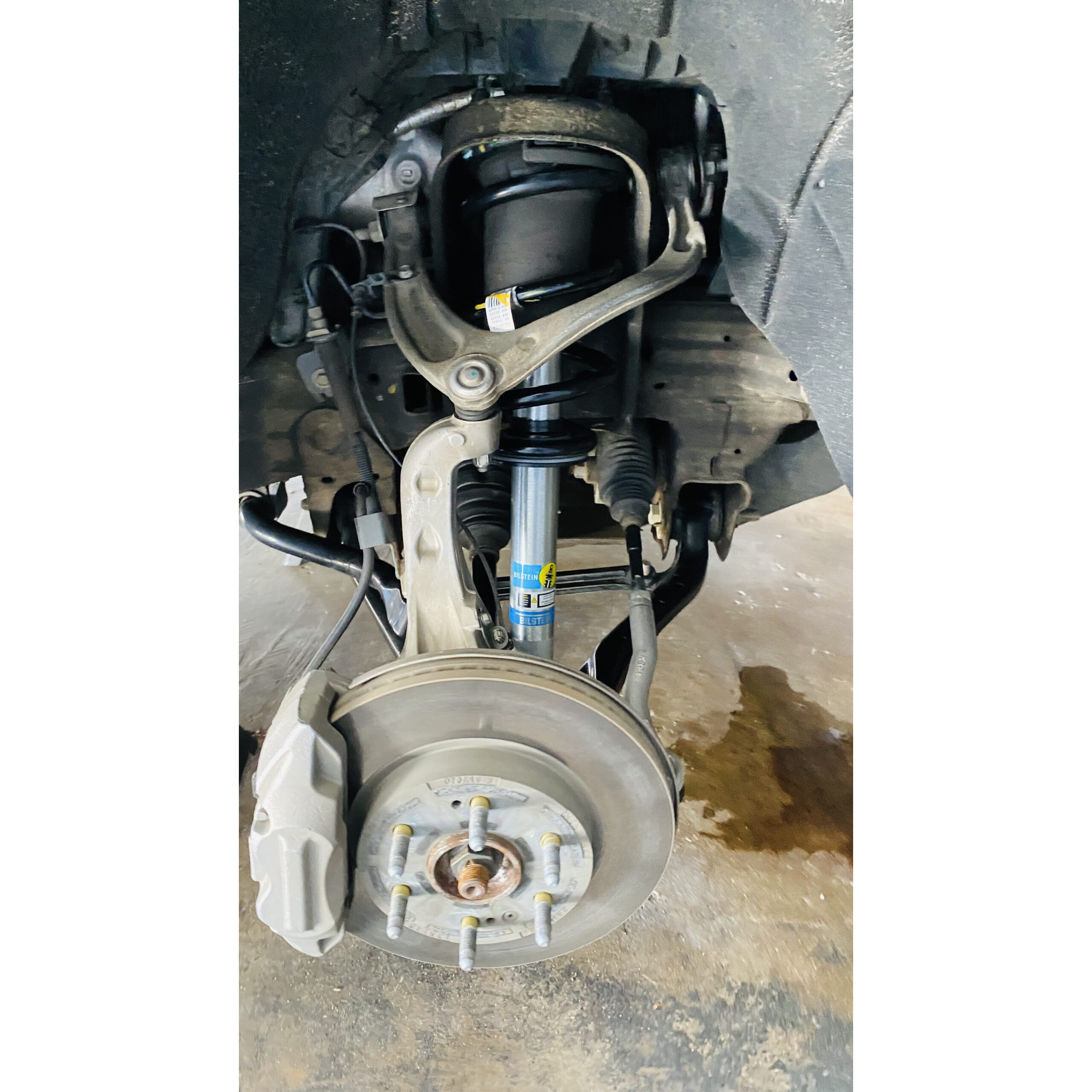

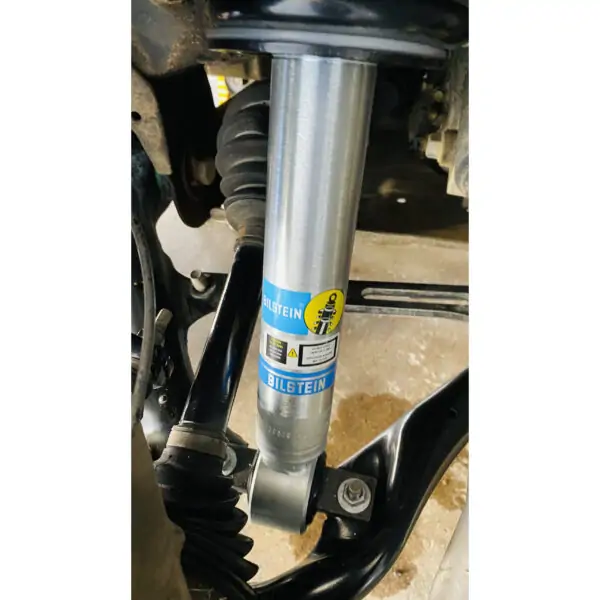

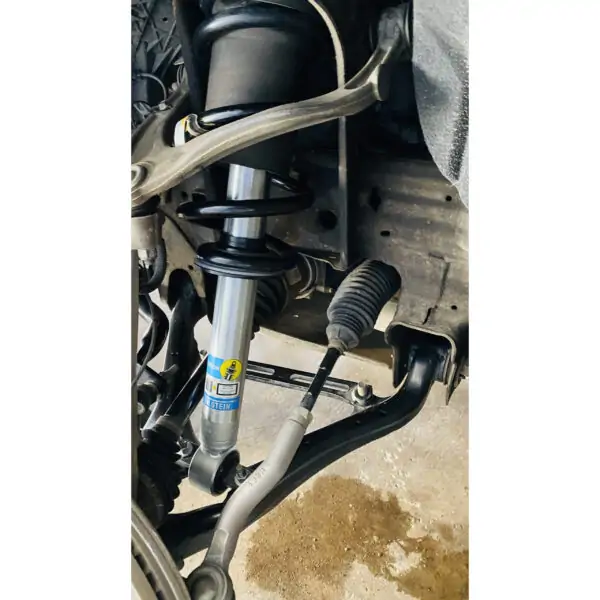

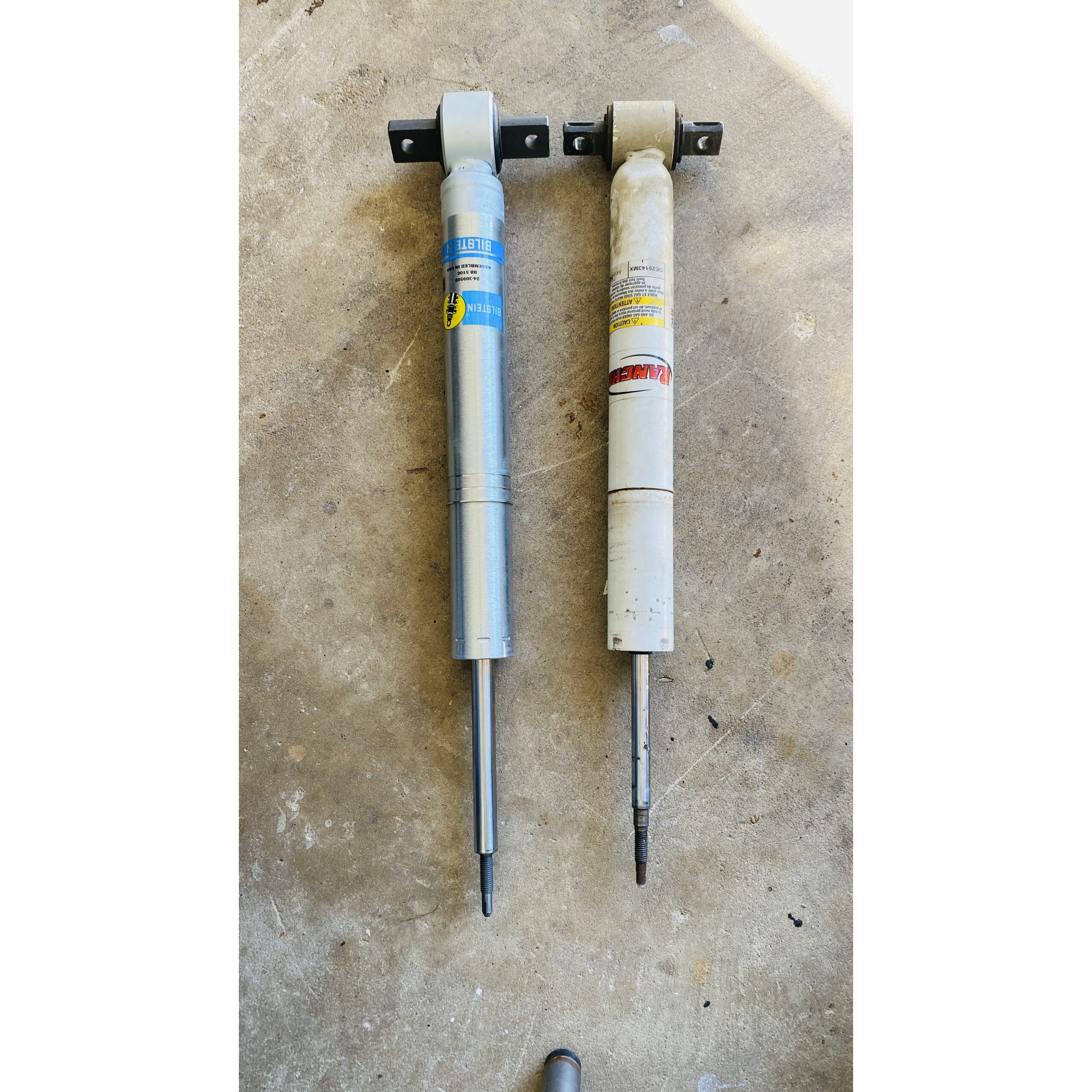

3 reviews for Bilstein B8 5100 RHA 0-1.1″ Front Lift Shocks For 2019-2023 GMC Sierra 1500 (AT4 Only)

Add a review

Use one of the allowed file type: jpg,png,jpeg.

    Questions and answers of the customers

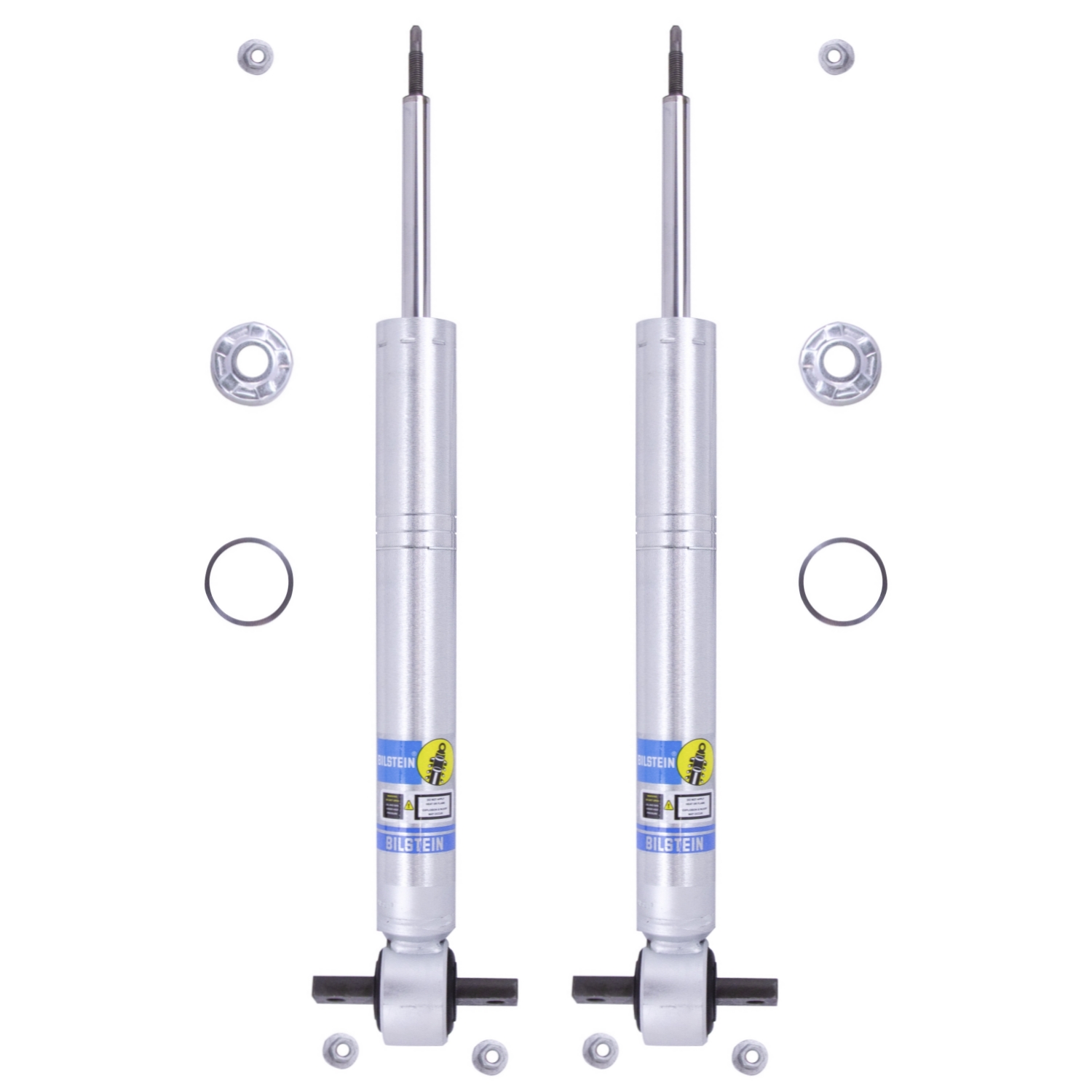

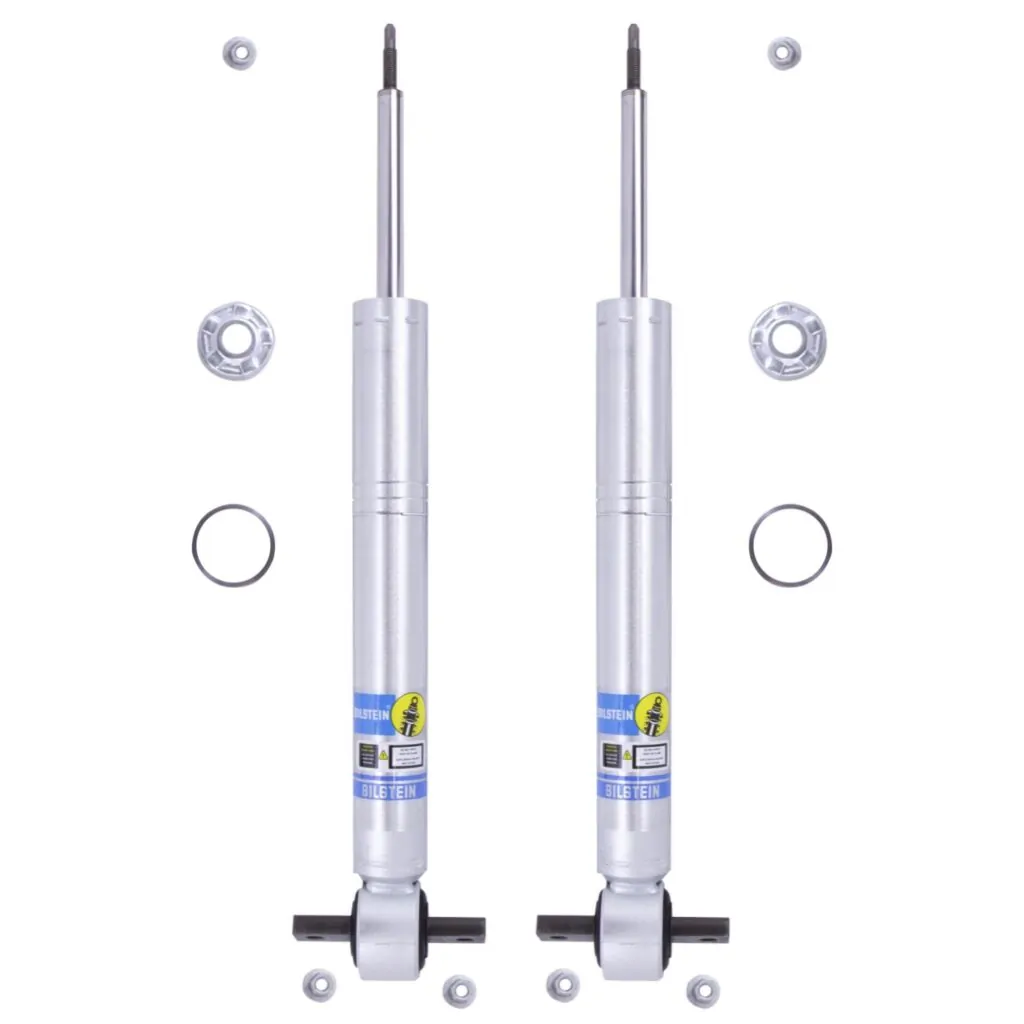

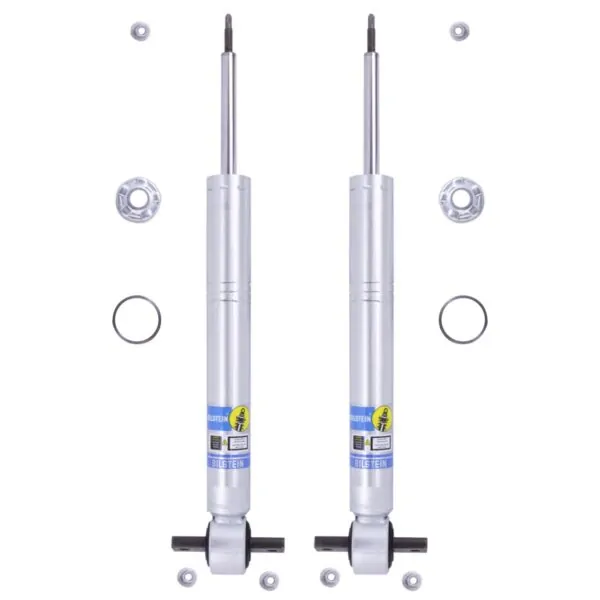

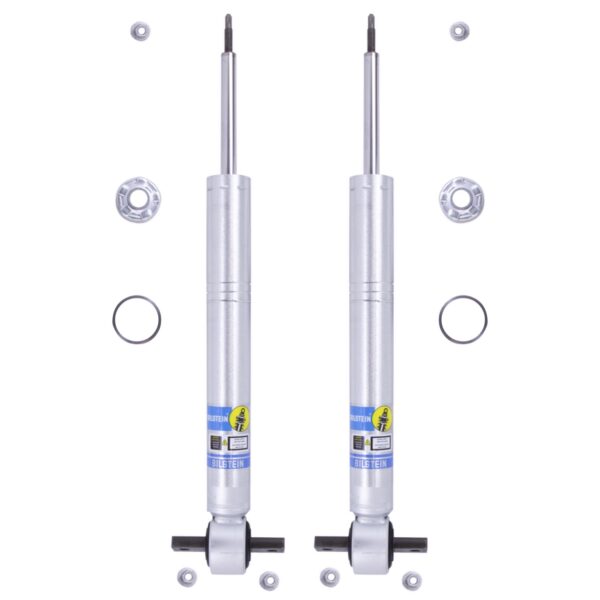

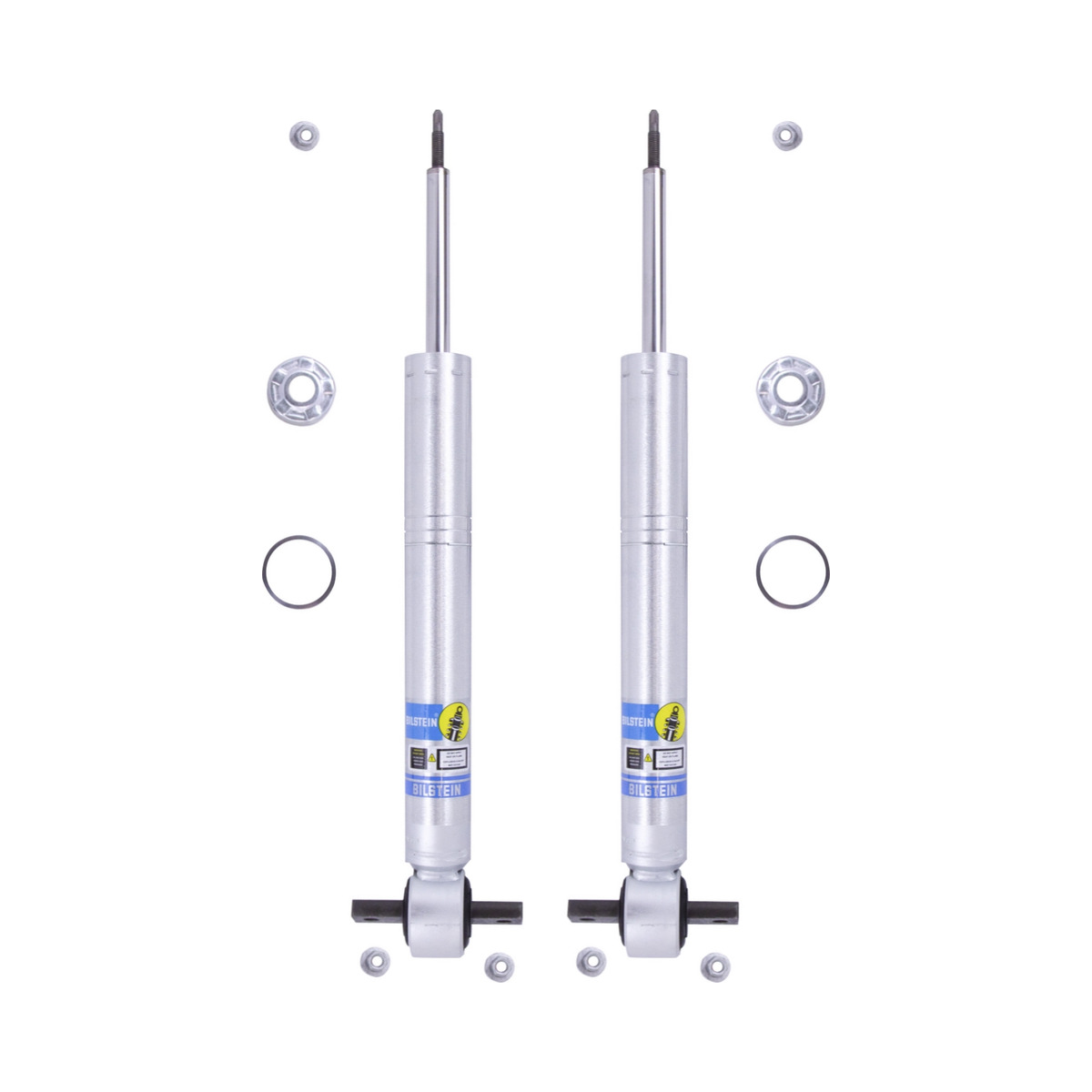

      Picture shows 2 struts. I'm assuming for that price it's only the one strut?
    1. 0 votes
      Q Picture shows 2 struts. I'm assuming for that price it's only the one strut? answer now
      A priced per pair as pictured for assembling your OEM top mounts and coils are reused
      2. Will these fit on 2019 GMC Sierra SLT 4x4 with the 3" Super Lift?
    2. 0 votes
      Q Will these fit on 2019 GMC Sierra SLT 4x4 with the 3" Super Lift?
      There are no answers for this question yet. Answer now
      3. So do these shock work on AT4? reviewer said they don’t fit.
    3. 0 votes
      Q So do these shock work on AT4? reviewer said they don’t fit. answer now
      A will work, why not
      4. Can I clip in the bottom and maintain AT4 factory ride height.
    4. 0 votes
      Q Can I clip in the bottom and maintain AT4 factory ride height. answer now
      A yes
      5. Which circ clip (upper, middle, or lower?) do you use on these for stock AT4 height since the AT4 comes lifted from the factory?
    5. 0 votes
      Q Which circ clip (upper, middle, or lower?) do you use on these for stock AT4 height since the AT4...... Read more answer now
      A upper circlip will give additional 1'' to the AT4 stock height
      6. Since the At4 already has a 2” lift from the factory, with these struts put any extra bind on the upper ball joints or cv axles?
    6. 0 votes
      Q Since the At4 already has a 2” lift from the factory, with these struts put any extra bind on the...... Read more answer now
      A for AT4 and TrailBoss it will give additional 1''
