SuperLift 6.5″ Lift Kit For 2014-2018 Chevy Silverado and GMC Sierra 1500 4WD with Aluminum or Stamped Steel Control Arms – with Bilstein Rear Shocks

Description
SuperLift 6.5″ Lift Kit For 2014-2018 Chevy Silverado and GMC Sierra 1500 4WD with Aluminum or Stamped Steel Control Arms – with Bilstein Rear Shocks

SuperLift 6.5″ Lift Kit For 2014, 2015, 2016, 2017, 2018 Chevy Silverado and GMC Sierra 1500 4WD with Aluminum or Stamped Steel Control Arms – with Bilstein Rear Shocks

Part: K161B

• This is a complete knuckle style, strut spacer suspension lift kit for the 2014-2018 Chevy/GMC 1500 Silverado/Sierra pickup 4wd – with OE aluminum or stamped steel upper control arms; providing 6.5” of lift height
• Includes rear fabricated blocks that remove the factory block and rear 5100 Series Bilstein shock absorbers
• Covered by our Limited Lifetime Warranty
• This kit also comes in a rear Superlift Superide shock option
• NOTE: Not recommended for AWD models

Include:

• All brackets, cross-members, belly pan, steering knuckles, strut spacers, axle spacers, rear block and u-bolt kit, and hardware required specific to the 2014-2018 4wd Chevrolet/GMC 1500.
• Detailed instruction manual walking you step-by-step through the lift kit installation procedures suitable for do-it-yourselfers (DIY) or professional installation
• The best customer service and technical help in the industry.

PRODUCT DETAILS:

FEATURES & BENEFITS:

• Allows the use of 20” factory wheels Makes room for up to 35” tires
• Maintains awesome ride quality and handling characteristics
• No Coil-over disassembly required
• Aligns to OEM specifications
• Corrects front to rear factory rake for a level stance
• Lifetime Warranty
• 60-Day Satisfaction Guarantee

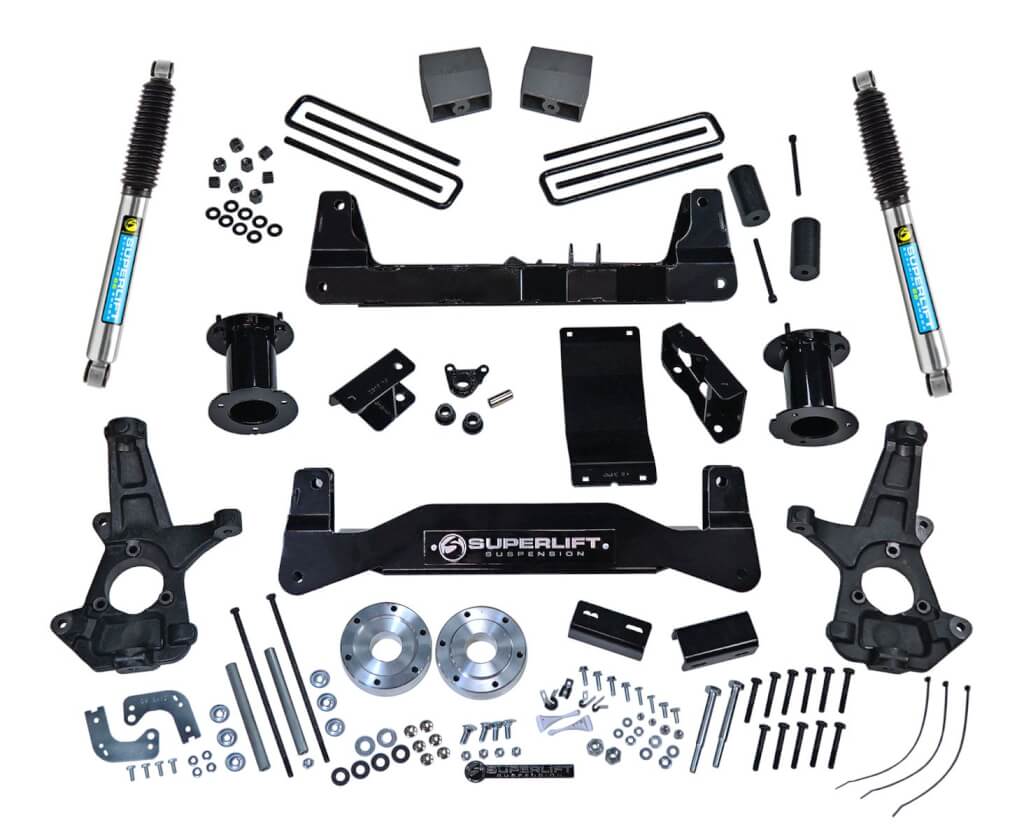

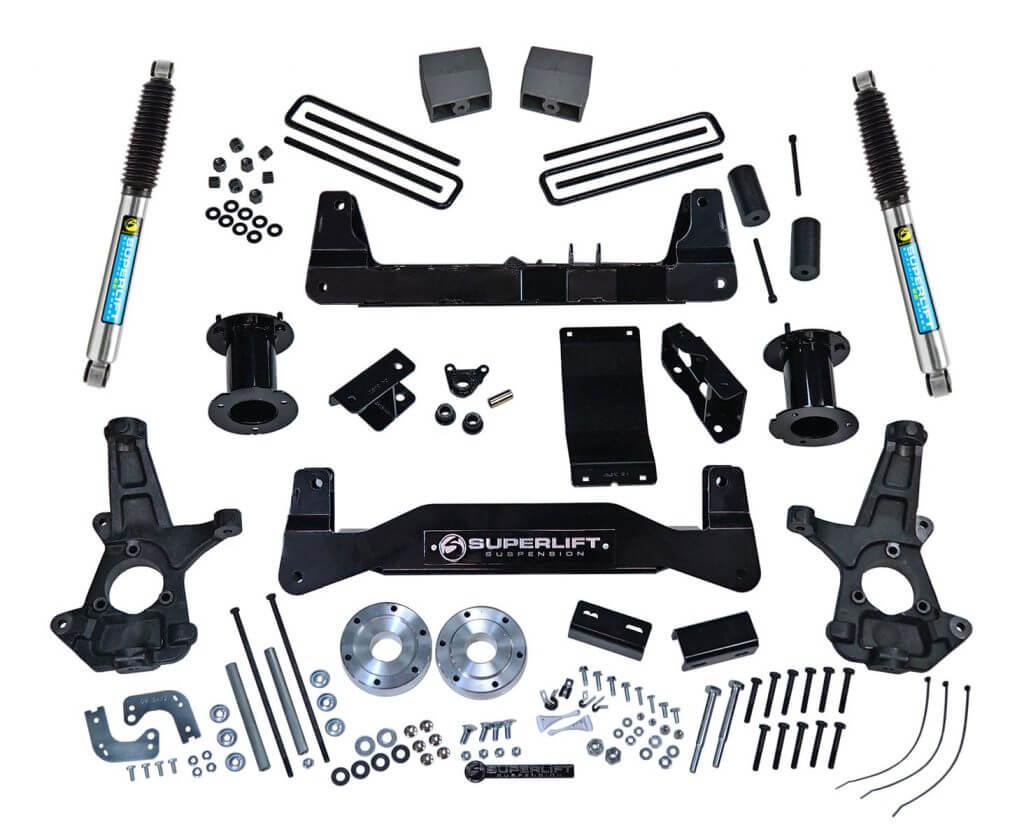

INCLUDES:

FRONT

• CNC machined extended ductile iron steering knuckles
• All fabricated steel components are laser cut, CNC formed and finished with a durable black powder coat
• Front top mount strut spacers
• One-piece front and rear cross members
• Front differential skid plate
• Front Sway Bar Links
• Differential relocation brackets
• Brake line relocation brackets

REAR

• Lift blocks
• U-bolts and hardware
• Compression stop extensions
• Bilstein shocks (2)

FITMENT TABLE:

TIRE & WHEEL INFO:

IMPORTANT DISCLAIMER: The provided tire/wheel fitments are approximate. Actual dimensions of a given tire size can vary considerably from one brand to another. Manufacturers’ wheel offset and backspacing measurement points are not always consistent. Backspacing greatly impacts tire-to-fender clearance when turning. Wheel width and backspacing influence whether the tires protrude past the fenders, and to what extent. Considering these important factors, we recommend that you fit-check your tire/wheel selection prior to purchasing.

Installation Notes:

• Installation time: 8 hours
• Difficulty level: 3 of 5

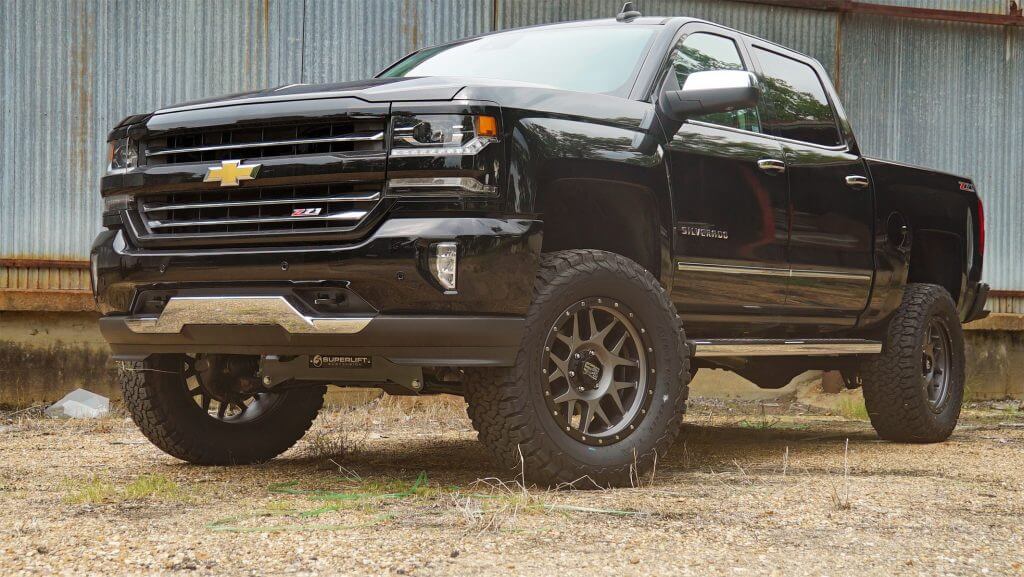

Includes Shocks exactly as pictured
