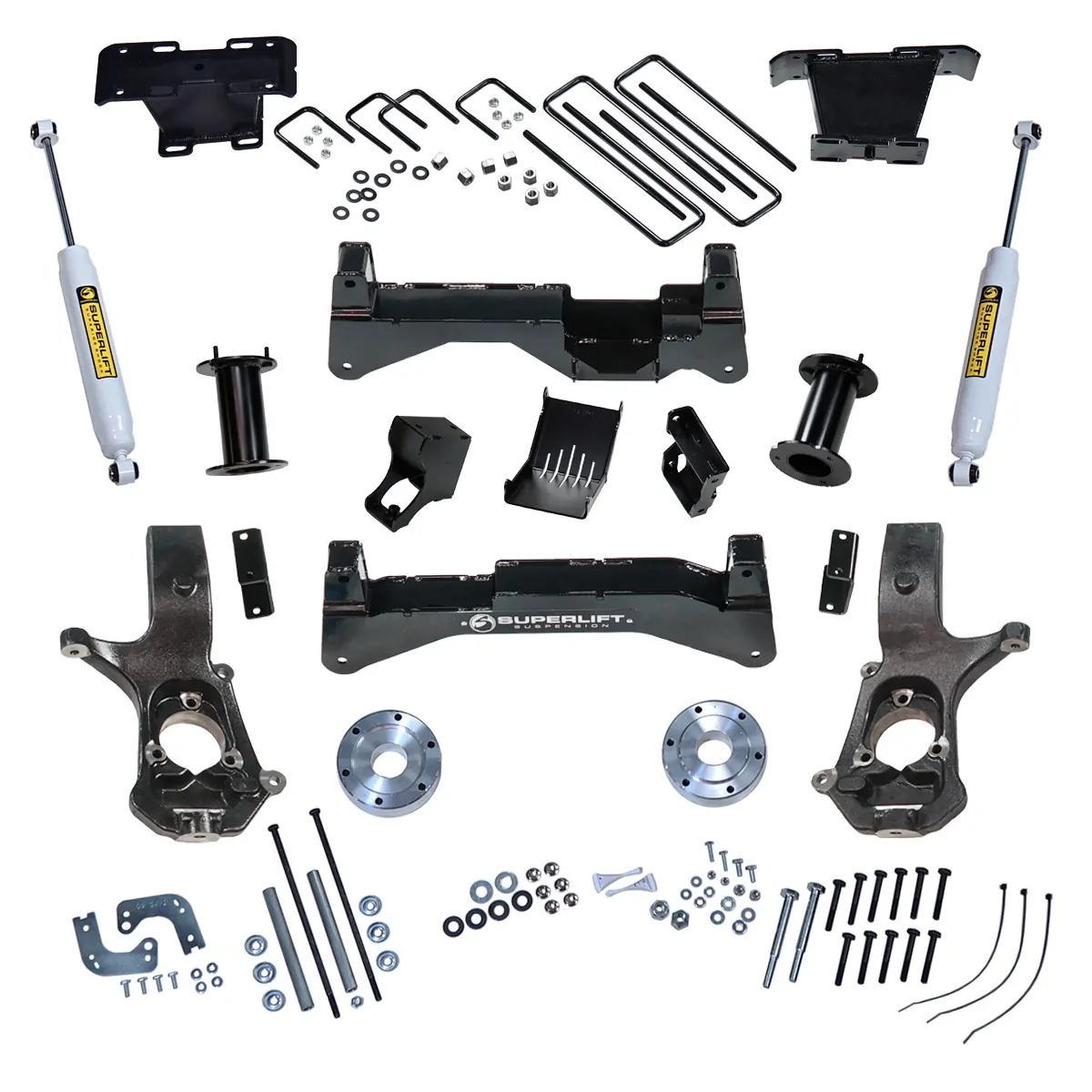

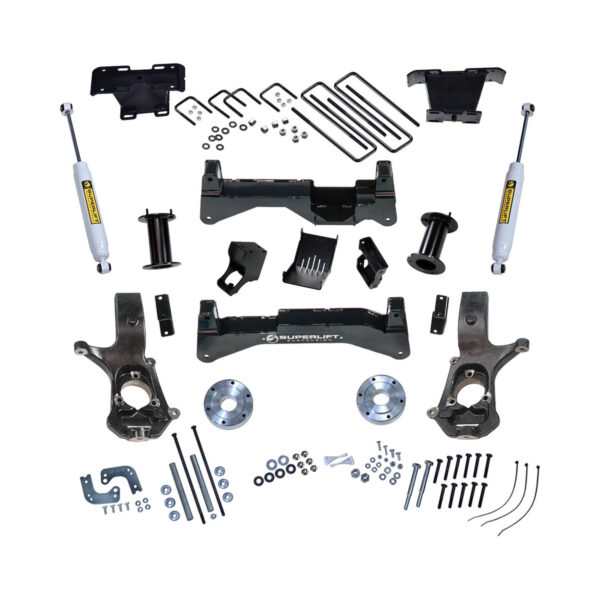

SuperLift 8″ Lift Kit for 2007-2016 Chevy Silverado and GMC Sierra 1500 4WD with Cast Steel Control Arms

Description
SuperLift 8″ Lift Kit for 2007-2016 Chevy Silverado and GMC Sierra 1500 4WD with Cast Steel Control Arms

SuperLift 8″ Lift Kit for 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016 Chevy Silverado and GMC Sierra 1500 4WD with Cast Steel Control Arms

Part: K898

Features & Benefits

• Designed using factory CAD data
• Compatible with factory Stabilitrac® and anti-skid control features
• Replacement cast ductile iron steering knuckles
• High clearance, one-piece cross members, and all other load bearing bracketry, is laser cut from .25″ thick plate steel
• Front differential skid plate integrates with cross members for additional system rigidity
• Rear lift via fabricated blocks
• No front differential trimming
• Clears 35″ diameter tires without fender trimming
• Limited Lifetime Warranty
• 100% Satisfaction Guarantee

Tire & Wheel Info

Recommended Tire and Wheel

Wheel Diameter – 20″

Wheel Width – 9-10″

Back Spacing – 4.5 – 5″

Max Tire Height – 35.0″

Tire Width – 12.5″

Installation Notes

Minor cutting and / or welding required.

Can run 20″ stock wheels with oversize tires. 18″ or 20″ aftermarket wheels require specific backspacing; min. 4.5″/ max 5″.

Does not fit vehicles with Electronic Controlled Shocks

Installation Instructions

• 3571.pdf

Product Overview

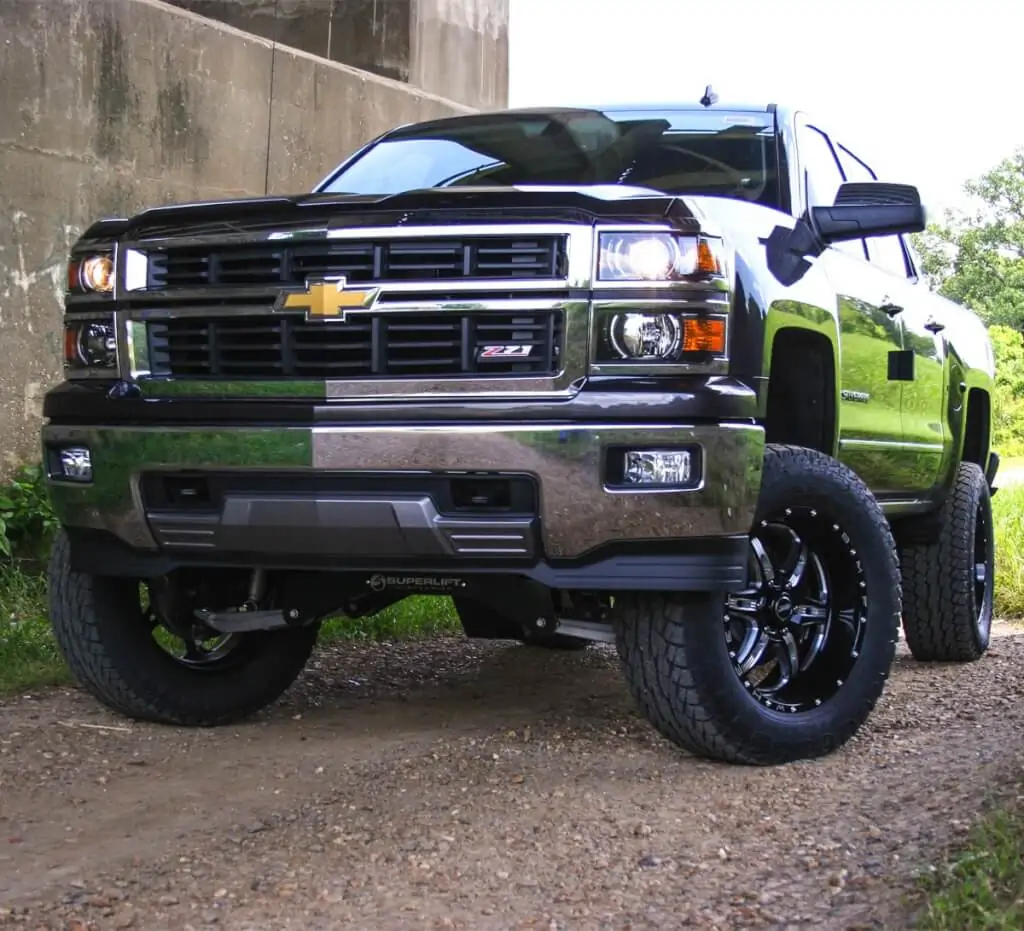

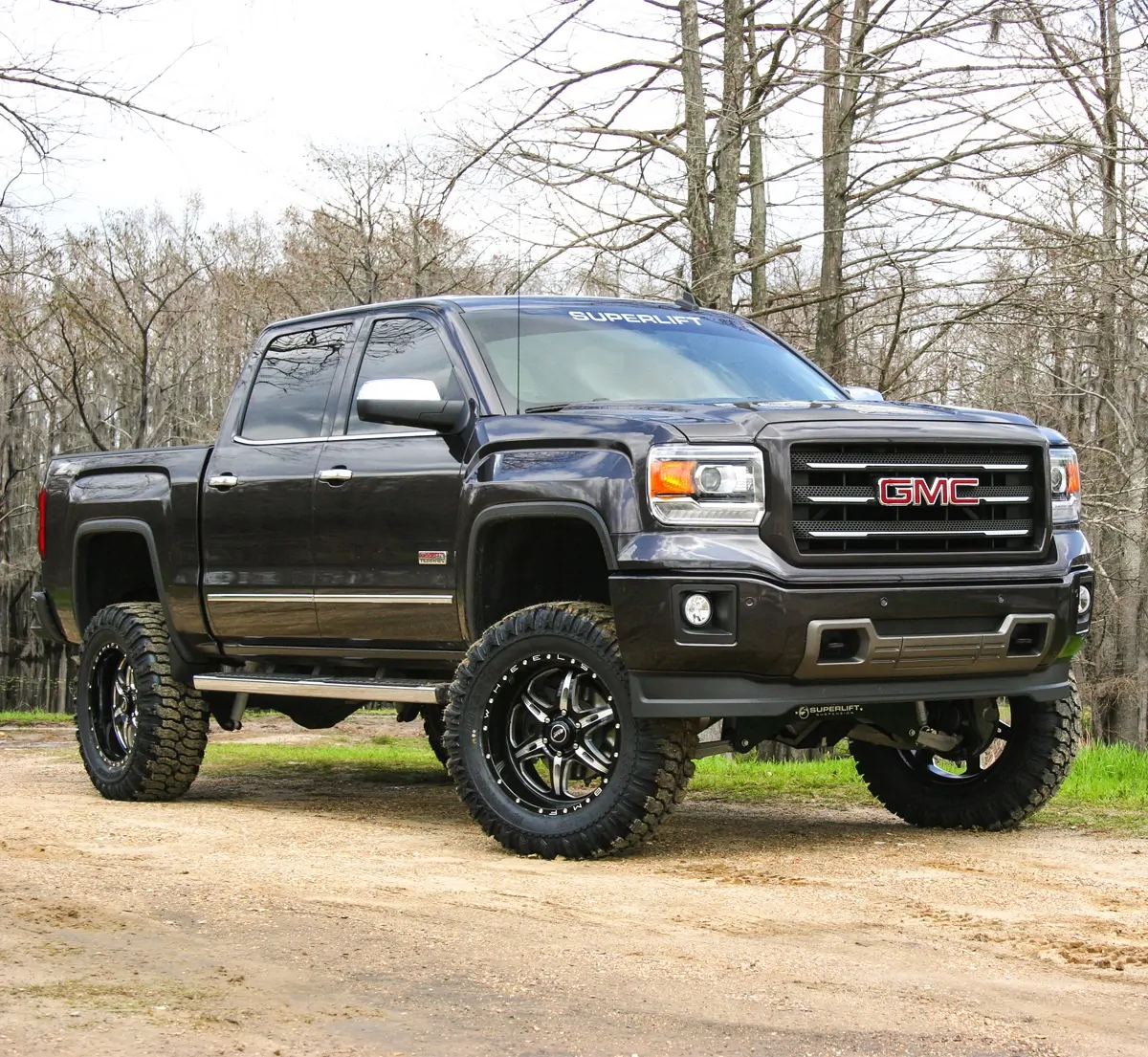

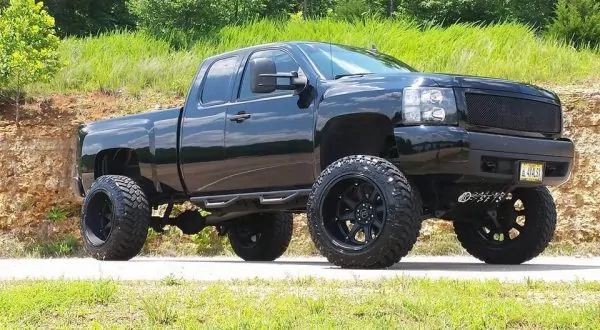

Superlift’s 8″ lift for the 2007-2016 Chevy / GMC 1500 series platform easily runs 35″ tall tires and is the kit to have if you want to avoid trimming the fenders on your new high dollar 4×4.  Our 8″ kit is a replacement knuckle system and was designed using factory dimensional data. Using OE data files allows us to design lift kits that mimic the original factory designed components.  This aids in installment and compatibility.  It also allows our engineers to design a kit that once installed not only retains your truck truck’s excellent ride and handling characteristics, but one that is also compatible with GM’s Stabilitrac® anti-skid system.

 As with all of Superlift’s products, the lift is backed by our Lifetime Warranty and Satisfaction Guarantee.

Fitment Table
