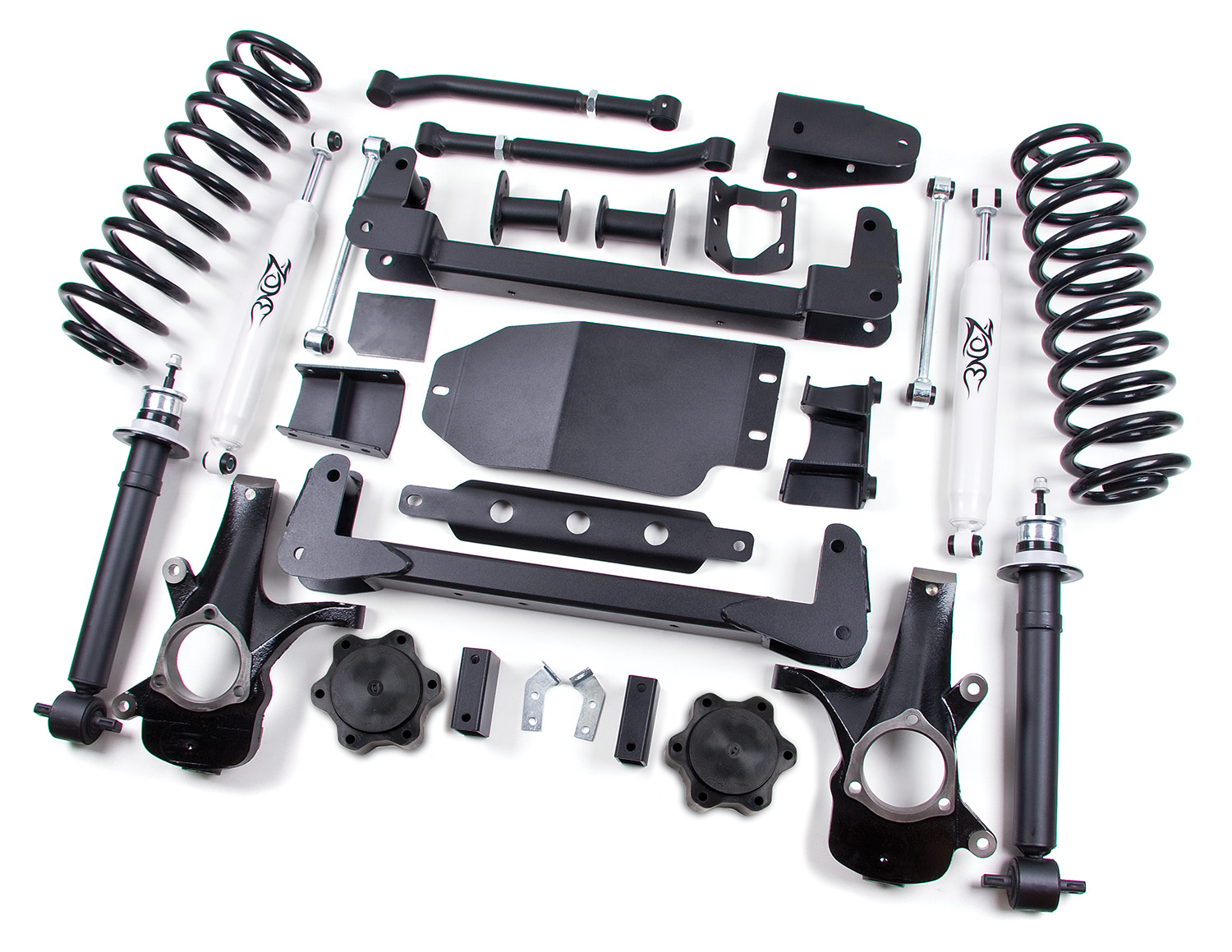

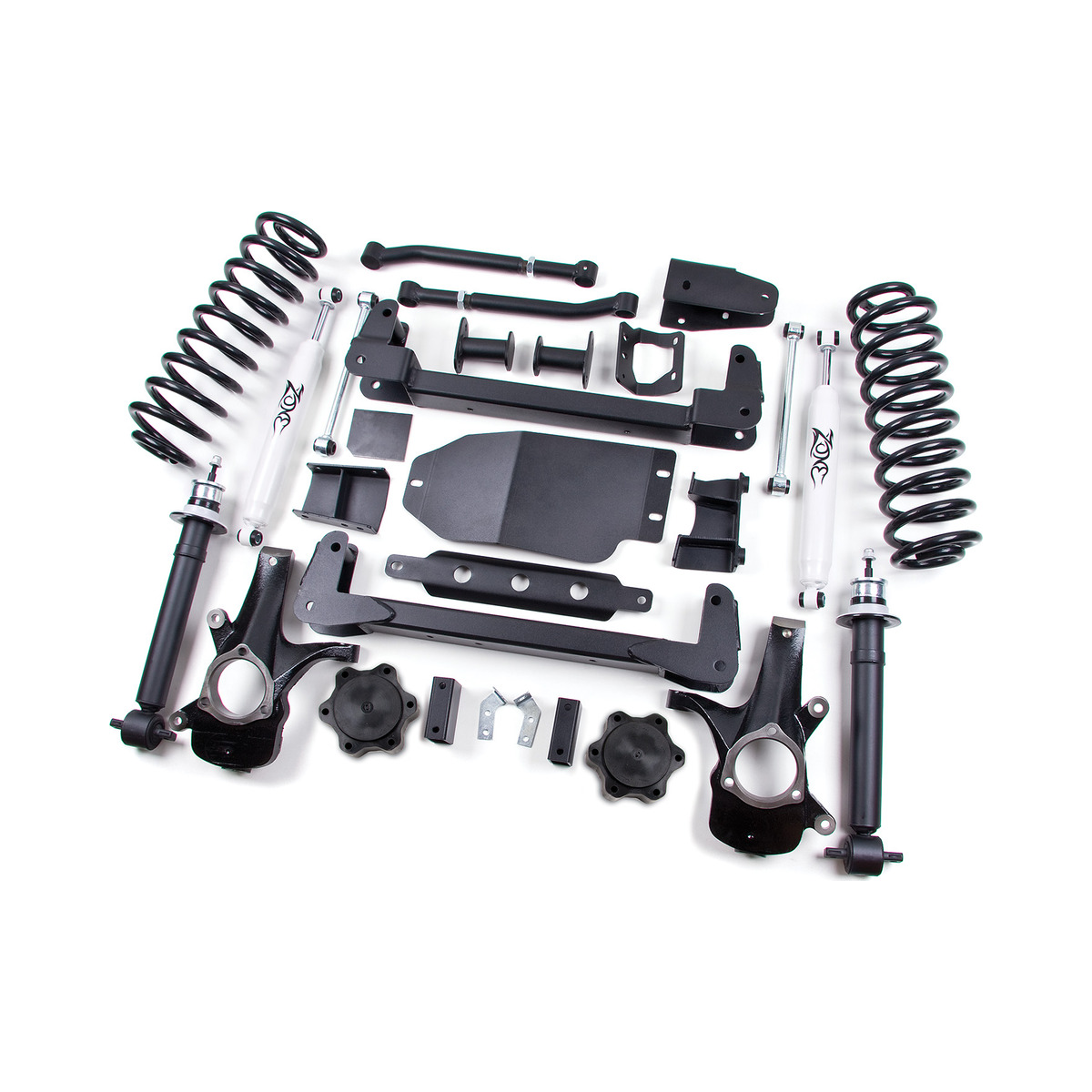

Zone 6.5″ Lift Kit for 2007-2014 Chevy/GMC 1500 SUV 4WD

Description
Zone 6.5″ Lift Kit for 2007-2014 Chevy/GMC 1500 SUV 4WD

Zone Offroad 6.5″ Lift Kit for 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014 Chevy/GMC Avalanche, Suburban, Tahoe, Yukon, Yukon XL 1500 4WD

Part: C6

This 6.5″ system will give you an offroad worthy SUV that you can still use as a daily driver. Custom valved replacement struts are included to properly handle the increased weight of the larger tires & wheels. The massive 1 piece main crossmembers are made from 1/4″ thick steel and built to handle anything. In addition to a heavy duty differential skid plate that locks the two crossmembers together an additional strut bar is included on the passenger side to ensure a solid sub-frame. The CNC machined ductile iron steering knuckles ensure proper steering geometry as well as reduce installation time compared to a drop bracket system. Combine all of these factors and the Zone 6″ system is built to perform!

Featured Technology & Benefits

• Custom valved replacement Strut included.
• Ductile Iron, CNC machined steering knuckles maintain OE steering geometry.
• Heavy duty boxed one piece crossmembers.
• Differential skid plate included for off-road protection.
• Multi-point differential mounting system corrects drive line angles.

Important Notes!

• All wheel drive models require driveline modification.
• Will not fit vehicles equipped with Auto-Ride.
• This is for new body style 2007 only. Will not fit classic models.
• Strut compressor required for installation.
• Frame bracket modification and minor welding required.
• Minor premature engagement of the StabiliTrak system may occur during certain maneuvers.
• To reduce trimming, 20″ wheels with 5.5″-5.75″ backspacing recommended.
• Will not fit 2009-11 two mode hybrid models with electric power steering (EPS).

This product fits the following applications:

• 07-14 Chevy Avalanche 1500 4WD Gas
• 07-14 Chevy Suburban 1500 4WD Gas
• 07-14 Chevy Tahoe 4WD Gas
• 07-14 GMC Yukon 4WD Gas
• 07-14 GMC Yukon XL 1500 4WD Gas

Quick Specs

• Front Lift Height: 6.5″
• Front Lift Method: IFS w/Struts
• Rear Lift Height: 5.5″
• Rear Lift Method: Coil Springs
• Install Time Hrs: 8
• Difficulty Level 1-5: 3
• Wheel Size: 20 x 9
• Back Spacing: 5.75″
• Max Tire Size: 35 x 12.50
• Wheel Size: 18 x 9
• Back Spacing: 5″
• Max Tire Size: 34 x 12.50
• Wheel Size: 17 x 9
• Back Spacing: 4.5″
• Max Tire Size: 33 x 12.50

Installation Instructions for the Zone 6.5″ Lift Kit
