Zone Offroad 4″ Leaf Springs Lift Kit 1988-1991 Blazer/Jimmy/Suburban 1/2 ton

Description
Zone Offroad 4″ Leaf Springs Lift Kit 1988-1991 Blazer/Jimmy/Suburban 1/2 ton

Zone Offroad 4″ Leaf Springs Lift Kit 1988, 1989, 1990, 1991 Blazer/Jimmy/Suburban 1/2 ton

Part: C15

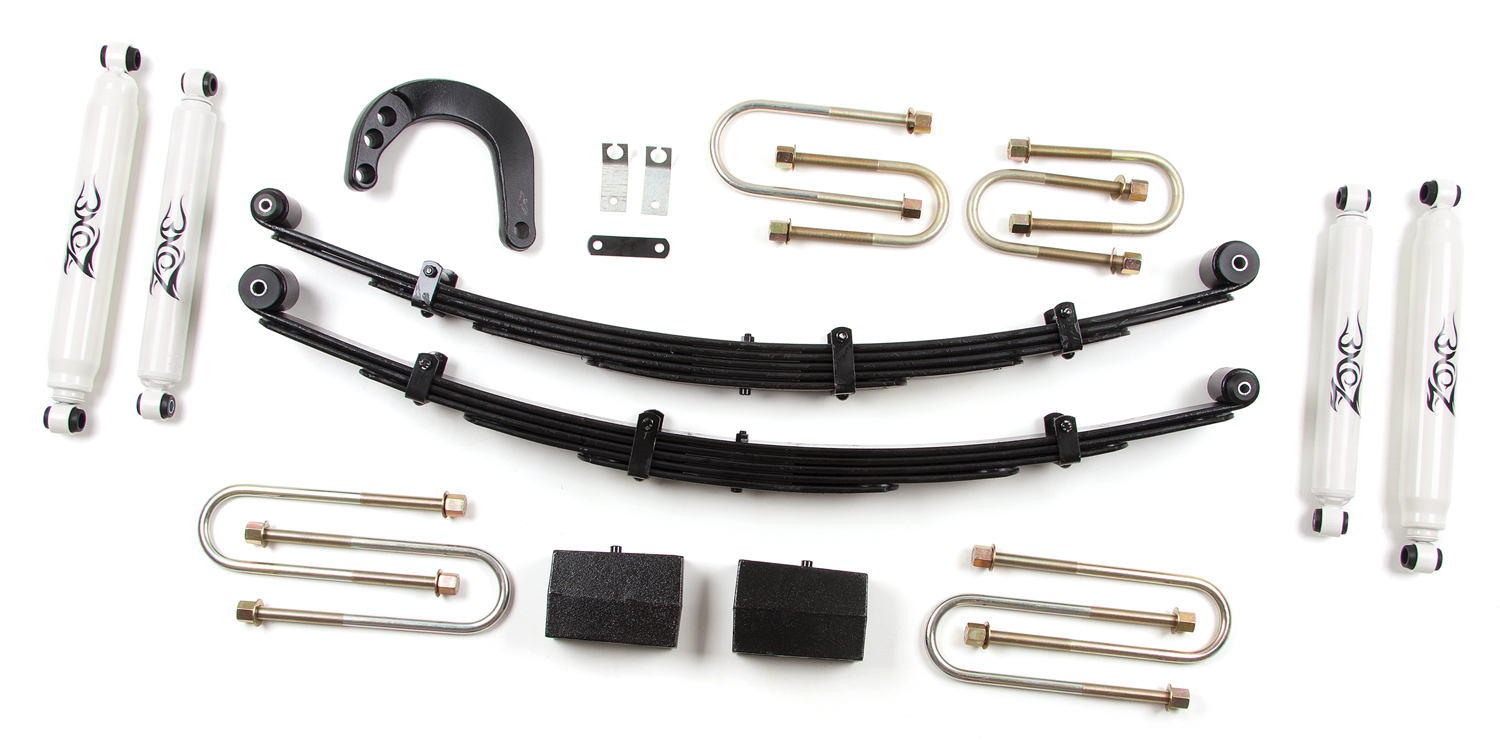

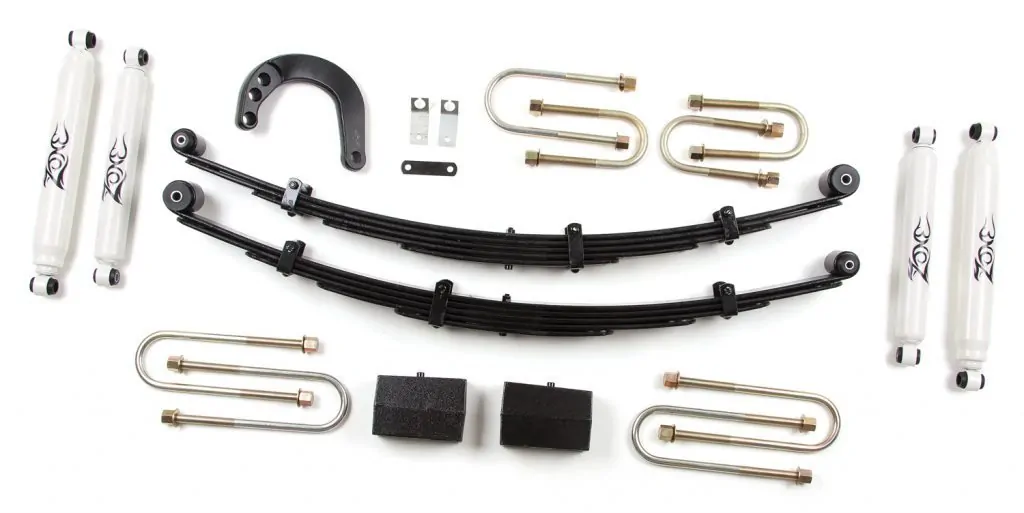

Zone Offroad 4″ suspension lift kit for 1988-91 1/2 ton Chevy/GMC Blazer/Jimmy and Suburban. Many hours of development and testing have finally produced an extremely capable leaf spring system. The springs are a 5 leaf pack with anti-friction pads and center leaf spacer plates between each leaf. This design significantly decreases leaf pack internal friction for a smooth and consistent spring rate.

This complete system comes with a 4″ steering arm to yield the factory drag link angle. Zone Offroad also addresses the brake lines by providing front and rear brake line relocation brackets. Front and rear yellow zinc plated u-bolts with high nuts and washers are included to bolt the front springs and rear 4″ lift blocks to the axles. If your truck came with a front sway bar, Zone Offroad has you covered with a unique shackle sway bar link design listed in the accessories that will fit lifts from 2-6″. Choose Zone Offroad for an affordable yet high quality system for your 88-91 Jimmy, Blazer, or Suburban.

Featured Technology & Benefits

• 4″ Front leaf springs
• 4″ Rear lift blocks
• 4″ Steering arm
• Front and rear brake line relocation brackets
• Zinc plated u-bolts with high nuts and washers
• Optional front sway bar shackle links

Important Notes!

• “Some models came equipped from the factory with a dual front shock setup, with the second set of shocks commonly being referred to as “Auxillary” shocks. If you prefer to retain the Auxillary shocks, you must order the optional Auxillary shocks offered under the Required Vehicle/Kit Selections below. Optional Auxillary shocks are available in both our hydro and nitro shocks.”

This product fits the following applications:

• 1988 Chevy Blazer 4WD Gas
• 1989 Chevy Blazer 4WD Gas
• 1990 Chevy Blazer 4WD Gas
• 1991 Chevy Blazer 4WD Gas
• 1988 Chevy Suburban 1500 4WD Gas
• 1989 Chevy Suburban 1500 4WD Gas
• 1990 Chevy Suburban 1500 4WD Gas
• 1991 Chevy Suburban 1500 4WD Gas
• 1988 GMC Jimmy 4WD Gas
• 1989 GMC Jimmy 4WD Gas
• 1990 GMC Jimmy 4WD Gas
• 1991 GMC Jimmy 4WD Gas

Quick Specs

• Front Lift Height: 4″
• Front Lift Method: Leaf Springs
• Rear Lift Height: 4″
• Rear Lift Method: Block Kit
• Install Time Hrs: 3-4
• Difficulty Level 1-5: 3
• Wheel Size: 15X8
• Back Spacing: 3.5″
• Max Tire Size: 35 x 12.50
