SuperLift 5″ Lift Kit 2000-2002 Dodge Ram 2500/3500 4WD Diesel/V-10 FOX Shocks

Description
SuperLift 5″ Lift Kit 2000-2002 Dodge Ram 2500/3500 4WD Diesel/V-10 FOX Shocks

SuperLift 5″ Lift Kit 2000, 2001, 2002 Dodge Ram 2500/3500 4WD Diesel/V-10 FOX Shocks

Part: K336F

What is this?

• This is a complete coil spring style suspension lift kit for the 2000-2002 Dodge Ram 2500/3500 4WD pickup
• Provides 5” lift height
• Includes replacement front link arms
• Includes rear add-a-leafs and front and rear Superlift shock absorbers

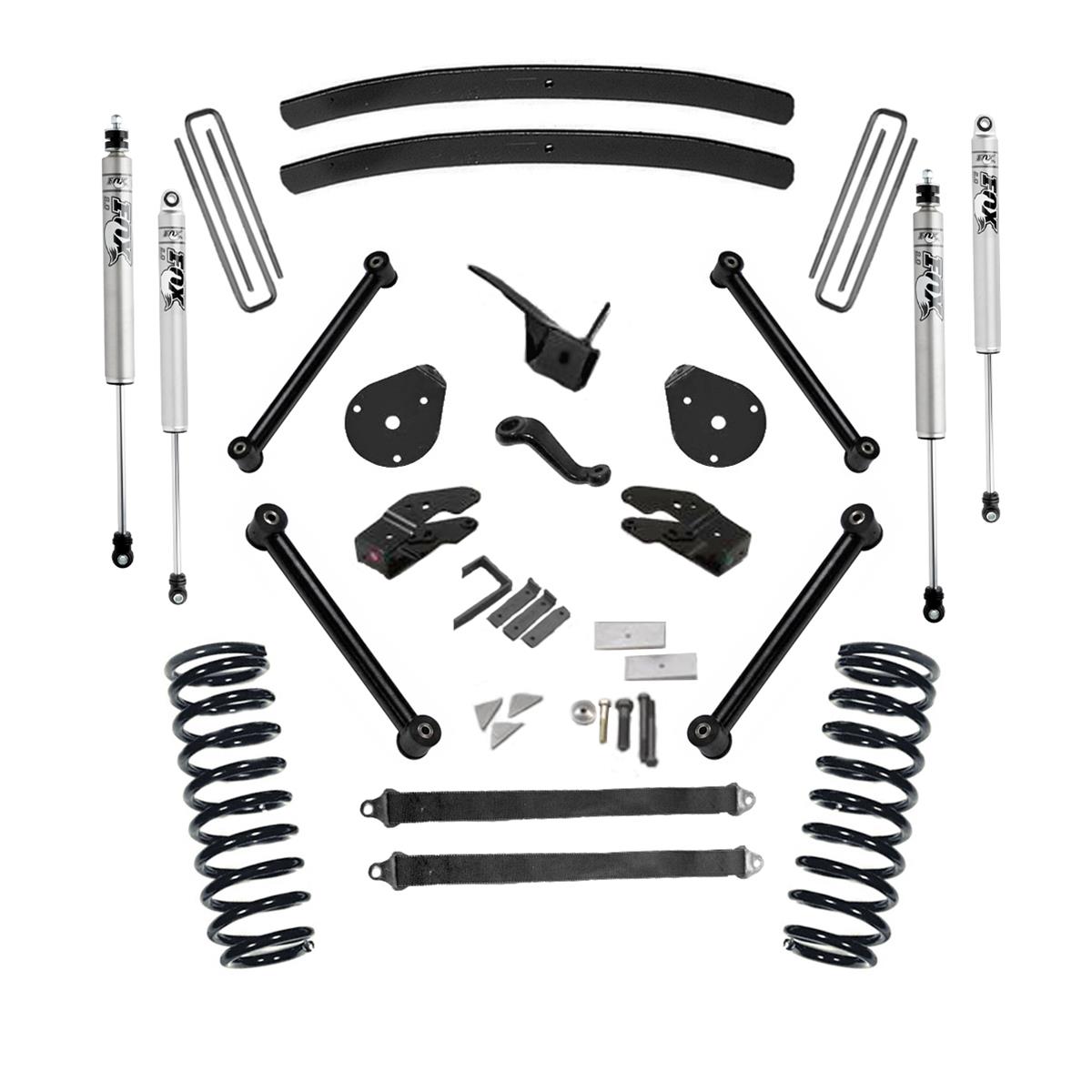

What does it include?

• Front components: All brackets, shocks, coil springs, control arms, front track bar bracket, drop pitman arm, and all hardware required specific to the 2000-2002 Dodge Ram 2500/3500
• Rear components: Shocks, add-a-leafs, degree shim and u-bolt kit
• Detailed instruction manual walking you step-by-step through the lift kit installation procedures suitable for do-it-yourselfers (DIY) or professional installation

KEY DETAILS:

Superlift Suspension Systems now available with Superlift Shocks OR Fox® Shocks:

This Superlift lift kit is a complete replacement coil spring suspension lift kit for the 2000-2002 Ram 2500 | 3500 that provides 5 inches of lift height. This kit is available with either Superlift Shocks or Fox® Performance Series 2.0 IFP Shocks.

Front lift is via new, pre-set coil springs for Ram 2500 |3500. A drop pitman arm, for steering correction, works in concert with the track bar relocation bracket to ensure proper phasing. New Upper | Lower front axle-to-frame link arms restore factory alignment specifications. Front and rear suspension compression travel control is also addressed.

For rear lift, add-a-leafs are used in conjunction with blocks to strengthen the rear spring pack and control axle wrap. The lift kit is available with Superlift Shocks or Fox® Performance series 2.0 IFP Shocks.

Features | benefits:

• Track bar relocation bracket prevents the steering wheel kick and stud bind
• Fabricated Brackets constructed from .25” thick plate steel
• Heavy-duty replacement upper and lower links maintain desired caster angle and feature greaseable Urethane Bushings
• Front | Rear Compression travel stop brackets eliminate over-compression
• Drop Pitman arm relieves drag link angle to prevent bump steer | wandering
• Available in Superlift Shocks or Fox Performance Series 2.0 IFP Shocks (Front and Rear)
• Add-a-leafs for rear
• Aligns to OEM specifications
• Backed by our Limited Lifetime Warranty

NOTES: (Additional Info)

• Minor cutting and/or welding required
• Rear u-bolts fit vehicles with and without a top-mounted overload leaf. Those without overloads will have approximately 2” of excess u-bolt length that can be trimmed. Or for short u-bolts, refer to block chart and replace listed block kit with non-overload u-bolt application

TIRE & WHEEL INFO:

IMPORTANT DISCLAIMER: The provided tire/wheel fitments are approximate. Actual dimensions of a given tire size can vary considerably from one brand to another. Manufacturers’ wheel offset and backspacing measurement points are not always consistent. Backspacing greatly impacts tire-to-fender clearance when turning. Wheel width and backspacing influence whether the tires protrude past the fenders, and to what extent. Considering these important factors, we recommend that you fit-check your tire/wheel selection prior to purchasing.

INSTALLATION & NOTES:

• Installation time: 7 hours
• Difficulty level: 4 of 5

Additional Info:

Pitman arm included in kit box.

Fits:

• 2000-2002 Dodge Ram 2500 DIESEL
• 2000-2002 Dodge Ram 3500 DIESEL

Important fitment notes from manufacturer:
