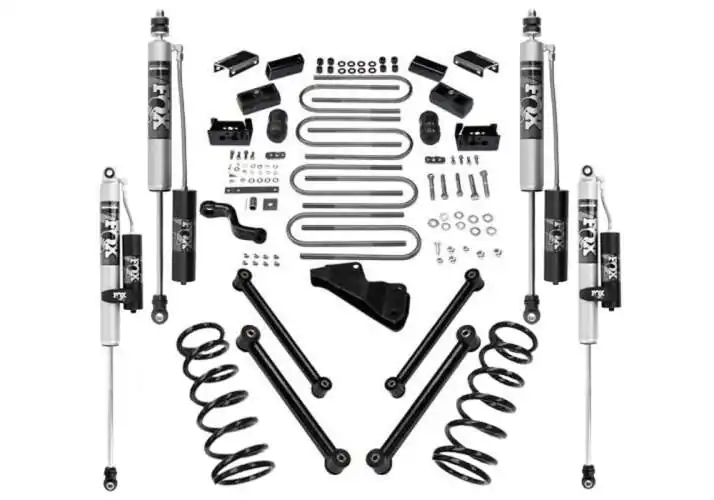

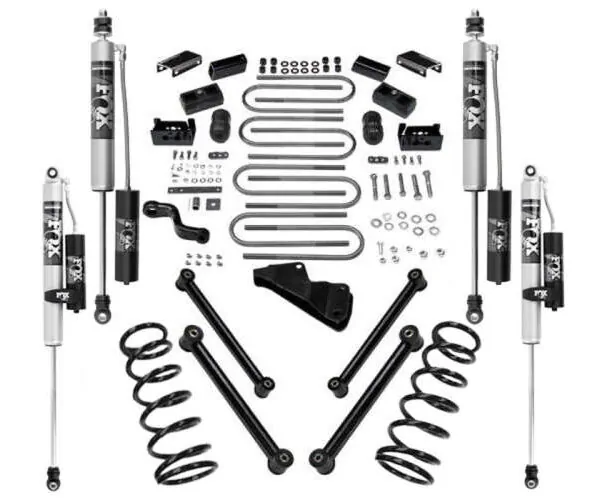

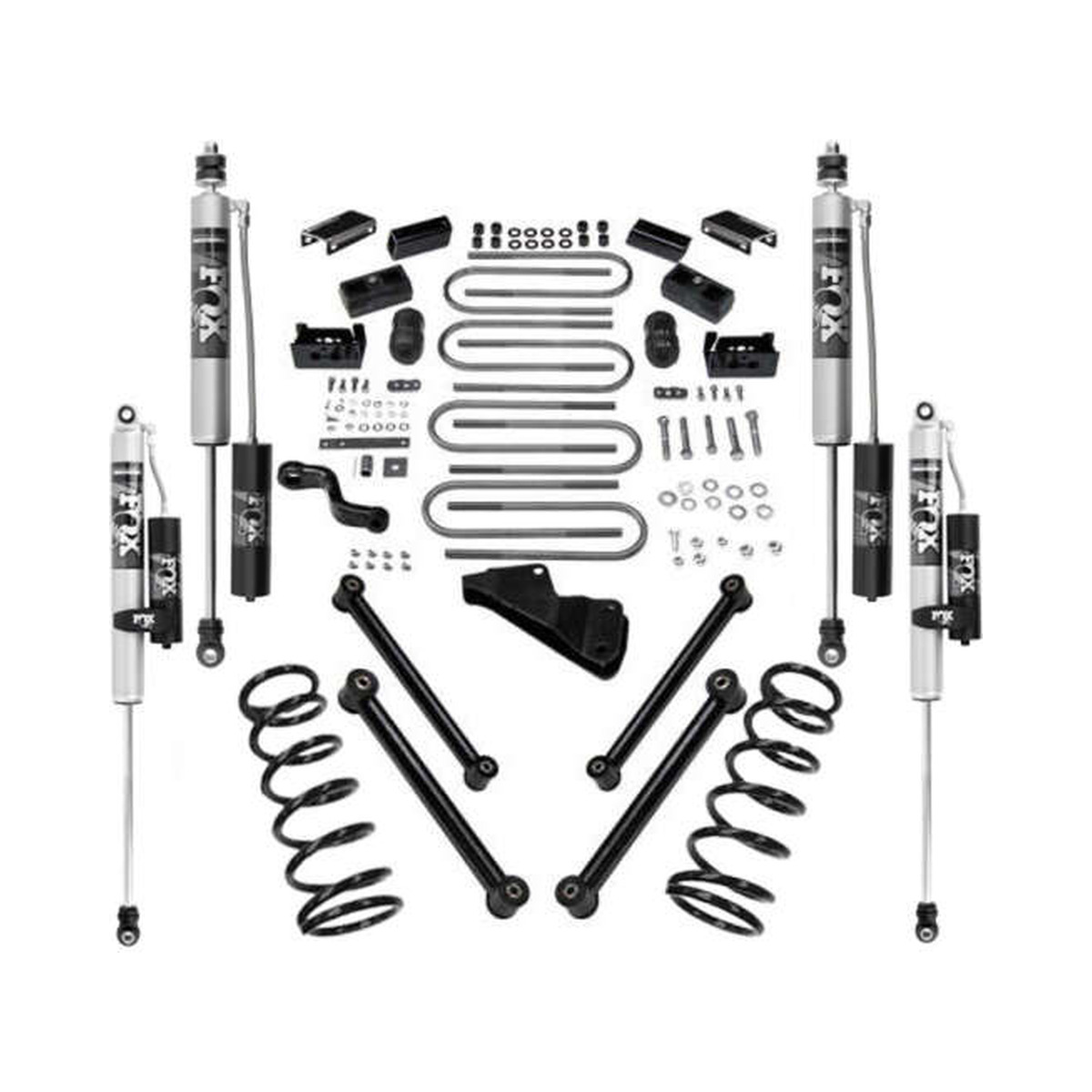

SuperLift 5″ Lift Kit with Fox 2.0 Reservoir Shocks for 2000-2002 Dodge Ram 2500/3500 4WD Diesel

Description
SuperLift 5″ Lift Kit with Fox 2.0 Reservoir Shocks for 2000-2002 Dodge Ram 2500/3500 4WD Diesel

SuperLift 5″ Lift Kit with Fox 2.0 Reservoir Shocks for 2000, 2001, 2002 Dodge Ram 2500/3500 4WD Diesel

Part: K336FX

Superlift Suspension Systems now available with Superlift Shocks OR Fox Shocks:

This Superlift lift kit is a complete replacement coil spring suspension lift kit for the 2000-2002 Ram 2500 | 3500  that provides 5 inches of lift height.  This kit is available with either Superlift Shocks or Fox Performance Series 2.0 IFP Shocks.

Front lift is via new, pre-set coil springs for Ram 2500 |3500.  A drop pitman arm, for steering correction, works in concert with the track bar relocation bracket to ensure proper phasing.  New Upper | Lower front axle-to-frame link arms restore factory alignment specifications.  Front and rear suspension compression travel control is also addressed.

For rear lift, add-a-leafs are used in conjunction with blocks to strengthen the rear spring pack and control axle wrap. The lift kit is available with Superlift Shocks or Fox Performance series 2.0 IFP Shocks.

Features | benefits:

• Track bar relocation bracket prevents the steering wheel kick and stud bind
• Fabricated Brackets constructed from .25” thick plate steel
• Heavy-duty replacement upper and lower links maintain desired caster angle and feature greaseable Urethane Bushings
• Front | Rear Compression travel stop brackets eliminate over-compression
• Drop Pitman arm relieves drag link angle to prevent bump steer | wandering
• Available in Superlift Shocks or Fox Performance Series 2.0 IFP Shocks (Front and Rear)
• Add-a-leafs for rear
• Aligns to OEM specifications
• Backed by our Limited Lifetime Warranty

NOTES: (Additional Info)

• Minor cutting and/or welding required
• Rear u-bolts fit vehicles with and without a top-mounted overload leaf.  Those without overloads will have approximately 2” of excess u-bolt length that can be trimmed.  Or for short u-bolts, refer to block chart and replace listed block kit with non-overload u-bolt application

TIRE FITMENT:

IMPORTANT DISCLAIMER: The provided tire/wheel fitments are approximate. Actual dimensions of a given tire size can vary considerably from one brand to another. Manufacturers’ wheel offset and backspacing measurement points are not always consistent. Backspacing greatly impacts tire-to-fender clearance when turning. Wheel width and backspacing influence whether the tires protrude past the fenders, and to what extent. Considering these important factors, we recommend that you fit-check your tire/wheel selection prior to purchasing.
