SuperLift 5″ Lift Kit For 2000-2001 Dodge Ram 1500 4WD Control Arm Kit with Superide Shocks

Description
SuperLift 5″ Lift Kit For 2000-2001 Dodge Ram 1500 4WD Control Arm Kit with Superide Shocks

SuperLift 5″ Lift Kit For 2000, 2001 Dodge Ram 1500 4WD – Control Arm Kit with Superide Shocks

Part: K101

• This is a complete coil spring style suspension lift kit for the 2000-2001 Dodge Ram 1500 4wd; providing 5” of lift height
• Converts the stock 4-link to a radius arm design
• Includes rear add-a-leafs and lift blocks and front and rear Superlift Superide shock absorbers
• Covered by our Limited Lifetime Warranty

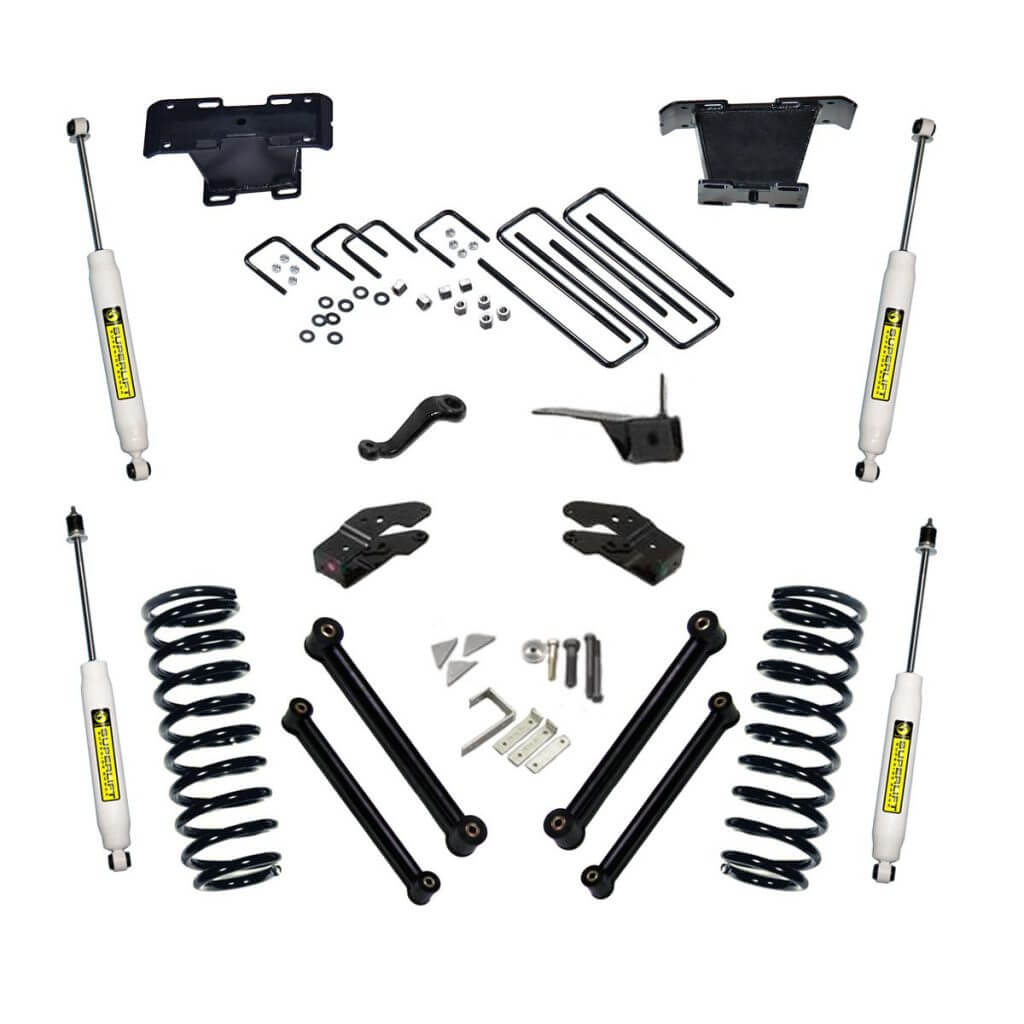

Include:

• Front components: All brackets, shocks, coil springs, radius arms, front track bar bracket, drop pitman arm, and all hardware required specific to the 2000-2001 Dodge Ram 1500
• Rear components: Shocks, add-a-leafs, block and u-bolt kit.
• Detailed instruction manual walking you step-by-step through the lift kit installation procedures suitable for do-it-yourselfers (DIY) or professional installation
• The best customer service and technical help in the industry.

Superlift’s complete coil spring style suspension lift kit for the 2000-2001 Dodge Ram 1500 4wd, providing 5” of lift height.

• Relocating the track bar prevents steering wheel kick and stud bind
• Front anti-sway bar relocation brackets prevent bar pre-load
• Tubular radius arms improve drivability
• Greasable radius arm eye bushings for long, squeak-free life
• Front / rear compression travel stop brackets eliminate over-compression
• Front extension travel limiting straps prevent over-extension
• Special pitman arm relieves drag link angle
• Front / rear Superide shock included
• Limited Lifetime Warranty
• Satisfaction Guarantee

Front lift is via new, pre-set coil springs. Superlift tubular radius arms replace the factory 4-link control arms to decrease link angle and improve overall control and drivability. The new radius arms are constructed of 1.5″ diameter x .120″ wall thickness DOM tubing and feature Poly eye bushings. Grease fittings at the eyes’ pivot points ensure squeak-free operation and increased bushing life.

A dropped pitman arm reduces drag link angle, and Superlift’s braced cast steel track bar relocation bracket ensures proper body/axle alignment and steering phasing. Sway bar relocation brackets, suspension compression travel bump-stop relocation brackets, and front axle limiting straps complete the front lift.

For rear lift, add-a-leafs are used in conjunction with blocks to strengthen the spring pack and control axle wrap-up. The lift kit includes front and rear Superide shocks.

Optional single and dual steering stabilizers are available.

Installation Notes:

• Installation time: 7 hours
• Difficulty level: 4 of 5

Additional Info:

Pitman arm included in kit box.

Minor cutting and / or welding required.

Except factory off-road package – Kit will fit on the vehicle but will only yield 3.5″ of height.
