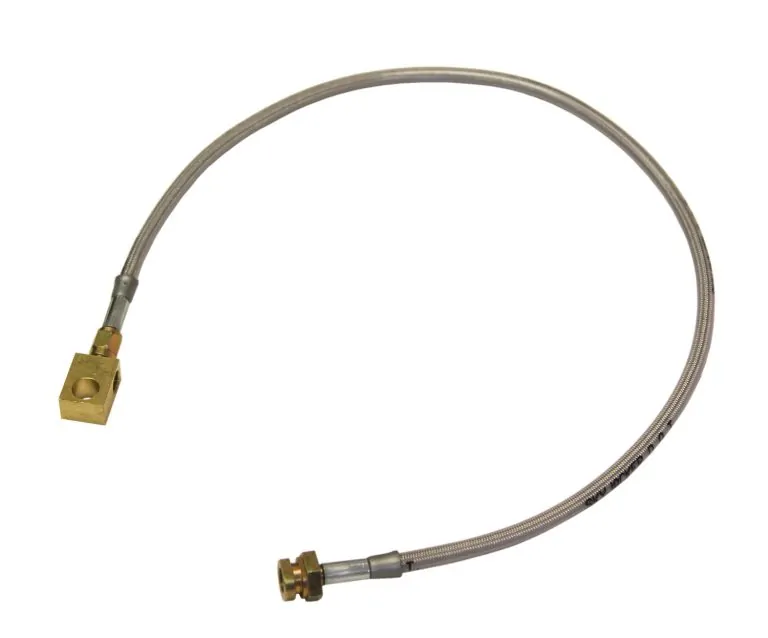

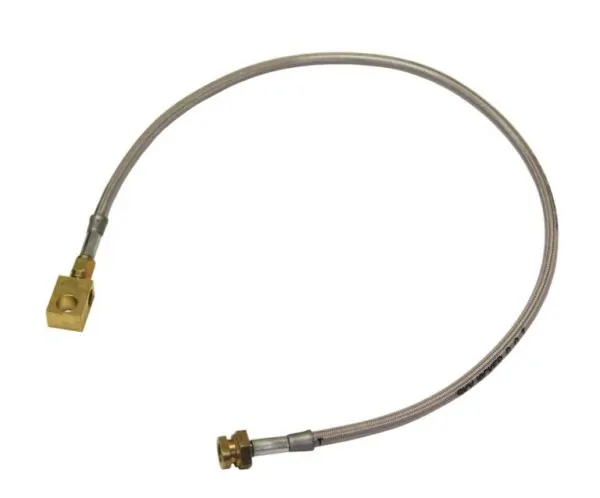

Skyjacker 1-8″ Rear Stainless Steel Brake Line for 1994-2001 Dodge Ram 2500/3500 4WD Gas

Description
Skyjacker 1-8″ Rear Stainless Steel Brake Line for 1994-2001 Dodge Ram 2500/3500 4WD Gas

Skyjacker 1-8″ Rear Stainless Steel Brake Line for 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001 Dodge Ram 2500/3500 4WD Gas

Part:RBL60_n1

Stainless Steel Brake Line Rear;

Lift Height 1-8 in.

Single;

NOTES:
GMC/CHEVY – FRONT: Stock nuts may be
re-used on some models straight axle
models. ‘88-98 Models – Use line clamps &
self-tapping screws (See Below) & mount to
upper A-arm.
GMC / CHEVY – REAR: Hose is furnished
with a 1⁄4” bolt and flat washers to accept
smaller upper hole. Use a flat washer on
each side of bolt.
EXPLORER/RANGER / BRONCO II – FRONT:
The appropriate place to tie brake line will
be to the coil springs. On 1989-97 models,
screw the brass
T-Block into the top of the driver’s side line
before installing. Models with Front & Rear
ABS brakes do not use the T-Block on the
driver’s side.
F150 / BRONCO – FRONT: The appropriate
place to tie brake line is the coil springs.
‘78-‘79 FORD – FRONT: Remove the front axle
mounting bracket from the stock hose and
drill out the bracket to accept the bolt and
attach the bracket to the new line.
JEEP YJ / 66-77 BRONCO – FRONT: Included
are 2 line clamps (1 per side) to secure the
hose to the upper frame. Affix line clamp
around new brake line and secure with the
self tapping screw supplied
