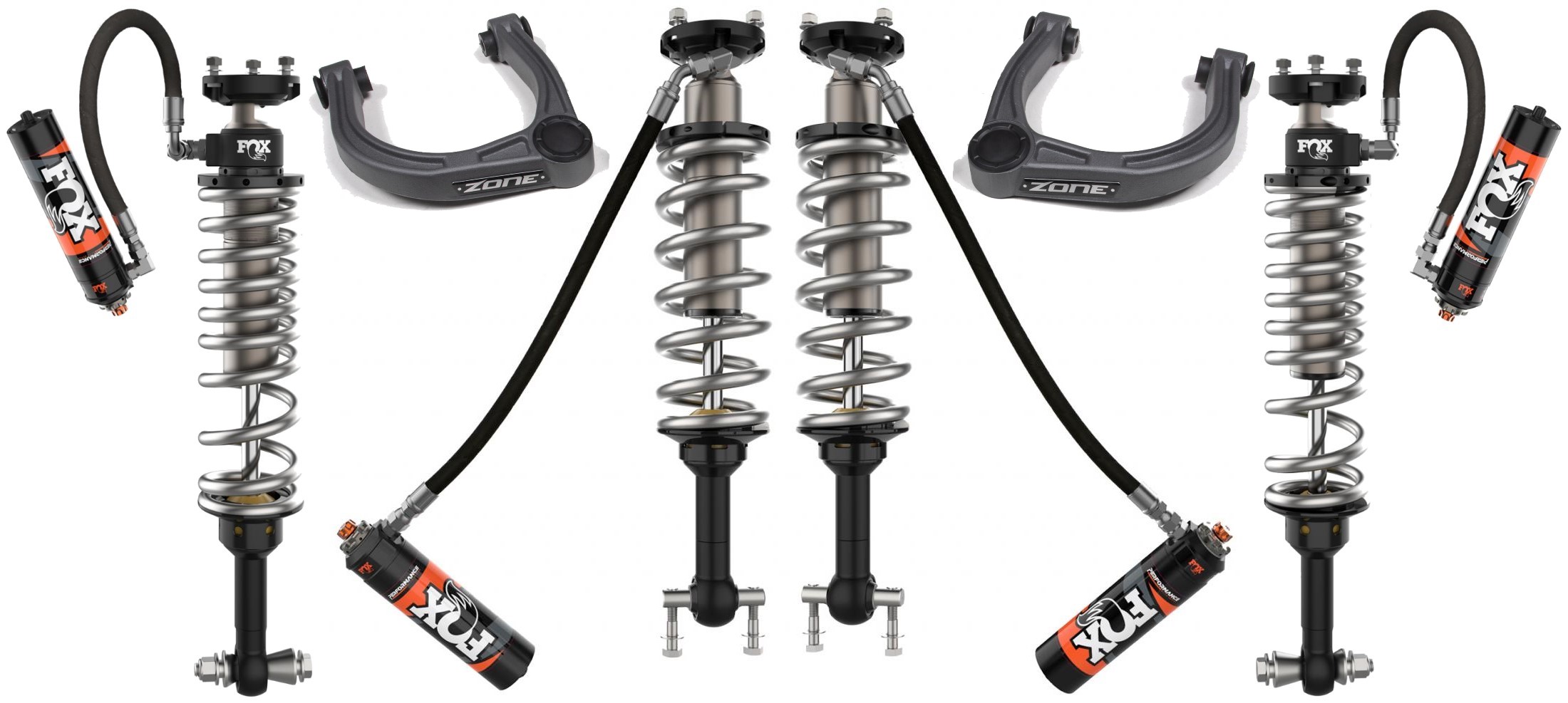

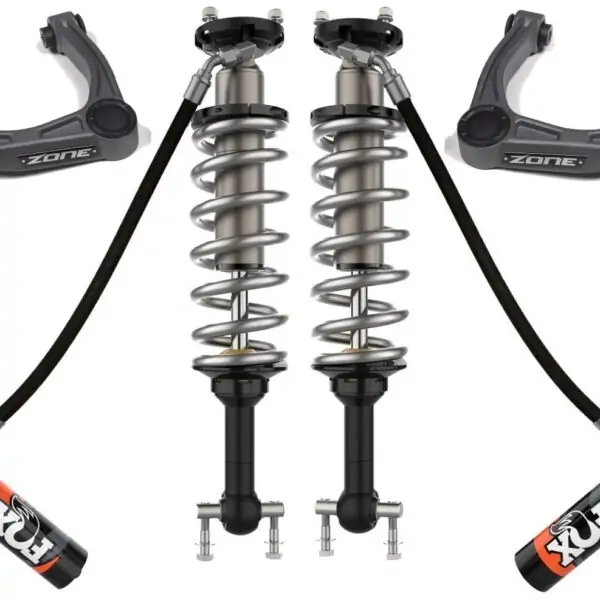

FOX Performance Elite 2.5 Body 2.5-3.5″ Front, Rear Lift Coilovers w/UCAs for 2021-2023 Ford Bronco 2Door

Name: FOX Performance Elite 2.5 Body 2.5-3.5" Front, Rear Lift Coilovers w/UCAs for 2021-2023 Ford Bronco 2Door
Brand: FOX
SKU: 883-06-209_883-06-210_F2302
Availability: InStock

SKU: 883-06-209_883-06-210_F2302

FOX Performance Elite 2.5 Body 2.5-3.5" Front, Rear Lift Coilovers w/UCAs for 2021 Ford Bronco 2Door

Description
FOX Performance Elite 2.5 Body 2.5-3.5″ Front, Rear Lift Coilovers w/UCAs for 2021-2023 Ford Bronco 2Door

FOX Performance Elite 2.5 Body 2.5-3.5″ Front, Rear Lift Coilovers w/UCAs for 2021, 2022, 2023 Ford Bronco 2Door

Part: 883-06-209(Old part: 883-06-192)_883-06-210(Old part: 883-06-193)_F2302

NOTE:

Provides 2.5-3.5″ Lift on Bronco with Sasquatch Package
Provides 3.5-4.5″ Lift on Bronco Without Sasquatch Package
2Door Only
Does not fit Bronco Sport models.

Description:

FOX Performance Elite 2.5 Series shocks for the new full-size Ford Bronco are designed and engineered by off-road enthusiasts to enhance comfort, maximize articulation, and increase compliance in the dirt.

FOX’s progressively wound springs provide extra clearance and movement to unlock your Bronco’s entire range of usable travel in both jounce and droop positions. These springs were specifically chosen to compliment the Bronco’s IFS design to offer a uniquely soft ride and better control through rough terrain.

The shocks’ 2.5-inch aluminum bodies and external reservoirs efficiently dissipate heat by increasing internal oil capacity, while the remote reservoirs with Dual Speed Compression (DSC) adjusters are strategically mounted to clear aggressive mud tires and leave space for aftermarket skid plates and bumpers.

Easily adapt your shocks for load, environment, and driving style using the DSC adjusters as the large capacity dampers manage stability through all types of terrain. Additionally, you have a generous amount of preload adjustment to maintain your Bronco’s ideal ride height while supporting a wide range of essential added gear.

FOX Performance Elite 2.5 Series shocks provide the versatility required to navigate backcountry terrain on the weekend and tackle your daily commute while you remain comfortable and in control.

Front Lift Coilovers (New Part 883-06-209)

Body	2.5″ Impact extruded and CNC machined 6061-T6 hard anodized aluminum body resists rust over time
Body Plating	Hard-anodized for a durable finish
Reservoir	2.5″ Smooth bore and honed seamless alloy reservoir
Components	Black-anodized, CNC-machined 6061-T6 billet aluminum
Spring	Application specific, custom progressive springs
Shaft	7/8″ hard chrome plated steel shafts
Valving	Application specific valving to maximize performance
Seals	Redundant sealing pack system main seal, wiper seal, scraper seal
Bearing	PTFE-lined, heat-treated, alloy steel spherical
Adjustments	Ride height preload ring
Adjuster Type	DSC – Dual Speed Compression
Extended	23.410
Compressed	17.940
Travel	5.470
Top Mount	OEM
Bottom Mount	Bar Pin
Replaces Part Number	883-06-192
Fitment notes	2 Door Only \| With Sasquatch Package \| Requires Upper Control Arm

Rear Lift Coilovers (New part 883-06-210)

Body	2.5″ Impact extruded and CNC machined 6061-T6 hard anodized aluminum body resists rust over time
Body Plating	Hard-anodized for a durable finish
Reservoir	2.5″ Smooth bore and honed seamless alloy reservoir
Components	Black-anodized, CNC-machined 6061-T6 billet aluminum
Spring	Application specific, custom progressive springs
Shaft	7/8″ hard chrome plated steel shafts
Valving	Application specific valving to maximize performance
Seals	Redundant sealing pack system main seal, wiper seal, scraper seal
Bearing	PTFE-lined, heat-treated, alloy steel spherical
Adjustments	Ride height preload ring
Adjuster Type	DSC – Dual Speed Compression
Extended	26.410
Compressed	18.440
Travel	7.970
Top Mount	OEM
Bottom Mount	Eyelet
Replaces Part Number	883-06-193
Fitment notes	2 Door Only \| Without Sasquatch Package
