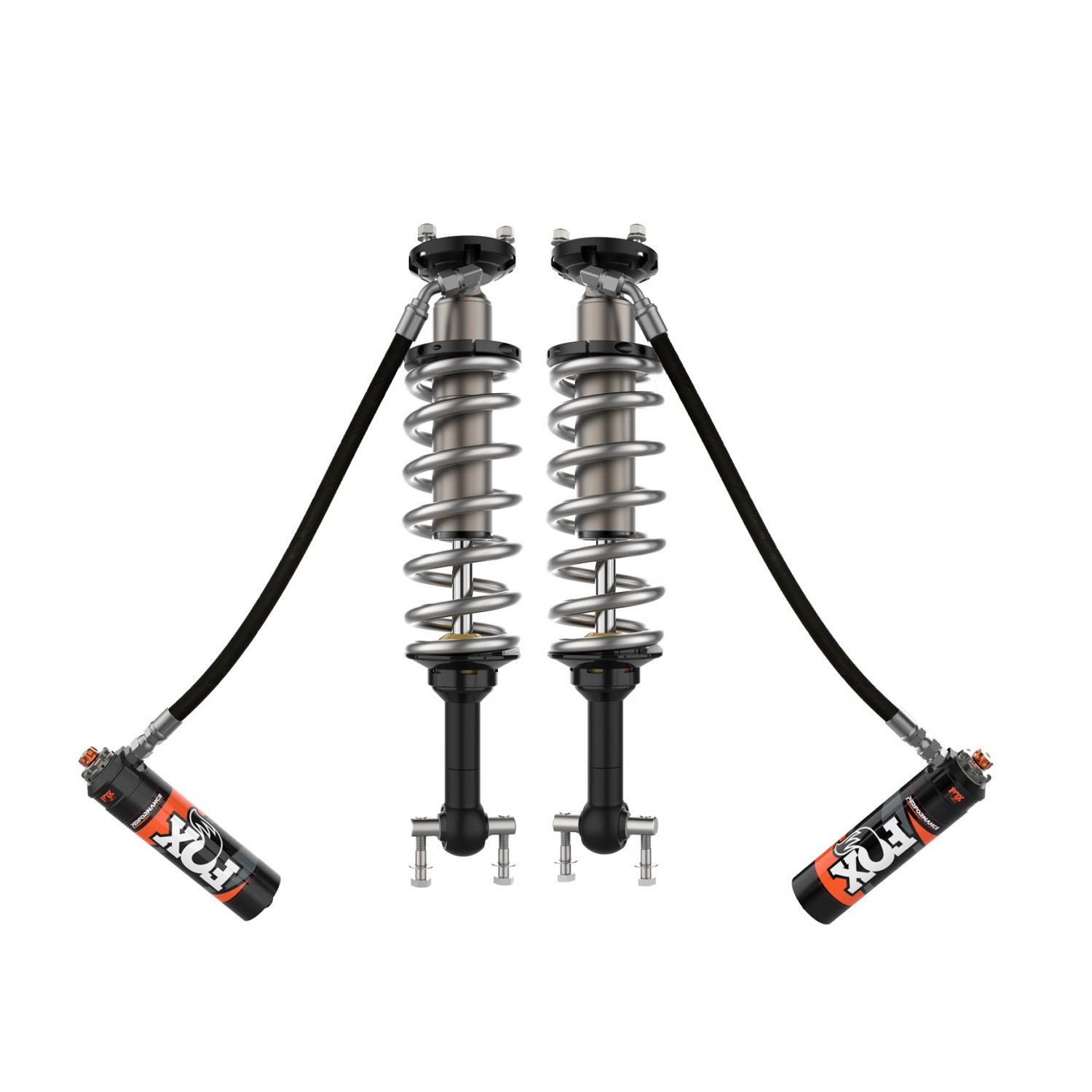

Fox Perf 2.5 Elite Series 2-4″ Front Lift Coilovers for 2021-2023 Ford Bronco 2WD/4WD
Sale!Description
Fox Perf 2.5 Elite Series 2-4″ Front Lift Coilovers for 2021-2023 Ford Bronco 2WD/4WD
Fox Perf 2.5 Elite Series 2-4″ Front Lift Coilovers for 2021, 2022, 2023 Ford Bronco 2WD/4WD with Reservoir Compression Adjusters
Part: 883-06-212
Provides 2-3″ Lift on Bronco with Sasquatch Package and 3-4″ Lift on Bronco without Sasquatch Package 4Door
Includes 2 Coilovers
FOX Performance Elite 2.5 Series shocks for the new full-size Ford Bronco are designed and engineered by off-road enthusiasts to enhance comfort, maximize articulation, and increase compliance in the dirt.
FOX’s progressively wound springs provide extra clearance and movement to unlock your Bronco’s entire range of usable travel in both jounce and droop positions. These springs were specifically chosen to compliment the Bronco’s IFS design to offer a uniquely soft ride and better control through rough terrain. Â

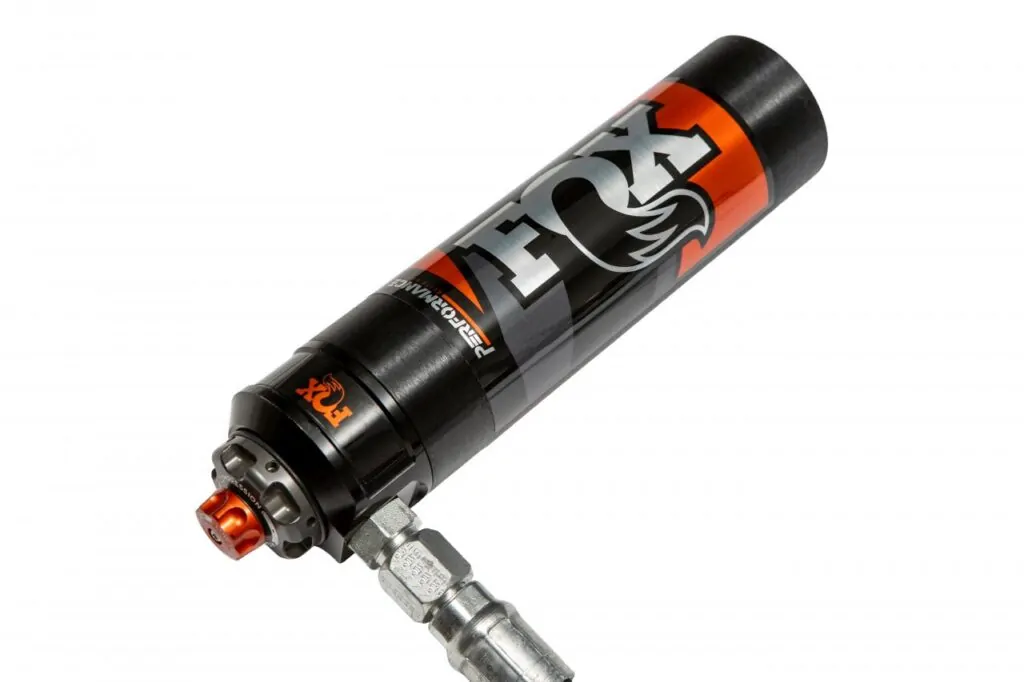

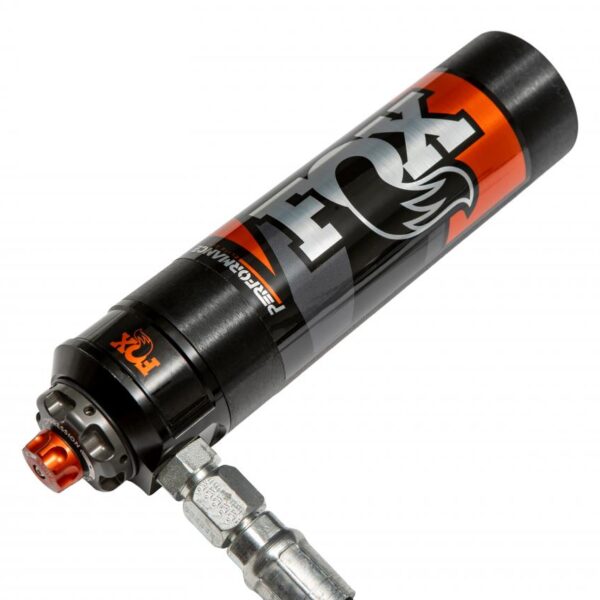

The shocks’ 2.5-inch aluminum bodies and external reservoirs efficiently dissipate heat by increasing internal oil capacity, while the remote reservoirs with Dual Speed Compression (DSC) adjusters are strategically mounted to clear aggressive mud tires and leave space for aftermarket skid plates and bumpers. Â
Easily adapt your shocks for load, environment, and driving style using the DSC adjusters as the large capacity dampers manage stability through all types of terrain. Additionally, you have a generous amount of preload adjustment to maintain your Bronco’s ideal ride height while supporting a wide range of essential added gear.
FOX Performance Elite 2.5 Series shocks provide the versatility required to navigate backcountry terrain on the weekend and tackle your daily commute while you remain comfortable and in control.
FEATURES AND SPECIFICATIONS:
Body | 2.5″ Impact extruded and CNC machined 6061-T6 hard anodized aluminum body resists rust over time |
---|---|
Body Plating | Hard-anodized for a durable finish |
Reservoir | 2.5″ Smooth bore and honed seamless alloy reservoir |
Components | Black-anodized, CNC-machined 6061-T6 billet aluminum |
Spring | Application specific, custom progressive springs |
Shaft | 7/8″ hard chrome plated steel shafts |
Valving | Application specific valving to maximize performance |
Seals | Redundant sealing pack system main seal, wiper seal, scraper seal |
Bearing | PTFE-lined, heat-treated, alloy steel spherical |
Adjustments | Ride height preload ring |
Top Mount | OEM |

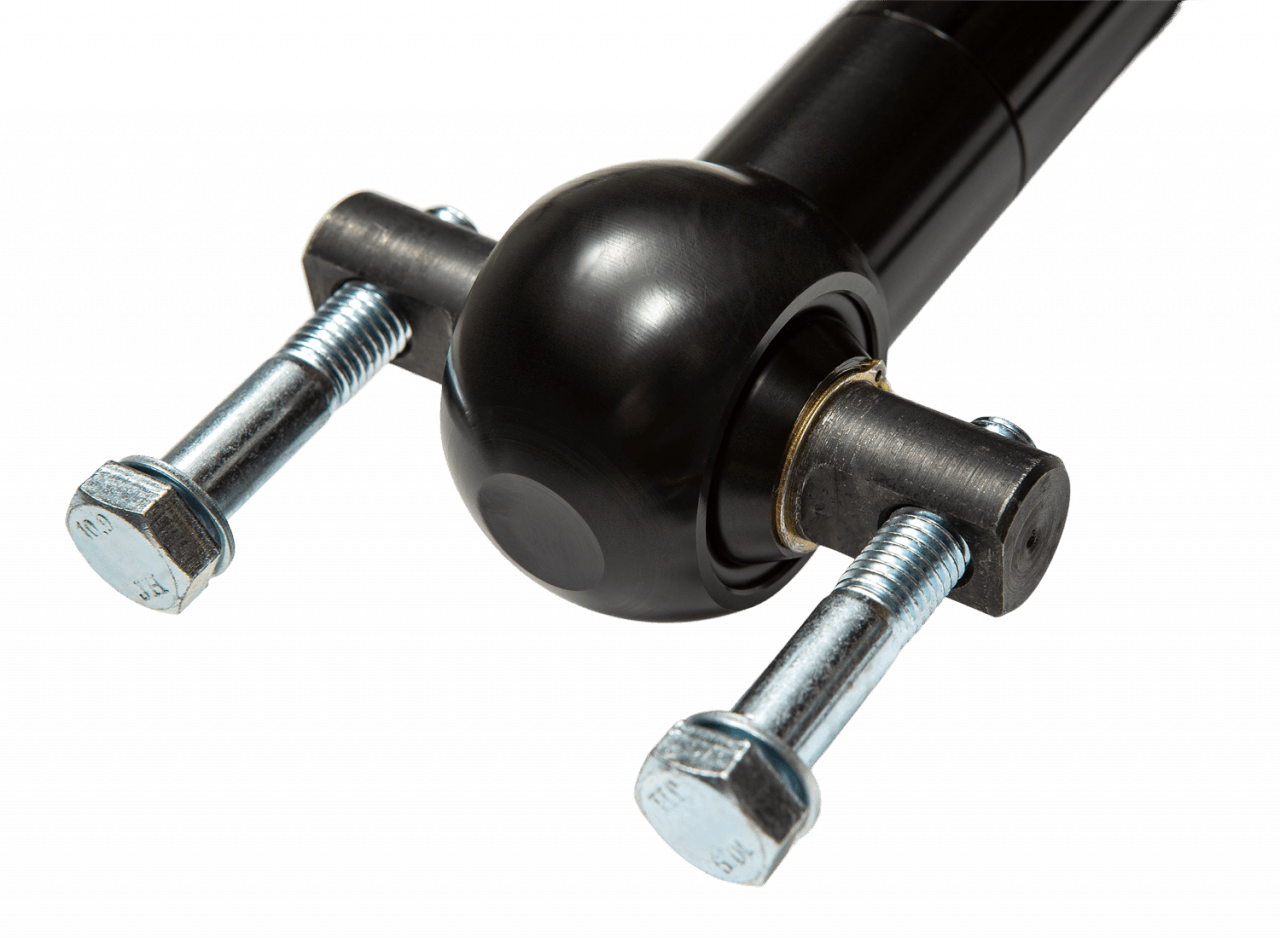

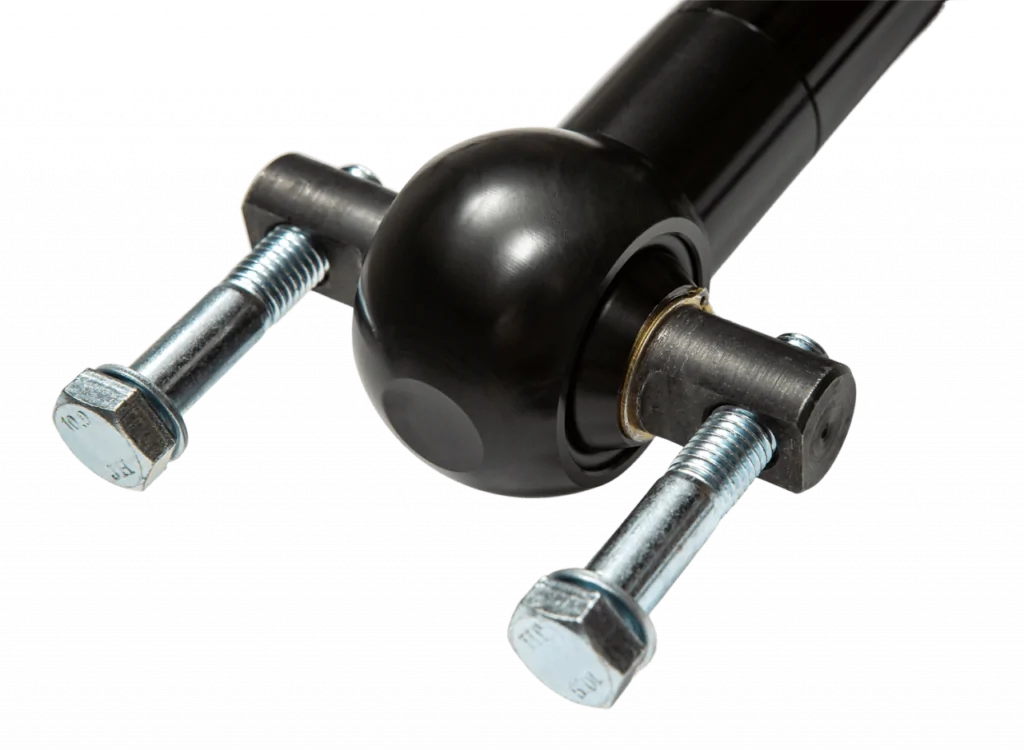

Bottom Mount | Bar Pin |
Replaces Part Number | 883-06-195 |
Fitment notes | 4 Door Only | Requires Upper Control Arm |
Extended (in) | 23.4100 |
Compressed (in) | 17.9400 |
Travel (in) | 5.47 |
