Description
AirLift Rear Helper Spring Bellows for 2003-2019 Ford E-450 Super Duty

AirLift Rear Helper Spring Bellows for 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019 Ford E-450 Super Duty

Part: 50251

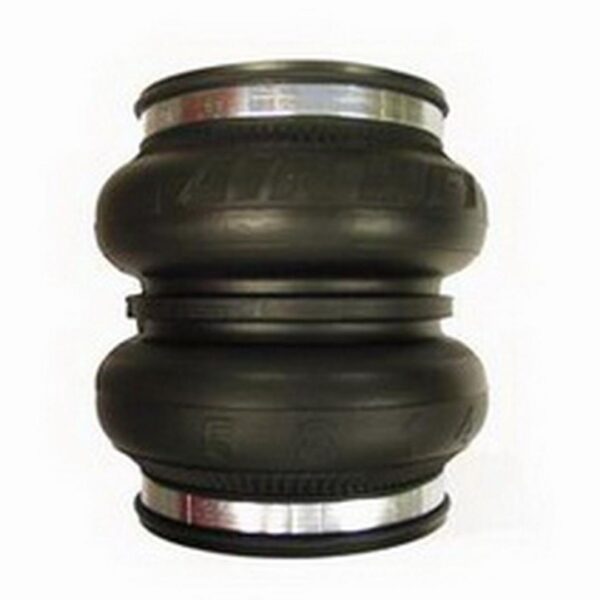

50251 AirLift Helper Spring Bellows

Helper Spring Bellows; LoadLifter 5000 ™; Double Bellows; 7.7 Inch Extended Height; 2.3 Inch Compressed Height; 6-1/2 Inch Diameter; 2025 Pounds Load Capacity At 100 PSI; 1/8 Inch Port Size; Black; Single

Attributes Type: Air Double Bellows Extended Height (IN): 7.7 Inch Compressed Height (IN): 2.3 Inch Diameter (IN): 6-1/2 Inch Load Capacity (LB): 2025 Pounds at 100 Pounds Per Square Inch Inflation Port Size: 1/8 Inch NPT Mounting Type Side A: 3/8 Inch-24 Mounting Type Side B: 3/8 Inch-24 Color: Black Includes Hardware: No
Features & Benefits Refer To The Document Tab For The New Authorized Installer Program Limited 2 Year Warranty

https://vehiclepartimages.com/PMDT/AIR/TechnicalBulletins/Air Lift Installer Program.pdf

[Type: Air Double Bellows
Extended Height (IN): 7.7 Inch
Compressed Height (IN): 2.3 Inch
Diameter (IN): 6-1/2 Inch
Load Capacity (LB): 2025 Pounds at 100 Pounds Per Square Inch
Inflation Port Size: 1/8 Inch NPT
Mounting Type Side A: 3/8 Inch-24
Mounting Type Side B: 3/8 Inch-24
Color: Black
Includes Hardware: No
]

Attributes

• Type: Air Double Bellows
• Extended Height (IN): 7.7 Inch
• Compressed Height (IN): 2.3 Inch
• Diameter (IN): 6-1/2 Inch
• Load Capacity (LB): 2025 Pounds at 100 Pounds Per Square Inch
• Inflation Port Size: 1/8 Inch NPT
• Mounting Type Side A: 3/8 Inch-24
• Mounting Type Side B: 3/8 Inch-24
• Color: Black
• Includes Hardware: No

Compatibility Notes: Features & Benefits Refer To The Document Tab For The New Authorized Installer Program Limited 2 Year Warranty

Fitment Notes:

14050 Gross Vehicle Weight Rating and Over
Requires 8 Inches Between the Tire and Frame

Position On Vehicle: Rear

[Rear]
