SuperLift 6″ Lift Kit for 1980-1996 Ford Bronco 4WD

Description
SuperLift 6″ Lift Kit for 1980-1996 Ford Bronco 4WD

6″ Ford Superunner Suspension Lift Kit – 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996 Bronco 4WD

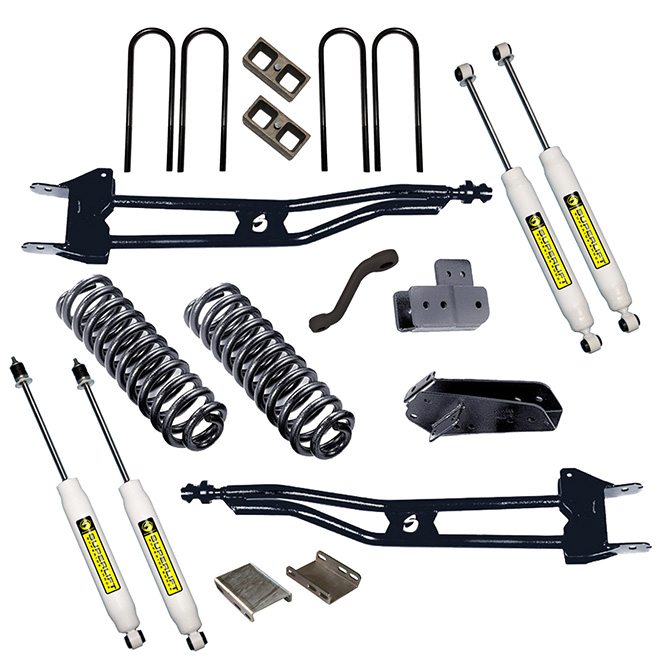

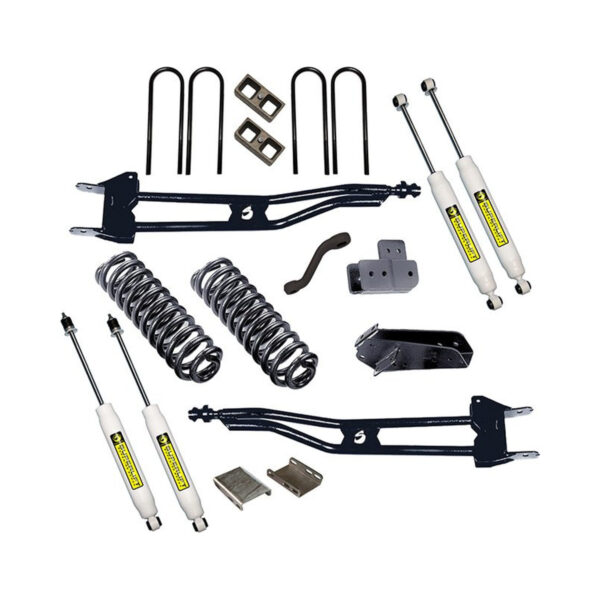

Part: K388

• Pre-set replacement front coil springs provide lift
• Axle pivot brackets, constructed of .25″; thick steel plate, correct camber angle
• New extended length tubular radius arms correct caster, improve travel and ride
• Sway bar relocation brackets included
• Dropped pitman arm reduces steering linkage angles; optional Superunner replacement steering linkage system available.
• Rear lift via 4″ blocks
• Superide shock absorbers included
• Lifetime Warranty
• Satisfaction Guarantee

Tire and Wheel Info

35 x 12.50

IMPORTANT DISCLAIMER: The provided tire/wheel fitments are approximate.

Actual dimensions of a given tire size can vary considerably from one brand to another.

Manufacturers’ wheel offset and backspacing measurement points are not always consistent.

Backspacing greatly impacts tire-to-fender clearance when turning.

Wheel width and backspacing influence whether the tires protrude past the fenders, and to what extent.

Considering these important factors, we recommend that you fit-check your tire/wheel selection prior to purchasing.

Installation Notes

Optional extended length brake hoses recommended.

Although not desirable, it is acceptable to omit pitman arm for a budget kit. Pitman arm required for Superunner steering.

Standard shock is behind axle, auxiliary shock is in front of axle.

Superunner steering must not be used on lifts in excess of 6″.

Installation Instructions

• 1030.pdf

Product Overview

New pre-set coil springs provide 6″ of front lift; lift blocks raise the rear. A replacement pitman arm relieves drag link angle. Sway bar relocation brackets are included.

Axle pivot brackets, laser-cut from .25″ steel plate, lower the inboard ends of the axle beams and restore camber. New camber alignment bushings, available from your local alignment shop, may be required to precisely “dial-in” camber angle; this need varies from one vehicle to the next./p>

There are two methods for correcting caster angle. Our Standard kit features cast brackets that lower the factory radius arms at their frame (rear) end attaching points, while our Superunner kit features replacement tubular radius arms.

Both Standard and Superunner kits include 2 front and 2 rear Superide shocks. If the vehicle is factory-equipped with auxiliary (dual) front shocks, also order quantity two part number 85300 Superide shocks.

The optional Superunner Steering System conversion is recommended for optimal driveability. Other options include Poly radius arm bushings (included in Superunner lift kits), and steering stabilizers.
