Cognito 2.5″ Standard Leveling Kit for 15-20 Ford F-150 4WD

Description

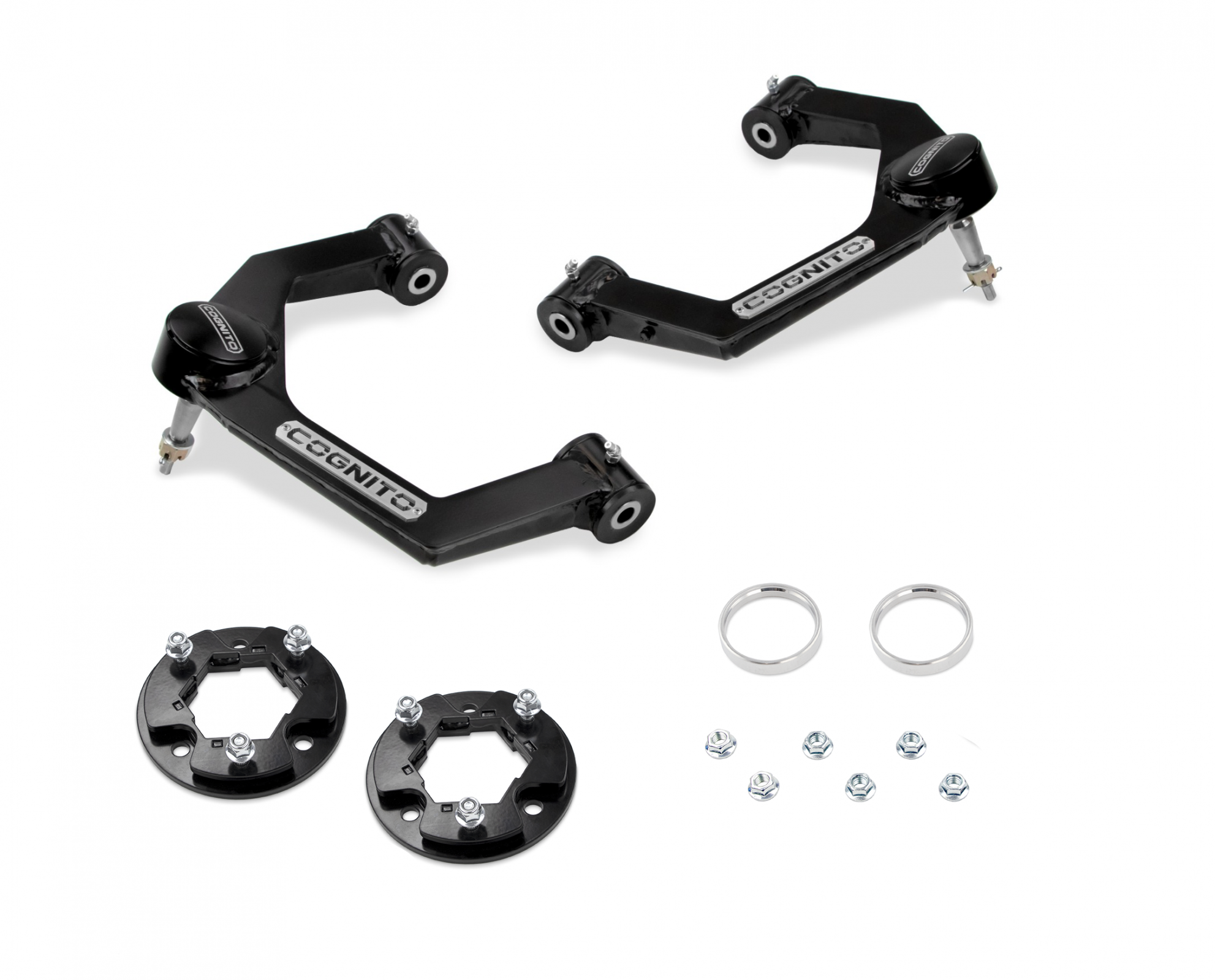

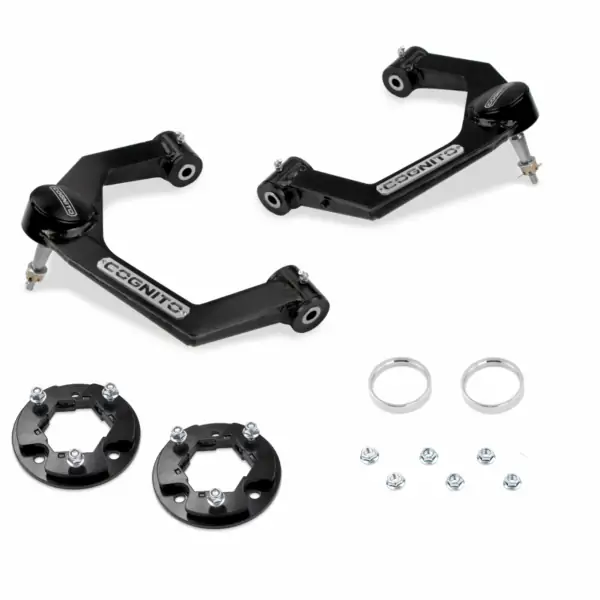

Cognito 2.5″ Standard Leveling Kit for 15-20 Ford F-150 4WD

Cognito 2.5″ Standard Leveling Kit for 15-20 Ford F-150 4WD

Part: 120-91059

We have bundled everything you need in a leveling kit for your F-150 4WD with high quality Cognito components.

There is no guesswork. Cognito components are engineered, manufactured, and assembled in the USA. The Cognito 2.5 Inch Standard Leveling Kit includes the Cognito Uniball SM Series Upper Control Arm Kit.

The Cognito Uniball SM Series Upper Control Arms replace OEM upper control arms, as well as add style, function and performance to your vehicle by correcting the uniball angle for lifted and leveled applications and improving the allowable droop travel for a better ride quality.

The control arm kit features boxed sheet metal arms that are powder coated semi-gloss black.

The .75 Inch Strut Spacers and .5 Inch Steel Preload Spacers are constructed out of heavy duty steel and finished with a durable semi-gloss black power coating.

Each Kit Features:

• Yields 2.5-inches of front lift
• Cognito Uniball SM Series Upper Control Arm Kit
• Control arms include provisions for the Platinum model headlight sensor
• 1.25 inch FK Rod Ends Uni-ball joint with corrected joint angle to handle the required articulation
• Maintains adequate droop travel to retain ride quality
• .75-inch strut spacer installs directly onto OE strut
• .5-inch preload spacer installs under OE coil spring
• Allows up to 35×12.5-inch tire on a 9-inch Wide wheel with a 5.75-inch Backspacing
• Powder Coated Semi-gloss Black
• 4-hour DIY install time
• Made in the USA

Each Kit Features:

• Yields 2.5-inches of front lift
• Cognito Uniball SM Series Upper Control Arm Kit
• Control arms include provisions for the Platinum model headlight sensor
• 1.25 inch FK Rod Ends Uni-ball joint with corrected joint angle to handle the required articulation
• Maintains adequate droop travel to retain ride quality
• .75-inch strut spacer installs directly onto OE strut
• .5-inch preload spacer installs under OE coil spring
• Allows up to 35×12.5-inch tire on a 9-inch Wide wheel with a 5.75-inch Backspacing
• Powder Coated Semi-gloss Black
• 4-hour DIY install time
• Made in the USA

We have bundled everything you need in a leveling kit for your F-150 4WD with high quality Cognito components.

There is no guesswork. Cognito components are engineered, manufactured, and assembled in the USA. The Cognito 2.5 Inch Standard Leveling Kit includes the Cognito Uniball SM Series Upper Control Arm Kit.

The Cognito Uniball SM Series Upper Control Arms replace OEM upper control arms, as well as add style, function and performance to your vehicle by correcting the uniball angle for lifted and leveled applications and improving the allowable droop travel for a better ride quality.

The control arm kit features boxed sheet metal arms that are powder coated semi-gloss black.

The .75 Inch Strut Spacers and .5 Inch Steel Preload Spacers are constructed out of heavy duty steel and finished with a durable semi-gloss black power coating.

Material (if available):

Sold as: Kit

Universal:

Installation Time:

Warranty:

Installation Instructions (if available): https://www.asapnetwork.org/sites/default/files/gfgq/installation/7352_1.pdf https://www.asapnetwork.org/sites/default/files/gfgq/installation/7354.pdf https://www.asapnetwork.org/sites/default/files/gfgq/installation/7365.pdf
