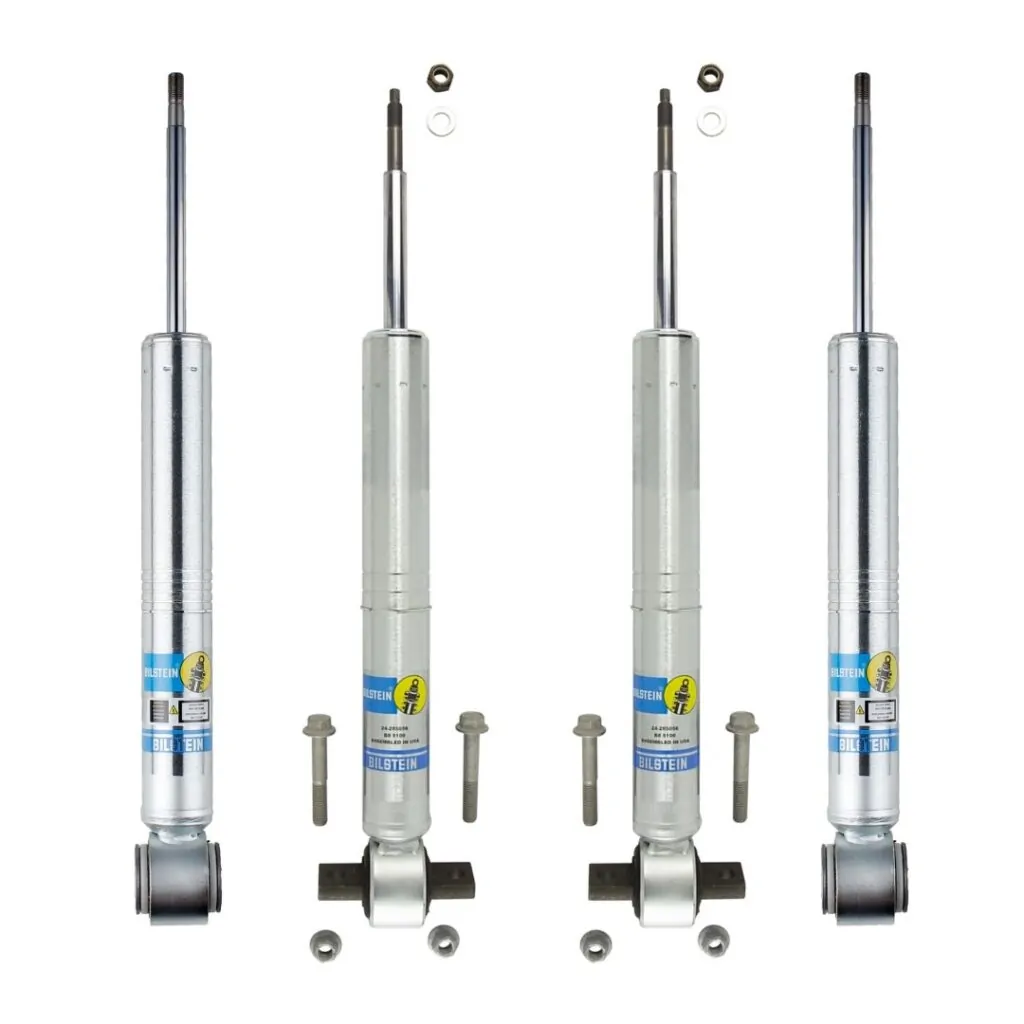

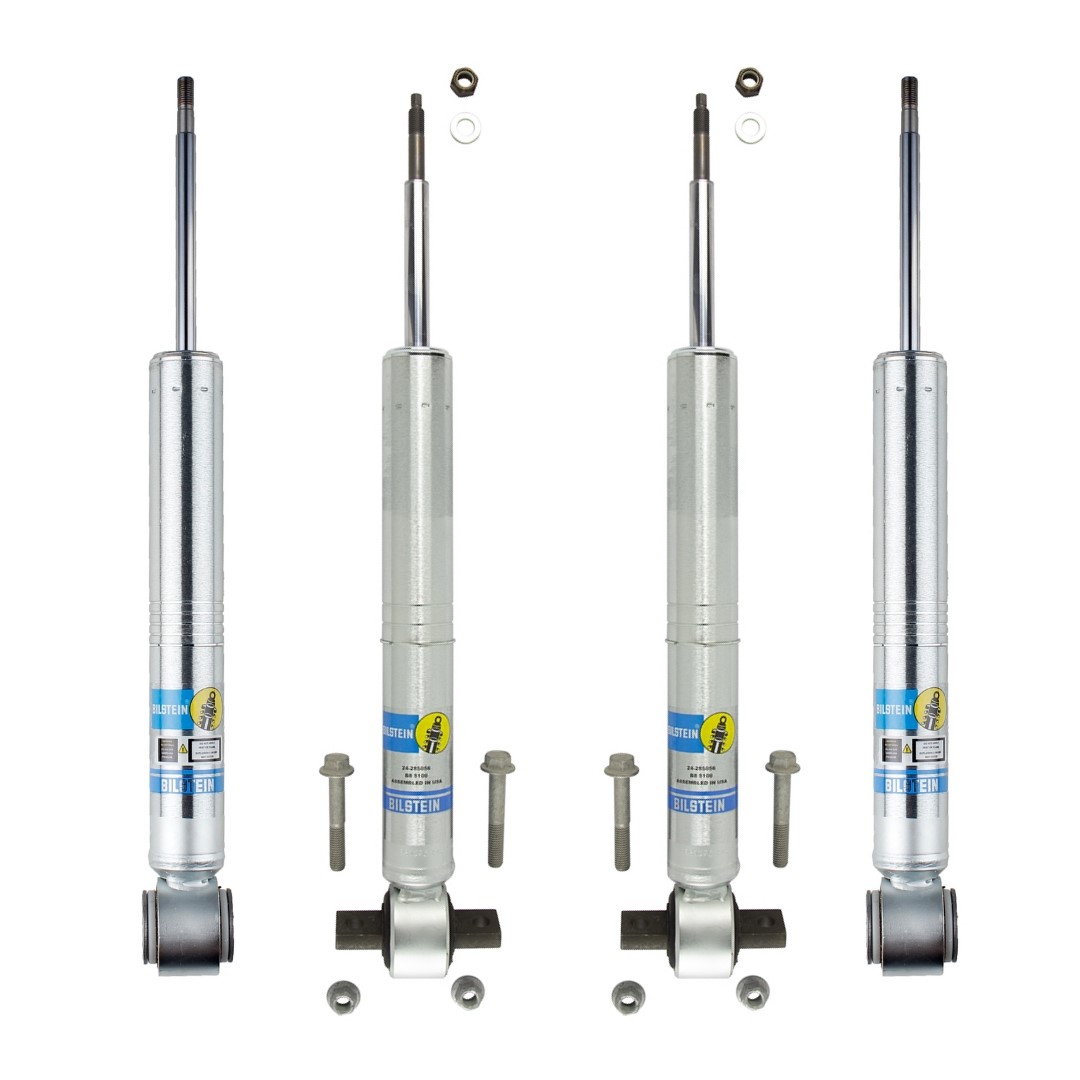

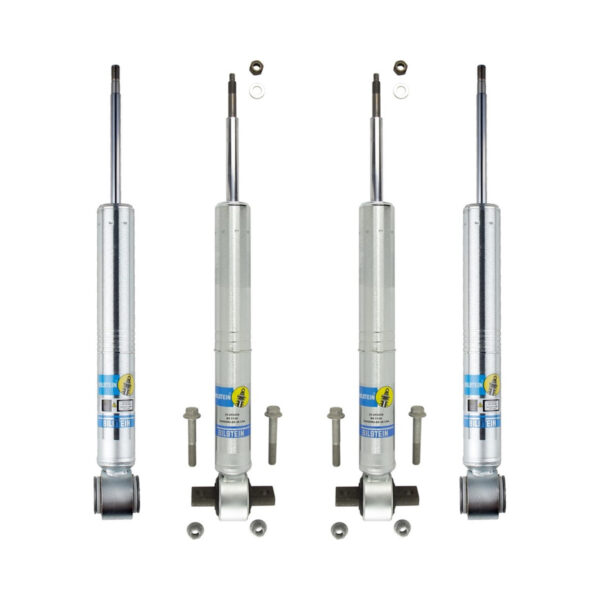

Bilstein B8 5100 RHA 0-1.6″ Front, 0-1.5″ Rear Lift Shocks For 2014-2023 Ford Expedition 2WD/4WD

Description
Bilstein B8 5100 RHA 0-1.6″ Front, 0-1.5″ Rear Lift Shocks For 2014-2023 Ford Expedition 2WD/4WD

Bilstein B8 5100 RHA 0-1.6″ Front, 0-1.5″ Rear Lift Shocks For 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023 Ford Expedition 2WD/4WD

Part: 2×24-285056_2x24-285063

Need them assembled into coilovers with OE Replacement coils?

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-2.75 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.

Front Shocks: 24-285056

• Collapsed Length (IN): 16.1
• Extended Length (IN): 20.95
• Collapsed Length (MM): 409.0
• Extended Length (MM): 532.0
• Finish: Zinc Plated
• Reservoir: No
• Aftermarket Upper Arms Required: No
• Body Design: Snap Ring Grooved Body (Coilover)
• Body Diameter: 46mm

Front Shocks Notes:

• Without Electronic Controlled Suspension (CCD)

Rear Shocks: 24-285063

• Collapsed Length (IN): 15.00
• Extended Length (IN): 20.95
• Collapsed Length (MM): 381.0
• Extended Length (MM): 531.5
• Finish: Zinc Plated
• Reservoir: No
• Aftermarket Upper Arms Required: No
• Body Design: Snap Ring Grooved Body (Coilover)
• Body Diameter: 46mm
• Replacement Mounting Kit: B4-KT1-Z293A00

Rear Shocks Notes:

• Without Load Leveling Suspension
• Without Electronic Controlled Suspension (CCD)
