McGaughy’s 2″ Strut Spring Pocket Relocator Brackets Front For 2004-2017 Ford F-150 2WD

Description
McGaughy’s 2″ Strut Spring Pocket Relocator Brackets Front For 2004-2017 Ford F-150 2WD

McGaughy’s 2″ Strut Spring Pocket Relocator Brackets Front For 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017 Ford F-150 2wd

Part number: 70005_n0

Overview:

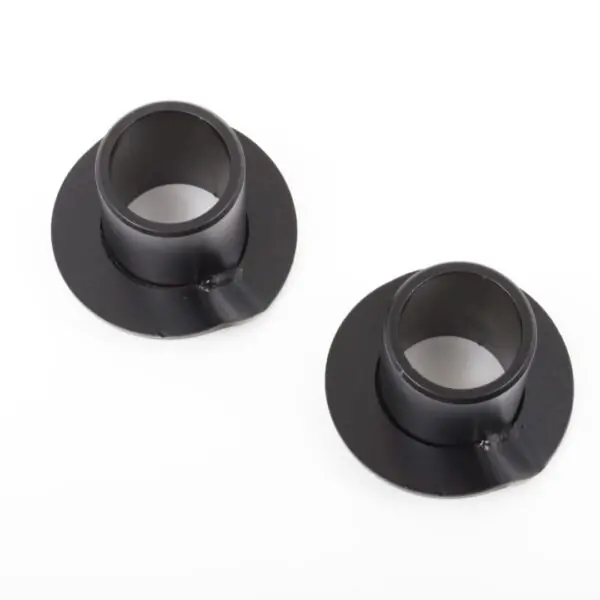

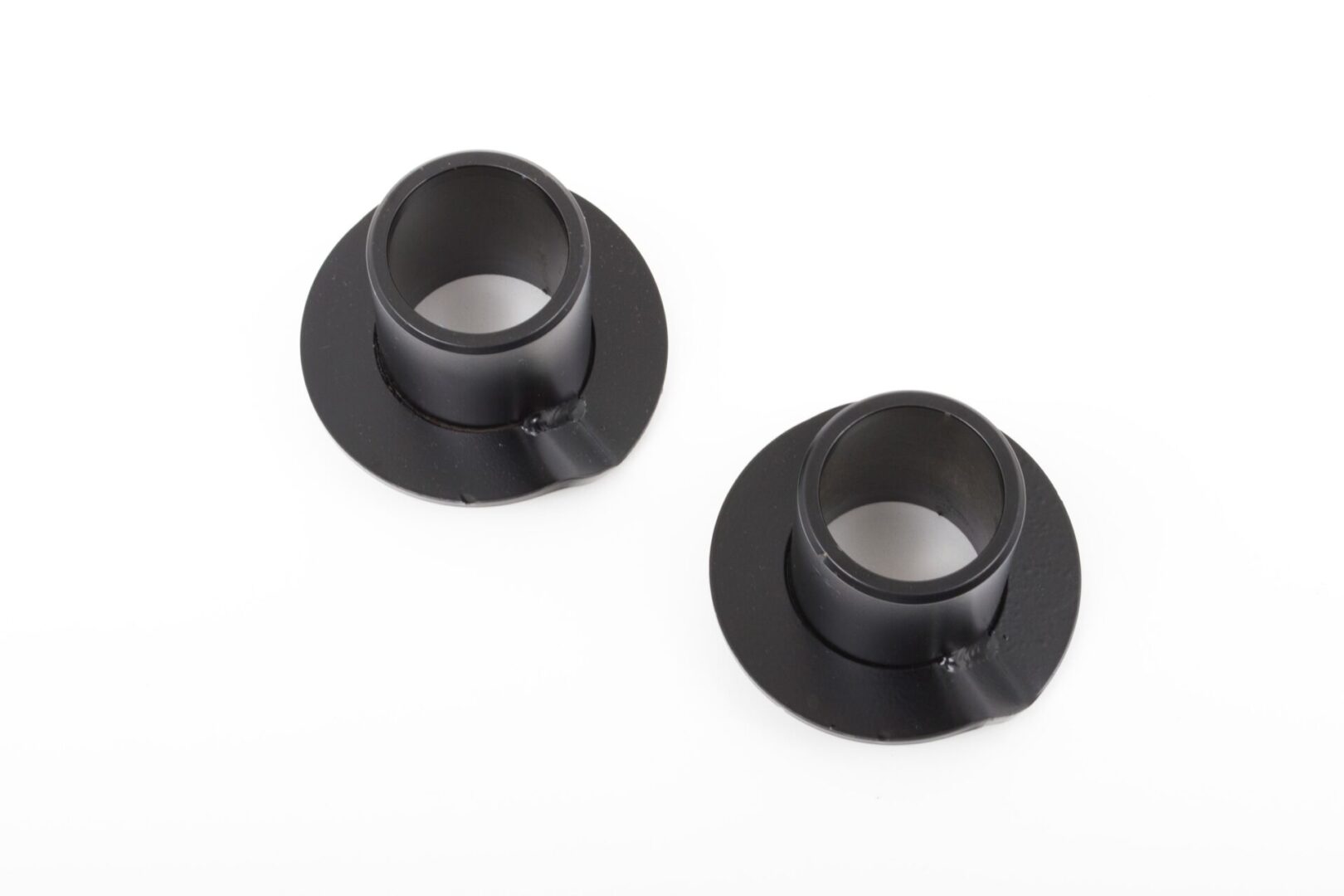

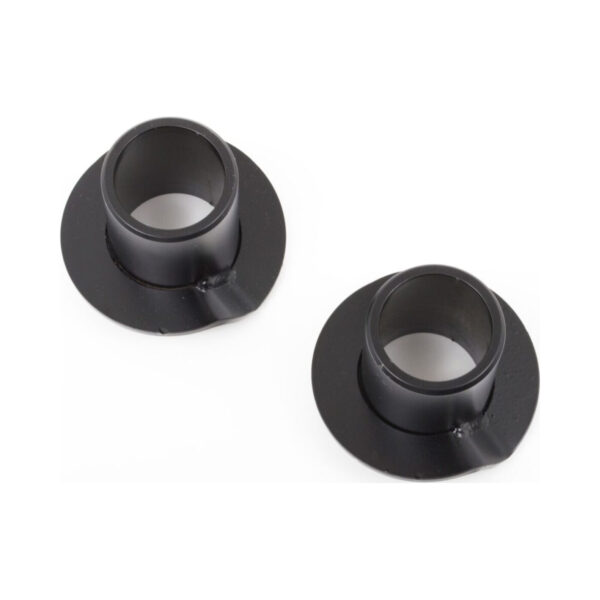

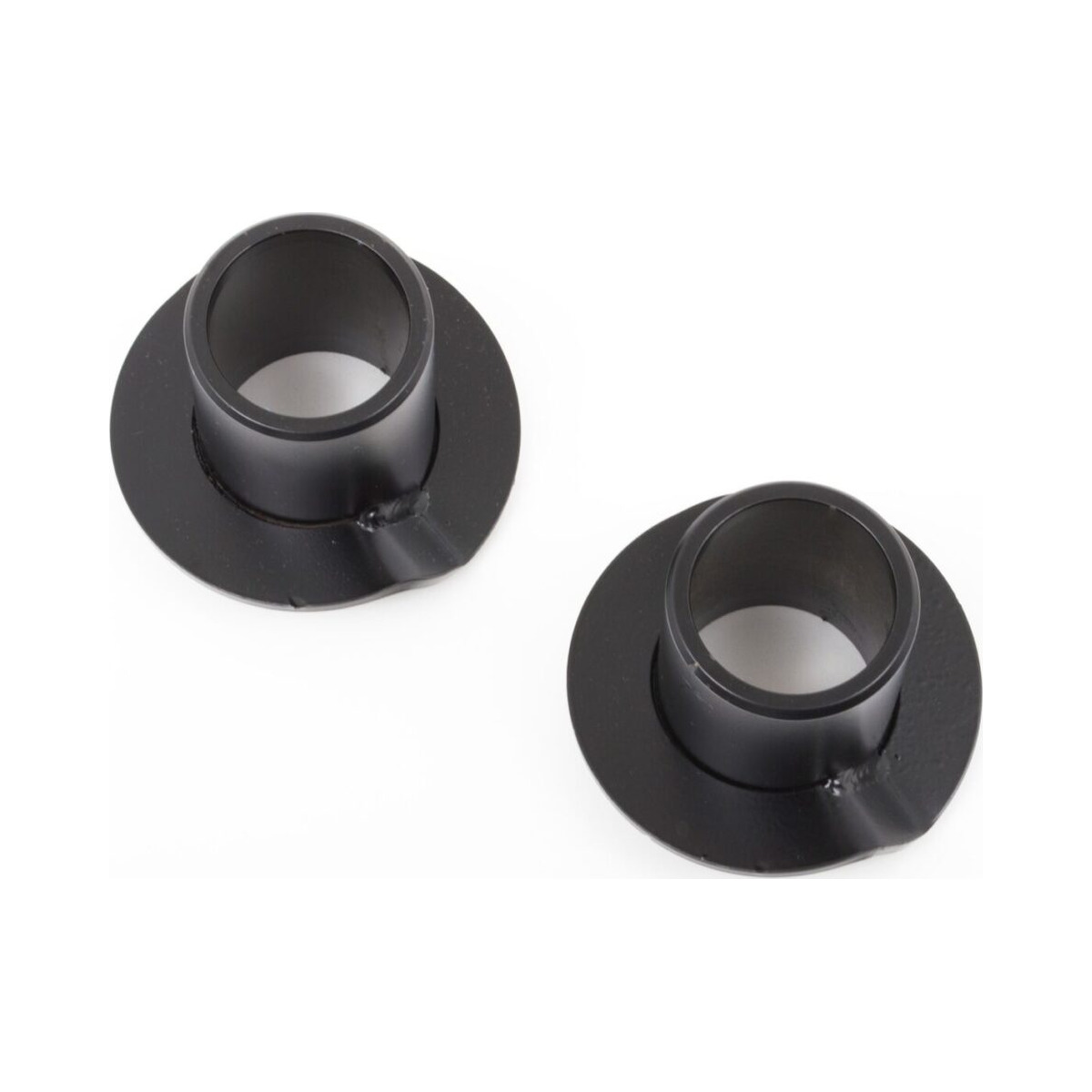

Kit Includes: (2) Strut Spring Pocket Relocator Brackets

2″ Drop Strut Spring Pocket Relocator Brackets

NOTES

• Use wheel chalks to secure the front of the vehicle from rolling / movement.
• Put jack stands under the front of the truck, securing it from the movement.
• Remove the factory strut from the front of the truck.
• Mark the upper strut mount and the lower strut mount making a straight line between the two (for locating where to re-install the strut to). Once the strut is removed from the vehicle, use a strut compressor to remove the factory coil.

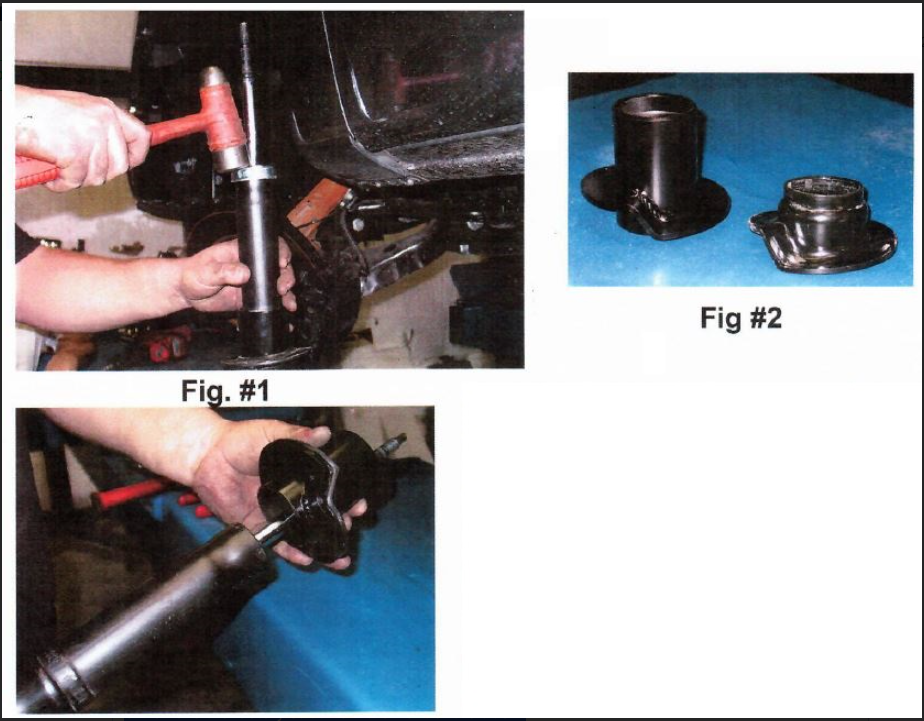

• Remove the factory bump stop strike plate off the strut (as shown in fig. #1). Remove the factory strut coil mount. You may need to use a hammer to tap it off, going from side to side tapping gently and evenly until is comes out.
• Using the new McGaughy.s coil drop, slide it over the factory strut. (Fig. #2 & #3)
• Re-install the factory bump stop strike plate on top of the strut. Use a hammer to gently tap it on (rotating around the strut so that it is installed evenly).
• Cut the original foam bump stop in half, re-install the wider remaining piece of the bump stop back over the factory strut shaft.
• Using a strut compressor, re-install the factory coil back onto the strut. Make sure the upper strut mount is installed the same way that it was before it was taken out (the bolt pattern). Make sure your marks are lined up from step 4.
• Re-install the factory strut back onto the vehicle.
