Zone Offroad 2″ Strut Spacers Lift Kit 2009-2020 Ford F150 4WD

Description
Zone Offroad 2″ Strut Spacers Lift Kit 2009-2020 Ford F150 4WD

Zone Offroad 2″ Strut Spacers Lift Kit 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020 Ford F150 4WD

Part: F1213

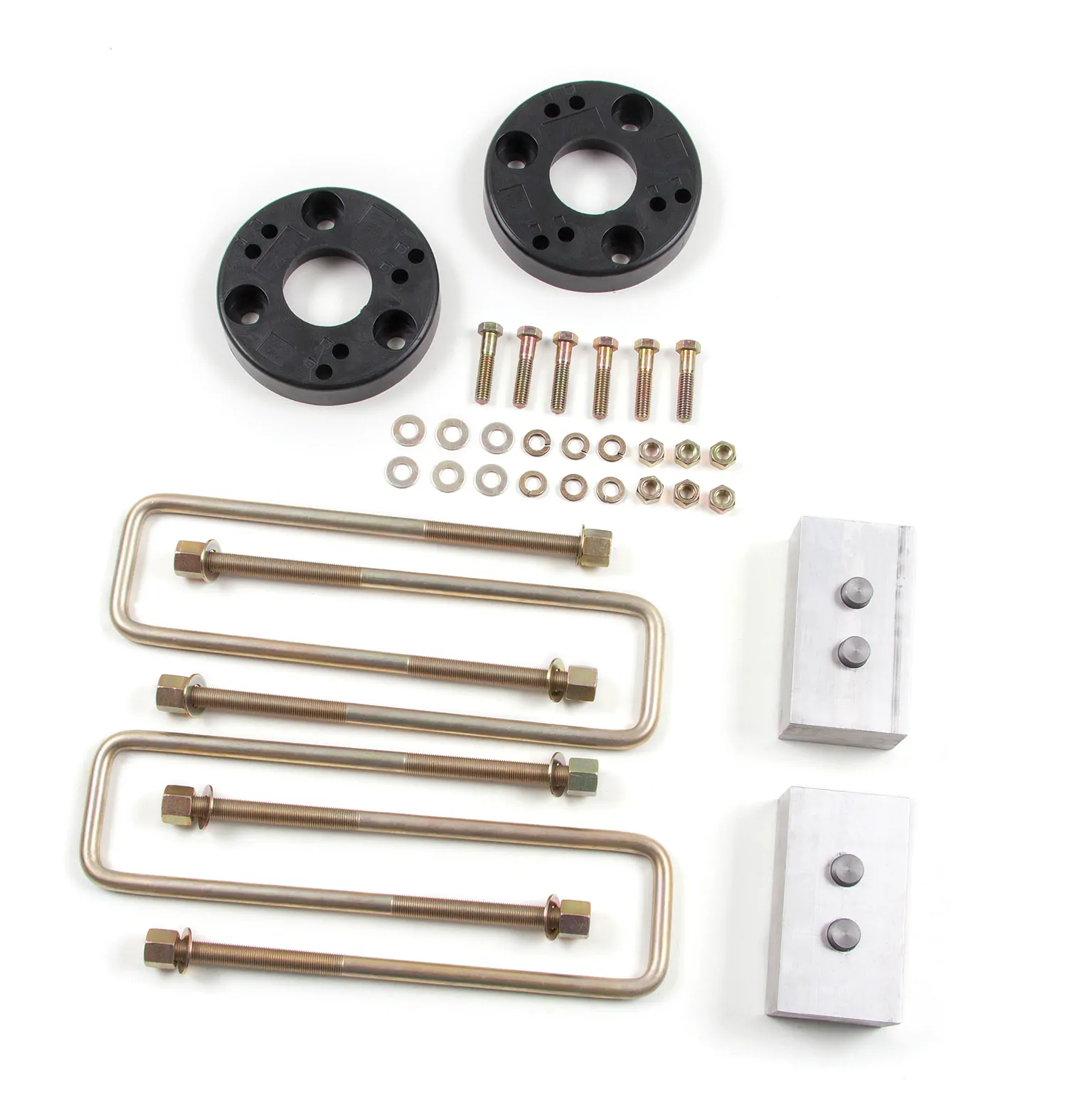

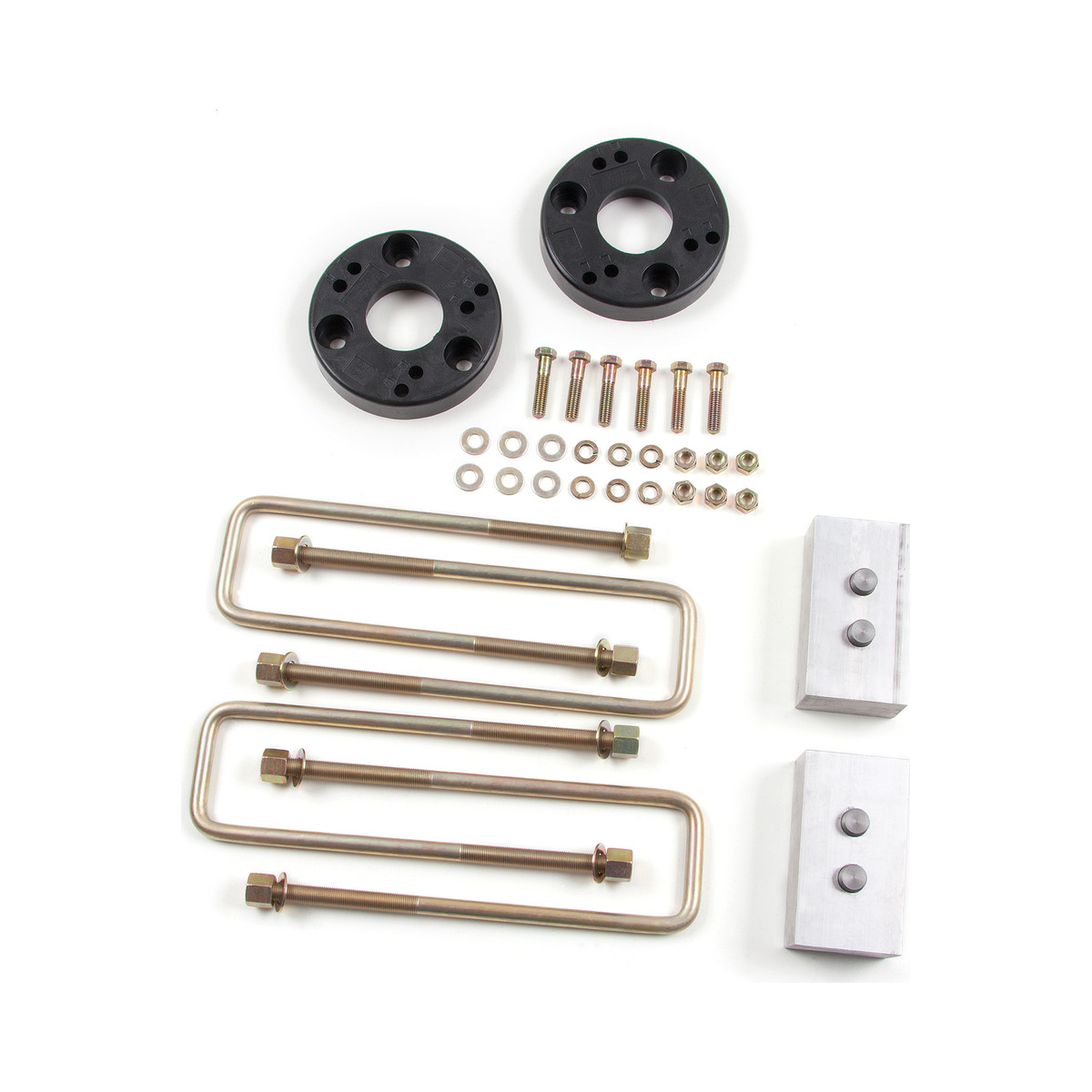

This 2009-2020 F150 2″ complete suspension lift kit system features our extremely popular 2″ front strut spacers and a 2″ block and u-bolt kit. This system will clear up to 33″ tires and maintain the factory stance.

You may think all strut spacer lift kits are created equal and price is the only factor. That simply is not accurate. Although our strut spacers are among the lowest prices in the industry, Zone Offroad parts are manufactured in the USA and engineered down to the last detail. Zone Offroad F150 strut spacers use an offset design to make sure the coil clears the A-arm at full droop. Competitors that don’t account for this can have interference issues through full wheel travel. We also upgrade from the Ford factory 10mm 10.9 fasteners to 7/16″ grade 8 bolts. Most competitors will spec. lower grade hardware to save on cost. These F150 strut spacers are made from Polyphthalamide which is a thermoplastic synthetic resin commonly used to replace metals in automotive applications. This material will hold up to anything as well as provide long term corrosion resistance.

Zone Offroad engineers their F150 2″ lift kit with high quality, easy to install spacers that do not require disassembly of the strut and will maintain the factory ride quality.

Featured Technology & Benefits

• Easy installation
• 2″ Front and Rear Lift
• Optional replacement rear shocks available
• No Strut Compressor needed

Important Notes!

• If running stock wheels the optional rear e-brake relocation bracket (ZONF5608) may be required.
• The 2014+ models have a different mount orientation on the passenger’s side compared to the 09-13 models. This difference is detailed clearly in the instructions.
• Will not fit Raptor models

This product fits the following applications:

• 2009 Ford F150 4WD
• 2010 Ford F150 4WD
• 2011 Ford F150 4WD
• 2012 Ford F150 4WD
• 2013 Ford F150 4WD
• 2014 Ford F150 4WD
• 2015 Ford F150 4WD
• 2016 Ford F150 4WD
• 2017 Ford F150 4WD
• 2018 Ford F150 4WD
• 2019 Ford F150 4WD
• 2020 Ford F150 4WD

Quick Specs

• Front Lift Height: 2″
• Front Lift Method: Strut Spacers
• Rear Lift Height: 2″
• Rear Lift Method: Block & U-bolt Kit
• Install Time Hrs: 4
• Difficulty Level 1-5: 2
• Wheel Size: Stock
• Back Spacing: Stock
• Max Tire Size: 33 x 11.50
