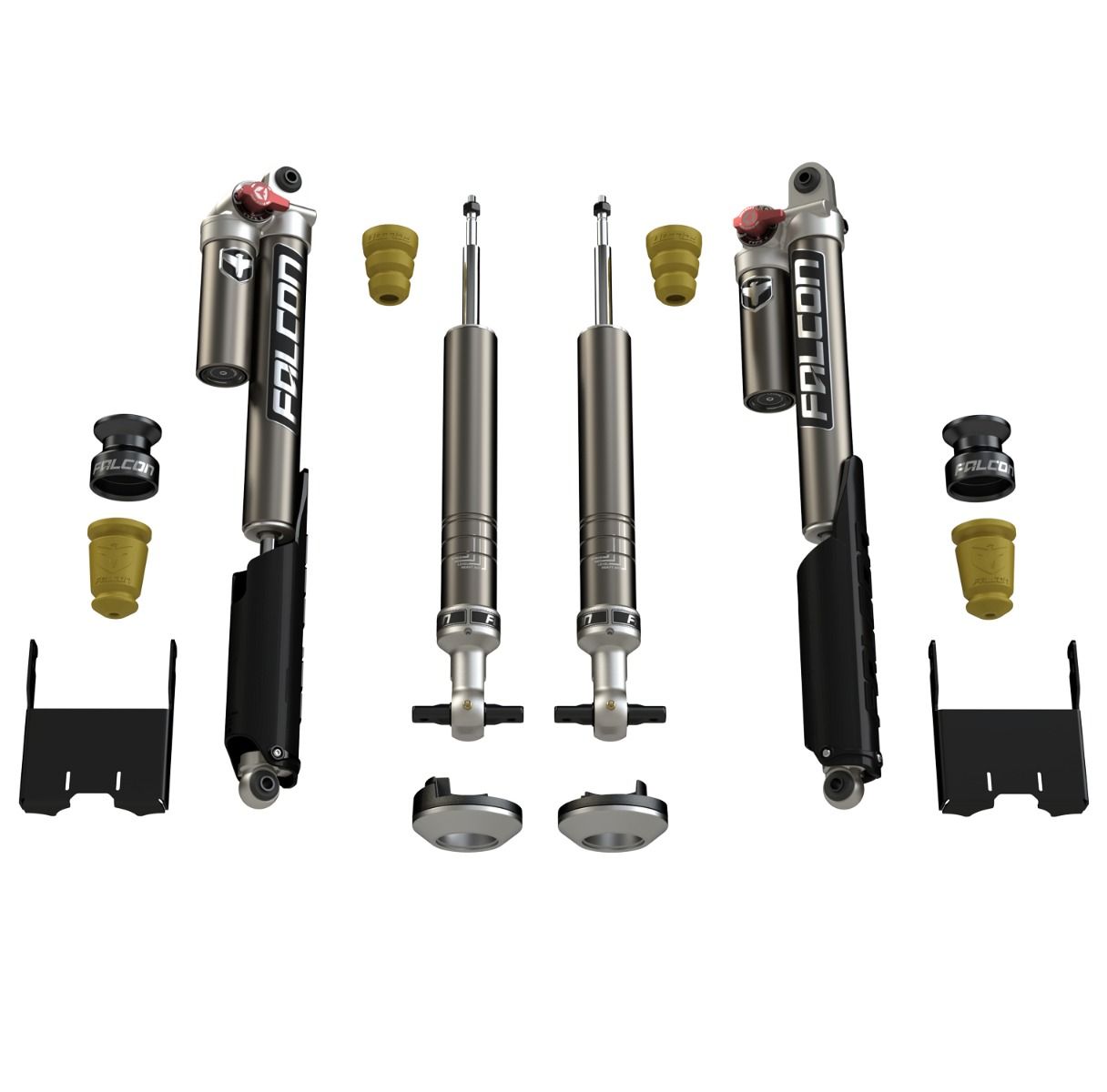

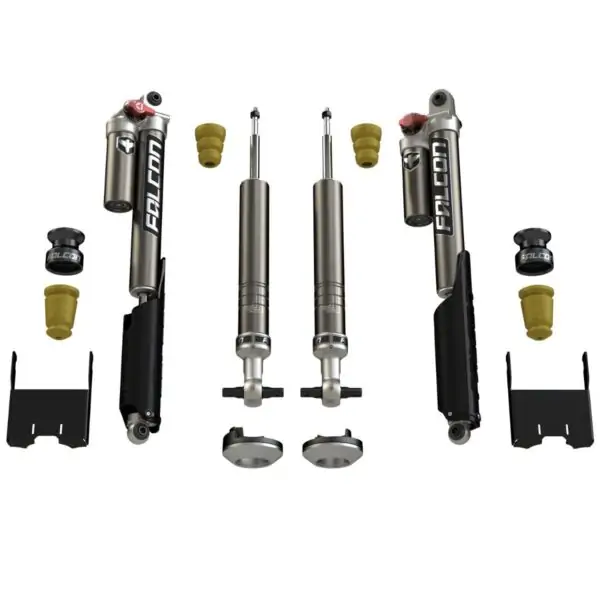

Falcon 0-2.25″ Sport Tow/Haul Shock Leveling System for 2015-2021 Ford F150

Description
Falcon 0-2.25″ Sport Tow/Haul Shock Leveling System for 2015-2021 Ford F150

Falcon 0-2.25″ Sport Tow/Haul Shock Leveling System for 2015-2021 Ford F150

Part: 05-04-32-400-002

Falcon Performance Shocks improve performance and comfort regardless of the terrain. Adjust your suspension tuning for sport or work duties with Falcon Sport Tow/Haul Shocks. These systems pair front monotube shocks with rear adjustable piggyback shocks. The easy-to-use 3-position Fast Adjust Knob’s settings include Sport, Moderate Tow/Haul, and Heavy Tow/Haul. The versatility of these systems makes them ideal for daily driving, off-road excursions, and tow/haul duties. Falcon Shock Leveling Systems provide multiple ride heights to level the front end and/or compensate for the additional weight of a winch or other accessories. “High-Value Performance” is the driving force behind our vehicle-specific dampers for Jeeps, trucks, and SUVs. We don’t re-valve existing shocks (like other companies); we engineer complete shock absorber systems that improve the overall performance of your truck or SUV both on and off road and while towing. Falcon Performance Shocks by TeraFlex. Sport Tow/Haul Shocks: • Sport Tow/Haul Shocks increase stability and control as well as improve ride quality and comfort both on and off-road in a compact and affordable package • Front monotube shocks w/ optimized tuning for on- and off-road driving • Rear adjustable piggyback shocks w/ 3-position Fast Adjust Knob for large damping adjustments • Rear settings include: Sport, Moderate Tow/Haul, Heavy Tow/Haul • ideal for daily driving, off-road excursions, and tow/haul duties as well as the serious enthusiast wanting a consistent, controlled feel through all driving conditions Front Leveling Shocks: • Front leveling shocks w/ multiple snap ring grooves provide a range of height adjustment Rear Piggyback Shocks: • Piggyback design increases oil and gas capacity for reduced heat • Flows 6x more oil than restrictive reservoir hose designs • Eliminates common leakage issues found in banjo and swivel fittings

Adjust your suspension tuning for sport or work duties with Falcon Sport Tow/Haul Shocks. The rear piggyback shocks– easy-to-use 3-position Fast Adjust Knob’s settings include Sport, Moderate Tow/Haul, and Heavy Tow/Haul.

Truck/SUV Performance Shocks:

• • Vehicle-specific shock absorbers
• • Race-inspired performance for increased vehicle stability
• • Improved dynamic roll control and low-speed damping
• • Dramatic improvement in on-road comfort and off-road performance
• • Optimized fitment for unobstructed suspension travel and articulation
• • 2.3” shock body provides optimal performance
• • 6061-T6 aluminum alloy shock body resists Impact to protect internal components
• • Smooth honed internal shock body surface for long-term performance
• • 3/4” induction hardened chrome plated shaft resists rock damage, corrosion, and shaft buckling
• • Large shaft diameter provides wide range of adjustment on adjustable shocks
• • Hard anodized 6061-T6 aluminum alloy billet piston
• • 1-piece Teflon bronze piston wear band w/ O-ring
• • VOD (Volume Optimized Damping) features a digressive linear piston
• • VOD reduces shock bottoming at full compression or over uneven terrain
• • OGS (Oil/Gas Separator) prevents cavitation
• • ZRT (Zone Rate Tuning) assists factory spring in the Extension Zone and Compression Zone during aggressive driving — does NOT affect Drive Zone
• • Internal Negative-Rate Coil Spring eliminates top out clunk and shock stress during Extension Zone; softens tire landing on impact
• • Vehicle tuned microcellular Progressive Bump Stops reduce harsh bottom outs (when applicable)
• • High-quality spherical bushings (when applicable)
• • Zerk fittings to lube bushing (when applicable)
• • Red Line synthetic oil w/ a high Viscosity Index for consistent performance across all temperatures
• • Synthetic formula also contains special anti-wear and lubricity agents
• • 1,000-hour salt spray corrosion resistance test on all hardware
• • Serviceable and rebuildable (factory serviced)
• • Designed, engineered, and assembled in-house from domestic and globally sourced components
• • Patented design
• • 3-year warranty

Vehicle(s):

• • 2021+-2020 Ford F-150 (14th-gen) – does NOT fit Raptor or Lightning
• • 2015-2020 Ford F-150 (13th-gen) – does NOT fit Raptor Specs:
• • Front Level Height: 0–2.25”
• • Max Tire Size: 285/70R17

Fitment Notes:

• • Do NOT use tow/haul modes while unladen as the increased rear stiffness could upset the balance between the front and rear of the vehicle, which could lead to loss of vehicle control.
• • NEVER exceed factory tow/haul ratings.
• • Does NOT fit 2015+ Ford F-150 Raptor or 2023+ Lightning.

Download Installation Instructions for Falcon 0-2.25″ Sport Tow/Haul Shock Leveling System for 2015-2021 Ford F150
