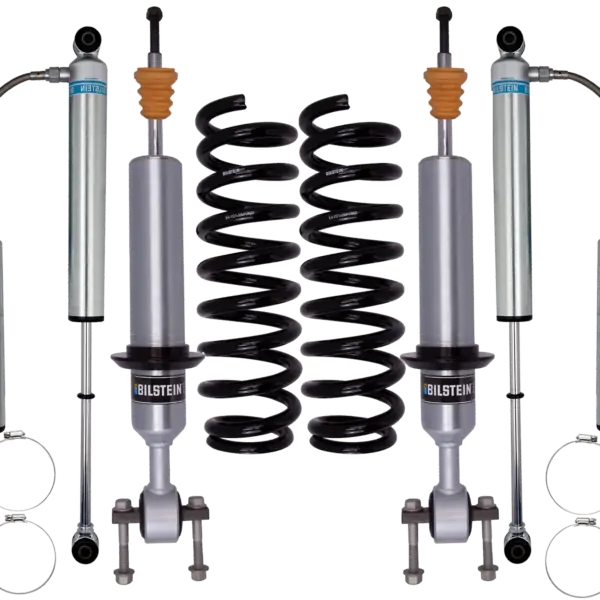

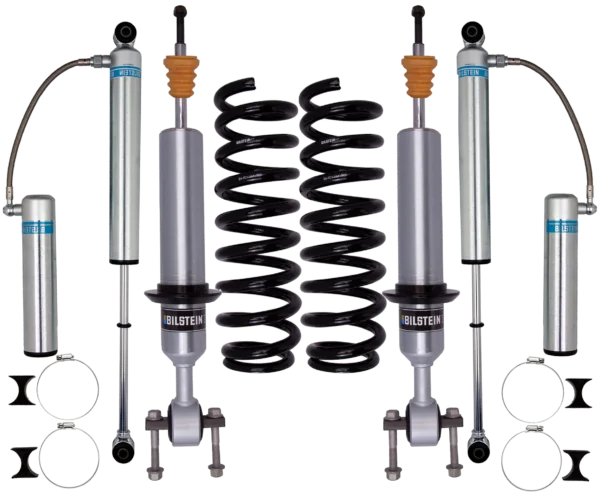

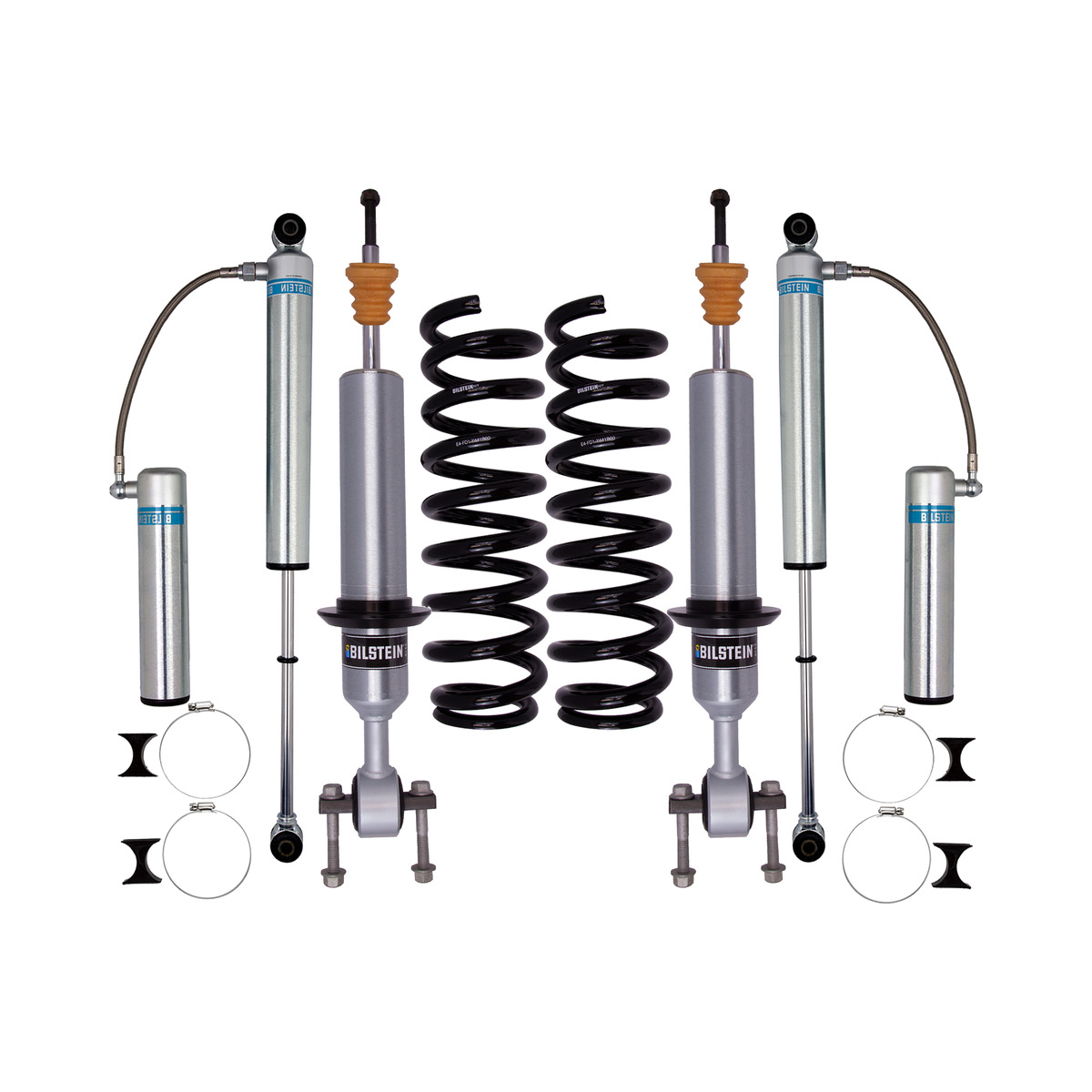

Bilstein 0-2″ Front Lift 6112, 5160 or 5100 Rear shocks for 2015-2020 Ford F150 4WD

SKU: 47-256958_25-261400_33-253190
4.25 out of 5 based on 4 customer ratings
(4 customer reviews)
Bilstein 0-2" Front Lift 6112, 5160 or 5100 Rear shocks for 2015-2020 Ford F150 4WD
Bilstein 0-2" Front Lift 6112, 5160 or 5100 Rear shocks for 2015-2020 Ford F150 4WD

Description
Bilstein 0-2″ Front Lift 6112, 5160 or 5100 Rear shocks for 2015-2020 Ford F150 4WD

Bilstein 0-2″ Lift 6112 Front Coils, shocks and 5160 or 5100 Rear shocks for 2015, 2016, 2017, 2018, 2019, 2020 Ford F-150 4WD

Part: 47-310995_25-261400_33-253190

Need them assembled?

Front:

  • Finish: Dampers: Zinc Plated/Springs: Black
  • Reservoir: No
  • Body Design: Snap Ring Grooved Body (Coilover)
  • Body Diameter: 60mm

Bilstein B8 6112 leveling kits are designed to provide more ground clearance, allow for larger tires, and increase wheel travel. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-2.75 inches of front lift (depending on application). These kits consist of (2) 60mm shock absorbers combined with (2) custom matched cold wound coil springs and (2) billet aluminum spring seats. The large 60mm digressive piston allows for increased damping control for optimal on-road and off-road capabilities. Experience the legendary Bilstein off-road experience with the best direct fit spring and shock kit for your light truck or SUV.

Rear 5160 reservoir shocks:

For Rear Lifted Height: 0-2″

  • Collapsed Length (IN): 17.52
  • Extended Length (IN): 29.44
  • Collapsed Length (MM): 445.0
  • Extended Length (MM): 748.0
  • Finish: Zinc Plated
  • Reservoir: Yes
  • Body Design: Smooth Body (Non-Coilover)
  • Body Diameter: 46mm
  • Optional Reservoir Clamp: 11-176015

Bilstein B8 5160 remote reservoir shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. The remote reservoir will offer increased cooling capacity and wheel travel to optimize overall performance compared to a traditional shock absorber. These shock absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. Each shock absorber is fitted with a unique 360 degree swivel banjo hose fitting, providing a clean, low profile installation. B8 5160 remote reservoir shock absorbers will increase overall durability of your vehicle allowing you to conquer the harshest of off-road environments.

Or

Rear 5100 non-reservoir shocks:

For Rear Lifted Height: 0-1″

  • Collapsed Length (IN): 17.52
  • Extended Length (IN): 28.74
  • Collapsed Length (MM): 445.0
  • Extended Length (MM): 730.0
  • Finish: Zinc Plated
  • Reservoir: No
  • Body Design: Smooth Body (Non-Coilover)
  • Body Diameter: 46mm

Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.

Notes:

  • Realignment of front radar sensor may be needed if equipped with adaptive cruise control
  • Fits Crew Cab Pickup, Extended Cab Pickup
  • Without Continuously Controlled Damping

Customer reviews

Rated 4.25 out of 5 stars
4 reviews
5 stars 2 50 %
4 stars 1 25 %
3 stars 1 25 %
2 stars 0 0 %
1 star 0 0 %

4 reviews for Bilstein 0-2″ Front Lift 6112, 5160 or 5100 Rear shocks for 2015-2020 Ford F150 4WD

    Add a review

    Use one of the allowed file type: jpg,png,jpeg.

      Questions and answers of the customers

        What does clip 1 throughly to 6 mean in the coil over assembly drop box?
      1. 0 votes
        QWhat does clip 1 throughly to 6 mean in the coil over assembly drop box?
        There are no answers for this question yet. Answer now
        2. I have a set of Fuel Wheels 20"x9" with +1 offset 5" BSM with a set of Bridgestone KO2's LT305/55/R20 mounted on the wheels. Will the BB 6112 and BB 5160 bilsteins work for these tires or am i gonna have any rubbing issues?
      2. 0 votes
        QI have a set of Fuel Wheels 20"x9" with +1 offset 5" BSM with a set of Bridgestone KO2's LT305/55...... Read more
        There are no answers for this question yet. Answer now
        3. Do these tend to level out some? I wanted 2.5" of lift so I installed these with some 2.5" spacers on top and ended up with closer to 3.5" of lift.
      3. 0 votes
        QDo these tend to level out some? I wanted 2.5" of lift so I installed these with some 2.5" spacer...... Read more
        There are no answers for this question yet. Answer now
        4. Do these coilovers come pre assembled or do you have to assemble them yourself?
      4. 0 votes
        QDo these coilovers come pre assembled or do you have to assemble them yourself?answer now
        A comes not assembled
        5. I have a short wide single cab and want to run 34s will this dry up work fore me?
      5. 0 votes
        QI have a short wide single cab and want to run 34s will this dry up work fore me?
        There are no answers for this question yet. Answer now
        6. will this fit a 2020 ford f150? idk if they are at all similar.
      6. 0 votes
        Qwill this fit a 2020 ford f150? idk if they are at all similar.answer now
        A Officially they are for 2019 but you can use it if you are sure if you ahve same suspension as 2019 model year F-150 4WD

      Send me a notification for each new answer.
