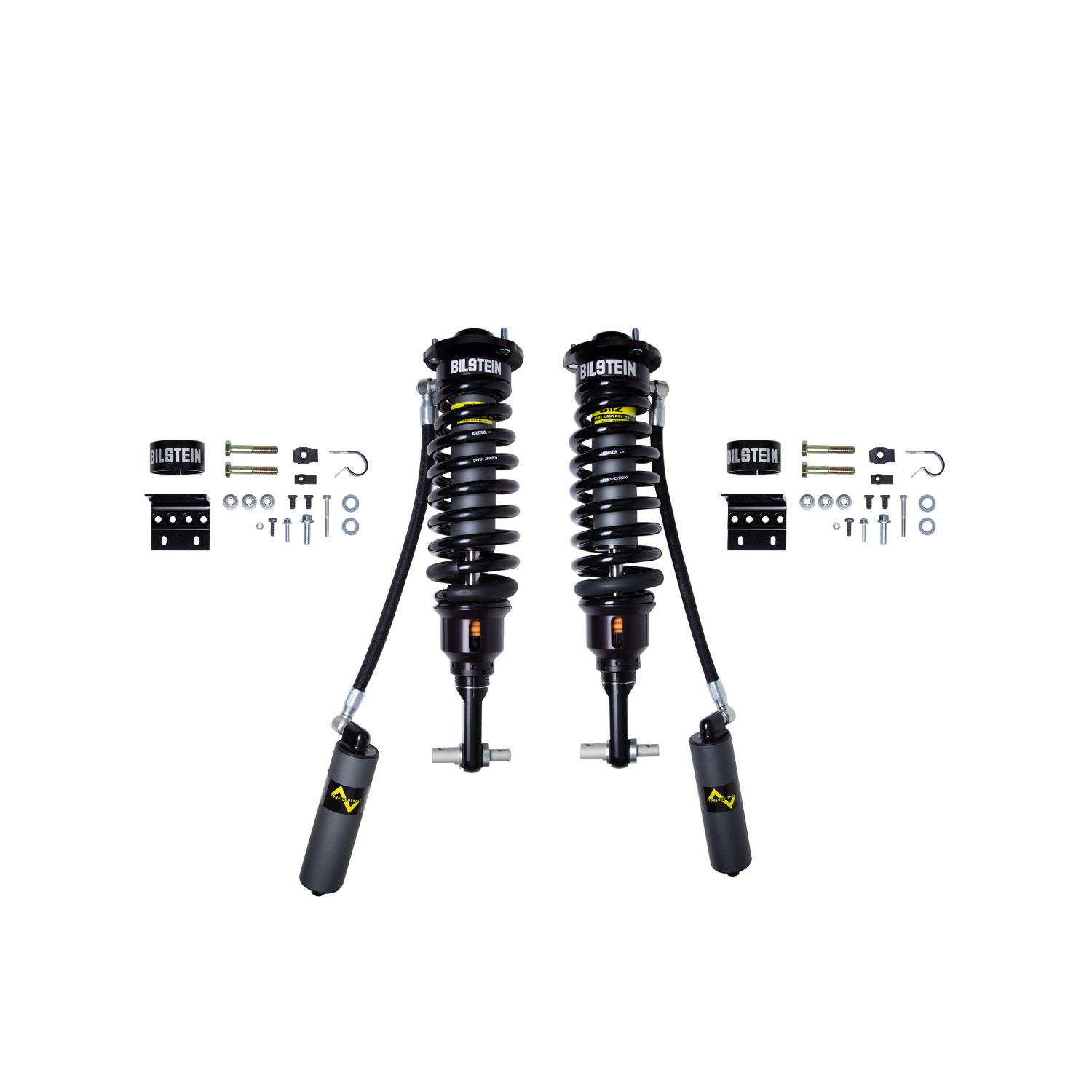

Bilstein B8 8112 (ZoneControl CR) 1.6-2.5″ Front Lift Coilovers for 2015-2024 Ford F-150

Description
Bilstein B8 8112 (ZoneControl CR) 1.6-2.5″ Front Lift Coilovers for 2015-2024 Ford F-150

For 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024 Ford F-150

Part: 41-326701_41-326725

Position: Front Left, (41-326701) Position: Front Right, (41-326725)

Notes:

Provides 1.6-2.5″ Front Lift

Without Continuously Controlled Damping

Aftermarket Upper Control Arms required

Bilstein B8 8112 (ZoneControl) CR suspension kits are a direct fit, position sensitive coilover designed for light trucks and SUV’s. ZoneControl CR is a revolutionary technology delivering position sensitive damping. The system incorporates a triple piston design, offering 3 stages of compression valving and 2 stages of rebound valving. The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-3.8” (depending on application). The coilover is supplied with a remote reservoir for increased cooling and an accompanied, bolt-on anodized reservoir chassis mount. BILSTEIN B8 8112 (ZoneControl) CR position sensitive coilovers will offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs.

Collapsed Length (in) :18.45

Extended Length (in) :23.22

Collapsed Length (mm) :468.7

Extended Length (mm) :589.8

Finish :Dampers: EVO Grey/Springs: Black

Reservoir :Yes

Body Design :Smooth Body (Coilover)

Body Diameter (id) :60mm

Body Material :Steel

Spring Seat Included :Yes

Adjustable Damping :Non-Adjustable
