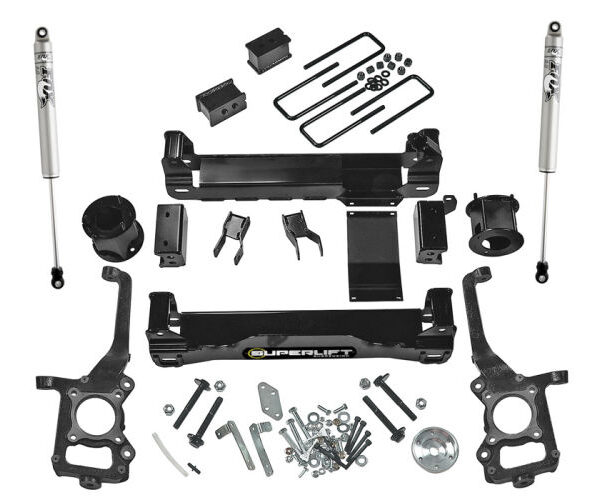

SuperLift 4.5″ Lift Kit For 2009-2014 Ford F-150 4WD – with FOX Rear Shocks

Description
SuperLift 4.5″ Lift Kit For 2009-2014 Ford F-150 4WD – with FOX Rear Shocks

SuperLift 4.5″ Lift Kit For 2009, 2010, 2011, 2012, 2013, 2014 Ford F-150 4WD – with FOX Rear Shocks

Part: K178F

• This is a complete replacement knuckle style suspension lift kit for the 2009-2014 Ford F-150 4WD
• Provides 4.5” lift height
• Includes fabricated rear lift blocks and rear Superlift Superlift shock absorbers or rear 5100 Series Bilstein shock absorbers or Rear Fox 2.0 Shock Asorbers

Include:

• All brackets, cross-members, shocks, steering knuckles, u-bolts, spacers, and hardware required specific to the 2009-2014 4WD Ford F-150
• Detailed instruction manual walking you step-by-step through the lift kit installation procedures suitable for do-it-yourselfers (DIY) or professional installation

PRODUCT DETAILS:

Superlift Suspension Systems now available with Superlift, Bilstein 5100 or Fox® 2.0 Shocks:

Superlift’s 4.5 Inch Lift kit for the 2009-2014 Ford F-150 now features a variety of shock options, from Superlift Shocks to Bilstein 5100 Series Shocks to Fox® performance series 2.0 IFP shocks. This shock variety will allow you find your ride quality.  Superlift Suspension intentionally over-builds our suspension kits to be the best. Our uniquely engineered design adds strength and durability and has bonus features that others do not offer.

This is a complete replacement knuckle style suspension lift kit that provides 4.5 inches of lift and includes fabricated rear blocks and Rear Superlift, Bilstein or Fox® Performance 2.0 Shocks.  All required parts are included to make sure your Ford F-150 handles and performs just like a stock truck!

Features:

• Replacement Knuckle style suspension lift kit
• Direct bolt-on (No Weld Design)
• Allows the use of 18” or larger factory wheels
• Allows clearance for up to 33-35” tires
• Fabricated Rear Block to ensure axle angle and prevent axle wrap
• Rear Shocks – Superlit or Bilstein 5100 or Fox® 2.0 shocks

Benefits:

• Aligns to OEM Specifications
• Maintains ride quality and handling characteristics
• Corrects Front to Rear factory rake
• Retains OEM Track Width
• Designed using Original Equipment (OE) CAD data for accuracy.

Front:

• CNC Machined extended ductile iron steering knuckles
• CNC machined billet aluminum driveshaft spacer
• All fabricated steel components are laser cut, CNC formed finish with a durable powder coating
• Front top mount strut spacers
• One-piece front and rear cross members
• Front differential skid plate
• Sway-bar relocation brackets
• Differential relocation brackets
• Brake line relocation brackets
• Eccentric cam-bolts

Rear:

• Fabricated rear Blocks – provides proper pinion angle to eliminate axle wrap and driveline vibrations
• Brake line relocation brackets
• U-bolts and hardware
• Compression stop extensions
• Superlift Shocks or Bilstein® 5100 Series or Fox® Performance Series 2.0 Shocks (2 shocks)

Notes:

• Does not fit Single Cab Truck models
• Models equipped with a two-piece rear driveshaft will need to order an additional kit box 9935 for the carrier bearing shims
• Does not fit Single Cab Truck

TIRE & WHEEL INFO:

IMPORTANT DISCLAIMER: The provided tire/wheel fitments are approximate. Actual dimensions of a given tire size can vary considerably from one brand to another. Manufacturers’ wheel offset and backspacing measurement points are not always consistent. Backspacing greatly impacts tire-to-fender clearance when turning. Wheel width and backspacing influence whether the tires protrude past the fenders, and to what extent. Considering these important factors, we recommend that you fit-check your tire/wheel selection prior to purchasing.

Installation Notes:

• Installation time: 7-8 hours
• Difficulty level: 3 of 5

if you are interested in getting Bilstein shocks instead, here is the lift kit with Bilstein Shocks:
