SuperLift 6.5″ Lift Kit for 1977-1979 Ford F-100 / F-150 4WD

Description
SuperLift 6.5″ Lift Kit for 1977-1979 Ford F-100 / F-150 4WD

SuperLift 6.5″ Lift Kit for 1977, 1978, 1979 Ford F-100 / F-150 4WD

Part: K512

• Pre-set replacement coil springs minimize settling
• Caster correction via radius arm lowering brackets and degreed Urethane C-bushings
• Adjustable track bar allows precise body-over-axle alignment
• Rear lift via 3″ block kit and add-a-leafs
• Superlift Superide shocks included
• Lifetime Warranty
• Satisfaction Guarantee

Tire and Wheel Info

36 x 12.50 on a standard offset wheel

IMPORTANT DISCLAIMER: The provided tire/wheel fitments are approximate.

Actual dimensions of a given tire size can vary considerably from one brand to another.

Manufacturers’ wheel offset and backspacing measurement points are not always consistent.

Backspacing greatly impacts tire-to-fender clearance when turning.

Wheel width and backspacing influence whether the tires protrude past the fenders, and to what extent.

Considering these important factors, we recommend that you fit-check your tire/wheel selection prior to purchasing.

Installation Notes

If equipped with factory anti-sway bar, the links should be sectioned and lengthened.

If extended length brake hoses are not used, the factory brake hoses and steel lines must be re-routed. Using extended hoses makes for a much simpler and cleaner installation.

Installation Instructions

• 1004.pdf

Product Overview

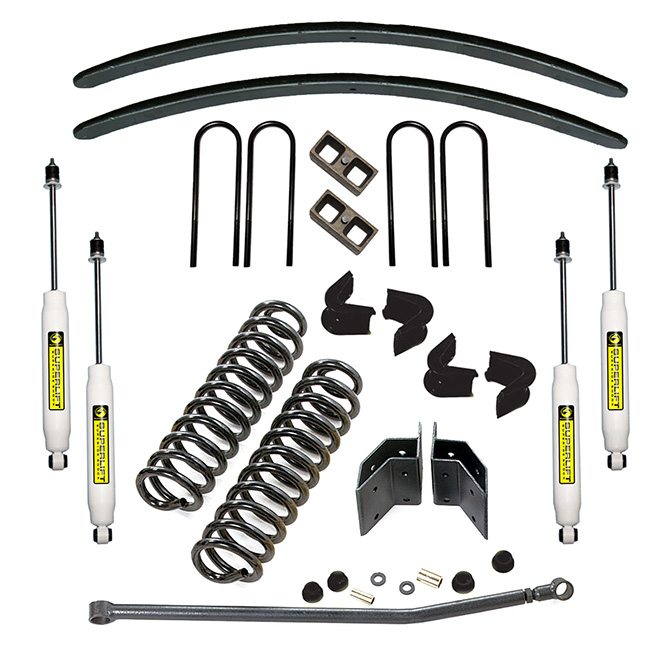

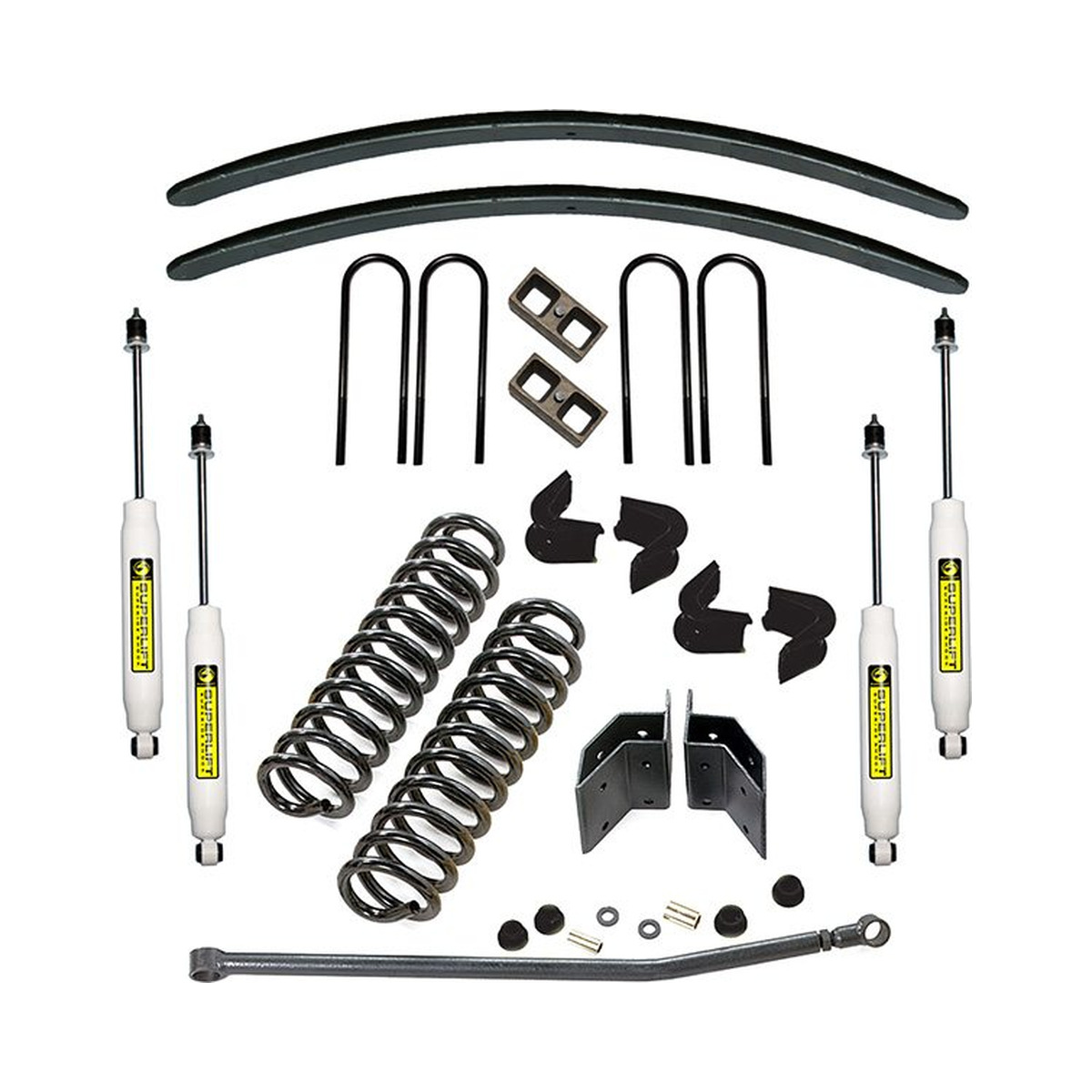

The 6.5″ lift for the early Ford is simple, straight-forward and rock solid. Pre-set replacement front coil springs provide the lift and radius arm to frame relocation brackets combined with replacement C-bushings ensure proper caster alignment. An adjustable front track bar is also included and to keep block height to a minimum, the rear lift is via a combination add-a-leaf and block and u-bolt kit. The kit is packaged complete with Superlift Superide shocks.

Options include a steering stabilizer, replacement radius arm bushing kit, dropped pitman arm, adjustable drag link and an adjustable tie-rod assembly.

NOTE: If the vehicle is factory-equipped with auxiliary (dual) front shocks also order quantity two part number 85310 Superide shocks.

NOTE: Dropped pitman arm, part number 1104, and the adjustable drag link, part number 1114, fits models with inverted “T” style steering linkage (78-79 models).

NOTE: 76-77 power steering models can be converted from the inverted “Y” to the inverted “T” style steering linkage using Superlift part numbers 1104 pitman arm, 1114 adjustable drag link and a 78-79 factory adjustable tie-rod.
