Zone Offroad 4″ IFS System w/Upper Strut Mounts Lift Kit 2004-2008 Ford F150 4WD

Description
Zone Offroad 4″ IFS System w/Upper Strut Mounts Lift Kit 2004-2008 Ford F150 4WD

Zone Offroad 4″ IFS System w/Upper Strut Mounts Lift Kit 2004-2008 Ford F150 4WD

Part: F8

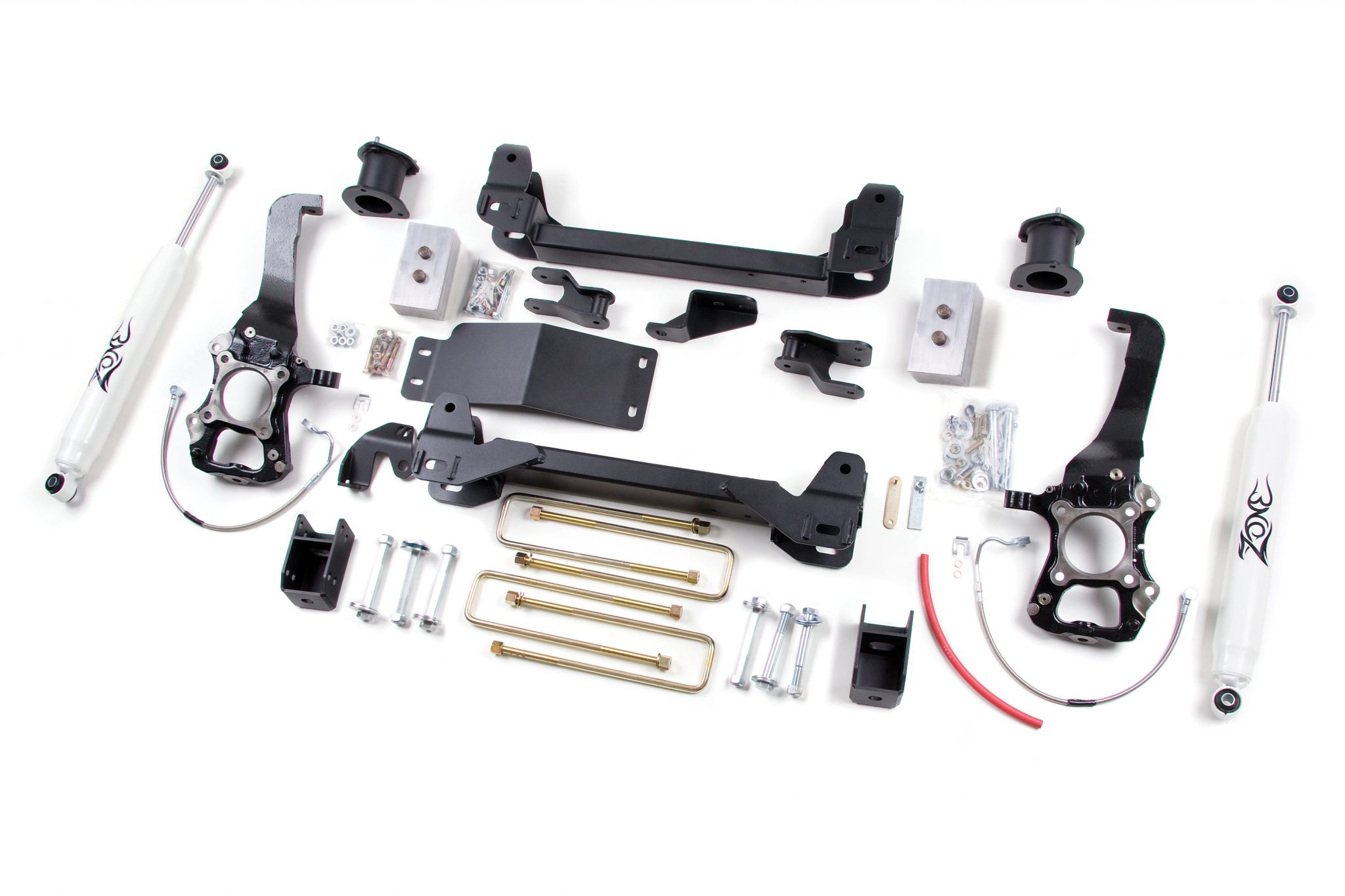

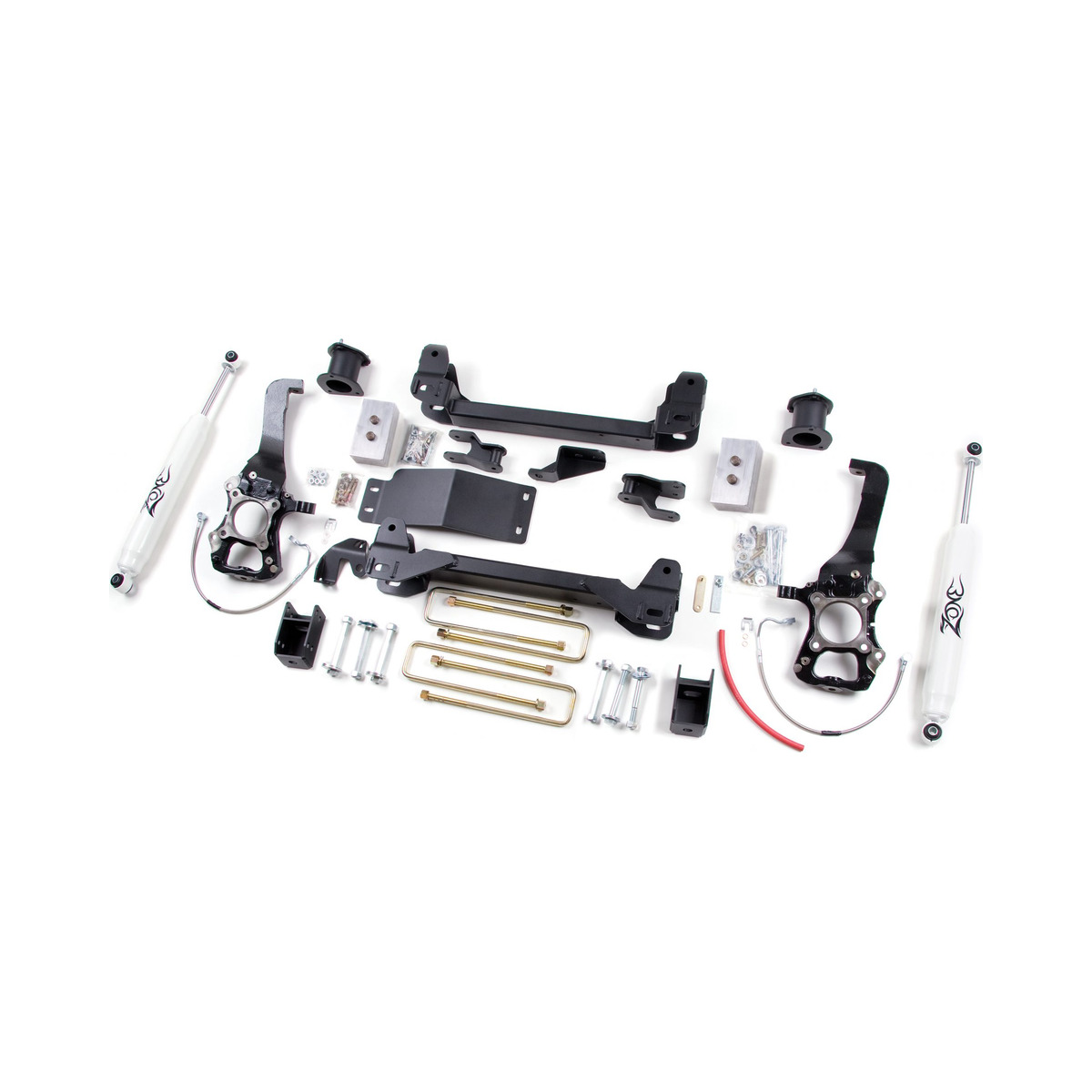

The Zone 4″ system mirrors it’s 6″ big brother. The 3/16″ solid steel differential skid plate locks the main crossmember together and protects the differential during those more serious offroad adventures. The CNC machined knuckles ensure factory steering geometry for a solid steering feel both on and off road. An optional rear add-a-leaf is available.

Featured Technology & Benefits

• No track width change
• Factory like ride and handling
• CNC Machined knuckles for reduced installation time

Important Notes!

• AWD models will require front driveshaft modification.
• Will not fit HD models with 7 Lug wheels.

This product fits the following applications:

• 2004 Ford F150 4WD
• 2005 Ford F150 4WD
• 2006 Ford F150 4WD
• 2007 Ford F150 4WD
• 2008 Ford F150 4WD

Quick Specs

• Front Lift Height: 4″
• Front Lift Method: IFS System w/Upper Strut Mounts
• Rear Lift Height: 3″
• Rear Lift Method: Block & U-bolt Kit
• Install Time Hrs: 8
• Difficulty Level 1-5: 3
• Wheel Size: 17 X 9
• Back Spacing: 4.5
• Max Tire Size: 35 X 12.50
• Wheel Size: 18 X 9
• Back Spacing: 4.5-5
• Max Tire Size: 35 X 12.50
• Wheel Size: 20 X 9
• Back Spacing: 4.5-5.5
• Max Tire Size: 35 X 12.50
