SuperLift 6″ Lift Kit w/ FOX Shocks For 2005-2007 Ford F-250 Super Duty 4WD Diesel

Description
SuperLift 6″ Lift Kit w/ FOX Shocks For 2005-2007 Ford F-250 Super Duty 4WD Diesel

SuperLift 6″ Lift Kit w/ FOX Shocks For 2005, 2006, 2007 Ford F-250 Super Duty 4WD Diesel

Part: K806F

• This is a complete coil spring lift kit for the 2005-2007 Ford F-250/F-350 – diesel engine
• Provides 6” lift height
• Includes track bar and radius arm relocation brackets, front and rear Superlift shocks or rear Bilstein 5100 Series shocks or Fox® 2.0 Shocks
• w/o 4Link Arms w/o Radius Arms

Include:

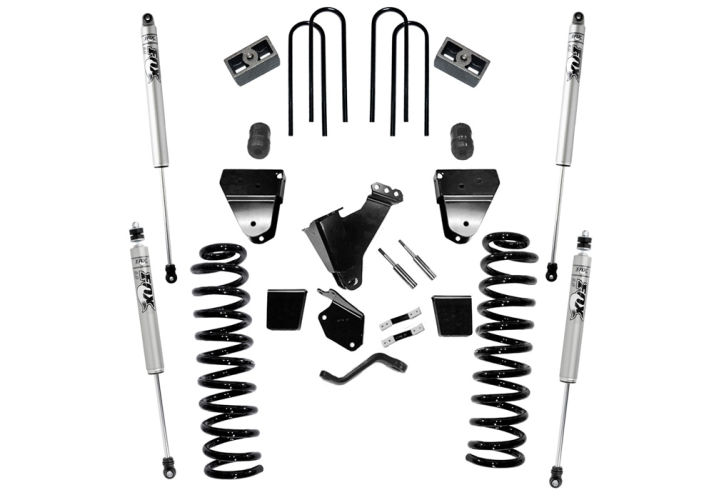

• Front coil springs, track bar bracket, radius arm brackets, sway bar correction, drop pitman arm, shocks, rear block and u-bolt kit, and all hardware required specific to the 2005-2007 4WD Ford F-250 DIESEL
• Detailed instruction manual walking you step-by-step through the lift kit installation procedures suitable for do-it-yourselfers (DIY) or professional installation

PRODUCT DETAILS:

Superlift Suspension Systems now available with Superlift Shocks OR Bilstein Shocks OR Fox® Shocks:

This 6” Lift for the 2005-2007 Ford Super Duty F-250 | F-350 4WD features Superlift’s engine specific coil springs to ensure proper lift height and maintain factory ride quality.  Radius arm drop brackets are used to restore proper caster angle and alignment. Other components included with this 6-inch suspension system are front compression travel-stop relocation brackets, track bar relocation bracket, Drop pitman arm, front anti-sway bar extensions, and steering stabilizer bracket.  Rear lift is achieved by lift blocks.

Complete your 6–inch Ford F-250 | F-350 with the most extensive variety of shocks on the suspension market.  Shock Options for this kit are available in the following: Superlift OR Bilstein 5100 Series OR Fox Performance Series 2.0 IFP Shocks.

Features:

• Replacement Front coil springs improve ride quality while rear blocks maintain load capacity
• Radius Arm Drop Brackets
• Front Compression Travel-Stop Brackets prevent suspension over-compression
• Drop pitman arm reduces drag link angle
• Track bar relocation bracket prevents stud bind, resulting roll and yaw, and steering wheel kick
• Threaded front anti-sway extensions do not require cutting or welding
• Proper factory steering stabilizer angles is restored for optimum operation
• Front and Rear Shock options: Superlift Shocks OR Bilstein® 5100 Series Shocks OR Fox® Performance Series 2.0 IFP Shocks
• Backed by our limited lifetime warranty

Benefits:

• Aligns to OEM specifications
• Maintains ride quality and handling characteristics

NOTES:

• If equipped with a 2-piece rear drive shaft, a carrier bearing spacer is required.  Part # 9669
• For Superduty’s equipped with the 1-7/8” blocks and top overloads, Part # 11874 will need to be purchased in addition to the lift kit

TIRE & WHEEL INFO:

IMPORTANT DISCLAIMER: The provided tire/wheel fitments are approximate. Actual dimensions of a given tire size can vary considerably from one brand to another. Manufacturers’ wheel offset and backspacing measurement points are not always consistent. Backspacing greatly impacts tire-to-fender clearance when turning. Wheel width and backspacing influence whether the tires protrude past the fenders, and to what extent. Considering these important factors, we recommend that you fit-check your tire/wheel selection prior to purchasing.

Installation Notes:

• Installation time: 7-8 hours
• Difficulty level: 3 of 5

NOTE: This lift kit is packaged with rear blocks and u-bolts that are configured for the Ford F-250/F-350 pickups with the factory 1 7/8″ blocks without top mount overloads. If your vehicle is equipped with the factory 3.71″ block or top mounted overloads, a longer rear u-bolt will be required and is available from us. Please contact us for additional details.
