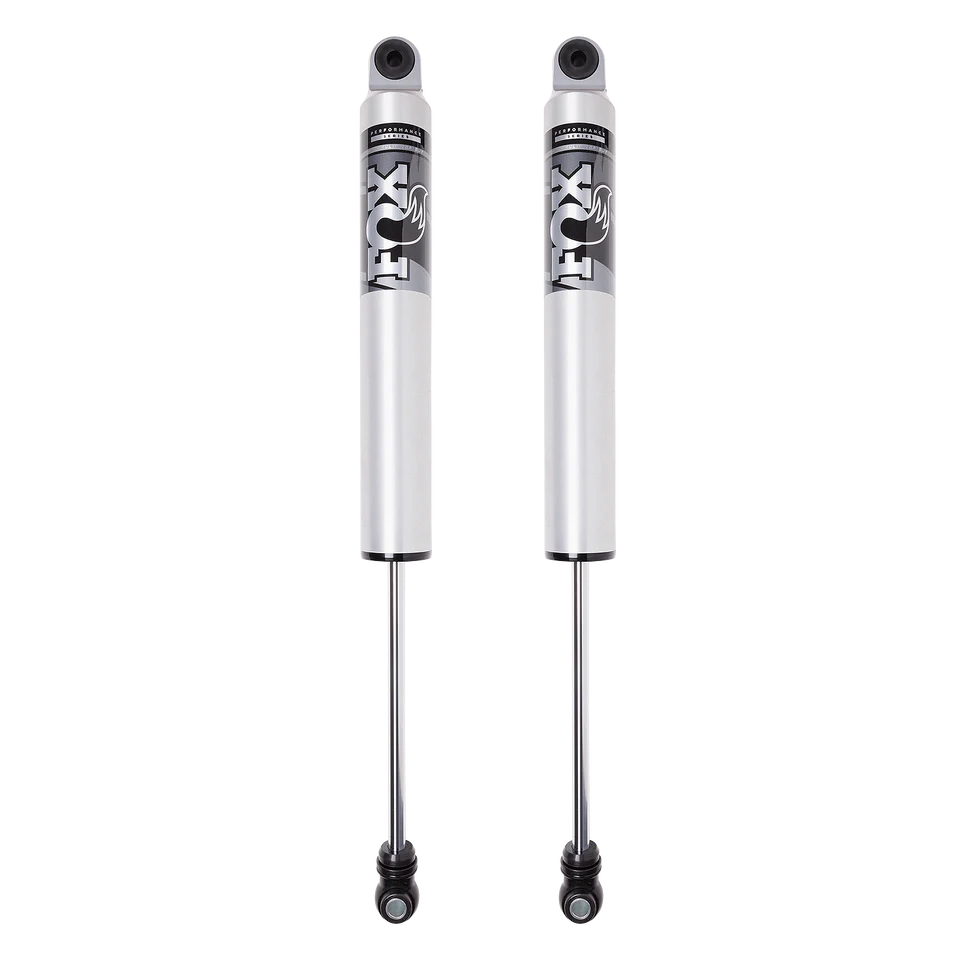

FOX 2.5 Performance Smooth Body HTO 6-8″ Rear Lift IFP Shocks for 2017-2024 Ford F-250 4WD

SKU: 2x987-24-023

Description
FOX 2.5 Performance Smooth Body HTO 6-8″ Rear Lift IFP Shocks for 2017-2024 Ford F-250 4WD

FOX 2.5 Performance Smooth Body HTO 6-8″ Rear Lift IFP Shocks for 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024 Ford F-250 4WD

Part: 987-24-023

FOX 2.5 Performance Series HTO shock is a bolt-on shock loaded with position-sensitive technology, vehicle-specific valving, and larger pistons to improve on and off-road performance. A type II anodized aluminum body efficiently dissipates heat and prevents corrosion. The 2.5-inch shock body features an internal floating piston (IFP) to separate the shock oil from the high-pressure nitrogen, optimizing damping.

Hydraulic Top Out (HTO) technology offers usable position-sensitive rebound damping control on and off the pavement. HTO reduces harsh top-outs and increases comfort by forcing shock oil through a secondary shim stack to slow down shock shaft speed; HTO is particularly beneficial after installing heavier, aggressive tires and applications lifted higher than OEM specification.

Bolt-on 2.5 Performance Series HTO shocks to increase damping capacity and ride in comfort with position-sensitive rebound control.

PART NUMBER 987-24-023
FEATURES 2.5” Impact extruded 6061-T6 aluminum shock body
Type II clear-anodized body plating
High-flow velocity-sensitive damping
5/8” hard chrome shaft
Internal floating piston (IFP)
Hydraulic Top Out (HTO) piston
TRAVEL 13.69
REAR LIFT HEIGHT 6.8″
EXTENDED LENGTH 35.88
COMPRESSED LENGTH 22.19
TOP MOUNT Eyelet
BOTTOM MOUNT Eyelet
FITMENT NOTES Lift: 6-8 inches
