SuperLift 6″ 4-LINK Kit 2017-2022 Ford F-250 F-350 Super Duty 4WD Diesel FOX Shocks

Description
SuperLift 6″ 4-LINK Kit 2017-2022 Ford F-250 F-350 Super Duty 4WD Diesel FOX Shocks

SuperLift 6″ 4-LINK Kit 2017, 2018, 2019, 2020, 2021, 2022 Ford F-250 F-350 Super Duty 4WD Diesel FOX Shocks

Part: K171F

What is this?

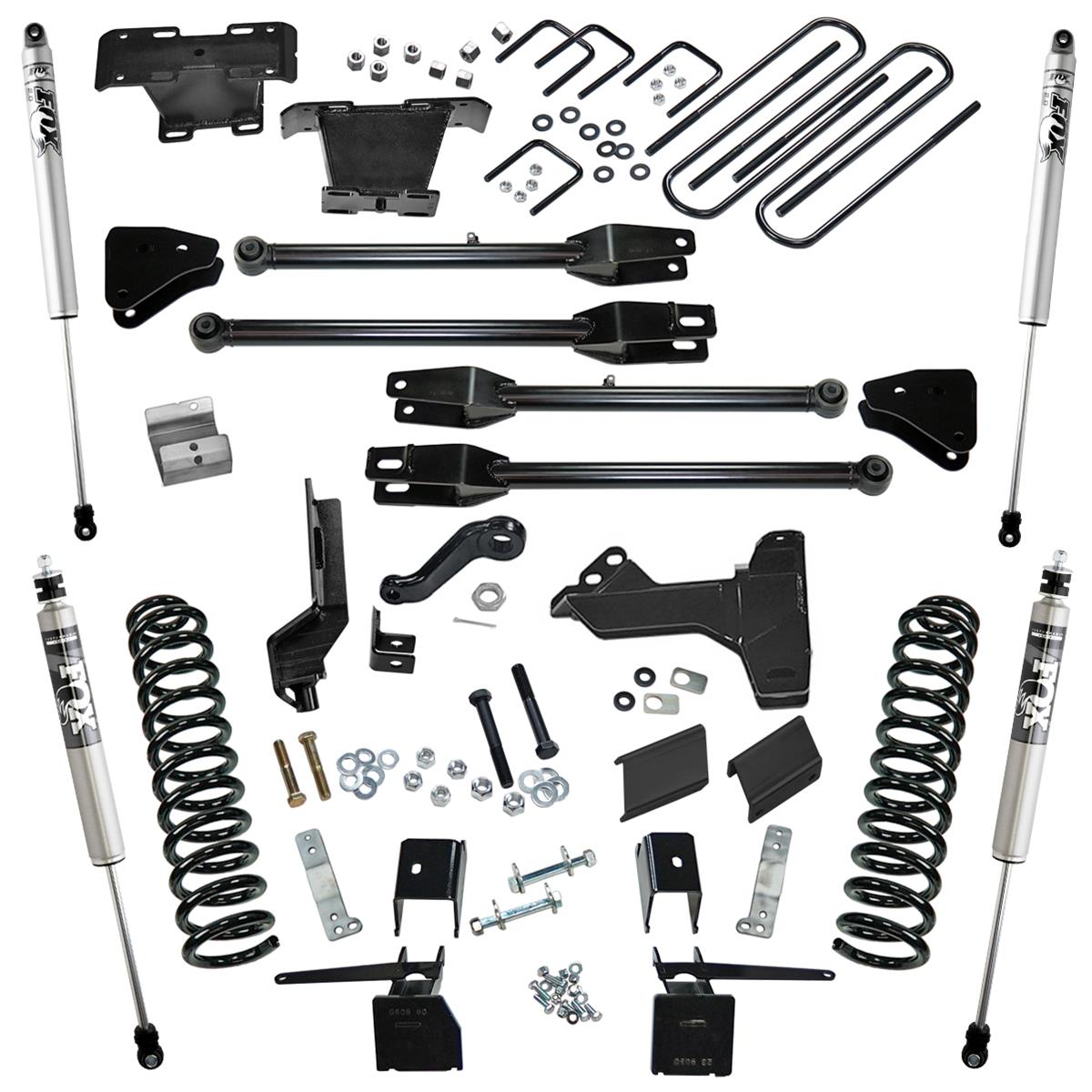

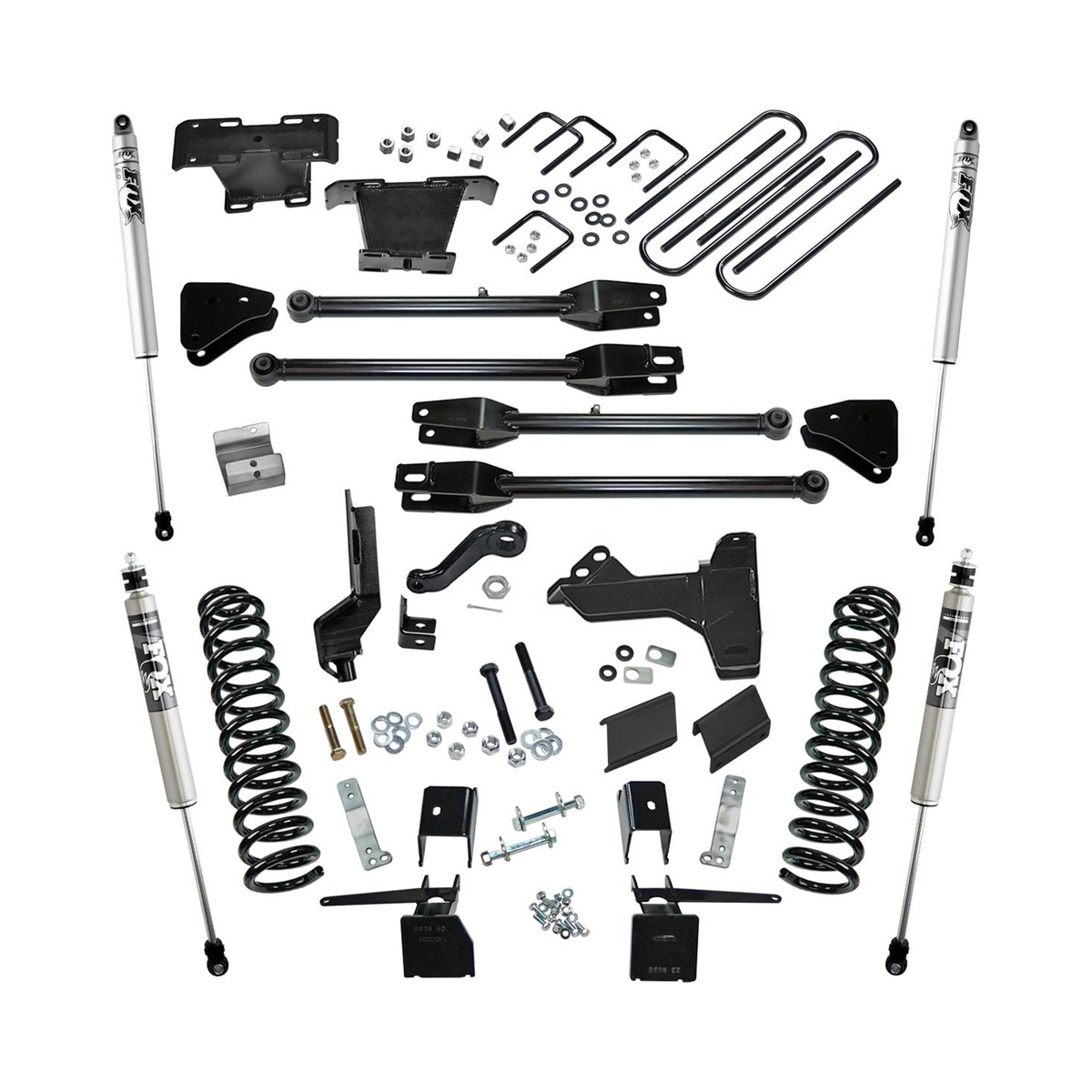

• This is a complete 6” coil spring and 4-LINK suspension Lift Kit for the 2017-2022 Ford F-250/F-350 4WD – diesel engine
• Includes 4-LINK Arms, track bar bracket and related brackets, drop pitman arm, rear blocks, front and rear Superlift shocks or Front and Rear Fox 2.0 Shocks
• This kit also comes in a King Shocks option (K171KG)

What does it include?

• Front coil springs, 4-LINK arms, sway bar correction, drop pitman arm, track bar bracket, brake line brackets, steering stabilizer bracket, Shocks, and all hardware needed for installation specific to the 2017-2021 4WD FORD F-250|F-350 DIESEL
• Rear fabricated blocks with ubolts and Superlift shocks
• Detailed instruction manual walking you step-by-step through the lift kit installation procedures suitable for do-it-yourselfers (DIY) or professional installation

KEY DETAILS:

Superlift Suspension Systems now available with Superlift Shocks or Fox® 2.0 Shocks or King Shocks:

This 6” Lift for the 2017-2021 Ford Super Duty F-250 | F-350 4WD features Superlift’s precision engineered, heavy-duty tubular 4-LINK arms designed to give your ride a truly custom look and easy install. These heavy-duty 4-LINK arms utilize a press-fit REFLEX bushing for superior vibration dampening, flexibility, and durability.

The 4-LINK design optimizes the F-250 and F-350’s suspension control and tire wear by limiting caster change through the cycle of suspension. The 6” lift also contains new, diesel specific rate front coil springs. A new track bar relocation bracket to ensure proper steering geometry and track bar phasing.

The rear lift is achieved with a new designed fabricated rear block that allows the removal of the stock block. This fabricated block also allows for proper pinion and axle angle all while reducing axle wrap. Complete your 6-inch Ford F-250 | F-350 with the best variety of shocks on the market. Shocks for this kit are available in the following: Superlift Shocks or Fox Performance Series 2.0 IFP Shocks or King Shocks(K171KG)

Features:

• Replacement Front coil springs improve ride quality while rear blocks maintain load capacity
• Replacement Heavy-Duty Tubular 4-LINK arms with Reflex bushings
• Track bar relocation bracket prevents stud bind and steering wheel kick
• Front and Rear – Superlift Shocks or Fox® Performance Series 2.0 IFP Shocks or King Shocks
• Backed by our limited lifetime warranty

Benefits:

• Retains OEM caster and camber alignment specifications
• Maintains ride quality and handling characteristics
• Designed using Original Equipment (OE) CAD data for accuracy.

NOTES:

• If equipped with a 2-piece rear drive shaft, a carrier bearing spacer is required. Part # 9669
• If equipped with factory top mount overload leaf springs, longer u-bolts are required. Part # 11734

TIRE & WHEEL INFO:

IMPORTANT DISCLAIMER: The provided tire/wheel fitments are approximate. Actual dimensions of a given tire size can vary considerably from one brand to another. Manufacturers’ wheel offset and backspacing measurement points are not always consistent. Backspacing greatly impacts tire-to-fender clearance when turning. Wheel width and backspacing influence whether the tires protrude past the fenders, and to what extent. Considering these important factors, we recommend that you fit-check your tire/wheel selection prior to purchasing.

INSTALLATION & NOTES:

• Installation time: 6-7 Hours
• Difficulty level: 3 of 5

Fits:

• 2017-2021 Ford F-250 Super Duty DIESEL
• 2017-2021 Ford F-350 Super Duty DIESEL

Important fitment notes from manufacturer:
