SuperLift 6″ Lift Kit 2017-2022 Ford F-250 F-350 Super Duty Diesel 4WD FOX Shocks

Description
SuperLift 6″ Lift Kit 2017-2022 Ford F-250 F-350 Super Duty Diesel 4WD FOX Shocks

SuperLift 6″ Lift Kit 2017, 2018, 2019, 2020, 2021, 2022 Ford F-250 F-350 Super Duty Diesel 4WD FOX Shocks

Part: K167F

What is this?

• This is a complete coil spring suspension Lift Kit for the 2017-2022 Ford F-250/F-350 4WD – diesel engine
• Provides 6” lift height
• Includes track bar and radius arm drop brackets, drop pitman arm, rear blocks, front and rear Superlift shocks or front and Fox® Performance Series 2.0 IFP Shocks

What does it include?

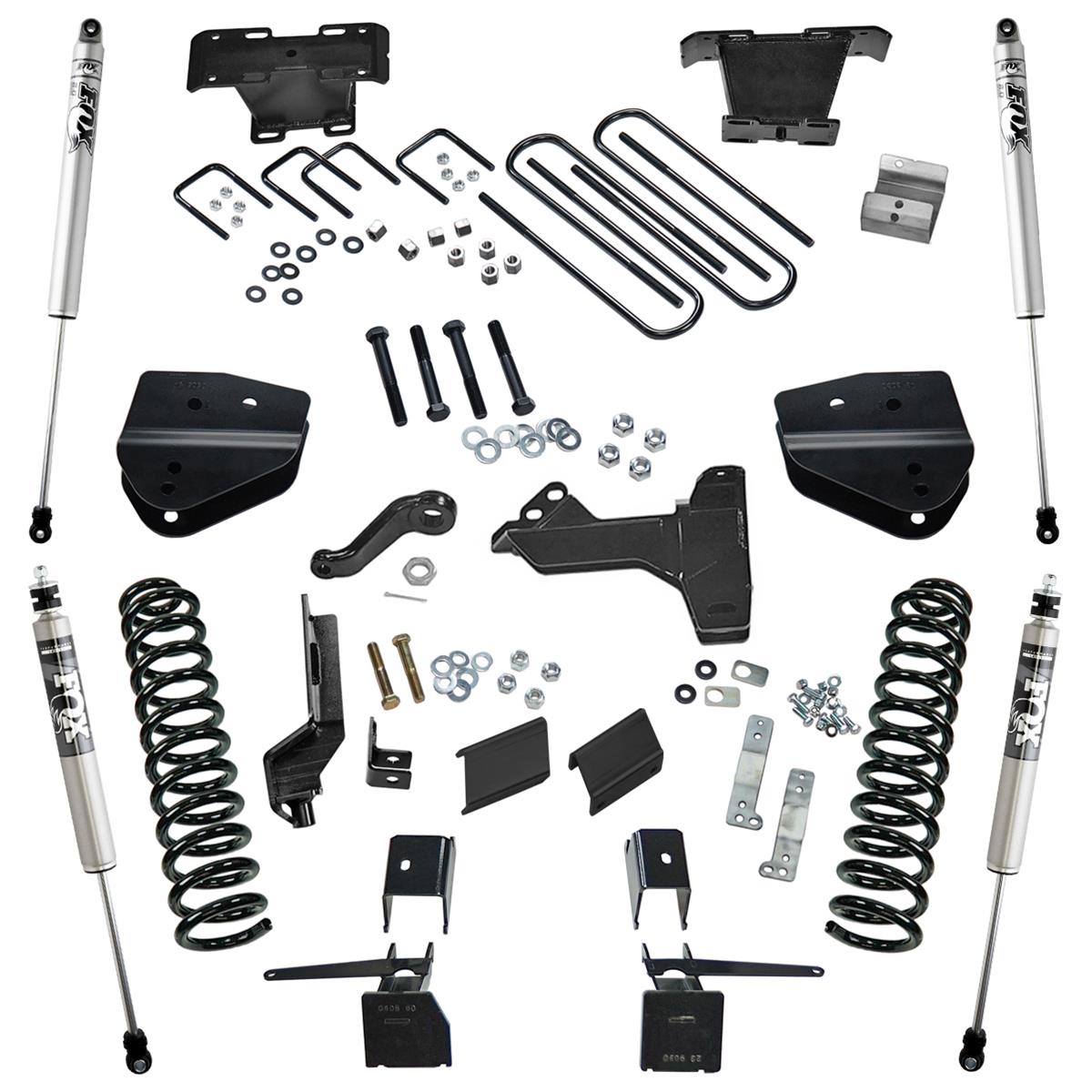

• Front coil springs, radius arm drops, track bar bracket, drop pitman arm, brake line brackets, steering stabilizer bracket, Superlift or Fox Shocks, and all hardware needed for installation.
• Rear fabricated blocks with ubolts and Superlift shocks.
• Detailed instruction manual walking you step-by-step through the lift kit installation procedures suitable for do-it-yourselfers (DIY) or professional installation.

KEY DETAILS:

Superlift Suspension Systems now available with Superlift Shocks or Fox® 2.0 Shocks:

This standard 6” Lift for the 2017-2020 Ford Super Duty F-250 | F-350 4WD is achieved via engine specific coil springs to ensure the proper lift height and maintain factory ride quality. Radius Arm lowering brackets are used to restore proper caster angle/alignment. Other Components included with the 6” system are: front compression travel-stop relocation brackets, track bar relocation bracket, drop pitman arm and a steering stabilizer bracket. The rear lift is achieved with a new designed fabricated rear block that allows the removal of the stock block. This fabricated block also allows for proper pinion and axle angle all while reducing axle wrap. Complete your 6-inch Ford F-250 | F-350 with the best variety of shocks on the market. Shocks for this kit are available in the following: Superlift Shocks or Fox Performance Series 2.0 IFP Shocks.

Features:

• Replacement Front coil springs improve ride quality while rear blocks maintain load capacity
• Radius Arm drops maintain proper caster
• Drop Pitman arm to help ensure proper operating angle of Draglink
• Track bar relocation bracket prevents stud bind and steering wheel kick
• Front and Rear – Superlift Shocks or Fox® Performance Series 2.0 IFP Shocks
• Backed by our limited lifetime warranty

Benefits:

• Retains OEM caster and camber alignment specifications
• Maintains ride quality and handling characteristics
• Designed using Original Equipment (OE) CAD data for accuracy.

NOTES:

• If equipped with a 2-piece rear drive shaft, a carrier bearing spacer is required. Part # 9669
• If equipped with factory top mount overload leaf springs, longer u-bolts are required. Part # 11734

TIRE & WHEEL INFO:

IMPORTANT DISCLAIMER: The provided tire/wheel fitments are approximate. Actual dimensions of a given tire size can vary considerably from one brand to another. Manufacturers’ wheel offset and backspacing measurement points are not always consistent. Backspacing greatly impacts tire-to-fender clearance when turning. Wheel width and backspacing influence whether the tires protrude past the fenders, and to what extent. Considering these important factors, we recommend that you fit-check your tire/wheel selection prior to purchasing.

INSTALLATION & NOTES:

• Installation time: 7-8 Hours
• Difficulty level: 3 of 5

Fits:

• 2017-2021 Ford F-250 Super Duty DIESEL
• 2017-2021 Ford F-350 Super Duty DIESEL

Important fitment notes from manufacturer:
