Zone Offroad 6″ Radius Arm Lift Kit For 2017-2019 Ford F-250 SD 4WD Diesel (2-Leaf Rear Main Spring Pack)

SKU: ZONF51/ZONF88
Sale!
Zone Offroad 6" Radius Arm Lift Kit For 2017-2019 Ford F-250 SD 4WD Diesel (2-Leaf Rear Main Spring Pack)
Zone Offroad 6" Radius Arm Lift Kit For 2017-2019 Ford F-250 SD 4WD Diesel (2-Leaf Rear Main Spring Pack)
Zone Offroad 6" Radius Arm Lift Kit For 2017-2019 Ford F-250 SD 4WD Diesel (2-Leaf Rear Main Spring Pack)
Zone Offroad 6" Radius Arm Lift Kit For 2017-2019 Ford F-250 SD 4WD Diesel (2-Leaf Rear Main Spring Pack)

Description
Zone Offroad 6″ Radius Arm Lift Kit For 2017-2019 Ford F-250 SD 4WD Diesel (2-Leaf Rear Main Spring Pack)

Zone Offroad 6″ Radius Arm Lift Kit For 2017, 2018, 2019 Ford F-250 SD 4WD Diesel (2-Leaf Rear Main Spring Pack)

Part: ZONF51/ZONF88

Take your Super Duty to new heights with this 6″ lift kit from Zone Offroad. Kits include everything needed from full length coil springs and stout radius arms to steering correction and rear lift to level the stance. Get the look, performance, and capability your truck deserves with clearance for 38″ tires.

QUICK SPECS:

  • Back Spacing: 5″
  • Back Spacing 2: 5″
  • Back Spacing 3: 5″
  • Front Lift Height: 6″
  • Rear Lift Height: 5″
  • Front Lift Method: Coil Springs & Replacement Radius Arms
  • Rear Lift Method: Add-A-Leaf & Cast Block
  • Lift Type: Lift Kit
  • Max Tire Size: 38 x 13.5
  • Max Tire Size 2: 38 x 13.5
  • Max Tire Size 3: 38 x 13.5
  • Metal Cutting Required: No
  • Welding Required: No
  • Wheel Size: 17 x 10
  • Wheel Size 2: 18 x 10
  • Wheel Size 3: 20 x 10

FEATURES:

  • High strength front coil springs improve ride quality
  • HD radius arm to correct caster while maximizing ground clearance
  • Forged pitman arm and track bar relocation bracket to correct steering angles and recenter front axle
  • Bump stop relocation, sway bar relocation and brake line relocation to maintain factory-like operating angles
  • Replacement rear lift blocks, add-a-leafs and u-bolts to lift and level the stance

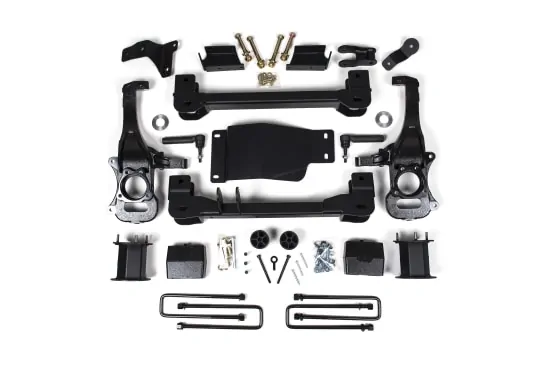

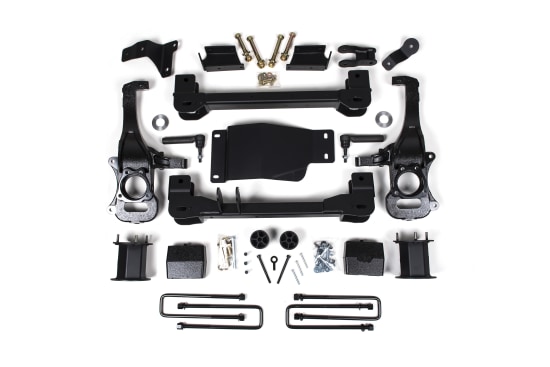

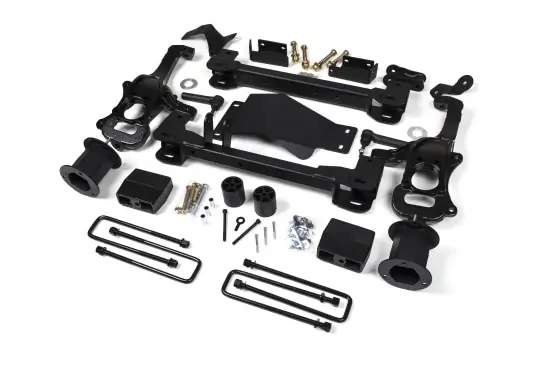

IN THE BOX:

  • Add-A-Leaf’s
  • All Necessary Mounting / Installation Hardware
  • Coil Springs
  • Dropped Pitman Arm
  • Rear Lift Block & U-Bolt Kit
  • Sway Bar Relocation Brackets
  • Radius Arms

IMPORTANT NOTES:

  • 38×13.50 tires may require minor trimming.
  • Diesel Model Only.
  • Factory wheels fit when paired with factory / original equipment tire size.
  • Check your rear springs to determine if your truck is equipped with standard, 2-leaf main, or heavy payload 3-leaf main spring pack with an overload spring; see “Learn More” image for help.
  • Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid / eliminate driveshaft vibration.

SPECIFICATIONS:

Install Time Hours: 7 hrs
Difficulty Level: 3 out of 5

FITMENT:

  • 2017 Ford F-250 Super Duty 4WD Diesel
  • 2018 Ford F-250 Super Duty 4WD Diesel
  • 2019 Ford F-250 Super Duty 4WD Diesel
