SuperLift 8″ Lift Kit For 2000-2004 Ford F-250/F-350 Super Duty 4WD – Diesel and V-10 – with Bilstein Shocks

Description
SuperLift 8″ Lift Kit For 2000-2004 Ford F-250/F-350 Super Duty 4WD – Diesel and V-10 – with Bilstein Shocks

SuperLift 8″ Lift Kit For 2001, 2002, 2003, 2004 Ford F-250/F-350 Super Duty 4WD – Diesel and V-10 – with Bilstein Shocks

Part: K644B

• This is a complete front Superide leaf spring lift kit for the 2000-2004 Ford F-250/F-350 4wd V-10 and diesel engine; providing 8” lift height
• Includes track bar bracket, rear add-a-leaf and blocks, front and rear 5100 Series Bilstein shocks
• Covered by our Limited Lifetime Warranty
• This kit also comes in a Superlift Superide shock option

Include:

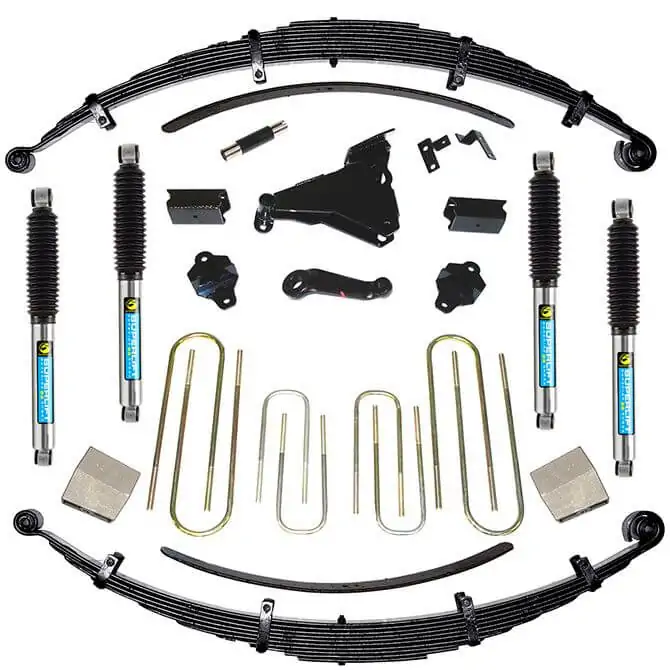

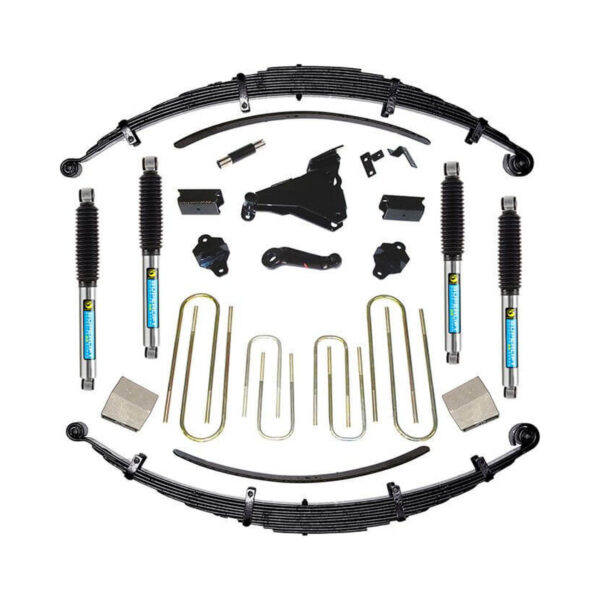

• Front leaf springs, track bar bracket, sway bar correction, drop pitman arm, shocks, rear block, add-a-leaf, and u-bolt kit, and all hardware required specific to the 2000-2004 4wd Ford F-250.
• Detailed instruction manual walking you step-by-step through the lift kit installation procedures suitable for do-it-yourselfers (DIY) or professional installation
• The best customer service and technical help in the industry.

PRODUCT DETAILS:

• Springs incorporate military-wrapped spring eyes and anti-friction pads between leafs.
• Track bar relocation bracket prevents steering wheel “kick”.
• New front anti-sway bar hardware maintain factory bar geometry.
• Functional front compression travel stops prevent over-compression and provide a more progressive spring rate; factory rear travel-stops are relocated.
• Rear lift via 5″ block and add-a-leaf.
• Front / rear shocks included.
• Limited Lifetime Warranty.
• 100% Satisfaction Guarantee.

Note: This lift kit is packaged with rear blocks and u-bolts that are configured for the Ford F-250/F-350 pickups with the factory 1 7/8″ blocks without top mount overloads. If your vehicle is equipped with the factory 3.71″ block or top mounted overloads, a longer rear u-bolt will be required and is available from us. Please refer to the option’s list or call our technical support line for additional details.

FITMENT TABLE:

TIRE & WHEEL INFO:

IMPORTANT DISCLAIMER: The provided tire/wheel fitments are approximate. Actual dimensions of a given tire size can vary considerably from one brand to another. Manufacturers’ wheel offset and backspacing measurement points are not always consistent. Backspacing greatly impacts tire-to-fender clearance when turning. Wheel width and backspacing influence whether the tires protrude past the fenders, and to what extent. Considering these important factors, we recommend that you fit-check your tire/wheel selection prior to purchasing.

Installation Notes:

• Installation time: 8 hours
• Difficulty level: 3 of 5

Includes Shocks exactly as pictured
