SuperLift 4″ Lift Kit w/ FOX Shocks for 2008-2010 Ford F-350 4WD Diesel w/o 4Link Arms w/o Radius Arms

Description
SuperLift 4″ Lift Kit w/ FOX Shocks for 2008-2010 Ford F-350 4WD Diesel w/o 4Link Arms w/o Radius Arms

SuperLift 4″ Lift Kit w/ FOX Shocks for 2008, 2009, 2010 Ford F-350 4WD Diesel w/o 4Link Arms w/o Radius Arms

Part: K854F

• This is a complete coil spring lift kit for the 2008-2010 Ford F-250/F-350 4WD – diesel engine
• Provides 4” lift height
• Includes track bar bracket, rear blocks, front and rear Superlift shocks or front and rear 5100 Series Bilstein shocks or front and rear Fox 2.0 Shocks

Include:

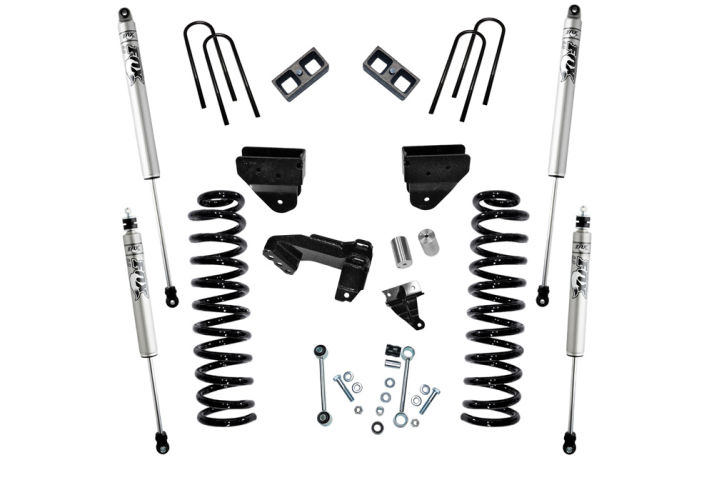

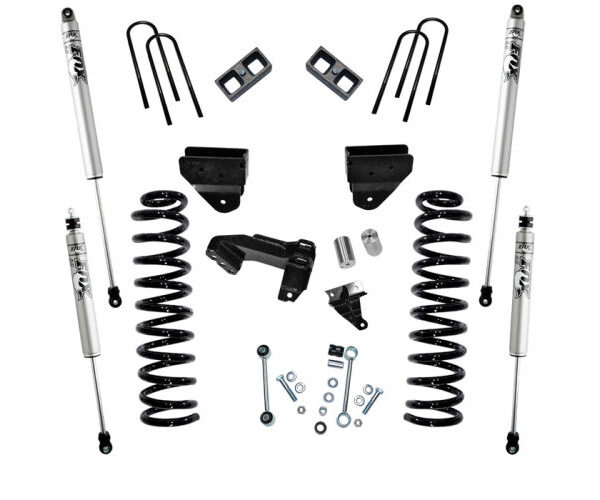

• Front coil springs, track bar bracket, radius arm brackets, sway bar correction, shocks, rear block and u-bolt kit, and all hardware required specific to the 2008-2010 4wd Ford F-250 DIESEL ENGINE
• Detailed instruction manual walking you step-by-step through the lift kit installation procedures suitable for do-it-yourselfers (DIY) or professional installation

PRODUCT DETAILS:

Superlift Suspension Systems now available with Superlift Shocks OR Bilstein Shocks OR Fox® Shocks:

This 4” Lift for the 2008-2010 Ford Super Duty F-250 | F-350 4WD features Superlift’s engine specific coil springs to ensure proper lift height and maintain factory ride quality.  Radius arm drop brackets are used to restore proper caster angle and alignment. Other components included with this 6-inch suspension system are front compression travel-stop relocation brackets, track bar relocation bracket, front anti-sway bar extensions, and steering stabilizer bracket.  Rear lift is achieved by lift blocks.

Complete your 4–inch Ford F-250 | F-350 with the most extensive variety of shocks on the suspension market.  Shocks for this kit are available in the following: Superlift OR Bilstein 5100 Series OR Fox Performance Series 2.0 IFP Shocks.

Features | Benefits:

• Engine Specific Coil Springs ensure ride quality while rear blocks maintain load capacity
• Radius Arm Drop Brackets
• Front Compression Travel-Stop Brackets prevent suspension over-compression
• Anti-sway Bar Extensions prevent bar preload
• Track bar relocation bracket prevents stud bind, resulting roll and yaw, and steering wheel kick
• Stabilizer bracket restores factory steering stabilizer angle for optimum operation
• Front and Rear Shock options– Superlift Shocks OR Bilstein® 5100 Series Shocks OR Fox® Performance Series 2.0 IFP Shocks
• Backed by our limited lifetime warranty
• Aligns to OEM specifications
• Maintains ride quality and handling characteristics

NOTES:

• This lift kit is packaged with rear blocks and u-bolts that are configured for the Ford F-250 | F-350 pickups with the factory 1 7/8 Inch blocks without top mount overloads.  If your vehicle is equipped with the factory top mount overloads or 3.71 inch blocks, a longer rear u-bolt will be required. Please refer to the option’s list or contact for additional details.

TIRE & WHEEL INFO:

IMPORTANT DISCLAIMER: The provided tire/wheel fitments are approximate. Actual dimensions of a given tire size can vary considerably from one brand to another. Manufacturers’ wheel offset and backspacing measurement points are not always consistent. Backspacing greatly impacts tire-to-fender clearance when turning. Wheel width and backspacing influence whether the tires protrude past the fenders, and to what extent. Considering these important factors, we recommend that you fit-check your tire/wheel selection prior to purchasing.

Installation Notes:

• Installation time: 7-8 hours
• Difficulty level: 3 of 5
