SuperLift 4″ Lift Kit w/ FOX Shocks for 2011-2016 Ford F-350 4WD Diesel w/o 4Link Arms w/o Radius Arms

Description
SuperLift 4″ Lift Kit w/ FOX Shocks for 2011-2016 Ford F-350 4WD Diesel w/o 4Link Arms w/o Radius Arms

SuperLift 4″ Lift Kit w/ FOX Shocks for 2011, 2012, 2013, 2014, 2015, 2016 Ford F-350 4WD Diesel w/o 4Link Arms w/o Radius Arms

Part: K876F

• This is a complete coil spring suspension lift kit for the 2011-2016 Ford F-250/F-350 4WD – diesel engine
• Provides 4” lift height
• Includes track bar and radius arm drop brackets, rear blocks, front and rear Superlift shocks or front and rear 5100 Series Bilstein shocks or front and rear Fox 2.0 Shocks

Include:

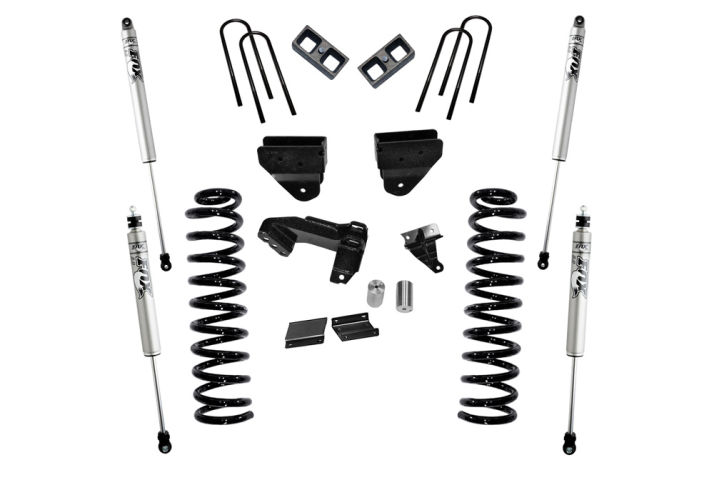

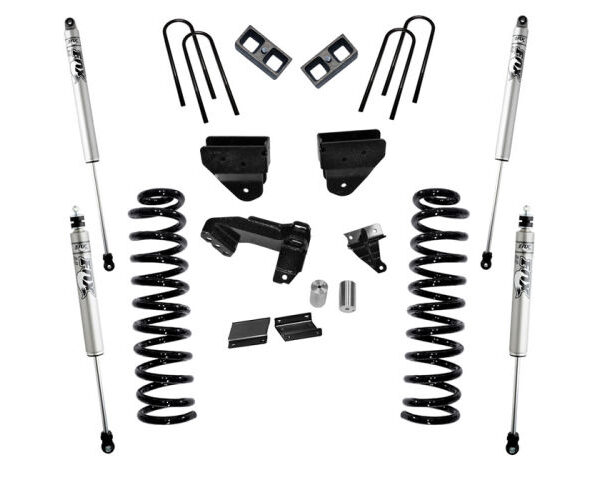

• Front coil springs, track bar bracket, radius arm brackets, sway bar correction, shocks, rear block and u-bolt kit, and all hardware required specific to the 2011-2016 4WD Ford F-250 DIESEL ENGINE
• Detailed instruction manual walking you step-by-step through the lift kit installation procedures suitable for do-it-yourselfers (DIY) or professional installation

PRODUCT DETAILS:

Superlift Suspension Systems now available with Superlift Shocks OR Bilstein Shocks OR Fox® Shocks:

This 4” Lift for the 2011-2016 Ford Super Duty F-250 | F-350 4WD features Superlift’s engine specific coil springs to ensure proper lift height and maintain factory ride quality.  Radius arm lowering brackets are used to restore proper caster angle and alignment. Other components included with this 4-inch suspension system are front compression travel-stop relocation brackets, track bar relocation bracket, front anti-sway bar extensions, and steering stabilizer bracket.  Rear lift is achieved by 2.5 inch blocks.

OEM CAD models and the latest 3D design software were used to precision engineer a suspension system that includes a track bar relocation bracket, front sway bar correction, bump stop extension brackets, brake hose relocation brackets.

Complete your 4–inch Ford F-250 | F-350 with the most extensive variety of shocks on the suspension market.  Shocks for this kit are available in the following: Superlift OR Bilstein 5100 Series OR Fox Performance Series 2.0 IFP Shocks.

Features:

• Replacement Front coil springs improve ride quality while rear blocks maintain load capacity
• Radius Arm lowering brackets
• Front Compression Travel-Stop Brackets prevent suspension over-compression
• Track bar relocation bracket prevents stud bind, resulting roll and yaw, and steering wheel kick
• Threaded front anti-sway extensions do not require cutting or welding
• Front and Rear Shock Options: Superlift Shocks OR Bilstein® 5100 Series Shocks OR Fox® Performance Series 2.0 IFP Shocks
• Backed by our limited lifetime warranty

Benefits:

• Aligns to OEM specifications
• Maintains ride quality and handling characteristics

NOTES:

• If equipped with a 2-piece rear drive shaft, a carrier bearing spacer is required.  Part # 9649
• This lift kit is packaged with rear blocks and u-bolts that are configured for the Ford F-250 | F-350 with the factory 1 7/8 inch blocks WITHOUT top mount overloads.  If your Ford is equipped with top is equipped with the factory 3.71 inch blocks or top mount overloads, a long rear u-bolt will be required.  For Super duty’s equipped with 1-7/8 inch blocks and top mount overloads, part # 11724 will need to be purchased in addition to the lift kit.  If the truck is equipped with 371 inch block and top mount overloads, part # 11734  is required.

TIRE & WHEEL INFO:

IMPORTANT DISCLAIMER: The provided tire/wheel fitments are approximate. Actual dimensions of a given tire size can vary considerably from one brand to another. Manufacturers’ wheel offset and backspacing measurement points are not always consistent. Backspacing greatly impacts tire-to-fender clearance when turning. Wheel width and backspacing influence whether the tires protrude past the fenders, and to what extent. Considering these important factors, we recommend that you fit-check your tire/wheel selection prior to purchasing.

Installation Notes:

• Installation time: 8 hours
• Difficulty level: 3 of 5
