SuperLift 4″ Radius Arm Lift Kit For 2017-2022 Ford F-250 and F-350 Super Duty 4WD – with Bilstein Shocks – Diesel Only

Description
SuperLift 4″ Radius Arm Lift Kit For 2017-2022 Ford F-250 and F-350 Super Duty 4WD – with Bilstein Shocks – Diesel Only

SuperLift 4″ Radius Arm Lift Kit For 2017, 2018, 2019, 2020, 2021, 2022 Ford F-250 and F-350 Super Duty 4WD – with Bilstein Shocks – Diesel Only

Part: K165B

• This is a complete coil spring replacement radius arm suspension Lift Kit for the 2017-2021 and newer Ford F-250/F-350 4WD – diesel engine; providing 4” of lift height.
• Includes track bar bracket and related brackets, rear blocks, front and rear 5100 Series Bilstein shocks.
• Covered by our Limited Lifetime Warranty.
• This kit also comes in a Superlift Superide or King Shocks coilover shock option.

Include:

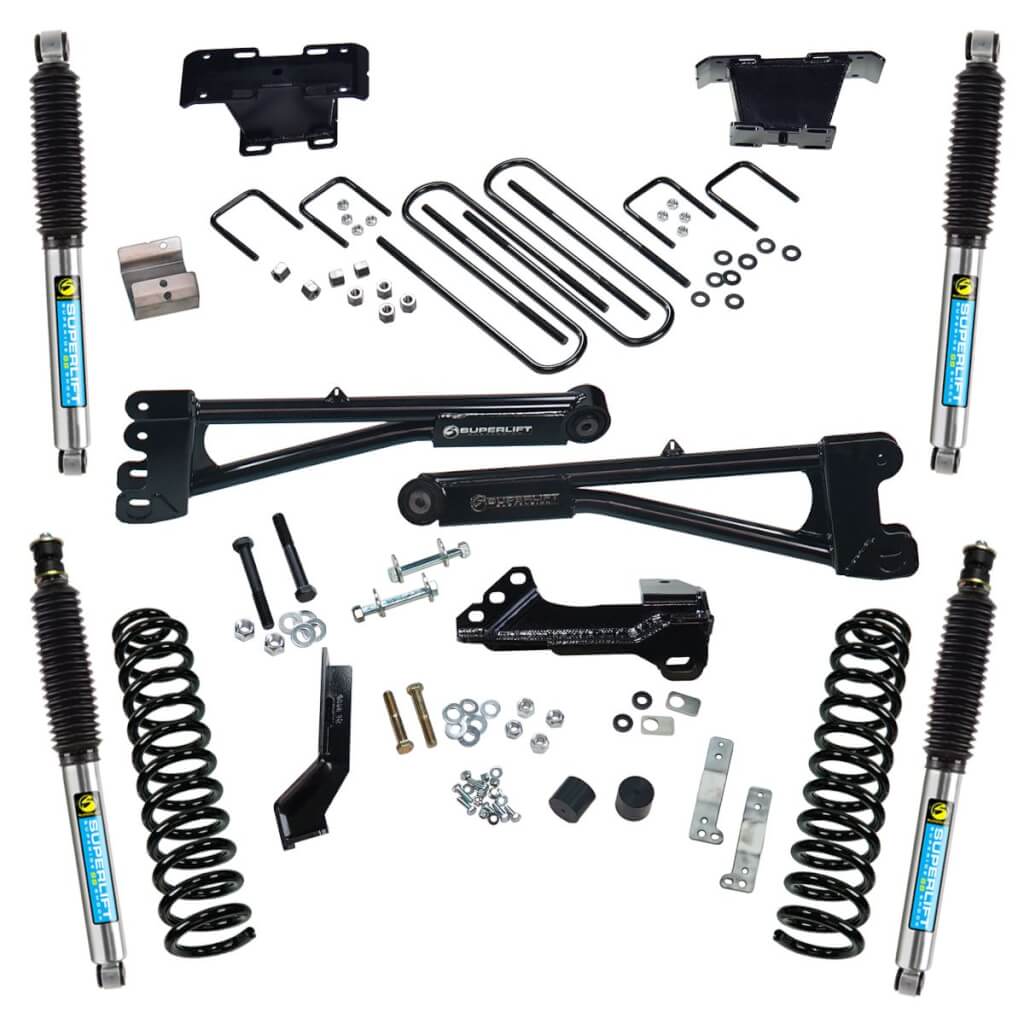

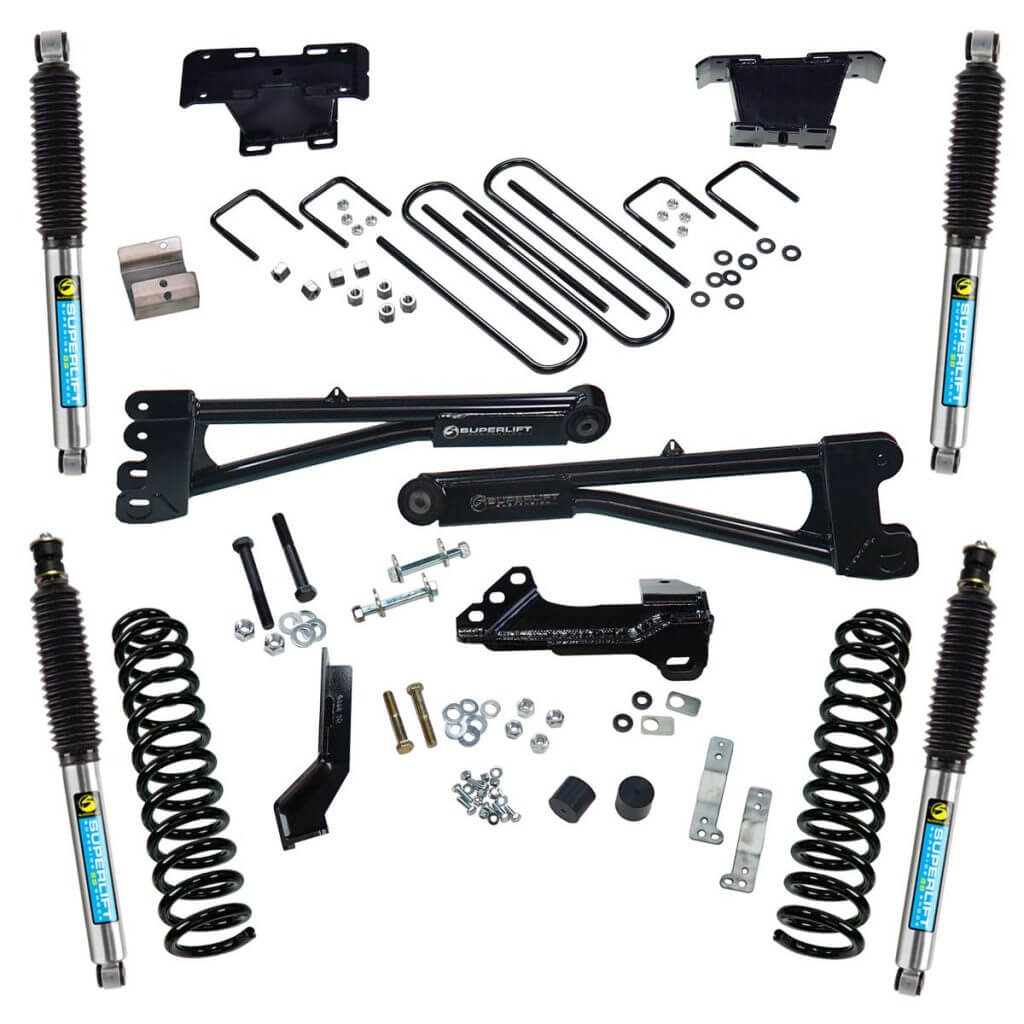

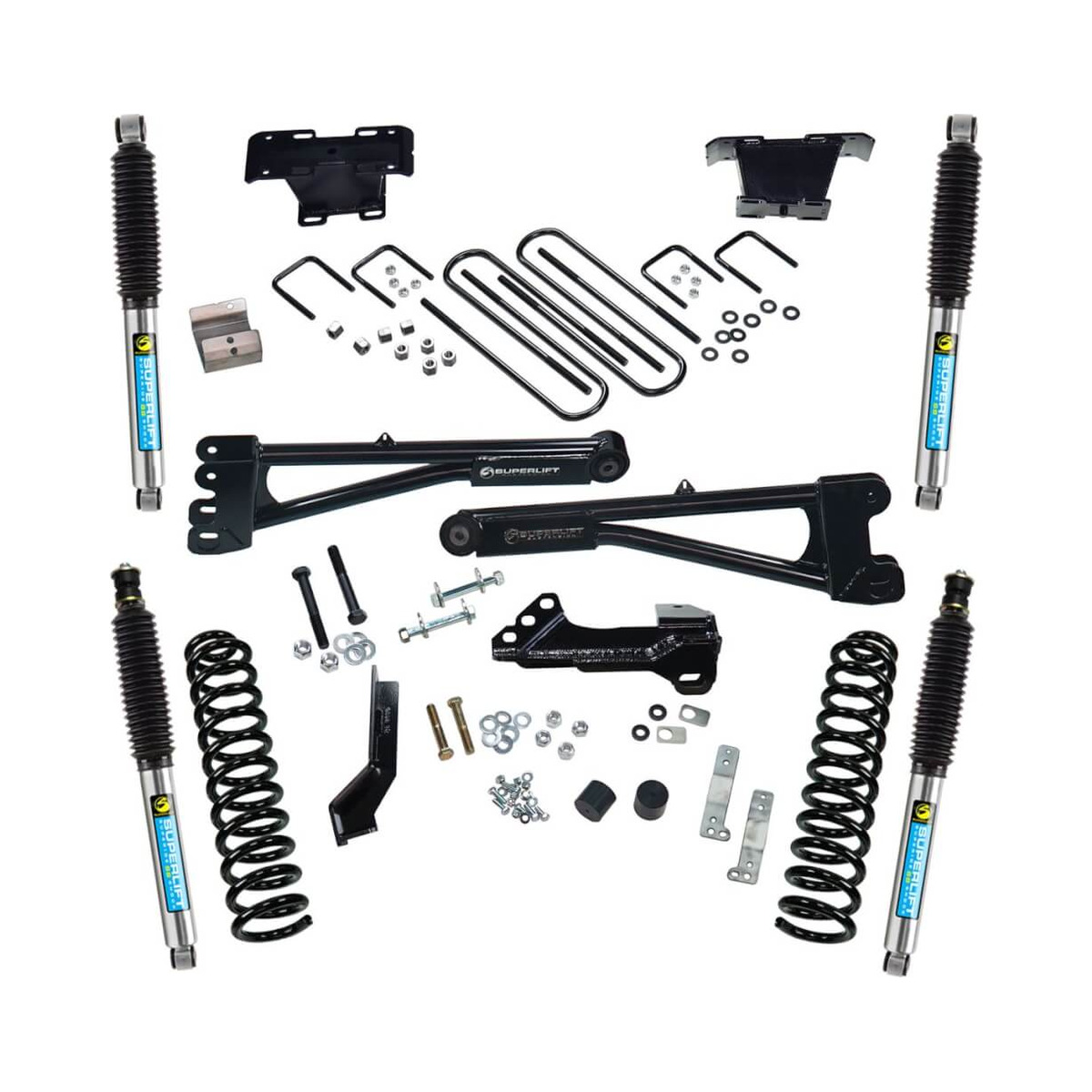

• Front coil springs, replacement radius arms, track bar bracket, brake line brackets, steering stabilizer bracket, Bilstein 5100 series shocks, and all hardware needed for installation.
• Rear fabricated blocks with ubolts and Bilstein 5100 series shocks.
• Detailed instruction manual walking you step-by-step through the lift kit installation procedures suitable for do-it-yourselfers (DIY) or professional installation.
• The best customer service and technical help in the industry.

PRODUCT DETAILS:

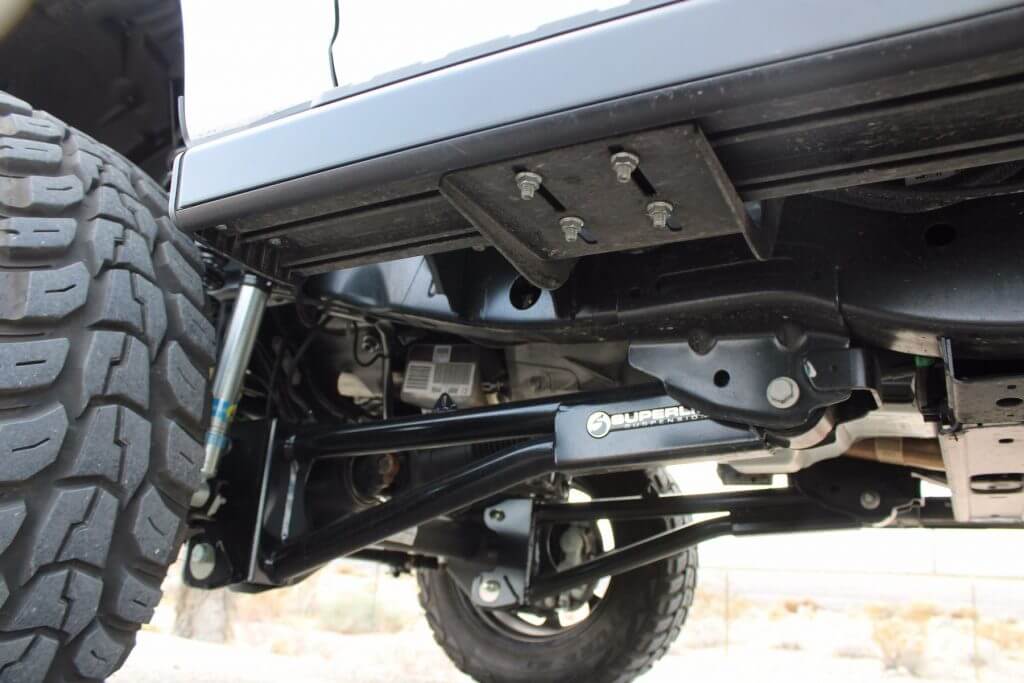

Superlift’s 4″ Lift Kit with replacement radius arms for 2017-2021 Ford Super Duty features set of massive, high clearance, precision engineered, tubular radius arms designed to bolt right into the factory mounts giving your ride a truly custom look and an easy install. These heavy duty radius arms utilize a press fit Cleveite rubber bushing for superior vibration damping and durability. The 4″ lift also contains new, diesel engine specific rated coil springs. A new track bar relocation bracket is also provided to ensure proper steering geometry and track bar phasing. The rear lift is achieved with a new design fabricated rear block that allows the removal of the stock block. The kit is packaged complete with Superlift Superide or Superide SS shocks by Bilstein.

NOTE: If equipped with a 2 piece rear drive shaft, a carrier bearing spacer is required. Part # 9649

NOTE: If equipped with factory top mount overload leaf, longer ubolts will be required. Part # 11724

This 4 inch Lift Kit for 2017-2021 Ford F250 and F-350 4WD is backed by our Limited Lifetime Warranty and Superlift’s

FITMENT TABLE:

TIRE & WHEEL INFO:

IMPORTANT DISCLAIMER: The provided tire/wheel fitments are approximate. Actual dimensions of a given tire size can vary considerably from one brand to another. Manufacturers’ wheel offset and backspacing measurement points are not always consistent. Backspacing greatly impacts tire-to-fender clearance when turning. Wheel width and backspacing influence whether the tires protrude past the fenders, and to what extent. Considering these important factors, we recommend that you fit-check your tire/wheel selection prior to purchasing.

Installation Notes:

• Installation time: 6 hours
• Difficulty level: 3 of 5

DOES IT WORK ON A DUALLY?

The kit works for the front on a dually. The primary issue with dually trucks is the rear u-bolts. We have to confirm axle tube diameter and length required and see if we have a u-bolt available, or, if they will have to be made at a shop near you.

Includes Shocks exactly as pictured
