SuperLift 6″ 4-LINK Kit For 2017-2022 Ford F-250 and F-350 Super Duty with Superide Shocks 4WD – Diesel Only

Description
SuperLift 6″ 4-LINK Kit For 2017-2022 Ford F-250 and F-350 Super Duty with Superide Shocks 4WD – Diesel Only

SuperLift 6″ 4-LINK Kit For 2017, 2018, 2019, 2020, 2021, 2022 Ford F-250 and F-350 Super Duty with Superide Shocks 4WD – Diesel Only

Part: K171

This is a 6″ lift kit with a 4-Link conversion for a 2017 Ford F-250 and F-350 Super Duty 4WD with Superide Shocks.

Include:

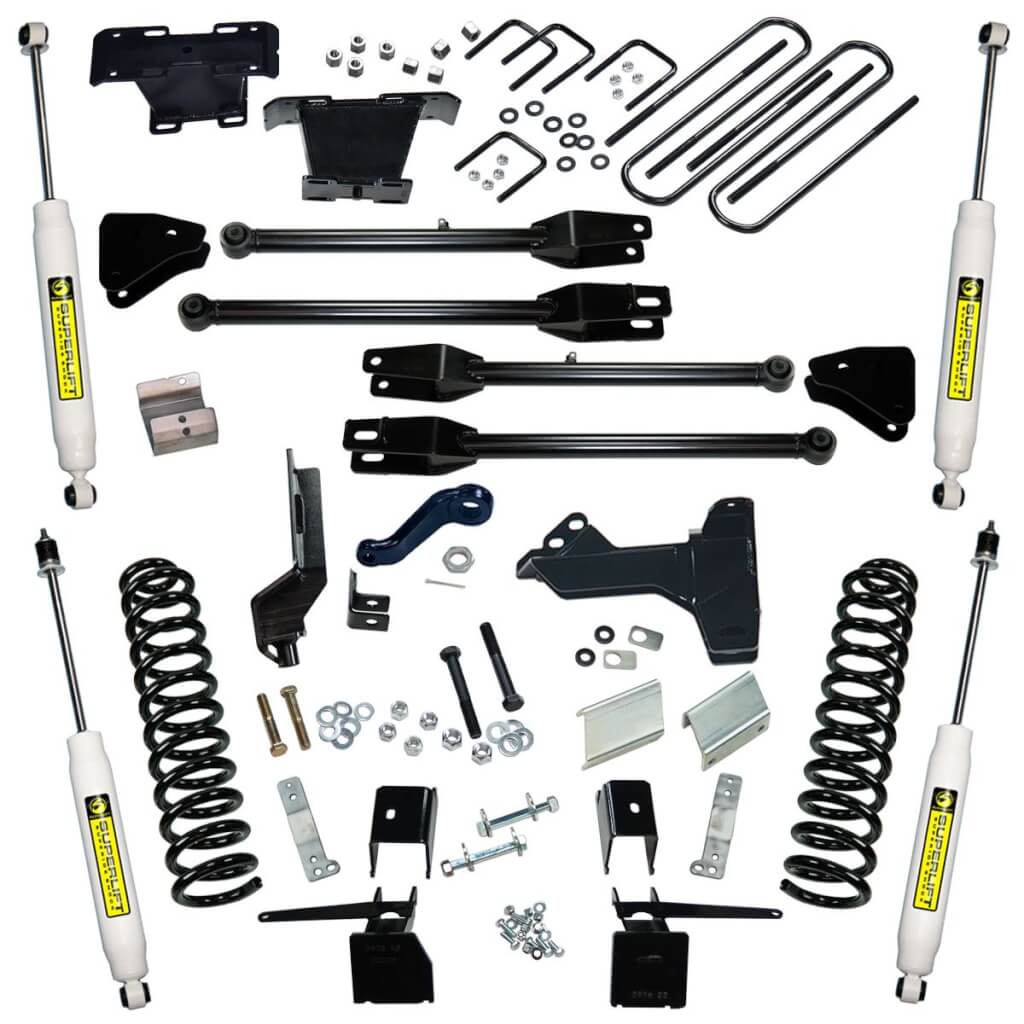

• Coil springs, track bar bracket, 4 link conversion, drop pitman arm, sway bar correction, shocks, rear blocks,and u-bolt kit, and all hardware required specific to the 2017 Ford F-250/F-350 ALL Engines.
• Detailed instruction manual walking you step-by-step through the lift kit installation procedures suitable for do-it-yourselfers (DIY) or professional installation
• The best customer service and technical help in the industry.

PRODUCT DETAILS:

Superlift’s 6″ 4-LINK Lift Kit for the 2017 Ford Super Duty features set of precision engineered, tubular 4-LINK arms designed to give your ride a truly custom look and an easy install. These heavy duty arms utilize a press fit REFLEX bushing for superior vibration damping, flexibility, and durability. The 4-LINK design optimizes the F-250 and F-350’s suspension control and tire wear by limiting caster change through the cycle of the suspension. The 6″ lift also contains new, diesel engine specific rated coil springs. A new track bar relocation bracket and drop pitman arm is also provided to ensure proper steering geometry and track bar phasing. The rear lift is achieved with a new design fabricated rear block that allows the removal of the stock block. The kit is packaged complete with Superlift Superide shocks.

NOTE: If equipped with a 2 piece rear drive shaft, a carrier bearing spacer is required. Part # 9669

NOTE: If equipped with factory top mount overload leaf, longer ubolts will be required. Part # 11734

This 6 inch Lift Kit for 2017 Ford F250 and F-350 4WD is backed by our Limited Lifetime Warranty and Superlift’s Exclusive.

FITMENT TABLE:

TIRE & WHEEL INFO:

IMPORTANT DISCLAIMER: The provided tire/wheel fitments are approximate. Actual dimensions of a given tire size can vary considerably from one brand to another. Manufacturers’ wheel offset and backspacing measurement points are not always consistent. Backspacing greatly impacts tire-to-fender clearance when turning. Wheel width and backspacing influence whether the tires protrude past the fenders, and to what extent. Considering these important factors, we recommend that you fit-check your tire/wheel selection prior to purchasing.

Installation Notes:

• Installation time: 7 hours
• Difficulty level: 3 of 5

if you are interested in getting KING shocks instead, here is the lift kit with KING Shocks:
