Zone Offroad 4″ Radius Arm Lift Kit For 2011-2016 Ford F-350 SD 4WD Gas (EQUIPPED WITH FACTORY OVERLOAD SPRINGS)
Sale!
Description
Zone Offroad 4″ Radius Arm Lift Kit For 2011-2016 Ford F-350 SD 4WD Gas (EQUIPPED WITH FACTORY OVERLOAD SPRINGS)
Zone Offroad 4″ Radius Arm Lift Kit For 2011, 2012, 2013, 2014, 2015, 2016 Ford F-350 Super Duty 4WD Gas (EQUIPPED WITH FACTORY OVERLOAD SPRINGS)
Part: ZONF28
Turn heads and stand out from the crowd with this 4″ Radius Arm Suspension Kit that lets you clear 35″ tires. You’ll definitely make a statement with this kit, complete with rear cast blocks for your 4WD 2011 – 2016 Ford F-250 / F-350.
QUICK SPECS:
- Back Spacing: 4.5″
- Back Spacing 2: 4.5″
- Back Spacing 3: 4.5″
- Finish: Powdercoat
- Accommodates Factory Wheels: See Notes
- Is Adjustable: No
- Front Lift Height: 4″
- Rear Lift Height: 3″
- Front Lift Method: Radius Arms
- Rear Lift Method: Cast Blocks
- Lift Type: Lift Kit
- Max Tire Size: 35 x 12.5
- Max Tire Size 2: 35 x 12.5
- Max Tire Size 3: 35 x 12.5
- Metal Cutting Required: No
- Welding Required: No
- Wheel Size: 17 x 9
- Wheel Size 2: 18 x 9
- Wheel Size 3: 20 x 9

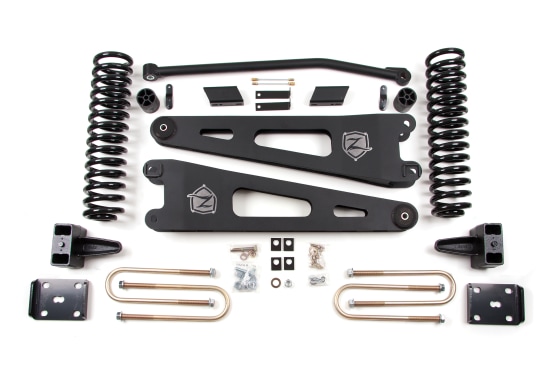

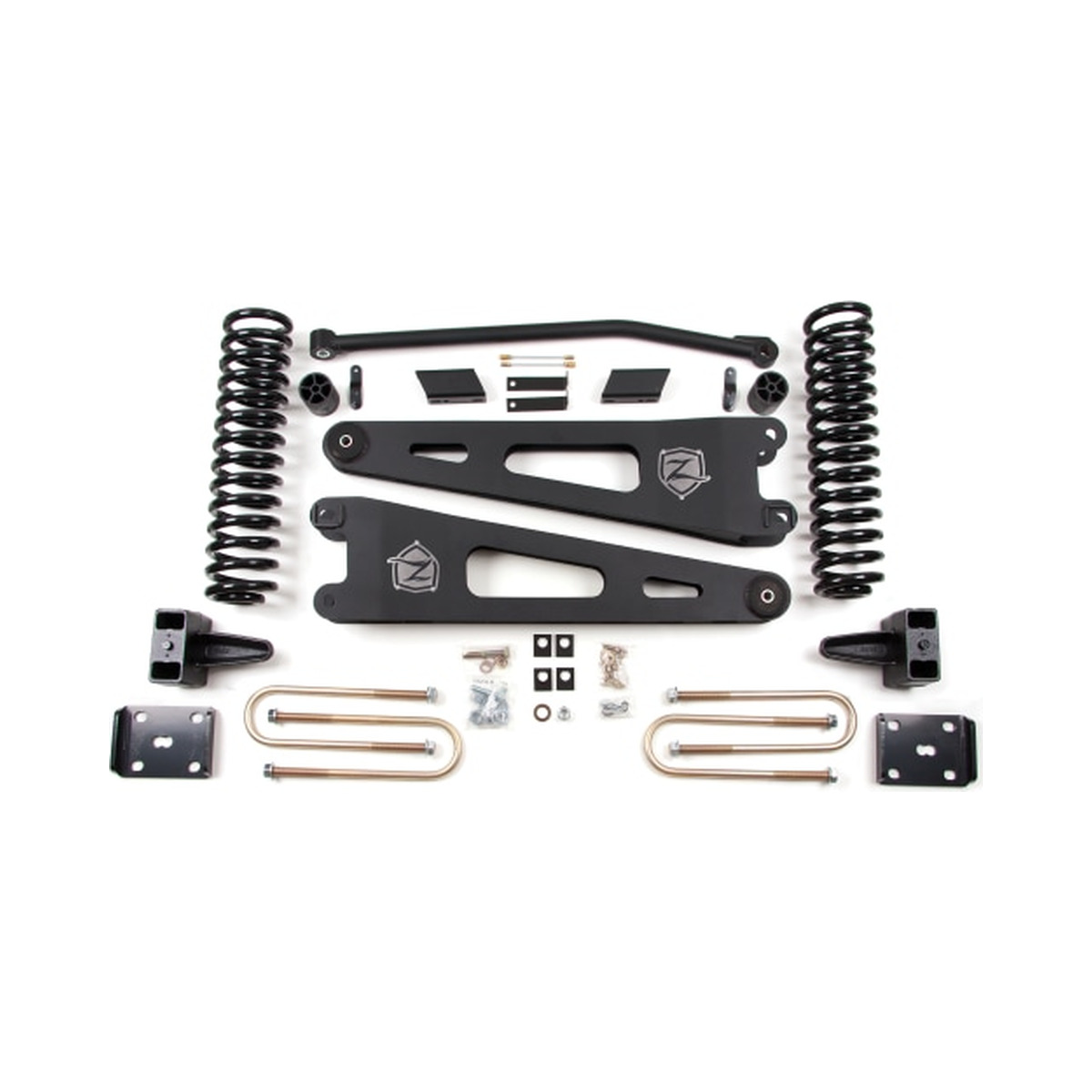

IN THE BOX:
- All Necessary Mounting / Installation Hardware
- Coil Springs
- Rear Lift Block & U-Bolt Kit
- Sway Bar Relocation Brackets
- Track Bar
- Radius Arms
FEATURES:
- Full length replacement coil springs add additional ride height while maintaining ride quality.
- Heavy-duty track bar re-centers front axle, adds strength and limits lateral movement.
- High-strength, 1/4″ steel construction radius arms correct caster, improves tire clearance, and maximizes ground clearance.
- High-strength, black e-coated U-bolts.
- Rear lift block and longer U-bolts for easy installation and level stance.
IMPORTANT NOTES:
- Driveline Notice: Although extremely rare, front and/or rear driveline vibration may occur and require driveline modification.
- Factory wheels fit when paired with factory / original equipment tire size.
- Fitment: This kit is not designed for dually models, but may me easily adapted to accommodate your truck. Please contact customer support and they will help you find a solution.
- Lift Block Selection: This lift will require replacing your truck’s factory rear block to achieve a level stance; total height gained will vary depending on the size of the factory block.
- Mod’s Required: Exhaust modification may be required to clear the front driveshaft on gas models. See installation instructions for more information.
- Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid / eliminate driveshaft vibration.
SPECIFICATIONS:
- Install Time Hours: 6 hrs
- Difficulty Level: 2 out of 5
FITMENT:
- 2011 Ford F-350 Super Duty 4WD Gas
- 2012 Ford F-350 Super Duty 4WD Gas
- 2013 Ford F-350 Super Duty 4WD Gas
- 2014 Ford F-350 Super Duty 4WD Gas
- 2015 Ford F-350 Super Duty 4WD Gas
- 2016 Ford F-350 Super Duty 4WD Gas
